Parts for 75 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Driveshaft Housing

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 75 (3 Cyl.) > 9506481 - 9589038 - Belgium > Driveshaft Housing

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

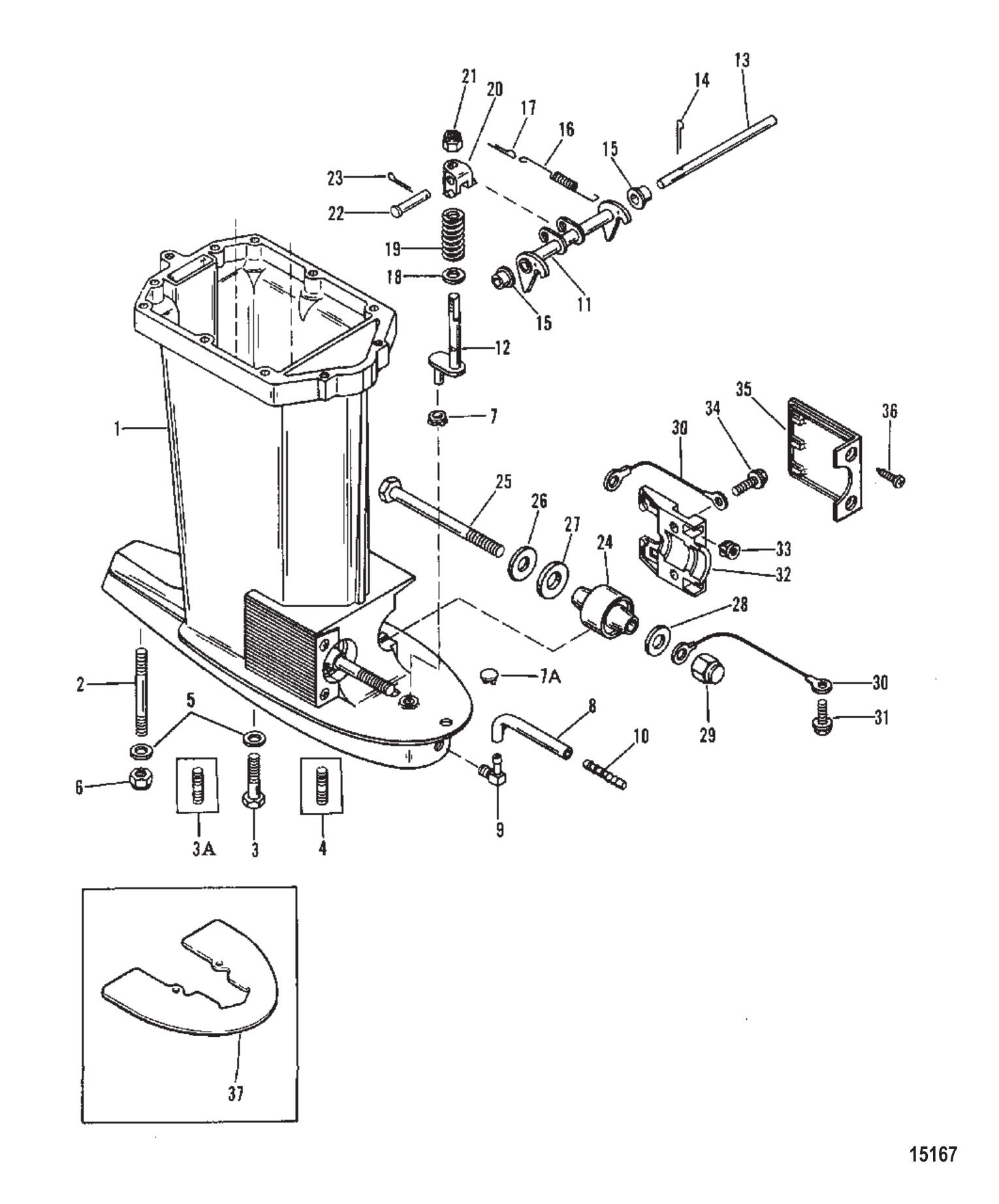

Driveshaft Housing

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8974T23	HOUSING ASSEMBLY DRIVESHAFT BLACK (1 required per assembly) — Replaces: 8974A14, 8974A23
		1598-8974T23 - ORD 898289A49 [ More info ] Unavailable
#1	8974T24	HSG KIT-D SHAFT-G GRAY (1 required per assembly) — Replaces: 8974A15, 8974A24
		1598-8974T24 - HSG KIT-D SHAFT-G [ More info ] Unavailable
#1	8974A24	HOUSING ASSEMBLY DRIVESHAFT OYSTER (1 required per assembly) — Replaces: 8974A20, 8974A15
		1598-8974A24 - HSG KIT-D SHAFT-G [ More info ] Unavailable
#2	903501	STUD (M10 X 100) DRIVE SHAFT HOUSING, LONG (1 required per assembly)
		16-90350 1 - Stud [ More info ] $14.19 1 In Stock.
#2	903502	STUD (M10 X 227) DRIVE SHAFT HOUSING, X-LONG (1 required per assembly)
		16-90350 2 - Stud [ More info ] $86.49 Available to Order: Shipping delay up to 10 days.
#3	4000380	SCREW (M10 X 45) GEAR HOUSING, LONG, BLACK, GRAY (4 required per assembly)
		10-40003 80 - Screw [ More info ] $5.29 1 In Stock.
#4	903503	STUD (M10 X 190) GEAR HOUSING, X-LONG (4 required per assembly)
		16-90350 3 - Stud [ More info ] $26.11 1 In Stock.
#5	45176	WASHER (.453 X .812 X .105) STAINLESS STEEL GEAR HOUSING STUD, SCREW (Quantity Of Three On Oyster) (5 required per assembly) — Replaces: 43042
		12-45176 - Washer, (.453 X .812 X .105) [ More info ] $1.50 6 In Stock.
#6	40140	NUT (M10) GEAR HOUSING STUD (X-Long, Quantity Of Five) (1 required per assembly) — Replaces: 13914
		11-40140 - Nut, (M10) [ More info ] $3.39 7 In Stock.
#7	429222	GUIDE PUSH ROD, NON POWER TRIM (1 required per assembly) — Replaces: 42922
		42922 2 - Guide, NLA [ More info ] $6.67 $5.65 10+ In Stock.
#8	85822A4	PICKUP ASSY (1 required per assembly)
		22-85822A 4 - Pickup Assembly [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#9	433351	CONNECTOR 90 DEGREE - WITH VIBRASEAL (1 required per assembly) — Replaces: 43335
		0433351 - Silencer Assembly, Air (433351) [ More info ] Unavailable
#10	85822T	CONNECTOR STRAIGHT (1 required per assembly) — Replaces: 85822
		22-85822T - Speedometer Tube Connector [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#11	14664A2	HOOK ASSEMBLY REVERSE NON POWER TRIM (1 required per assembly) — Replaces: 14664A1
		14664A 2 - Hook Assembly -revers, NLA [ More info ] $40.00 $33.88 2 In Stock.
#12	16686	PUSH ROD NON POWER TRIM (1 required per assembly)
		16686 - PUSH Rod, NLA [ More info ] $23.50 $19.91 1 In Stock.
#13	99606	SHAFT REVERSE LOCK, NON POWER TRIM (1 required per assembly)
		99606 - Shaft, NLA [ More info ] Unavailable
#14	45882	COTTER PIN SHAFT, NON POWER TRIM (1 required per assembly)
		18-45882 - Cotter Pin - Priced Individually [ More info ] $3.03 10+ In Stock.
#15	69132	BUSHING REVERSE LOCK SHAFT (Non Power Trim) (2 required per assembly)
		23-69132 - Bushing, NLA [ More info ] $8.61 10+ In Stock.
#16	996261	SPRING REVERSE LOCK, NON POWER TRIM (1 required per assembly)
		24-99626 1 - Spring, NLA [ More info ] $4.83 $4.10 10 In Stock.
#17	47959	COTTER PIN SPRING, NON POWER TRIM (1 required per assembly)
		18-47959 - Cotter Pin - Priced Individually [ More info ] $2.99 10+ In Stock.
#18	8M0042642	WASHER (.323 X .562 X .063) PUSH ROD, NON POWER TRIM (1 required per assembly) — Replaces: 70132
		12-8M0042642 - Washer - Priced Individually [ More info ] $1.80 6 In Stock.
#19	16733	SPRING (PUSH ROD NUT, NON POWER TRIM (1 required per assembly)
		24-16733 - Spring (Push Rod Nut, Non Power Trim)NLA [ More info ] $1.50 $1.28 2 In Stock.
#20	996361	YOKE PUSH ROD, NON POWER TRIM (1 required per assembly) — Replaces: 99636
		99636 1 - Yoke, NLA [ More info ] $17.99 $15.23 10 In Stock.
#21	82670911	NUT (.312-24) STAINLESS STEEL JAM, PUSH ROD, NON POWER TRIM (1 required per assembly) — Replaces: 35814
		11-826709 11 - Nut (5/16-24) [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#22	99663	PIN CLEVIS REVERSE LOCK, NON POWER TRIM (1 required per assembly)
		17-99663 - Clevis Pin, NLA [ More info ] Unavailable
#23	25191	COTTER PIN CLEVIS PIN, NON POWER TRIM (1 required per assembly)
		18-25191 - Cotter Pin - Priced Individually [ More info ] $3.79 10+ In Stock.
#24	42930A1	MOUNT ASSEMBLY LOWER LOWER, LONG (2 required per assembly) — Replaces: 42930, 429301
		42930A 1 - Mount Kit [ More info ] $131.99 Available to Order: Shipping delay up to 10 days.
#24	44343T1	MOUNT LOWER, X-LONG (2 required per assembly) — Replaces: 44343, 443431
		44343T 1 - Lower Mount [ More info ] $89.49 Available to Order: Shipping delay up to 10 days.
#25	898835001	SCREW (M12 X 154) LOWER MOUNT (2 required per assembly) — Replaces: 429731, 42973
		10-898835001 - Screw [ More info ] $21.39 Available to Order: Shipping delay up to 10 days.
#26	28051	WASHER LOWER MOUNT BOLT (2 required per assembly)
		12-28051 - Washer [ More info ] $19.29 Available to Order: Shipping delay up to 10 days.
#27	28053	WASHER LOWER MOUNT BOLT (2 required per assembly)
		12-28053 - Washer [ More info ] $3.99 5 In Stock.
#28	30119	WASHER (.875 INCH OUTSIDE DIAMETER) LOWER MOUNT BOLT (2 required per assembly)
		12-30119 - Washer (7/8 X .1196) [ More info ] $2.69 1 In Stock.
#29	8M0204662	NUT LOWER MOUNT BOLT (2 required per assembly) — Replaces: 43528
		11-8M0204662 - Nut [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#30	88238A10	CABLE ASSY (2 required per assembly) — Replaces: 88238A2
		88238A10 - Cable Assembly [ More info ] $8.29 2 In Stock.
#31	41508	SCREW (.250-20 X .500) STAINLESS STEEL GROUND WIRE (1 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#32	8M0036730	CLAMP LOWER MOUNT (2 required per assembly) — Replaces: 93192
		8M0036730 - Clamp [ More info ] $27.59 Available to Order: Shipping delay up to 10 days.
#33	35521	NUT NYLON, COVER SCREW (4 required per assembly)
		11-35521 - Nut - Priced Individually [ More info ] $2.79 $1.57 10+ In Stock.
#34	40011149	SCREW (M8 X 25) STAINLESS STEEL CLAMP (4 required per assembly) — Replaces: 4009525, 81742725
		10-40011149 - Screw [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#35	8M0001130	COVER LOWER MOUNT, BLACK (2 required per assembly) — Replaces: 67077, 67077T
		8M0001130 - Cover [ More info ] Unavailable
		100-8M4500752 - Cover [ More info ] $24.83 1 In Stock.
#35	67077T	COVER BLACK LOWER MOUNT, GRAY (2 required per assembly) — Replaces: 67077T6, 67077F1
		67077T - Lower Black Cover [ More info ] Unavailable
#35	67077F1	COVER GRAY LOWER MOUNT, OYSTER (2 required per assembly) — Replaces: 67077T10, 67077T6
		67077F 1 - Ord 67077, NLA [ More info ] Unavailable
#36	88417	SCREW (#12-24 X .620) COVER (4 required per assembly)
		10-88417 - Screw - Priced Individually [ More info ] $1.80 2 In Stock.
#37	18579T6	SPLASH PLATE OYSTER (1 required per assembly) — Replaces: 18579T10
		18579T 6 - Splash Plate, NLA [ More info ] Unavailable
#--	12092A3	SPACER KIT DRIVE SHAFT HOUSING X-LONG BLACK (1 required per assembly)
		12092A 3 - Spacer - Drive Shaft Housing - XL - Black [ More info ] $382.99 $91.82 1 In Stock.
#--	12092A4	SPACER KIT DRIVE SHAFT HOUSING X-LONG (GRAY) (1 required per assembly)
		12092A 4 - SPACER KIT-XL-GR,NLA [ More info ] Unavailable
#3A	9035012	STUD (M10 X 63) GEAR HOUSING, OYSTER (1 required per assembly) — Replaces: 903504
		16-90350 12 - Stud [ More info ] $13.89 Available to Order: Shipping delay up to 10 days.
#7A	429221	PLUG POWER TRIM, BLACK, GRAY (1 required per assembly) — Replaces: 15864
		42922 1 - Plug, NLA [ More info ] $4.99 $4.22 10+ In Stock.
#7A	158641	PLUG POWER TRIM, OYSTER (1 required per assembly)
		19-15864 1 - PLUG,NLA [ More info ] Unavailable
