Parts for 40 MXL Seapro 2-Stroke Carbureted Mercury Outboard Motor Throttle Linkage

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40 MXL Seapro > 0N037781 - 0N056164 > Throttle Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

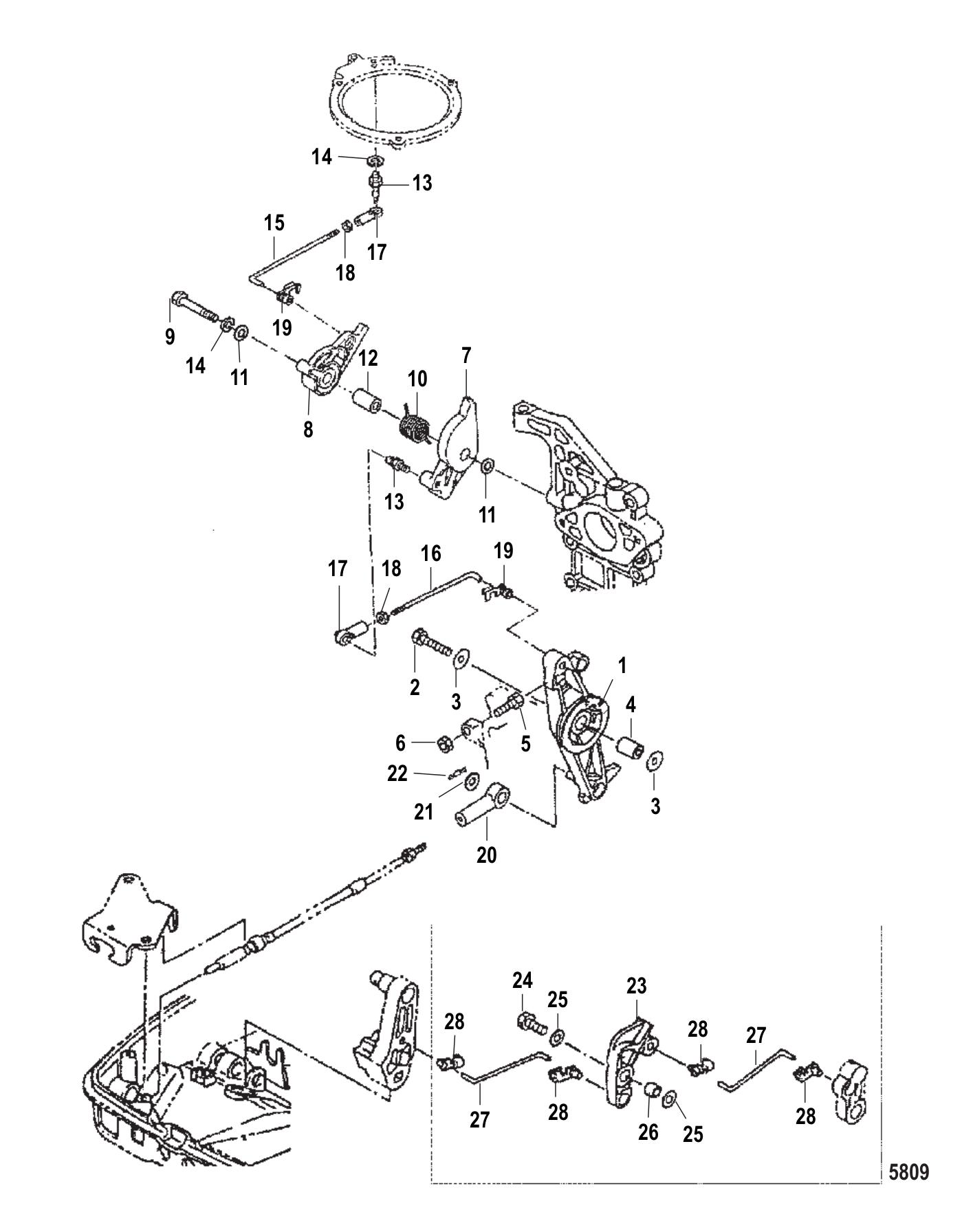

Throttle Linkage

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	853742003	ARM-ADVANCER (1 required per assembly) — Replaces: 8537421
		853742003 - ARM-ADVANCER [ More info ] $19.78 Available to Order: Shipping delay up to 10 days.
#2	16201	BOLT (1 required per assembly)
		10-16201 - Bolt [ More info ] $12.89 Available to Order: Shipping delay up to 10 days.
#3	161404	WASHER (2 required per assembly)
		12-16140 4 - Washer [ More info ] $4.29 2 In Stock.
#4	9528612	COLLAR (1 required per assembly)
		23-95286 12 - Collar [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#5	16830	BOLT (1 required per assembly)
		10-16830 - Bolt [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#6	400212	NUT (1 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#7	8537501	THROTTLE CAM (Lightning XR/50) (1 required per assembly)
		8537501 - THROTTLE CAM [ More info ] Unavailable
#7	8537502	THROTTLE CAM (Lightning) (1 required per assembly)
		853750 2 - Throttle Cam [ More info ] $13.99 Available to Order: Shipping delay up to 10 days.
#8	803156	LEVER-ADVANCER (1 required per assembly)
		803156 - Advancer Lever [ More info ] $19.19 Available to Order: Shipping delay up to 10 days.
#9	4000333	SCREW @5 (1 required per assembly) — Replaces: 82304218
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#10	803157	SPRING (1 required per assembly)
		24-803157 - Spring, Throttle Cam [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#11	953921	WASHER (2 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#12	9528613	COLLAR (1 required per assembly)
		23-9528613 - COLLAR [ More info ] Unavailable
#13	853744001	BALL JOINT (2 required per assembly) — Replaces: 853744
		853744001 - Ball Joint [ More info ] $8.49 Available to Order: Shipping delay up to 10 days.
#14	400256	LOCKWASHER @5 (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#15	8M0054756	LINK-L (1 required per assembly) — Replaces: 8555612
		8M0054756 - Link-L [ More info ] $6.59 Available to Order: Shipping delay up to 10 days.
#16	8555616	L-LINK (1 required per assembly)
		8555616 - L-LINK [ More info ] Unavailable
#17	853745	SOCKET (2 required per assembly)
		853745 - Ball Socket [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#18	16081	NUT (2 required per assembly) — Replaces: 8537225
		11-16081 - Nut, Stainless Steel [ More info ] $5.69 1 In Stock.
#19	163332	ROD SNAP (2 required per assembly)
		16333 2 - Rod Snap [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#20	8M0079131	SOCKET (1 required per assembly) — Replaces: 8537452, 853745003
		8M0079131 - Socket [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#21	953925	WASHER (1 required per assembly)
		12-95392 5 - Washer [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#22	8150262	PIN-COTTER (1 required per assembly)
		18-815026 2 - Cotter Pin [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#23	803993	ARM THROTTLE STOP (HANDLE) (1 required per assembly)
		803993 - Arm-Throttle Stop [ More info ] $5.89 Available to Order: Shipping delay up to 10 days.
#24	8M0204707	SCREW @5 (HANDLE) (1 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#25	16826	WASHER STAINLESS STEEL (HANDLE) (2 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#26	8M0021168	COLLAR (HANDLE) (1 required per assembly) — Replaces: 9528624
		23-8M0021168 - Spacer [ More info ] $5.49 Available to Order: Shipping delay up to 10 days.
#27	803994	S-LINK (HANDLE) (2 required per assembly)
		803994 - S-Link [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#28	8M0148747	ROD SNAP (HANDLE) (4 required per assembly)
		8M0148747 - ROD SNAP [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
