Parts for 70, 700 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Starter Motor, Starter Solenoid, Rectifier

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 70, 700 (3 Cyl.) > 5579017 - 6428680 - USA > Starter Motor, Starter Solenoid, Rectifier

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

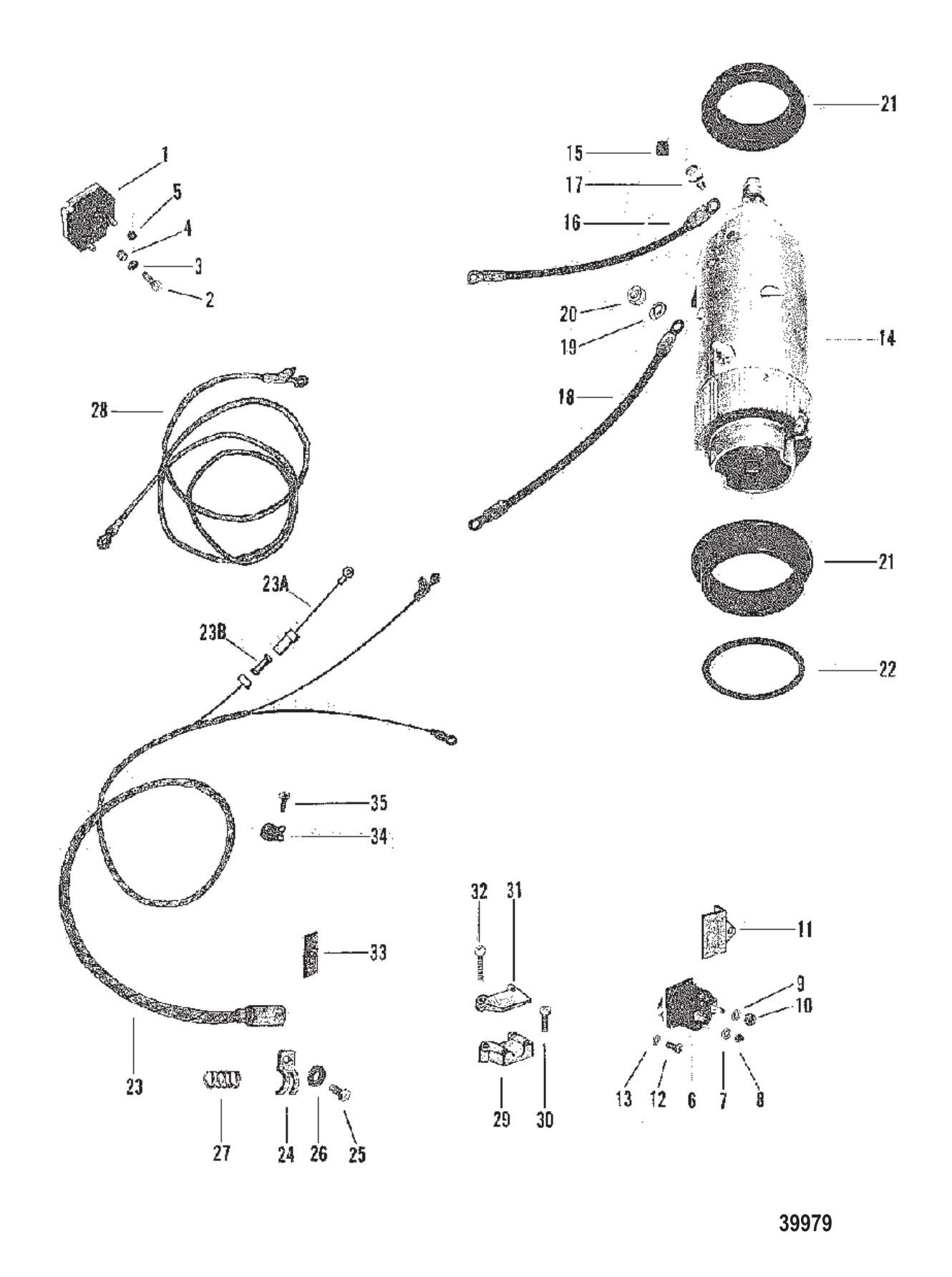

Starter Motor, Starter Solenoid, Rectifier

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	816770T	RECTIFIER (1 required per assembly) — Replaces: 62351A1, 816770
		816770T - 8M0058226 [ More info ] Unavailable
		8M0058226 - Rectifier - Outboard [ More info ] $99.99 In Stock
		18-99416 - Regulated Rectifier 445114, 193-5114 [ More info ] $119.79 $110.72 In Stock
		18-5707 - Rectifier 816770 [ More info ] $55.99 $54.04 2 In Stock.
		300-01404 - Rectifier [ More info ] $46.99 $42.60 2 In Stock.
		193-5114 [ More info ] $103.60 $103.59 In Stock
		AR351 - Rectifier [ More info ] $49.15 $45.57 In Stock
#2	38055	SCREW (.190-32 X .620) RECTIFIER TO PLATE (2 required per assembly)
		10-38055 - Screw - Priced Individually [ More info ] $12.92 10+ In Stock.
#3	26996	LOCKWASHER (#10) STAINLESS STEEL RECTIFIER SCREW (2 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#4	94304	SPACER RECTIFIER SCREW (2 required per assembly)
		23-94304 - Spacer - Switch Box Screw [ More info ] $39.49 $37.52 10+ In Stock.
#5	45076	NUT (#10-32) BRASS RECTIFIER TERMINAL (3 required per assembly)
		11-45076 - Nut (#10-32) (brass) [ More info ] $1.80 10+ In Stock.
#6	68258A4	SOLENOID [USA-6104369/Belgium-9352915/Canada-7192547] & Below (1 required per assembly) — Replaces: 76545, 76545T
		89-68258A 4 - Solenoid [ More info ] Unavailable
		89-853654A 1 - Solenoid [ More info ] $47.01 2 In Stock.
		18-5815 - Solenoid 89-853654A1 [ More info ] $39.87 7 In Stock.
		89-02815 - Solenoid, 89-853654A1 [ More info ] $24.49 $24.18 9 In Stock.
		SW275 - Solenoid, 89-853654A 1 [ More info ] $33.75 $32.09 In Stock
#6	96054T	SOLENOID [USA-6104370/Belgium-9352916/Canada-7192548] & Up (1 required per assembly) — Replaces: 96054
		89-96054T - Solenoid [ More info ] Unavailable
		18-5816 - Solenoid, 89-96054 [ More info ] $31.35 In Stock
		89-8M0185149 - Start Solenoid [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
		89-02719 - Solenoid, 89-96054T [ More info ] $20.72 10+ In Stock.
		SW054 - Solenoid [ More info ] $28.65 $27.68 In Stock
#7	26996	LOCKWASHER (#10) STAINLESS STEEL SOLENOID TERMINAL (310) [USA-6104369/Belgium-9352915/Canada-7192547] & Below (2 required per assembly)
#7	26995	LOCKWASHER (#8) STAINLESS STEEL SOLENOID TERMINAL [USA-6104370/Belgium-9352916/Canada-7192548] & Up (2 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable
#8	68219	NUT (#10-32) STAINLESS STEEL SOLENOID TERMINAL [USA-6104369/Belgium-9352915/Canada-7192547] & Below (2 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#8	26419	NUT (#8-32) BRASS SOLENOID TERMINAL [USA-6104370/Belgium-9352916/Canada-7192548] & Up (2 required per assembly)
		11-26419 - Nut (#8-32) (brass) [ More info ] $1.70 10+ In Stock.
#9	8M0204647	LOCKWASHER @5 SOLENOID TERMINAL [USA-6104369/Belgium-9352915/Canada-7192547] & Below (2 required per assembly) — Replaces: 26993
		138M0204647 - LOCKWASHER, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#9	26992	LOCKWASHER (.250) STAINLESS STEEL SOLENOID TERMINAL [USA-6104370/Belgium-9352916/Canada-7192548] & Up (2 required per assembly)
		13-26992 - LockWasher - Priced Individually [ More info ] $1.20 10+ In Stock.
#10	8M0204668	NUT (.312-18) SOLENOID TERMINAL [USA-6104369/Belgium-9352915/Canada-7192547] & Below (2 required per assembly) — Replaces: 68292
		11-8M0204668 - NUT @5 [ More info ] Unavailable
#10	94330	NUT (.250-20) BRASS SOLENOID TERMINAL [USA-6104370/Belgium-9352916/Canada-7192548] & Up (2 required per assembly)
		11-94330 - Nut, Brass (1/4-20) [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#11	78866	INSULATOR STARTER SOLENOID (1 required per assembly)
		85-78866 - Insulator, NLA [ More info ] $12.07 $10.23 10+ In Stock.
#11	97861	INSULATOR STARTER SOLENOID (1 required per assembly)
		85-97861 - Insulator [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#12	69054	SCREW (.250-20 X .620) SOLENOID TO ATTENUATOR (2 required per assembly)
		10-69054 - Screw, NLA [ More info ] $1.36 $1.16 10+ In Stock.
#13	26992	LOCKWASHER (.250) STAINLESS STEEL SOLENOID SCREW (2 required per assembly)
#14	44369A1	STARTER KIT (1 required per assembly) — Replaces: 65436
		50-44369A 1 - Starter Kit, 7 inch starter with adapter for 8 inch applications [ More info ] Unavailable
		18-5642 - Starter 50-66015, 8 inch, See Detail Page for Important Information [ More info ] $299.99 $288.77 4 In Stock.
		5388 - Outboard Starter, Mercury, 50-60HP, 7 inch, See detail page for more info [ More info ] $226.31 2 In Stock.
		5375 - Starter, 50-66015, 10 Tooth, 8 inch, See detail page for more [ More info ] $272.26 4 In Stock.
#15	8M0043376	STOP RUBBER-STARTER MOTOR (2 required per assembly) — Replaces: 57247, 68042
		8M0043376 - Stop [ More info ] $47.11 2 In Stock.
#16	93388A1	CABLE ASSEMBLY (6.00 INCHES) BLACK STARTER TO SOUND ATTENUATOR (1 required per assembly)
		84-93388A 1 - Cable Assembly [ More info ] $13.19 Available to Order: Shipping delay up to 10 days.
#17	69035	SCREW AND LOCKWASHER (.250-20 X .625) STAINLESS STEEL CABLE TO STARTER MOTOR (1 required per assembly)
		10-69035 - Screw/LockWasher [ More info ] $1.90 $1.52 10+ In Stock.
#18	93389A6	CABLE ASSEMBLY SOLENOID TO STARTER MOTOR (YELLOW)-9-1/2&QUOT; (1 required per assembly)
		84-93389A 6 - WIRE ASSY,NLA [ More info ] Unavailable
#19	26992	LOCKWASHER (.250) STAINLESS STEEL STARTER MOTOR TERMINAL (1 required per assembly)
#20	20890	NUT (.250-20) STARTER MOTOR TERMINAL (1 required per assembly)
		11-20890 - Nut (1/4 x20) [ More info ] $0.30 7 In Stock.
#21	8M0034918	COLLAR RUBBER-STARTER MOUNT (2 required per assembly) — Replaces: 56703, 8M0001391
		23-8M0034918 - Collar [ More info ] $9.29 2 In Stock.
#22	56774	SPACER COLLAR TO MOUNTING BRACKETS (AR required per assembly)
		23-56774 - Spacer, NLA [ More info ] Unavailable
#23	96271A2	HARNESS ASSEMBLY (INTERNAL) (1 required per assembly)
		84-96271A 2 - Wiring Harness, NLA [ More info ] Unavailable
#24	88167	CLAMP WIRING HARNESS (1 required per assembly)
		54-88167 - CLAMP,NLA [ More info ] Unavailable
#25	23702	SCREW (.190-32 X 1.12) WIRING HARNESS CLAMP (1 required per assembly)
		10-23702 - Screw, NLA [ More info ] $4.31 10+ In Stock.
#26	72761	WASHER (.203 X .562 X .060) STAINLESS STEEL WIRING HARNESS CLAMP SCREW (1 required per assembly)
		12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ] $1.63 10+ In Stock.
#27	28357	SPRING WIRING HARNESS (1 required per assembly)
		24-28357 - Spring, NLA [ More info ] $12.08 $10.23 10+ In Stock.
#28	88439A7	CABLE ASSEMBLY BATTERY (POSITIVE) (1 required per assembly)
		84-88439A 7 - Battery Cable, NLA [ More info ] $10.87 $9.21 10 In Stock.
#28	88439A4	CABLE ASSY-NEG (1 required per assembly)
		84-88439A 4 - Cable Assembly -neg [ More info ] $48.89 2 In Stock.
#29	88683	BRACKET WIRING HARNESS SUPPORT (1 required per assembly)
		88683 - Bracket, NLA [ More info ] Unavailable
#30	23015	SCREW (.190-32 X 1.00) BRACKET ATTACHING (2 required per assembly)
		10-23015 - Screw [ More info ] Unavailable
#31	88682	COVER HARNESS SUPPORT BRACKET (1 required per assembly)
		88682 - Cover [ More info ] $7.78 $6.59 10+ In Stock.
#32	25158	SCREW (.190-32 X 1.75) COVER TO BRACKET (2 required per assembly)
		10-25158 - Screw [ More info ] $3.49 $2.96 10+ In Stock.
#33	60925	SEAL WIRING HARNESS BRACKET (1 required per assembly)
		26-60925 - Seal, NLA [ More info ] $2.00 $1.69 10 In Stock.
#34	28700	CLAMP WIRING HARNESS (1 required per assembly)
		54-28700 - Clamp [ More info ] $2.99 $2.53 4 In Stock.
#35	73286	SCREW (.250-20 X .500) STAINLESS STEEL WIRING HARNESS CLAMP (1 required per assembly)
		10-73286 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#23A	95084A2	CABLE ASSEMBLY FUSE (1 required per assembly)
		84-95084A 2 - Cable Assembly [ More info ] $17.39 Available to Order: Shipping delay up to 10 days.
#23B	8M0207796	FUSE-20 AMP @5 (1 required per assembly) — Replaces: 79091
		888M0207796 - FUSE-20 AMP Note: Priced Individually [ More info ] $9.09 Available to Order: Shipping delay up to 10 days.
