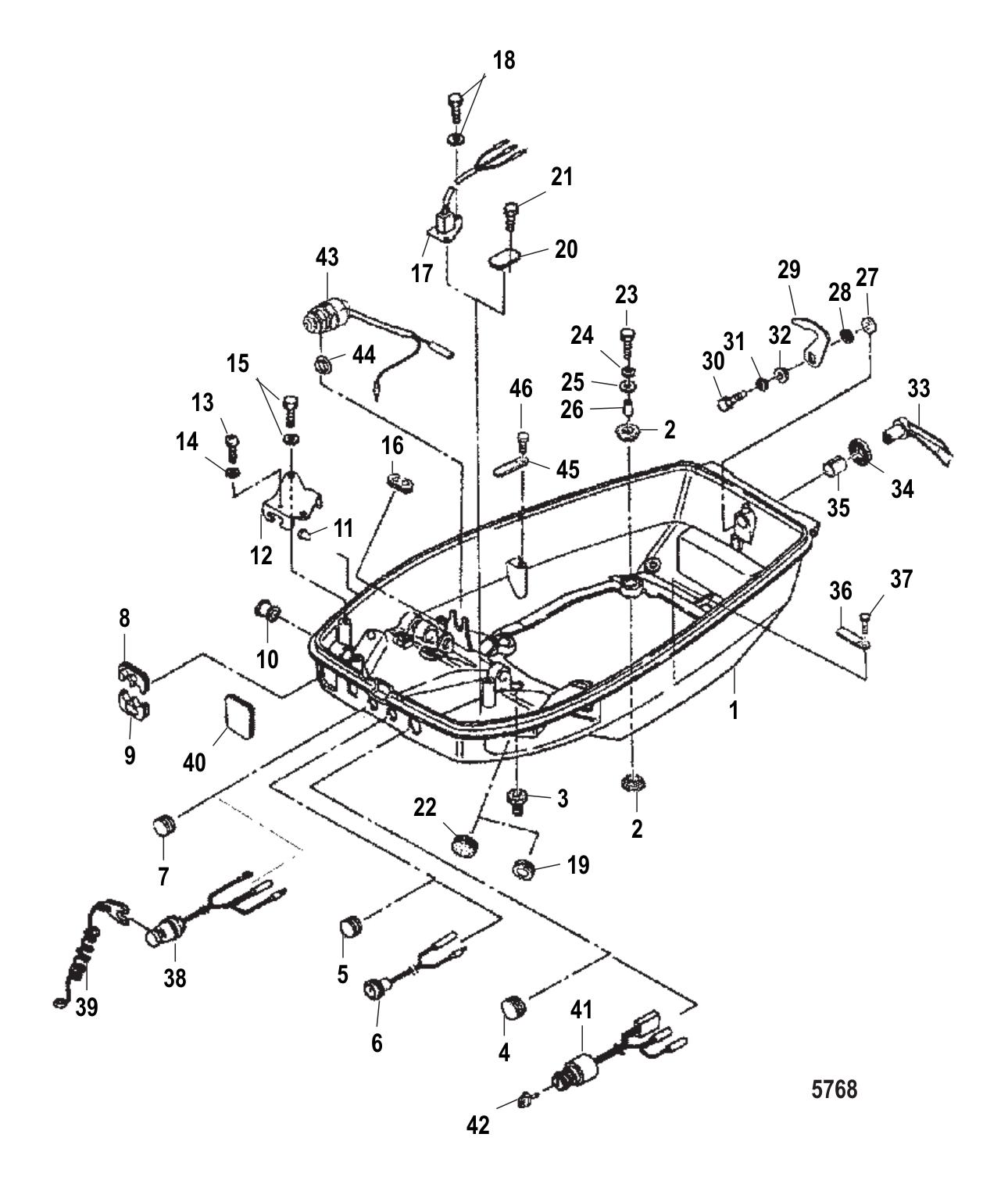

Parts for 40 MXL Marathon 2-Stroke Carbureted Mercury Outboard Motor Bottom Cowl
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 8M0085711 | KIT-COWL,BACKFIT (Black) (1 required per assembly) — Replaces: 8537773 |
  |
|
1008M0085711 - KIT-COWL,BACKFIT [ More info ]
|
| #1 | 8537774 | BOTTOM COWL-GR (Gray) (1 required per assembly) |
  |
|
2189-8537774 - BOTTOM COWL-GR NLA [ More info ] Unavailable |
| #2 | 8537437 | BUSHING (8 required per assembly) |
  |
|
23-853743 7 - Bushing [ More info ]
|
| #3 | 16823 | GROMMET (1 required per assembly) |
  |
|
25-16823 - Grommet [ More info ]
|
| #4 | 162263 | GROMMET (MANUAL) (1 required per assembly) |
  |
|
25-16226 3 - Grommet [ More info ]
|
| #5 | 16226 | GROMMET (NON-OIL INJECTION) (1 required per assembly) |
  |
|
25-16226 - Grommet [ More info ]
|
| #6 | 804057 | PILOT LAMP (OIL INJECTION) (1 required per assembly) |
  |
|
804057 - Pilot LAMP [ More info ]
|
| #7 | 16226 | GROMMET (1 required per assembly) |
| #8 | 8518502 | GROMMET (1 required per assembly) |
  |
|
25-851850 2 - Grommet [ More info ]
|
| #9 | 8518503 | GROMMET (1 required per assembly) |
  |
|
25-851850 3 - Grommet [ More info ]
|
| #10 | 162284 | GROMMET (1 required per assembly) |
  |
|
0162284 - Part (162284) [ More info ] Unavailable |
| #11 | 855549 | PLUG (1 required per assembly) |
  |
|
19-855549 - Plug [ More info ]
|
| #12 | 8518364 | BRACKET (1 required per assembly) |
  |
|
851836 4 - Bracket [ More info ]
|
| #13 | 823042075 | SCREW (1 required per assembly) — Replaces: 8518665 |
  |
|
10-823042075 - Screw [ More info ]
|
| #14 | 168181 | LOCKWASHER (1 required per assembly) |
  |
|
13-16818 1 - LockWasher [ More info ]
|
| #15 | 8248324 | SCREW @5 (2 required per assembly) — Replaces: 82304213 |
  |
|
10-824832 4 - Screw [ More info ]
|
| #16 | 8518506 | GROMMET (HANDLE) (1 required per assembly) |
  |
|
25-8518506 - GROMMET [ More info ] Unavailable |
| #16 | 8518504 | GROMMET (REMOTE CONTROL) (1 required per assembly) |
  |
|
25-851850 4 - Grommet [ More info ]
|
| #17 | 851883 | SWITCH (POWER TRIM) (1 required per assembly) |
  |
|
87-851883 - Switch [ More info ]
|
| #18 | 8230427 | BOLT ASSEMBLY (M6 X 12) (POWER TRIM) (2 required per assembly) |
  |
|
10-823042 7 - Bolt [ More info ]
|
| #19 | 953871 | GROMMET (POWER TRIM) (1 required per assembly) |
  |
|
25-95387 1 - Grommet [ More info ]
|
| #20 | 8518507 | GROMMET (MANUAL TILT) (1 required per assembly) |
  |
|
25-8518507 - GROMMET [ More info ] Unavailable |
| #21 | 168288 | BOLT (MANUAL TILT) (2 required per assembly) |
  |
|
10-168288 - BOLT [ More info ] Unavailable |
| #22 | 16226 | GROMMET (MANUAL TILT) (1 required per assembly) |
| #23 | 16830 | BOLT (4 required per assembly) |
  |
|
|
| #24 | 400256 | LOCKWASHER @5 (4 required per assembly) |
  |
|
13-40025 6 - LockWasher - Priced Individually [ More info ]
|
| #25 | 161404 | WASHER (4 required per assembly) |
  |
|
12-16140 4 - Washer [ More info ]
|
| #26 | 853715007 | SPACER (4 required per assembly) — Replaces: 8537154 |
  |
|
23-853715007 - Spacer [ More info ]
|
| #27 | 953922 | WASHER (1 required per assembly) |
  |
|
12-95392 2 - Washer [ More info ]
|
| #28 | 16221 | WASHER-WAVE (1 required per assembly) |
  |
|
13-16221 - Wave Washer [ More info ]
|
| #29 | 8M0146267 | COVER HOOK (1 required per assembly) — Replaces: 162222 |
  |
|
8M0146267 - Cover HOOK [ More info ]
|
| #30 | 8230427 | BOLT (1 required per assembly) — Replaces: 8107552, 8M0088179 |
| #31 | 400256 | LOCKWASHER @5 (1 required per assembly) |
| #32 | 953921 | WASHER (1 required per assembly) |
  |
|
12-95392 1 - Washer [ More info ]
|
| #33 | 162184 | HOOK LEVER-BL (Black) (1 required per assembly) |
  |
|
[ More info ] Unavailable |
| #33 | 162185 | HOOK LEVER-GRAY (Gray) (1 required per assembly) |
  |
|
0162185 - Part (162185) [ More info ] Unavailable |
| #34 | 16219 | SEAL (1 required per assembly) |
  |
|
|
| #35 | 16220 | BUSHING (1 required per assembly) |
  |
|
23-16220 - Bushing [ More info ]
|
| #36 | 813275 | CLAMP (POWER TRIM) (1 required per assembly) |
  |
|
54-813275 - Clamp [ More info ]
|
| #37 | 162231 | BOLT (POWER TRIM) (1 required per assembly) |
  |
|
10-16223 1 - Bolt, NLA [ More info ]
|
| #38 | 804051A1 | LANYARD SWITCH (HANDLE) (1 required per assembly) |
  |
|
87-804051A 1 - Switch-Lanyard [ More info ]
|
| #39 | 823054 | LANYARD (HANDLE) (1 required per assembly) |
  |
|
823054 - Lanyard Assembly [ More info ]
|
  |
|
823054Q - Lanyard Assembly - Priced Individually [ More info ]
|
| #40 | 8518505 | GROMMET (1 required per assembly) |
  |
|
25-851850 5 - Grommet [ More info ]
|
| #41 | 804052A1 | MAIN SWITCH (ELECTRIC) (1 required per assembly) |
  |
|
87-804052A 1 - Switch-Main [ More info ]
|
| #42 | 802989 | KEY (ELECTRIC) (#301) (1 required per assembly) |
  |
|
802989 - Key #301 [ More info ]
|
| #42 | 8029891 | KEY (ELECTRIC) (#302) (1 required per assembly) |
  |
|
802989 1 - Key #302 [ More info ]
|
| #42 | 8029892 | KEY (ELECTRIC) (#303) (1 required per assembly) |
  |
|
802989 2 - Key #303 [ More info ]
|
| #43 | 8M0127937 | SWITCH NEUTRAL (ELECTRIC) (1 required per assembly) — Replaces: 804054, 804054001 |
  |
|
878M0127937 - Neutral Switch [ More info ]
|
| #44 | 9539211 | WASHER (ELECTRIC) (1 required per assembly) |
  |
|
12-95392 11 - Washer [ More info ]
|
| #45 | 813275 | CLAMP (ELECTRIC) (1 required per assembly) |
| #46 | 162231 | BOLT (HANDLE) (1 required per assembly) |
