Parts for 40 Lightning (International) 2-Stroke Carbureted Mercury Outboard Motor Steering Handle

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40 Lightning (International) > 0N000001 - 0N056164 > Steering Handle

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

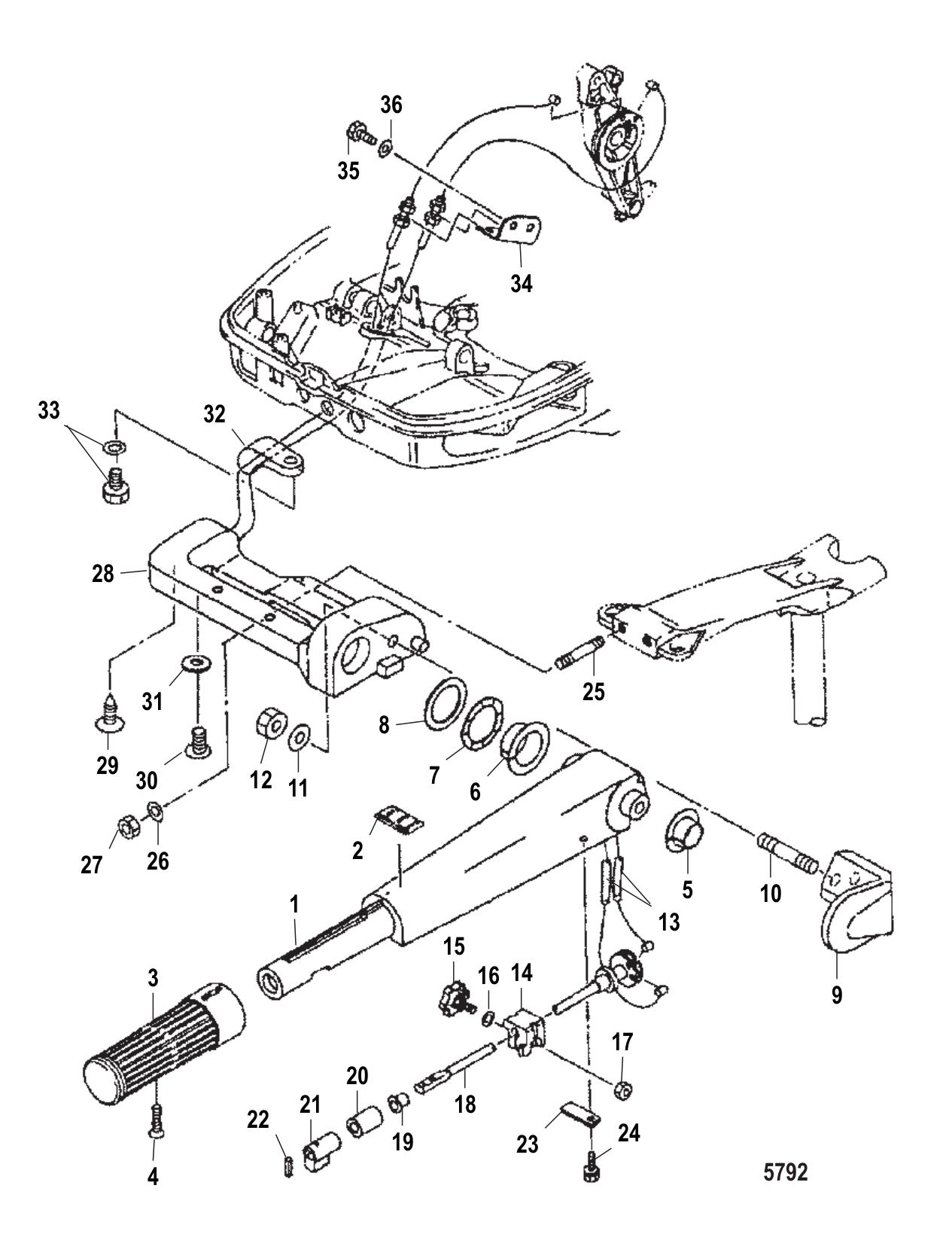

Steering Handle

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	803996T09	HANDLE KIT (1 required per assembly) — Replaces: 803996A1
		803996T09 - Handle Kit [ More info ] $227.83 Available to Order: Shipping delay up to 10 days.
		8M0133053 - Handle Kit [ More info ] $207.99 Available to Order: Shipping delay up to 10 days.
#1	803996	HANDLE-STRG. (1 required per assembly)
		803996 - HANDLE Steering [ More info ] Unavailable
#2	804020	DECAL (1 required per assembly)
		37-804020 - DECAL Throttle [ More info ] Unavailable
#3	160861	GRIP (1 required per assembly)
		16086 1 - Grip [ More info ] $35.49 $8.50 3 In Stock.
#4	8150461	SCREW (1 required per assembly)
		10-815046 1 - Screw [ More info ] $1.90 $0.38 10+ In Stock.
#5	8518582	BUSHING (1 required per assembly)
		23-851858 2 - Bushing [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#6	8518581	BUSHING (1 required per assembly)
		23-851858 1 - Bushing [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#7	804017	WASHER-WAVE (1 required per assembly)
		13-804017 - Wave Washer [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#8	804508	WASHER-WHITE (1 required per assembly)
		12-804508 - Washer - White [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#9	8M0077708	HOLDER, TILLER (1 required per assembly) — Replaces: 803997A1
		8M0077708 - Holder, Tiller [ More info ] $63.49 Available to Order: Shipping delay up to 10 days.
#10	879194300	STUD (1 required per assembly) — Replaces: 8116533
		16879194300 - Stud [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#11	168261	WASHER (1 required per assembly)
		12-16826 1 - Washer [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#12	85372215	NUT (1 required per assembly)
		11-853722 15 - Nut [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#13	804018001	CABLE-THROTTLE (2 required per assembly) — Replaces: 804018
		84-804018001 - Throttle Cable [ More info ] $22.99 Available to Order: Shipping delay up to 10 days.
#14	813026	FRICTION PIECE (1 required per assembly)
		813026 - Friction Piece [ More info ] $8.09 Available to Order: Shipping delay up to 10 days.
#15	16087	SCREW (1 required per assembly)
		10-16087 - Screw [ More info ] $11.89 Available to Order: Shipping delay up to 10 days.
#16	16826	WASHER (1 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#17	400212	NUT (1 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#18	803998	THROTTLE SHAFT (1 required per assembly)
		803998 - Throttle Shaft [ More info ] $24.29 Available to Order: Shipping delay up to 10 days.
#19	16336	BUSHING (1 required per assembly)
		23-16336 - Bushing [ More info ] $5.30 $4.24 10+ In Stock.
#20	16191	SPACER (1 required per assembly)
		23-16191 - Spacer - Throttle Shaft [ More info ] $6.09 $1.22 10+ In Stock.
#21	8537152	SPACER (1 required per assembly)
		23-853715 2 - Spacer [ More info ] Unavailable
#22	8150263	COTTER PIN (1 required per assembly)
		18-815026 3 - Cotter Pin [ More info ] $4.49 1 In Stock.
#23	804055	PLATE-SUPPORT (1 required per assembly)
		804055 - Plate-Support [ More info ] $3.19 $0.64 10+ In Stock.
#24	8230427	BOLT (1 required per assembly)
		10-823042 7 - Bolt [ More info ] $4.09 $2.30 10+ In Stock.
#25	8116541	STUD (2 required per assembly)
		16-8116541 - STUD [ More info ] Unavailable
#26	16192	WASHER (2 required per assembly)
		12-16192 - Washer [ More info ] $3.59 3 In Stock.
#27	95374	NUT (2 required per assembly)
		11-95374 - Nut, Nylon, Clamp Bracket Screw [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#28	804019005	BRACKET (1 required per assembly) — Replaces: 804019
		804019005 - Bracket [ More info ] $120.99 Available to Order: Shipping delay up to 10 days.
#29	162636	SCREW (1 required per assembly)
		10-16263 6 - Screw [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#30	85554410	SCREW (1 required per assembly)
		10-855544 10 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#31	953921	WASHER (1 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#32	953951	CLAMP (1 required per assembly)
		54-95395 1 - Clamp [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#33	8230427	BOLT (1 required per assembly)
#34	8537392	BRACKET (1 required per assembly)
		853739 2 - Bracket [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#35	16223	BOLT (2 required per assembly) — Replaces: 16214
		10-16223 - Bolt [ More info ] $4.19 $0.85 10+ In Stock.
#36	16826	WASHER (2 required per assembly)
