Parts for 65 Jet (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Fuel Pump

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 65 Jet (3 Cyl.) > 1B000001 & Up - USA > Fuel Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

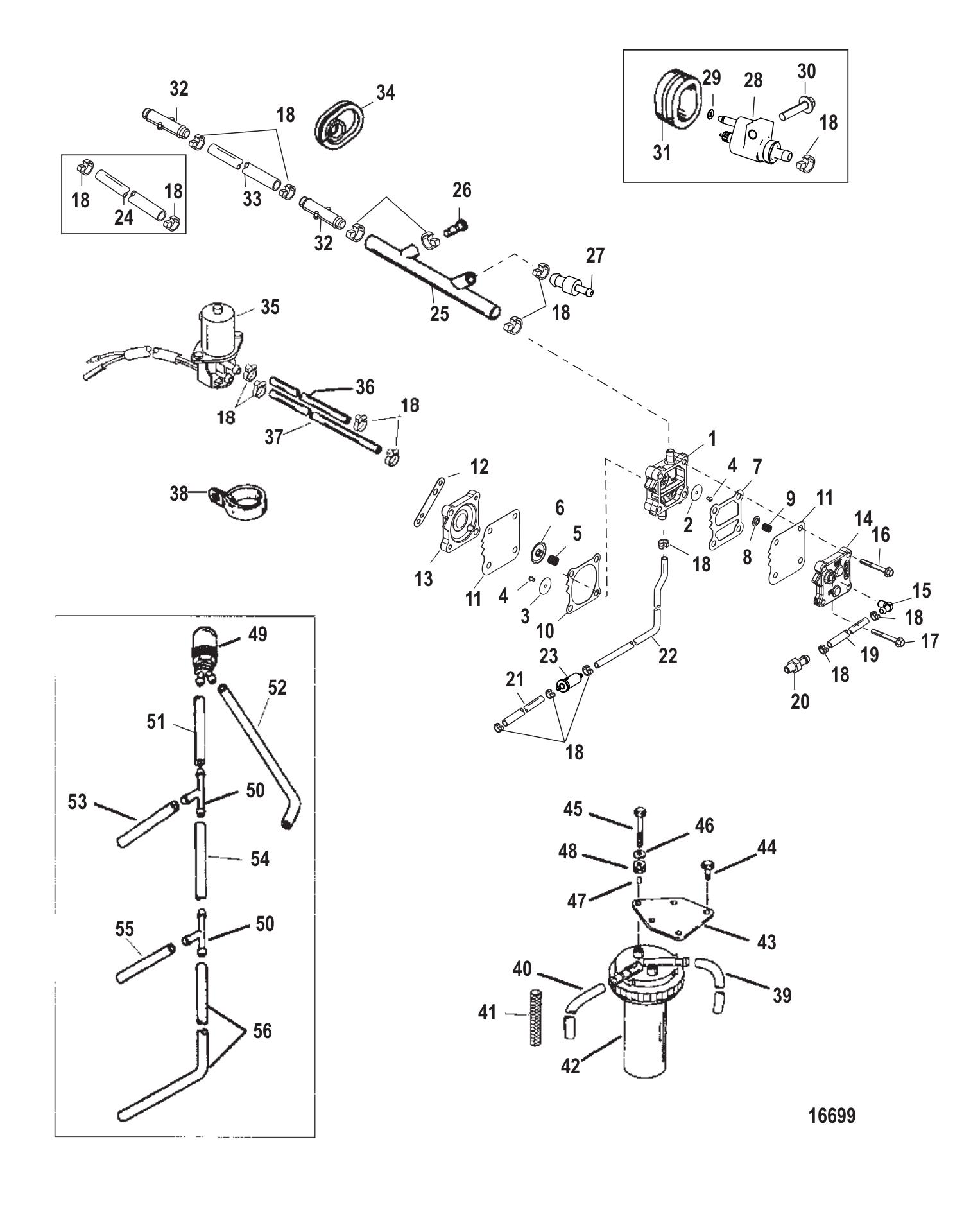

Fuel Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	14360A78	PUMP KIT-FUEL (1 required per assembly)
		14360A78 - Fuel Pump Kit [ More info ] $308.49 4 In Stock.
#-	43004A99	GASKET SET (1 required per assembly)
		27-43004A99 - Engine Gasket Set [ More info ] $166.49 Available to Order: Shipping delay up to 10 days.
#1	NSS	NOT SOLD SEPARATE FUEL PUMP (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#2	857005A1	DIAPHRAGM KIT (1 required per assembly)
		21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ] $33.99 10+ In Stock.
		18-7817 - Fuel Pump Kit [ More info ] $25.49 $23.60 10+ In Stock.
		1399-39020 - Fuel Pump REPAIR KIT [ More info ] $21.29 $20.29 7 In Stock.
#3	NSS	NOT SOLD SEPARATE CHECK VALVE (1 required per assembly)
#4	NSS	NOT SOLD SEPARATE RETAINER (2 required per assembly)
#5	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#6	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#7	NSS	NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#9	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#10	NSS	NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly)
#11	NSS	NOT SOLD SEPARATE DIAPHRAGM (2 required per assembly)
#12	8M0204705	GASKET @2 (1 required per assembly) — Replaces: 987691
		27-8M0204705 - Gasket Note: Priced Individually [ More info ] $3.89 3 In Stock.
#13	144303	BASE (1 required per assembly)
		14430 3 - Base [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#14	987752	PLATE (1 required per assembly)
		0987752 [ More info ] Unavailable Replaced by 3854336
		3854336 - TUBE ASSEMBLY [ More info ] Unavailable
#15	996642	FITTING ELBOW 90 DEGREE (.125-27 X .250) NYLON (1 required per assembly)
		22-99664 2 - Elbow [ More info ] $2.69 6 In Stock.
#16	82104540	SCREW (M5 X 40) (2 required per assembly)
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#17	82130050	SCREW (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#18	69355	TIE STRAP @100 (AR required per assembly)
		69355 - Tie Strap - Priced Individually [ More info ] $0.40 10+ In Stock.
		8M0214940 - TIE STRAP [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#19	897930	HOSE-MOLDED (1 required per assembly)
		32-897930 - Molded Hose [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#20	291112	FITTING (To Crankcase) (1 required per assembly)
		0291112 - Exhaust Gasket (291112) [ More info ] Unavailable
#21	8M0108349	HOSE (70 INCHES BULK) (CUT TO 2.00 INCH LENGTH) (Oil Injection)(To Carburetor) (1 required per assembly) — Replaces: 830757130, 8M0047448
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#22	19017A1	LINE KIT-FUEL (Oil Injection) (1 required per assembly)
		32-19017A 1 - Fuel Line Kit [ More info ] $30.80 2 In Stock.
#23	816296Q2	FILTER FUEL (Oil Injection) (1 required per assembly)
		35-816296Q 2 - Fuel Filter - Priced Individually [ More info ] $10.39 10+ In Stock.
		18-7830 - Inline Filter 5/16 [ More info ] $8.62 10+ In Stock.
		35-816296K 2 - Fuel Filter - Priced Individually [ More info ] $11.39 10+ In Stock.
#24	8M0108349	HOSE (70 INCHES BULK) (CUT TO 6.00 INCH LENGTH) (Non Oil Injection) (1 required per assembly) — Replaces: 830757130, 8M0047448
#25	822554	HOSE-MOLDED (Oil Injection) (1 required per assembly)
		32-822554 - Molded Hose [ More info ] $17.40 9 In Stock.
#26	822772	PLUG (Oil Injection) (1 required per assembly)
		19-822772 - Plug [ More info ] $4.49 2 In Stock.
#27	8189941	CHECK VALVE (OIL INJECTION) (Oil Injection)(To Oil Pump) (1 required per assembly)
		22-818994 1 - Check Valve [ More info ] $37.49 3 In Stock.
		18-8957 - Check Valve [ More info ] $16.29 In Stock
#28	816856Q3	CONNECTOR @2 (Design I) (1 required per assembly)
		22-816856Q 3 - Connector - Priced Individually [ More info ] $24.59 3 In Stock.
#29	16524	O-RING FUEL CONNECTOR (Design I) (1 required per assembly)
		25-16524 - O Ring-fuel Connector [ More info ] $1.50 3 In Stock.
#30	4010635	SCREW (Design I) (1 required per assembly)
		10-40106 35 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#31	145091	GROMMET (Design I) (1 required per assembly)
		25-14509 1 - Grommet [ More info ] $6.39 3 In Stock.
#32	822769	CONNECTOR (Design II) (2 required per assembly)
		22-822769 - Connector [ More info ] $1.30 Available to Order: Shipping delay up to 10 days.
#33	85682257	HOSE-26 INCH FUEL (CUT TO 4.00 INCH LENGTH) (Design II) (1 required per assembly) — Replaces: 85936157
		3285682257 - Hose -26 Inch Fuel [ More info ] $25.29 Available to Order: Shipping delay up to 10 days.
#34	145093	GROMMET (Design II) (1 required per assembly)
		25-14509 3 - Grommet [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#35	819503A1	SOLENOID KIT (Electric) (1 required per assembly)
		89-819503A 1 - Solenoid Kit [ More info ] $140.49 Available to Order: Shipping delay up to 10 days.
#36	1430165	TUBING (38.00 INCHES BULK) (CUT TO 15.00 INCH LENGTH) (Electric) (1 required per assembly)
		32-14301 65 - Tubing - 38 Inch [ More info ] Unavailable
#37	9912688	TUBING (36.00 INCHES BULK) (CUT TO 11.50 INCH LENGTH) (Electric) (1 required per assembly)
		32-99126 88 - Tubing - 36 Inch [ More info ] $30.80 1 In Stock.
#38	188871	CLAMP (Electric) (1 required per assembly)
		54-18887 1 - Clamp [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#39	8M0108349	HOSE (70 INCHES BULK) (CUT TO 17.00 INCH LENGTH) (Non Oil Injection)(To Carburetor) (1 required per assembly) — Replaces: 830757130, 8M0047448
#40	83476463	TUBING (32.00 INCHES BULK) (CUT TO 13.00 INCH LENGTH) (Non Oil Injection) (1 required per assembly)
		32-834764 63 - Molded Hose [ More info ] $68.49 Available to Order: Shipping delay up to 10 days.
#41	83312531	SLEEVE-16 INCH (Non Oil Injection) (1 required per assembly)
		23-833125 31 - Sleeve -16 Inch [ More info ] Unavailable
#42	826634T01	FILTER-FUEL (Non Oil Injection) (1 required per assembly) — Replaces: 826634T
		35-826634T01 - Fuel Filter [ More info ] $178.49 Available to Order: Shipping delay up to 10 days.
#43	827961	BRACKET (Non Oil Injection) (1 required per assembly)
		827961 - Bracket [ More info ] Unavailable
#44	82129114	SCREW (Non Oil Injection) (2 required per assembly)
		10-821291 14 - Screw [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#45	4010630	SCREW (Non Oil Injection) (2 required per assembly)
		10-40106 30 - Screw [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#46	4002316	WASHER @5 (Non Oil Injection) (2 required per assembly)
		12-40023 16 - Washer - Priced Individually [ More info ] $1.17 2 In Stock.
		128M0214930 - WASHER Note: Must be ordered in multiples of 5 [ More info ] $1.00 1 In Stock.
#47	42116	BUSHING (Non Oil Injection) (2 required per assembly)
		23-42116 - Bushing [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#48	42117	GROMMET (Non Oil Injection) (2 required per assembly)
		25-42117 - Grommet, Oil Reservoir Screw [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#49	858763	PRIMER (Manual) (1 required per assembly)
		858763 - Primer Bulb [ More info ] $99.99 Available to Order: Shipping delay up to 10 days.
#50	59169003	FITTING @2 (Manual) (2 required per assembly)
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 2 In Stock.
#51	892024122	TUBING (240.00 INCHES BULK) (CUT TO 6.00 INCH LENGTH) (Manual) (1 required per assembly)
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 3 In Stock.
#52	892024122	TUBING (240.00 INCHES BULK) (CUT TO 9.50 INCH LENGTH) (Manual) (1 required per assembly)
#53	892024122	TUBING (240.00 INCHES BULK) (CUT TO 2.50 INCH LENGTH) (Manual)(To Top Carburetor) (1 required per assembly)
#54	892024122	TUBING (240.00 INCHES BULK) (CUT TO 2.50 INCH LENGTH) (Manual) (1 required per assembly)
#55	892024122	TUBING (240.00 INCHES BULK) (CUT TO 2.50 INCH LENGTH) (Manual)(To Center Carburetor) (1 required per assembly)
#56	892024122	TUBING (240.00 INCHES BULK) (CUT TO 6.00 INCH LENGTH) (Manual)(To Bottom Carburetor) (1 required per assembly)
