Parts for 40 Lightning (International) 2-Stroke Carbureted Mercury Outboard Motor Accessories

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40 Lightning (International) > 0N000001 - 0N056164 > Accessories

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

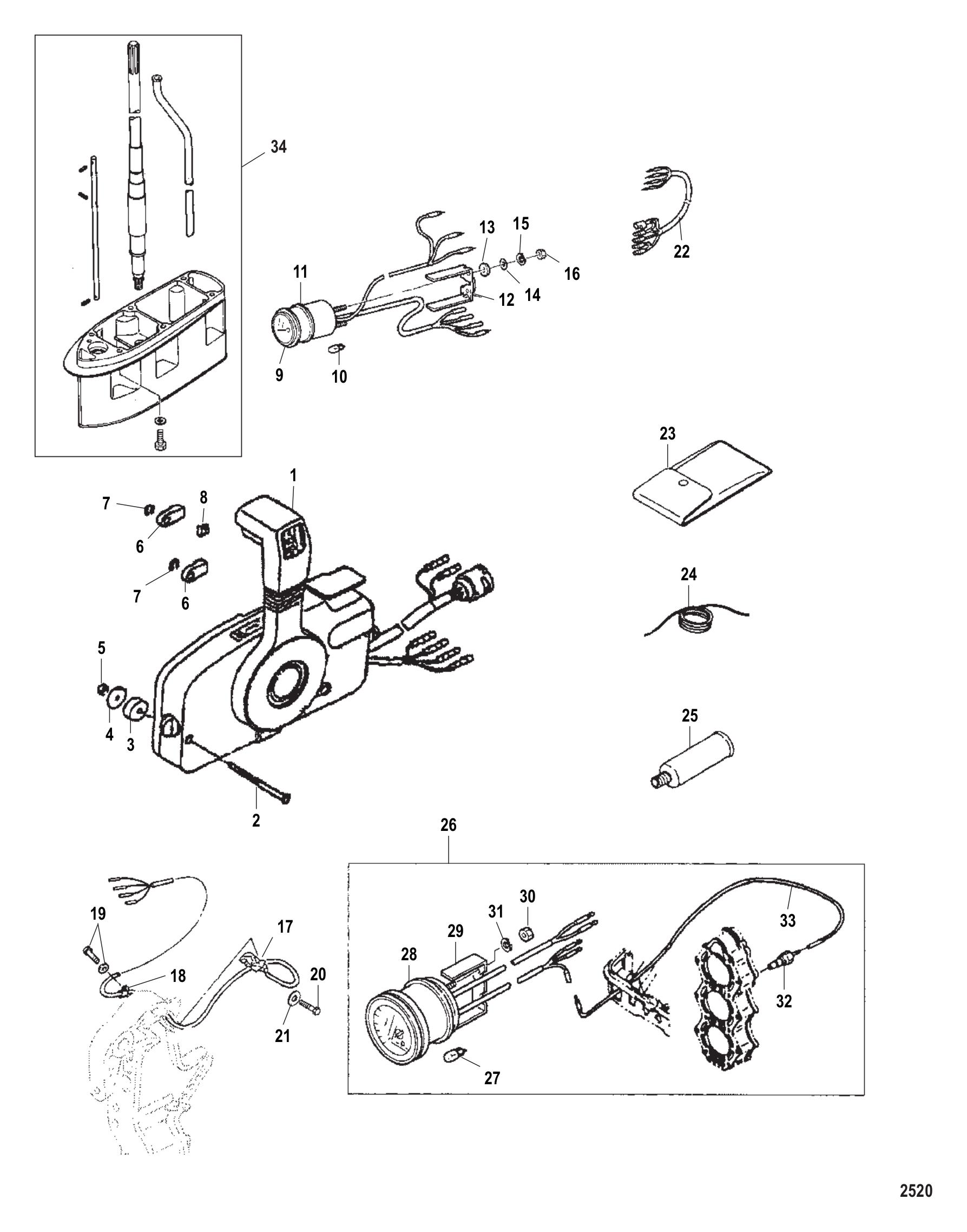

Accessories

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	853741	CAP (NO TRIM) (2 required per assembly)
		853741 - Cap, NLA [ More info ] Unavailable
#-	802611A2	TRIM METER/SENDER (1 required per assembly)
		802611A 2 - METER/SENDER KIT NLA [ More info ] Unavailable
#-	802810A1	INTAKE MANIFOLD (1 required per assembly)
		802810A 1 - Intake Manifold [ More info ] $136.49 Available to Order: Shipping delay up to 10 days.
#-	8M0170580	ELECTRIC START (1 required per assembly) — Replaces: 804056A1, 8M0141823
		8M0170580 - ELECTRIC START [ More info ] Unavailable
		8M0188346 - ELECTRIC STARTER [ More info ] Unavailable
#-	804375A1	TACHOMETER (1 required per assembly)
		79-804375A 1 - Tachometer [ More info ] Unavailable
#-	888768	RECTIFIER KIT (1 required per assembly)
		888768 - Rectifier Kit [ More info ] $168.49 Available to Order: Shipping delay up to 10 days.
#1	8M0151828	REMOTE CONTROL (Trim In Handle) (1 required per assembly) — Replaces: 802616A1, 8M0151827
		8M0151828 - 8M0151828 - ->8M0151935 [ More info ] Unavailable Replaced by -8M0151935
		8M0151935 - 8M0151935 - ->8M0151825 [ More info ] Unavailable Replaced by -8M0151825
		8M0151825 - Remote Control [ More info ] Unavailable
		8M0223091 - RC HEAD ASSY [ More info ] Unavailable
#1	8M0046402	REMOTE CONTROL (No Trim) (1 required per assembly) — Replaces: 802616A02
		8M0046402 - Remote Control [ More info ] Unavailable
#2	853989	SCREW (3 required per assembly)
		10-853989 - SCREW [ More info ] Unavailable
#3	853990	SPACER (3 required per assembly)
		23-853990 - SPACER [ More info ] Unavailable
#4	853991	WASHER (3 required per assembly)
		12-853991 - WASHER [ More info ] Unavailable
#5	400212	NUT (M6) STAINLESS STEEL (3 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#6	8539921	TERMINAL EYE (2 required per assembly)
		85-853992 1 - Terminal Eye [ More info ] $13.49 Available to Order: Shipping delay up to 10 days.
#7	160572	E RING (2 required per assembly)
		53-16057 2 - E Ring [ More info ] $5.49 1 In Stock.
#8	853993	GROMMET (1 required per assembly)
		25-853993 - GROMMET [ More info ] Unavailable
#9	802611A1	TRIM METER KIT (1 required per assembly)
		802611A 1 - TRIM METER KIT [ More info ] Unavailable
#10	802612	BULB (1 required per assembly)
		88-802612 - BULB [ More info ] Unavailable
#11	802613	DAMPER (1 required per assembly)
		802613 - DAMPER [ More info ] Unavailable
#12	802614	BRACKET (1 required per assembly)
		802614 - BRACKET [ More info ] Unavailable
#13	802615	INSULATED WASHER (2 required per assembly)
		12-802615 - INSULATED WASHER [ More info ] Unavailable
#14	16335	WASHER (2 required per assembly)
		12-16335 - Washer [ More info ] $2.69 Available to Order: Shipping delay up to 10 days.
#15	168181	LOCKWASHER (2 required per assembly)
		13-16818 1 - LockWasher [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#16	802617	NUT (2 required per assembly)
		11-802617 - NUT [ More info ] Unavailable
#17	851875	SENDER TRIM (1 required per assembly)
		851875 - Trim Sender [ More info ] $318.50 Available to Order: Shipping delay up to 10 days.
#18	17169	CLAMP (1 required per assembly)
		54-17169 - Clamp [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#19	8555445	SCREW (1 required per assembly)
		10-8555445 - SCREW [ More info ] Unavailable
#20	16705	BOLT (2 required per assembly)
		10-16705 - Bolt [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#21	953921	WASHER STAINLESS STEEL (2 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#22	8M0078284	LEAD WIRE (1 required per assembly) — Replaces: 802998A2
		848M0078284 - Lead Wire [ More info ] $67.49 Available to Order: Shipping delay up to 10 days.
#23	8M0168899	TOOL KIT (1 required per assembly) — Replaces: 802618
		918M0168899 - TOOL KIT [ More info ] $13.29 Available to Order: Shipping delay up to 10 days.
#24	12066Q10	ROPE-STARTR @2 (1 required per assembly) — Replaces: 12066A9, 12066Q9
		50-12066Q10 - Starter Rope - Priced Individually [ More info ] $13.59 6 In Stock.
		18-4915 - Pull Rope, 50-12066Q9 [ More info ] $4.79 $4.53 4 In Stock.
		50-12066K10 - Starter Rope - Priced Individually [ More info ] $14.99 3 In Stock.
#25	168411	FLUSH PLUG (1 required per assembly)
		168411 - FLUSH PLUG [ More info ] Unavailable
#26	804632T01	GAUGE-TEMP (1 required per assembly) — Replaces: 804632A1
		79-804632T01 - GAUGE-TEMP [ More info ] Unavailable
#27	804634	BULB (1 required per assembly)
		88-804634 - BULB [ More info ] Unavailable
#28	802613	DAMPER (1 required per assembly)
#29	804635	BRACKET (1 required per assembly)
		804635 - BRACKET [ More info ] Unavailable
#30	802617	NUT (2 required per assembly)
#31	168181	LOCKWASHER (2 required per assembly)
#32	804636	SENSOR WATER TEMPERATURE (1 required per assembly)
		804636 - Water Temp Sensor [ More info ] $36.99 Available to Order: Shipping delay up to 10 days.
#33	804637	LEAD WIRE (1 required per assembly)
		84-804637 - LEAD WIRE [ More info ] Unavailable
#34	8M0127367	EXTENSION KIT (1 required per assembly) — Replaces: 853783A03, 853783T02
		8M0127367 - Extension Kit [ More info ] $1,503.49 Available to Order: Shipping delay up to 10 days.
