Parts for 60 (3 Cyl.) Bigfoot 2-Stroke Carbureted Mercury Outboard Motor Gear Housing Driveshaft 2.33:1 0T622485 / 0P222545 & Up

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 60 (3 Cyl.) Bigfoot > 0P017000 - 0P325499 - Belgium > Gear Housing Driveshaft 2.33:1 0T622485 / 0P222545 & Up

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Gear Housing Driveshaft 2.33:1 0T622485 / 0P222545 & Up

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	9011G92	GEAR HOUSING ASSEMBLY (COMPLETE) (Long)(Bigfoot) (1 required per assembly)
		1667-9011G92 - Gear Housing Assembly (complete) [ More info ] Unavailable
		90-205-B20M - SE205 Lower Unit Mercury 3 and 4 Cylinder, 2.33 to 1, Big Foot, 50-60HP, 20 Inch [ More info ] $1195.00 $1195.00 Available to Order
#-	9011G94	GEAR HOUSING ASSEMBLY (COMPLETE) (LL)(Bigfoot) (1 required per assembly)
		1667-9011G94 - Gear Housing Assembly [ More info ] Unavailable
#-	8M0113799	REPAIR KIT-W/P (1 required per assembly) — Replaces: 43024A7
		46-8M0113799 - Water Pump Repair Kit [ More info ] $218.49 4 In Stock.
		46-47806 - Water Pump Repair Kit [ More info ] $154.99 In Stock
#-	43035A4	SEAL KIT (1 required per assembly)
		26-43035A 4 - Seal Kit [ More info ] $108.45 2 In Stock.
		26-00075 - Seal Kit, 26-43035A4 [ More info ] $66.99 $61.89 6 In Stock.
#-	8M0100526	REPAIR KIT - IMP (1 required per assembly) — Replaces: 43026T11, 43026Q06
		47-8M0100526 - Impeller Repair Kit [ More info ] $66.99 6 In Stock.
		18-3265 - Water Pump Kit 47-43026Q06 [ More info ] $60.49 $59.34 10+ In Stock.
		18-3214 - Impeller Repair Kit, Without Housing [ More info ] $42.99 $42.32 10+ In Stock.
		47-8M0100527 - Repair Kit - Impeller [ More info ] $73.50 Available to Order: Shipping delay up to 10 days.
		46-01811 - Water Pump Kit without Housing 47-43026T11, Q06 [ More info ] $46.99 $45.81 10+ In Stock.
#1	9011G59	GEAR HOUSING ASSEMBLY BASIC (Black) (1 required per assembly)
		1667-9011G59 - Gear Housing Assembly [ More info ] $1,749.99 Available to Order: Shipping delay up to 10 days.
#2	8M0084244	PIN DOWEL (Front) (1 required per assembly) — Replaces: 43043
		178M0084244 - Pin - Dowel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#3	43046	TUBE OILER (1 required per assembly)
		43046 - Oiler Tube [ More info ] $28.99 Available to Order: Shipping delay up to 10 days.
#4	79953Q04	SCREW KIT DRAIN (3 required per assembly) — Replaces: 79953Q2
		10-79953Q04 - Screw Kit - Priced Individually [ More info ] $7.49 10+ In Stock.
		18-2244 - Plug Kit, 10-79953A2 [ More info ] $3.79 10+ In Stock.
		10-79953K04 - Drain Screw - Priced Individually [ More info ] $8.19 10+ In Stock.
#4	67892A06	PLUG KIT DRAIN - MAGNETIC (OPT required per assembly) — Replaces: 67892A1, 67892A05
		22-67892A06 - Drain Plug Kit [ More info ] Unavailable
		22-8M0058389 - Screw Kit - Priced Individually [ More info ] $11.69 9 In Stock.
		18-23751-9 - Drain Screw , Package of 50 [ More info ] $346.09 In Stock
		18-2375 - Plug, 22-67892A1 [ More info ] $7.16 10+ In Stock.
		10-02683 - Drain Screw [ More info ] $6.39 $6.03 2 In Stock.
#5	191833	SEAL (3 required per assembly) — Replaces: 191832
		12-19183 3 - Seal -Blue - Priced Individually [ More info ] Unavailable
		18-2945-9 - Gasket 12-19183 2-Pack [ More info ] $2.41 10+ In Stock.
		12-19183Q02 - Seals, Pack of 4 (yes this is actually a pack of 4) [ More info ] $6.69 10 In Stock.
		12-19183K02 - Seal, Pack of 4 [ More info ] $7.29 10 In Stock.
		12-8M0187157 - SEAL-BLUE, Sold Individually [ More info ] $1.49 10+ In Stock.
		12-02108-1 - Drain Gasket (1 piece) [ More info ] $1.20 $0.85 10+ In Stock.
#6	43044	PIN DOWEL - WITHOUT HOLE (.375 X .625) (Rear) (1 required per assembly)
		17-43044 - Pin -Dowel-solid [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#7	31640T07	TRIM TAB (1 required per assembly) — Replaces: 31640T5
		31640T07 - Trim Tab [ More info ] Unavailable
		8M0236553 - Trim Tab [ More info ] $27.56 6 In Stock.
#8	825427	SCREW (.437-14 X 1.250) STAINLESS STEEL (1 required per assembly)
		10-825427 - Screw [ More info ] $6.99 3 In Stock.
#9	451761	WASHER (.453 X .812 X .105) BLACK OXIDE (1 required per assembly)
		12-45176 1 - Washer [ More info ] $2.59 Available to Order: Shipping delay up to 10 days.
#10	43040T1	CARRIER ASSEMBLY (1 required per assembly)
		43040T 1 - Carrier Assembly [ More info ] $78.99 Available to Order: Shipping delay up to 10 days.
#11	NSS	NOT SOLD SEPARATE NEEDLE BEARING (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#12	826134Q	ANODE (2 required per assembly)
		97-826134Q - Anode, Aluminum, Outboard Side Pocket, Priced Individually [ More info ] $16.49 10 In Stock.
		18-6068 - Anode, Zinc, 826134 [ More info ] $14.31 6 In Stock.
		97-826134T - Anode - Outboard Side Pocket - Priced Individually [ More info ] $18.19 5 In Stock.
#13	401386	NUT (M6) STAINLESS STEEL (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#14	4000333	SCREW (M6 X 40) (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#15	NSS	NOT SOLD SEPARATE PINION GEAR (12 TEETH) (Part of 43-882813A3) (1 required per assembly)
#16	35921	NUT (.625-18) (1 required per assembly)
		11-35921 - Nut, (.625-18) [ More info ] $7.99 10+ In Stock.
		18-3719 - Nut, 11-35921, 314730 [ More info ] $5.19 1 In Stock.
		18-2359 - Nut Kit [ More info ] $5.19 $3.51 Available to Order: Shipping delay up to 10 days.
#17	850307	CAM SHIFT CONTROL (1 required per assembly)
		850307 - Shift Control Cam [ More info ] $40.99 Available to Order: Shipping delay up to 10 days.
#18	883047A1	BEARING ASSEMBLY TAPERED ROLLER (1 required per assembly)
		31-883047A 1 - Tapered Roller Bearing [ More info ] $92.99 Available to Order: Shipping delay up to 10 days.
#19	8M0063265	SHIM SET (1 required per assembly) — Replaces: 44492A1
		158M0063265 - Shim Set [ More info ] $65.99 $63.12 10+ In Stock.
#20	826736A1	DRIVESHAFT ASSEMBLY (Long) (1 required per assembly)
		45-826736A 1 - Drive Shaft - Long [ More info ] $724.49 Available to Order: Shipping delay up to 10 days.

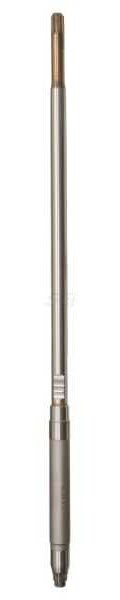

		92-205-04-20H - Drive Shaft replaces 45-826736A 1 [ More info ] $355.42 $355.42 Available to Order
#20	826737A1	DRIVESHAFT ASSEMBLY (LL) (1 required per assembly)
		45-826737A 1 - Drive Shaft -xl [ More info ] $696.30 3 In Stock.
#21	42461A1	SLEEVE/RING KIT (1 required per assembly)
		42461A 1 - Sleeve/Ring Kit [ More info ] $27.31 1 In Stock.
#22	NSS	NOT SOLD SEPARATE RING SEAL (1 required per assembly)
#23	8M0113262	COVER ASSEMBLY WATER PUMP (1 required per assembly) — Replaces: 43055A4
		46-8M0113262 - Water Pump Cover Assembly [ More info ] $148.99 In Stock
#24	430331	GASKET (1 required per assembly)
		27-43033 1 - Face Plate To Cover Gasket [ More info ] $11.09 10+ In Stock.
#25	430472	GASKET (1 required per assembly)
		27-43047 2 - Gasket [ More info ] Unavailable
		27-8M0214931 - Gasket [ More info ] $13.69 Available to Order: Shipping delay up to 10 days.
#26	43035	SEAL OIL (Upper) (1 required per assembly)
		26-43035 - Seal [ More info ] $19.89 In Stock
		18-0583 - Seal, 26-43035 [ More info ] $14.01 4 In Stock.
		26-8M0245495 - OIL SEAL [ More info ] Unavailable
#27	43036	SEAL OIL (Lower) (1 required per assembly)
		26-43036 - Seal [ More info ] $19.89 In Stock
		18-0522 - Seal, 26-43036 [ More info ] $12.03 4 In Stock.
#28	8172771	GASKET (1 required per assembly)
		27-817277 1 - Gasket -Sold each [ More info ] $5.69 10+ In Stock.
		18-2566-9 - Gasket 27-817277 2-Pack [ More info ] $8.67 10+ In Stock.
#29	817275A2	HOUSING KIT UPPER WATER PUMP (1 required per assembly)
		817275A 2 - Water Pump Housing Upper [ More info ] $104.99 In Stock
		18-3572 - Water Pump Housing Kit 817275A2 [ More info ] $89.99 $85.72 9 In Stock.
#30	8M0204709	FACEPLATE-W/P (1 required per assembly) — Replaces: 8172761
		8M0204709 - Water Pump Faceplate, Outboard [ More info ] $14.59 Available to Order: Shipping delay up to 10 days.
#31	82684430	SCREW (M6 X 30) (4 required per assembly)
		10-826844 30 - Screw - Priced Individually [ More info ] $2.69 10 In Stock.
#32	826763A1	COUPLING (Long) (1 required per assembly)
		826763A 1 - Coupling Assembly [ More info ] $33.99 Available to Order: Shipping delay up to 10 days.
#32	826762A1	COUPLING (LL) (1 required per assembly)
		826762A 1 - Coupling Assembly [ More info ] $71.99 Available to Order: Shipping delay up to 10 days.
#33	8M0204723	KEY @2 (1 required per assembly) — Replaces: 43037, 8M0032833
		288M0204723 - KEY Note: Priced Individually [ More info ] $4.39 2 In Stock.
#34	43026T2	IMPELLER (1 required per assembly)
		47-43026T 2 - Water Pump Impeller [ More info ] $36.49 6 In Stock.
		18-3056 - Impeller 47-43026-2 [ More info ] $26.99 $26.12 10+ In Stock.
		47-43026Q02 - Water Pump Impeller [ More info ] $36.49 Available to Order: Shipping delay up to 10 days.
#35	82684425	SCREW (M6 X 25) (6 required per assembly)
		10-826844 25 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#36	853906A1	SHIFT SHAFT ASSEMBLY (Long) (1 required per assembly)
		853906A 1 - Shaft Kit - Long [ More info ] $87.49 Available to Order: Shipping delay up to 10 days.
#36	853907A1	SHIFT SHAFT ASSEMBLY (LL) (1 required per assembly)
		853907A 1 - Shaft Kit -ll [ More info ] $66.99 Available to Order: Shipping delay up to 10 days.
#37	29641	E RING (1 required per assembly)
		53-29641 - E Ring - Priced Individually [ More info ] $1.80 8 In Stock.
#38	43052A4	BUSHING ASSEMBLY (1 required per assembly)
		23-43052A 4 - Bushing Kit [ More info ] $47.01 3 In Stock.
#39	8M0204681	O RING @5 (1 required per assembly) — Replaces: 45710, 457101
		25-8M0204681 - O RING Note: Priced Individually [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#40	8M0204708	SEAL (1 required per assembly) — Replaces: 8164641
		26-8M0204708 - Shift Shaft Oil Seal-O/B [ More info ] $16.99 Available to Order: Shipping delay up to 10 days.
		26-8M0246145 - SHIFT SHAFT OIL SEAL O/B [ More info ] $16.99 10 In Stock.
#41	82684425	SCREW (M6 X 25) (2 required per assembly)
#42	816575A2	SEAL KIT (1 required per assembly) — Replaces: 816575, 861415
		26-816575A 2 - Seal Kit [ More info ] $10.89 3 In Stock.
		18-2599 - Seal, 26-816575A 2 [ More info ] $7.72 10+ In Stock.
		26-02106 - Seal, 26-816575A2 [ More info ] $7.49 $6.48 8 In Stock.
