Parts for 60 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Jet Components

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 60 (3 Cyl.) > 9683055 - 9885344 - Belgium > Jet Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

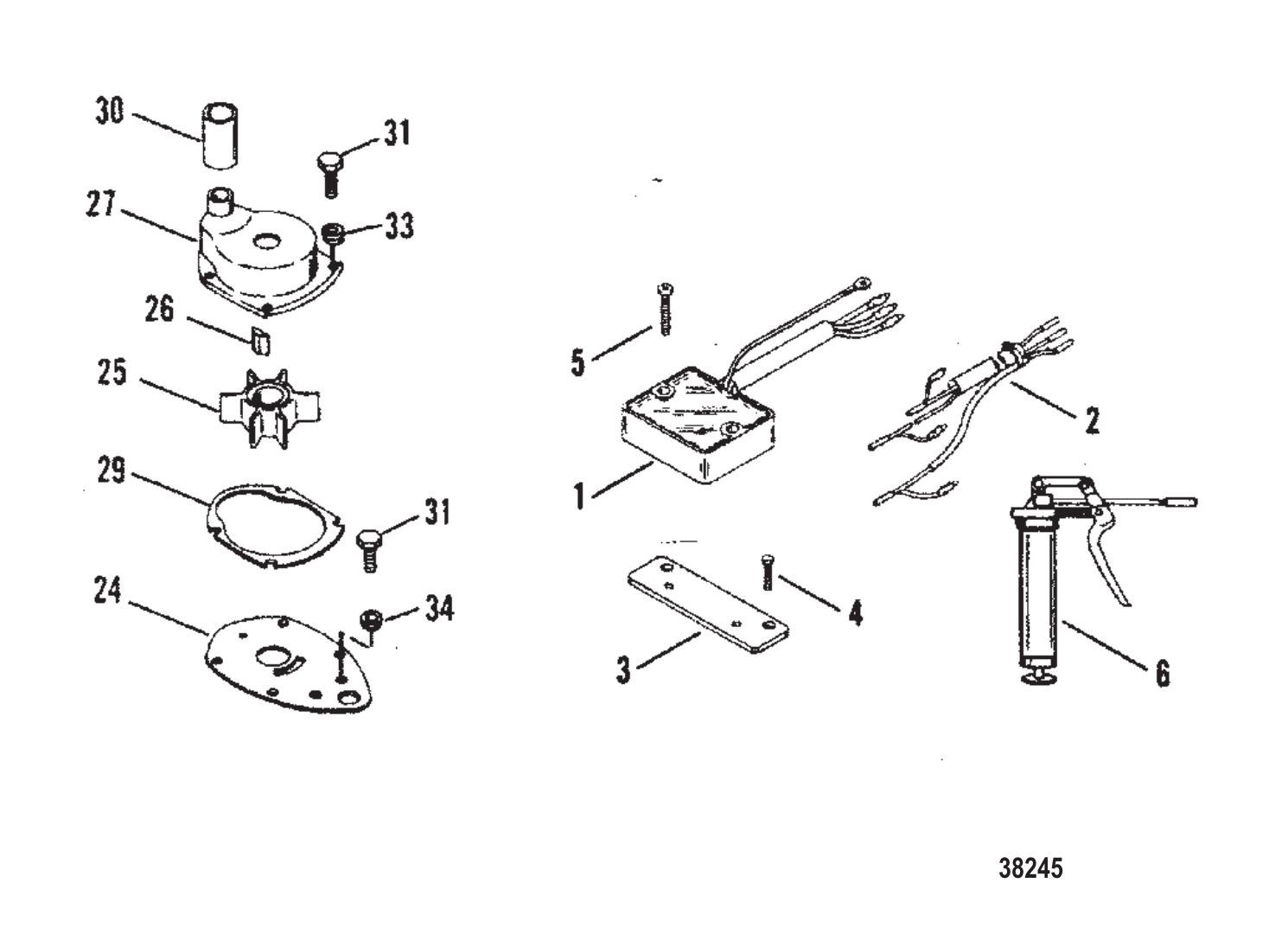

Jet Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	812966A12	PUMP KIT-WATER (1 required per assembly) — Replaces: 812966A11
		46-812966A12 - Water Pump Kit [ More info ] $181.99 2 In Stock.
		46-46514 - Water Pump Kit [ More info ] $134.99 1 In Stock.
#-	814669A2	SEAL KIT-G/H (1 required per assembly)
		26-814669A 2 - Gear Housing Seal Kit [ More info ] $75.49 Available to Order: Shipping delay up to 10 days.
		18-2635 - Seal Kit, 26-814669A2 [ More info ] $66.91 10+ In Stock.
#1	821889T24	REV LIMITER ASSY (1 required per assembly) — Replaces: 821889A18, 821889A24
		821889T24 - Rev Limiter Assembly [ More info ] $115.49 Available to Order: Shipping delay up to 10 days.
#2	823147A4	HARNESS ASSY (1 required per assembly)
		84-823147A 4 - Harness Assembly, NLA [ More info ] $20.00 $16.94 5 In Stock.
#3	826579	BRACKET (1 required per assembly)
		826579 - Bracket [ More info ] Unavailable
#4	4006731	SCREW (2 required per assembly) — Replaces: 40011127, 4010616
		10-40067 31 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#5	40011109	SCREW (2 required per assembly)
		10-40011109 - Screw [ More info ] $2.89 $2.32 3 In Stock.
#6	30500K2	GUN & LUBE (1 required per assembly) — Replaces: 801402, 30500A2
		91-30500K 2 - Gun & Lube [ More info ] Unavailable
#24	19700A2	FACEPLATE KIT (1 required per assembly) — Replaces: 197001, 19700A1
		19700A 2 - Face Plate Kit [ More info ] $17.70 1 In Stock.
#25	19453T	IMPELLER-W/P (1 required per assembly) — Replaces: 19453
		47-19453T - Water Pump Impeller [ More info ] $55.99 4 In Stock.
		18-8900 - Impeller, 47-19453T [ More info ] $47.99 $44.86 10+ In Stock.
#26	8M0032831	KEY (1 required per assembly) — Replaces: 19699
		28-8M0032831 - Key [ More info ] $4.60 1 In Stock.
#27	14334A3	PUMP KIT-WATER (1 required per assembly) — Replaces: 14334A1, 14334A2
		14334A 3 - Housing Kit - NO Impeller [ More info ] Unavailable
#29	194541	GASKET (UPPER) (1 required per assembly)
		27-19454 1 - Gasket [ More info ] $6.89 2 In Stock.
#30	8M0204658	SEAL (1 required per assembly) — Replaces: 43023
		8M0204658 - SEAL [ More info ] $14.89 7 In Stock.
#31	8248324	SCREW @5 (6 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
#33	8M0204659	INSULATOR @4 (4 required per assembly) — Replaces: 43045
		238M0204659 - INSULATOR Note: Priced Individually [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#34	19452	INSULATOR (2 required per assembly)
		19452 - Water Pump Insulator, NLA [ More info ] $4.30 10+ In Stock.
