Parts for Mercury 250 DFI M2 Jet Drive (Pump) Oiling System (Internal)

Revise Search: Mercury Jet Drive & SportJet > 250 DFI M2 Jet Drive (Pump) > 0E407100 & Up - USA > Oiling System (Internal)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

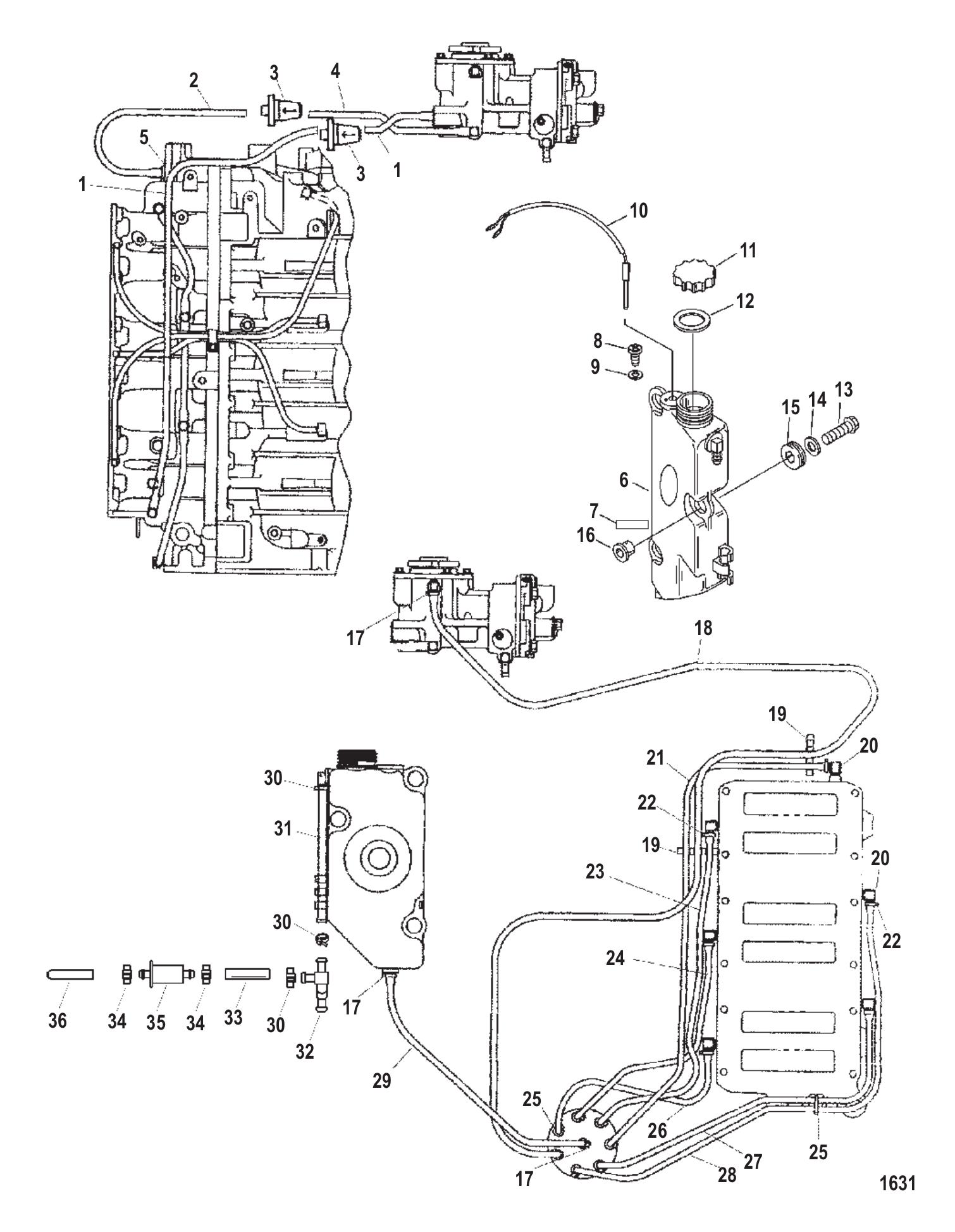

Oiling System (Internal)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0054152	TUBING (39.00 INCHES BULK) CUT 11.500 INCHES (2 required per assembly) — Replaces: 85606065
		328M0054152 - Tubing-39 Inch [ More info ] $37.49 Available to Order: Shipping delay up to 10 days.
#2	8M0054152	TUBING (39.00 INCHES BULK) CUT 5.00 INCHES (1 required per assembly) — Replaces: 85606065
#3	8M0042285	FILTER INLINE FUEL (2 required per assembly) — Replaces: 18206, 18206001
		35-8M0042285 - Filter [ More info ] Unavailable
		35-8M0207786 - In-Line Filter, Outboard [ More info ] $19.19 4 In Stock.
#4	8M0054152	TUBING (39.00 INCHES BULK) CUT 9.00 INCHES (1 required per assembly) — Replaces: 85606065
#5	8245021	CONNECTOR (1 required per assembly)
		22-824502 1 - Connector [ More info ] $8.59 Available to Order: Shipping delay up to 10 days.
#6	8M0064073	OIL TANK ASSY OIL (1 required per assembly) — Replaces: 830889A4, 830889A10
		12008M0064073 - Oil Tank Assembly [ More info ] Unavailable
		1200-8M0119508 - Oil Tank Assembly [ More info ] $145.99 1 In Stock.
#7	881865	DECAL-CAUTION (1 required per assembly)
		37-881865 - Decal -Caution [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#7	NSS	NOT SOLD SEPARATE INFO DECAL - OVERFLOW IF CAP IS LOOSE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#8	58376	SCREW (1 required per assembly)
		10-58376 - Screw [ More info ] $1.23 $1.18 9 In Stock.
#9	72761	WASHER (1 required per assembly)
		12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ] $1.63 10+ In Stock.
#10	856156T02	SWITCH ASSEMBLY LOW OIL (1 required per assembly) — Replaces: 856156A2
		87-856156T02 - Switch Assembly [ More info ] $27.39 2 In Stock.
#11	814449A3	CAP ASSY (1 required per assembly)
		36-814449A 3 - Cap Assembly [ More info ] $24.09 Available to Order: Shipping delay up to 10 days.
#12	42999T	GASKET (1 required per assembly) — Replaces: 42999
		27-42999T -Cap Gasket [ More info ] $14.49 Available to Order: Shipping delay up to 10 days.
#13	81893435	SCREW (3 required per assembly)
		10-818934 35 - Screw [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
		108M0103814 - Screw (M8 x 35 MM) [ More info ] $4.19 6 In Stock.
#14	4002318	WASHER @5 (3 required per assembly)
		12-40023 18 - Washer - Priced Individually [ More info ] $2.99 5 In Stock.
#15	855362001	GROMMET (3 required per assembly) — Replaces: 855362
		25-855362001 - Grommet, Coolant Reservoir [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#16	855364	BUSHING (3 required per assembly)
		23-855364 - Bushing [ More info ] $5.99 10+ In Stock.
#17	816311T	TIE STRAP @100 (3 required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#18	8M0054213	HOSE CUT AS REQUIRED (1 required per assembly) — Replaces: 85583466
		328M0054213 - Hose -40 Inch [ More info ] $55.99 Available to Order: Shipping delay up to 10 days.
#19	859230T	RETAINER HOSE SUPPORT (2 required per assembly) — Replaces: 859230
		859230T - Retainer [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#20	858870	CHECK VALVE (6 required per assembly)
		21-858870 - Check Valve [ More info ] $46.49 Available to Order: Shipping delay up to 10 days.
#21	8M0054152	TUBING (39.00 INCHES BULK) CUT 19.500 INCHES (1 required per assembly) — Replaces: 85606065
#22	56762	TIE STRAP @5 (6 required per assembly)
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 4 In Stock.
#23	8M0054152	TUBING (39.00 INCHES BULK) CUT 11.500 INCHES (1 required per assembly) — Replaces: 85606065
#24	8M0054152	TUBING (39.00 INCHES BULK) CUT 6.00 INCHES (1 required per assembly) — Replaces: 85606065
#25	56762	TIE STRAP @5 (13 required per assembly)
#26	8M0054152	TUBING (39.00 INCHES BULK) CUT 4.00 INCHES (1 required per assembly) — Replaces: 85606065
#27	8M0054152	TUBING (39.00 INCHES BULK) CUT 15.500 INCHES (1 required per assembly) — Replaces: 85606065
#28	8M0054152	TUBING (39.00 INCHES BULK) CUT 20.500 INCHES (1 required per assembly) — Replaces: 85606065
#29	82381455	TUBING (25.00 INCHES BULK) CUT 22.00 INCHES (1 required per assembly)
		32-823814 55 - Tubing - 25 In - Priced Individually [ More info ] $23.69 5 In Stock.
#30	816311T	TIE STRAP @100 (3 required per assembly)
#31	8M0108355	HOSE (57 INCHES BULK) CUT 7.00 INCHES (1 required per assembly) — Replaces: 830756109, 8M0047428
		32-8M0108355 - Hose, 57 Inch [ More info ] $52.49 1 In Stock.
#32	8M0207780	FITTING (1 required per assembly) — Replaces: 424254
		228M0207780 - Fitting [ More info ] $55.99 Available to Order: Shipping delay up to 10 days.
#33	875283	HOSE-2 INCHES (1 required per assembly)
		32-875283 - Hose -2 Inches [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#34	69355	TIE STRAP @100 (1 required per assembly)
		69355 - Tie Strap - Priced Individually [ More info ] $0.40 10+ In Stock.
		8M0214940 - TIE STRAP [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#35	875284T01	FILTER (1 required per assembly) — Replaces: 875284, 875284001
		35-875284T01 - Filter [ More info ] $6.79 6 In Stock.
#36	NSS	NOT SOLD SEPARATE PLUG (1 required per assembly)
