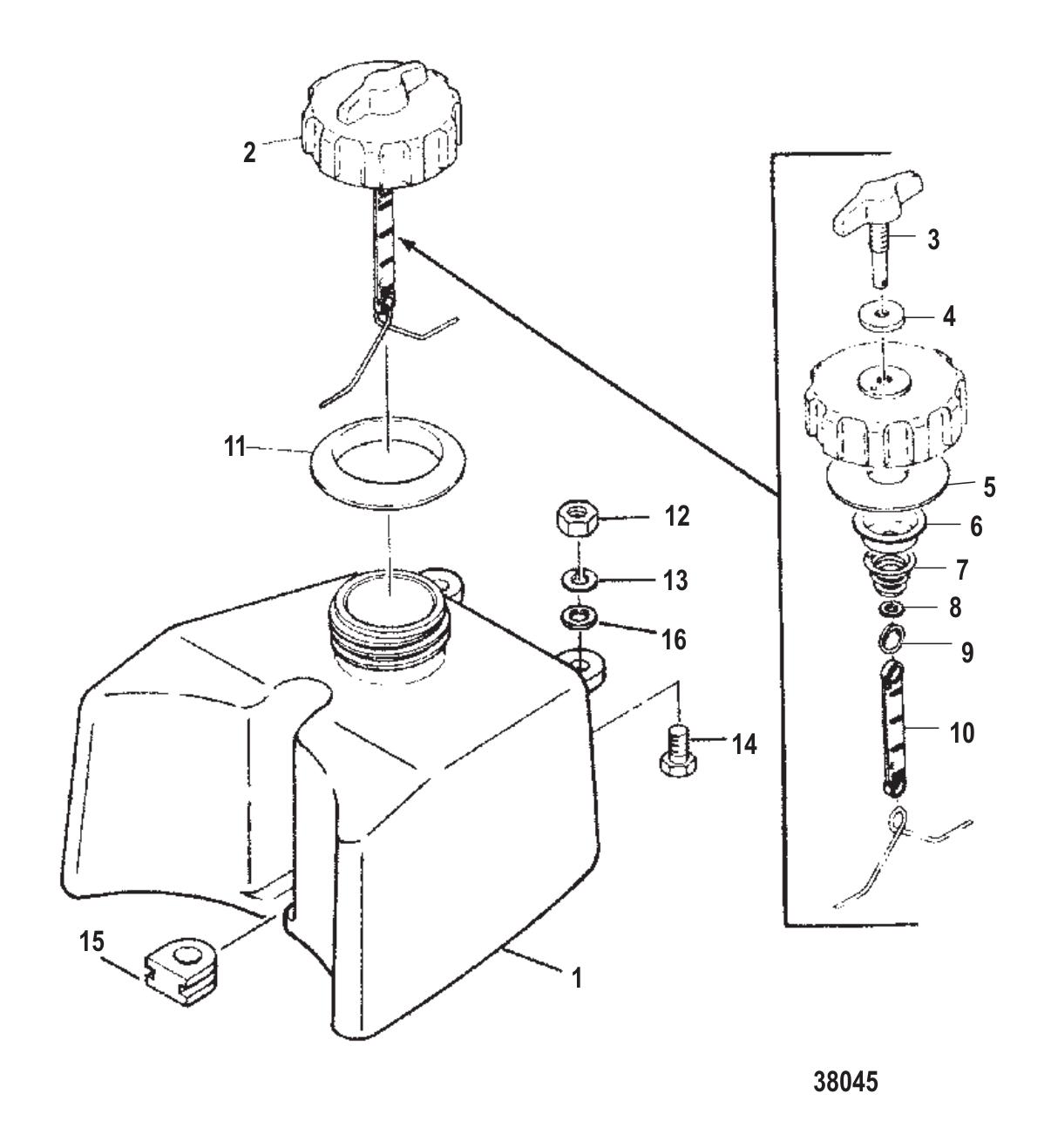

Parts for 2B 2-Stroke Carbureted Mercury Outboard Motor Fuel Tank
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 9209T | FUEL TANK (1 required per assembly) — Replaces: 9209M |
  |
|
1252-9209T - Fuel Tank, NLA [ More info ] Unavailable |
| #2 | 18857M | CAP (1 required per assembly) |
  |
|
36-18857M - Cap, NLA [ More info ]
|
| #3 | 11910M | SCREW AIR [M-076691] & Below (1 required per assembly) — Replaces: 82813M |
  |
|
10-11910M - Screw, NLA [ More info ]
|
| #4 | 82814M | GASKET (1 required per assembly) |
  |
|
27-82814M - Air Screw Gasket [ More info ]
|
| #5 | 82815M | PACKING (1 required per assembly) |
  |
|
26-82815M - Seal, NLA [ More info ]
|
| #6 | 82817M | GASKET (1 required per assembly) |
  |
|
27-82817M - Gasket [ More info ]
|
| #7 | 82819M | SPRING COMPRESSION (1 required per assembly) |
  |
|
24-82819M - Spring, Compression,NLA [ More info ]
|
| #8 | 82847M | WASHER (1 required per assembly) |
  |
|
12-82847M - Washer, NLA [ More info ]
|
| #9 | 82820M | SPRING SAFETY (1 required per assembly) |
  |
|
24-82820M - Spring, Safety,NLA [ More info ]
|
| #10 | 82821M | INDICATOR (1 required per assembly) |
  |
|
82821M - Indicator, NLA [ More info ] Unavailable |
| #11 | 95458M | SEAT CAP ASSEMBLY (1 required per assembly) |
  |
|
25-95458M - O-Ring Seat, Cap Assembly,NLA [ More info ]
|
| #12 | 82389M | NUT @2 [M-142376] & Below (2 required per assembly) — Replaces: 82380M |
  |
|
11-82389M - Nut, NLA [ More info ] Unavailable |
| #13 | 82212M | LOCKWASHER SPRING [M-093605] & Up (2 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #14 | 82423M | BOLT @5 [M-142376] & Below (2 required per assembly) |
  |
|
10-82423M - Bolt, NLA [ More info ]
|
| #15 | 92565M | DAMPER LOCATING (1 required per assembly) |
  |
|
92565M - Damper, NLA [ More info ] Unavailable |
| #16 | 92564M | WASHER @5 (2 required per assembly) |
  |
|
12-92564M - Washer - Priced Individually [ More info ]
|
