Parts for 60 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Carburetor Linkage & Choke Solenoid

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 60 (3 Cyl.) > 0A721308 & Up - Canada > Carburetor Linkage & Choke Solenoid

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

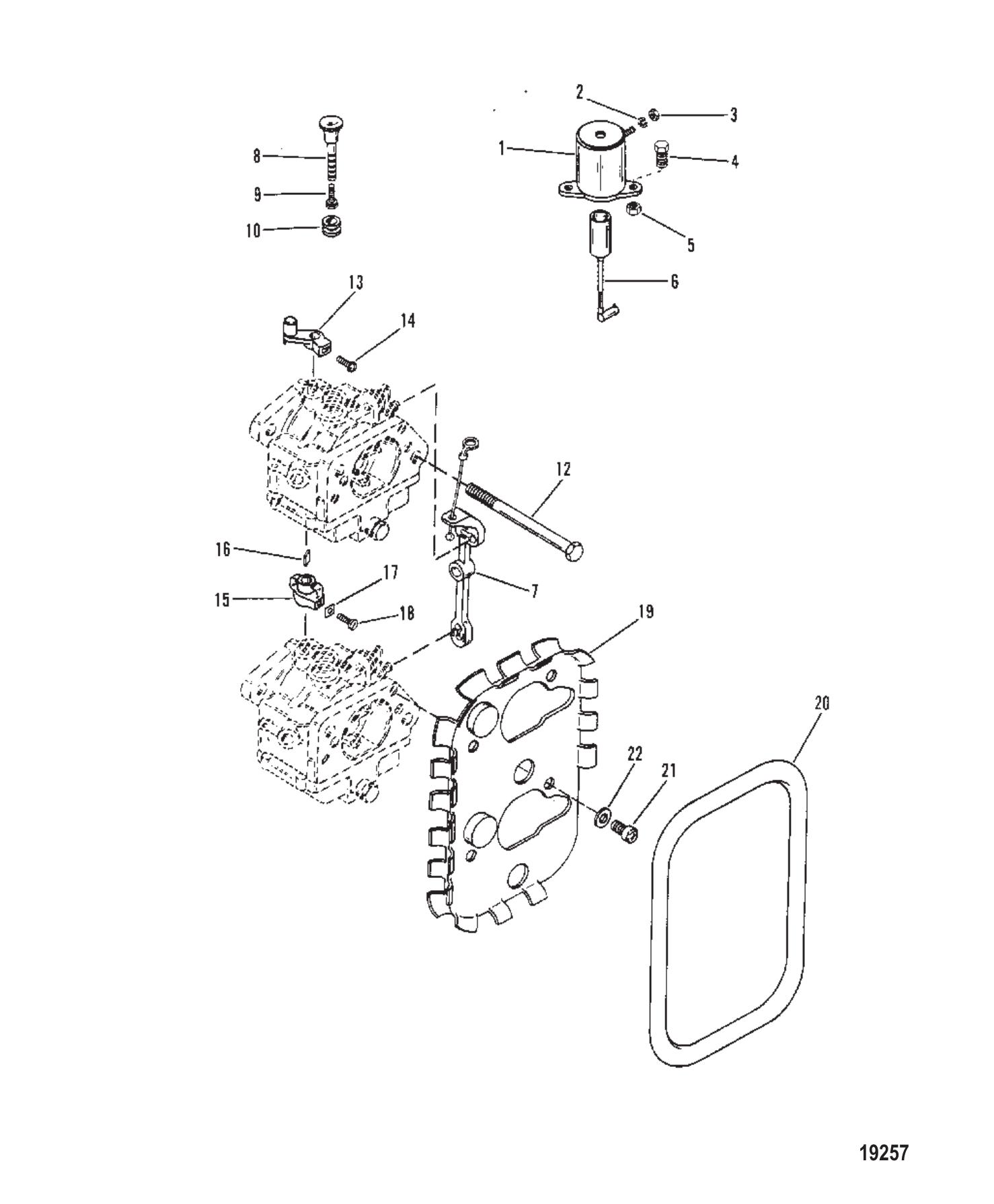

Carburetor Linkage & Choke Solenoid

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	60549A7	CHOKE SOLENOID (1 required per assembly)
		60549A 7 - Choke Solenoid, NLA [ More info ] Unavailable
#2	26996	LOCKWASHER (#10) STAINLESS STEEL CHOKE SOLENOID TERMINAL (1 required per assembly)
		13-26996 - LockWasher - Priced Individually [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#3	68219	NUT (#10-32) STAINLESS STEEL CHOKE SOLENOID TERMINAL (1 required per assembly)
		11-68219 - Nut (#10-32) [ More info ] $2.99 10+ In Stock.
#4	33524	SCREW (.312-24 X .620) CHOKE SOLENOID (1 required per assembly)
		10-33524 - Screw - Priced Individually [ More info ] $0.20 $0.05 10+ In Stock.
#5	29250	NUT (.312-24) CHOKE SOLENOID SCREWS (2 required per assembly)
		11-29250 - Nut (5/16-24) [ More info ] $2.89 $1.63 10+ In Stock.
#6	89008A2	PLUNGER ASSEMBLY CHOKE SOLENOID (1 required per assembly)
		89008A 2 - Plunger Assembly [ More info ] Unavailable
#7	76076A1	CHOKE ROD ASSY (1 required per assembly)
		76076A 1 - Choke Rod Assembly, NLA [ More info ] Unavailable
#8	90242A1	CHOKE KNOB ASSY (1 required per assembly)
		90242A 1 - Choke Knob, NLA [ More info ] Unavailable
#9	35519	SCREW (#10-16 X .500) WIRE TO CHOKE KNOB (1 required per assembly)
		10-35519 - Screw, NLA [ More info ] $1.80 $1.52 10+ In Stock.
#10	20116	GROMMET CHOKE KNOB (1 required per assembly)
		25-20116 - Grommet - Priced Individually [ More info ] $4.79 10+ In Stock.
#12	52743	SCREW (.312-18 X 3.750) CARBURETOR TO CRANKCASE (4 required per assembly)
		10-52743 - Screw [ More info ] $3.00 10 In Stock.
#13	77583	LEVER THROTTLE (1 required per assembly)
		77583 - Lever [ More info ] Unavailable
#14	60293	SCREW (#5-40 X .500) LEVER TO CARBURETOR (1 required per assembly)
		10-60293 - Screw, NLA [ More info ] $2.29 10+ In Stock.
#15	60292A1	COUPLING ASSY (1 required per assembly)
		60292A 1 - Coupling [ More info ] $45.03 8 In Stock.
#16	89694	KEY THROTTLE SHAFT COUPLING (1 required per assembly)
		28-89694 - Key [ More info ] $8.49 Available to Order: Shipping delay up to 10 days.
#17	92500	PUSH NUT ROLLER - COUPLING (1 required per assembly)
		11-92500 - Push Nut, NLA [ More info ] $2.08 10+ In Stock.
#18	60293	SCREW (#5-40 X .500) ROLLED WASHER TO COUPLING (1 required per assembly)
#19	91996A1	PLATE ASSEMBLY CARBURETOR (1 required per assembly)
		91996A 1 - Plate Assembly [ More info ] Unavailable
#20	71090	SEAL CARBURETOR PLATE (1 required per assembly)
		71090 - Seal, NLA [ More info ] Unavailable
#21	20367	SCREW PLATE TO CARBURETOR (7/16&QUOT;) (4 required per assembly)
		10-20367 - Screw, NLA [ More info ] $1.94 2 In Stock.
#22	8M0204649	WASHER @10 PLATE SCREW (4 required per assembly) — Replaces: 29245
		12-8M0204649 - WASHER Note: Priced Individually [ More info ] $1.20 10+ In Stock.
