Parts for 250 / 275 2-Stroke Carbureted Mercury Outboard Motor Exhaust Plate

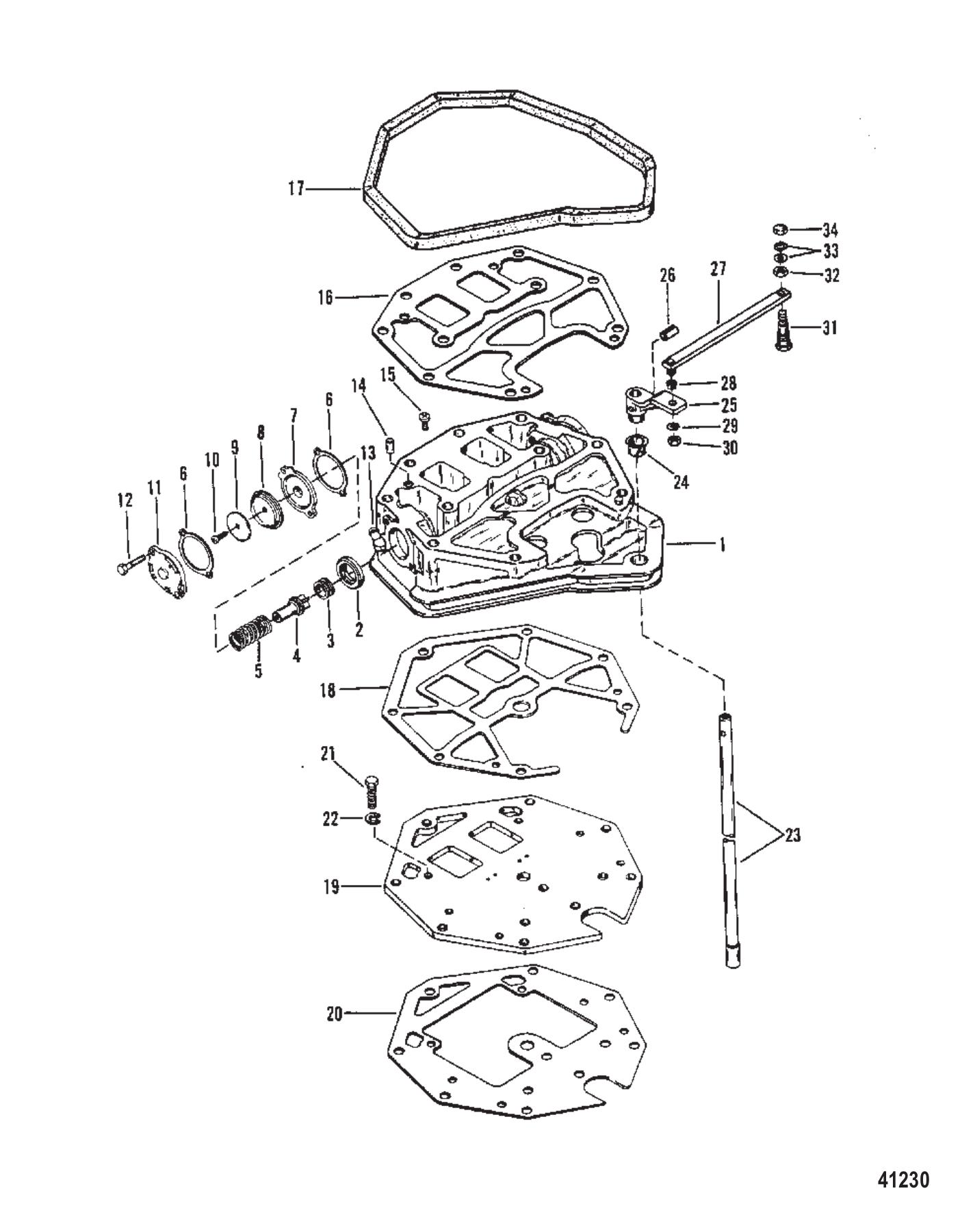

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 88605A89 | GASKET SET (1 required per assembly) |
  |
|
27-88605A89 - Gasket Set [ More info ]
|
| #- | 92040A89 | POWERHEAD MARINE (250) (1 required per assembly) |
  |
|
92040A89 - Powerhead MARINE,NLA [ More info ] Unavailable |
  |
|
92040R89 - Powerhead 250 Reman, NLA [ More info ]
|
| #- | 19398A93 | PH 275 (275) (1 required per assembly) |
  |
|
19398A93 - PH 275,NLA [ More info ] Unavailable |
| #1 | 437692 | EXT. PLATE (250) (1 required per assembly) |
  |
|
43769 2 - EXT. PLATE,NLA [ More info ] Unavailable |
| #1 | 43769A3 | EXTENSION PLATE (275) (1 required per assembly) |
  |
|
43769A 3 - EXTENSION PLATE,NLA [ More info ] Unavailable |
| #2 | 64872 | GROMMET @2 (2 required per assembly) |
  |
|
25-64872 - Grommet, Poppet Relief Valve [ More info ]
|
| #3 | 65848 | CARRIER (2 required per assembly) |
  |
|
|
| #4 | 86596 | POPPET (2 required per assembly) |
  |
|
86596 - Poppet Valve [ More info ]
|
| #5 | 90392 | SPRING (2 required per assembly) |
  |
|
24-90392 - Spring, Poppet Valve [ More info ]
|
| #6 | 88907003 | GASKET @2 (4 required per assembly) — Replaces: 88907 |
  |
|
27-88907003 - Relief Valve Plate Gasket [ More info ]
|
| #7 | 65664A1 | PLATE ASSY (2 required per assembly) |
  |
|
65664A 1 - Plate Assembly [ More info ]
|
| #8 | 648771 | DIAPHRAGM (2 required per assembly) — Replaces: 64877 |
  |
|
64877 1 - Diaphragm [ More info ]
|
| #9 | 76451 | WASHER @2 (2 required per assembly) |
  |
|
12-76451 - Washer, Diaphragm [ More info ]
|
| #10 | 69570 | SCREW (2 required per assembly) |
  |
|
10-69570 - Screw [ More info ]
|
| #11 | 65663A2 | COVER ASSY (2 required per assembly) |
  |
|
65663A 2 - Cover Assembly [ More info ] Unavailable |
| #12 | 4000354 | SCREW @5 (4 required per assembly) |
  |
|
10-40003 54 - Screw - Priced Individually [ More info ]
|
| #13 | 687271 | FITTING (2 required per assembly) — Replaces: 68727 |
  |
|
22-68727 1 - Fitting [ More info ]
|
| #14 | 43044 | PIN-DOWEL-SOLID (2 required per assembly) |
  |
|
17-43044 - Pin -Dowel-solid [ More info ]
|
| #15 | 81516265 | SCREW (1 required per assembly) |
  |
|
10-815162 65 - Screw, NLA [ More info ]
|
| #16 | 438771 | GASKET (UPPER) (1 required per assembly) |
  |
|
27-43877 1 - Gasket Long [ More info ]
|
| #17 | 88355 | SEAL (1 required per assembly) |
  |
|
88355 - Seal, NLA [ More info ] Unavailable |
| #18 | 438782 | GASKET (LOWER) (1 required per assembly) |
  |
0438782 - HOOD AY (438782) [ More info ] Unavailable |
|
  |
|
5000344 - Engine Cover [ More info ] Unavailable |
| #19 | 88880A1 | EXHAUST TUBE (1 required per assembly) |
  |
|
88880A 1 - EXHAUST Tube, NLA [ More info ] Unavailable |
| #20 | 890842 | GASKET (1 required per assembly) |
  |
|
27-89084 2 - Gasket [ More info ]
|
| #21 | 4000354 | SCREW @5 (3 required per assembly) |
| #22 | 400247 | LOCKWASHER @4 (3 required per assembly) |
  |
|
13-40024 7 - LockWasher Note: - Priced Individually [ More info ]
|
| #23 | 968431 | SHIFT SHAFT (LONG) (1 required per assembly) |
  |
|
96843 1 - Shift Shaft, NLA [ More info ]
|
| #23 | 968432 | SHIFT SHAFT (X-LONG) (1 required per assembly) |
  |
|
96843 2 - Shift Shaft, NLA [ More info ] Unavailable |
| #23 | 968433 | SHIFT SHAFT (XX-LONG) (1 required per assembly) |
  |
|
96843 3 - Shift Shaft, NLA [ More info ] Unavailable |
| #24 | 65830 | NYLINER (1 required per assembly) |
  |
|
23-65830 - NyLiner [ More info ]
|
| #25 | 968413 | SHIFT SHAFT LEVER (1 required per assembly) |
  |
|
96841 3 - Shift Shaft Lever [ More info ] Unavailable |
| #26 | 96888 | PIN-ROLL (1 required per assembly) |
  |
|
17-96888 - Roll Pin, Lever To Shift Shaft, NLA [ More info ] Unavailable |
| #27 | 96848 | LINK (1 required per assembly) |
  |
|
96848 - LINK,NLA [ More info ] Unavailable |
| #28 | 26856 | BUSHING (2 required per assembly) |
  |
|
23-26856 - Bushing [ More info ]
|
| #29 | 29720 | WASHER-WAVE @5 (1 required per assembly) |
  |
|
13-29720 - Wave Washer - Priced Individually [ More info ]
|
| #30 | 826709109 | NUT @5 (1 required per assembly) — Replaces: 35045 |
  |
|
11-826709109 - Nut, (.250-28) Stainless Steel [ More info ]
|
| #31 | 96849 | SCREW (1 required per assembly) |
  |
|
10-96849 - Screw, NLA [ More info ]
|
| #32 | 28770 | NUT @5 (1 required per assembly) |
  |
|
11-28770 - Nut (5/16-24) [ More info ]
|
| #33 | 29720 | WASHER-WAVE @5 (2 required per assembly) |
| #34 | 826709109 | NUT @5 (1 required per assembly) — Replaces: 35045 |
