Parts for 55 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Induction Manifold & Reed Block

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 55 (3 Cyl.) > 0P325500 & Up - Belgium > Induction Manifold & Reed Block

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

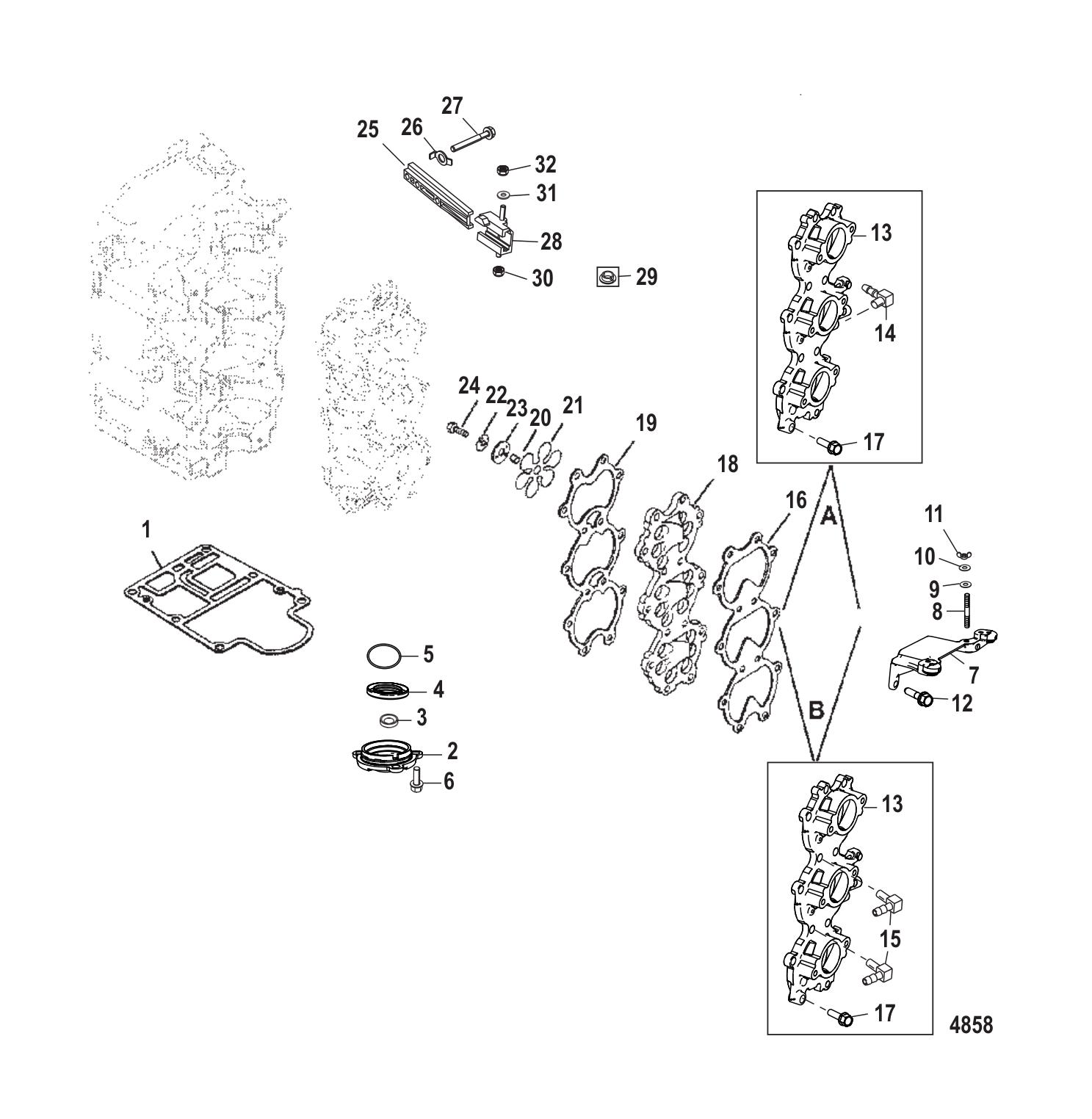

Induction Manifold & Reed Block

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	15026	CAP (For use on Induction Manifold) (3 required per assembly)
		22-15026 - Fitting [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#-	812867A97	GASKET SET (1 required per assembly)
		27-812867A97 - Engine Overhaul Gasket Set [ More info ] $112.99 Available to Order: Shipping delay up to 10 days.
#-	852071T97	PH 60 3CYL (1 required per assembly)
		852071T97 - Powerhead 60 3 Cylinder [ More info ] Unavailable
#1	8M0000822	GASKET (1 required per assembly) — Replaces: 828553
		27-8M0000822 - Gasket [ More info ] $18.19 Available to Order: Shipping delay up to 10 days.
		18-0319 - Gasket, 27-828553 [ More info ] $15.05 Available to Order: Shipping delay up to 10 days.
#2	9812T9	END CAP-LOWER (1 required per assembly)
		1171-9812T 9 - End Cap - Lower [ More info ] $216.49 Available to Order: Shipping delay up to 10 days.
#3	66301	SEAL OIL (1 required per assembly)
		26-66301 - Seal - Priced Individually [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#4	41953	SEAL (1 required per assembly)
		26-41953 - Oil Seal - Priced Individually [ More info ] $17.49 Available to Order: Shipping delay up to 10 days.
		18-2016 - Seal, 26-41953 [ More info ] $14.34 5 In Stock.
#5	8M0142854	O RING (2.175 X .103) (1 required per assembly) — Replaces: 90011, 896523
		25-8M0142854 - O-Ring [ More info ] $1.10 5 In Stock.
#6	81742720	SCREW (3 required per assembly)
		10-817427 20 - Screw [ More info ] $8.99 Available to Order: Shipping delay up to 10 days.
#7	19077A07	BRACKET KIT (1 required per assembly)
		19077A07 - Bracket Kit [ More info ] $75.99 Available to Order: Shipping delay up to 10 days.
#8	8161949	STUD (M6 X 44) (2 required per assembly)
		16-816194 9 - Stud [ More info ] $12.19 Available to Order: Shipping delay up to 10 days.
#9	8M0204663	WASHER @5 (Electric) (2 required per assembly) — Replaces: 49221
		12-8M0204663 - Washer, Sold Individually [ More info ] $1.20 10+ In Stock.
#10	69056	WASHER (Electric) (2 required per assembly)
		12-69056 - Washer, (.255 X .620 X .030) Stainless Steel [ More info ] $1.80 2 In Stock.
#11	816872	NUT-WING (Electric) (2 required per assembly)
		11-816872 - Wing Nut [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#12	82127335	SCREW (3 required per assembly)
		10-821273 35 - Screw [ More info ] $5.19 10+ In Stock.
#13	827998A1	M FOLD-INDUCTION (1 required per assembly)
		827998A 1 - Manifold - Induction [ More info ] $126.99 Available to Order: Shipping delay up to 10 days.
#14	19725	ELBOW (Electric) (1 required per assembly)
		22-19725 - Fitting [ More info ] $23.49 Available to Order: Shipping delay up to 10 days.
#15	19725	ELBOW (Manual) (2 required per assembly)
#16	812869	GASKET (1 required per assembly)
		27-812869 - Induction Manifold Gasket [ More info ] $12.89 4 In Stock.
#17	81742730	SCREW (10 required per assembly)
		10-817427 30 - Screw [ More info ] $1.10 $0.88 5 In Stock.
#18	19075A3	REED BLOCK ASSY (1 required per assembly)
		19075A 3 - Reed Block [ More info ] Unavailable
#19	812868	GASKET (1 required per assembly)
		27-812868 - Reed Block Gasket [ More info ] $12.89 2 In Stock.
#20	NSS	NOT SOLD SEPARATE DOWEL PIN (6 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#21	812880A03	REED KIT (3 required per assembly)
		34-812880A03 - Reed Kit, For individual cylinder [ More info ] $27.23 9 In Stock.
#22	429821	TAB WASHER (3 required per assembly)
		14-42982 1 - Tab Washer [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#23	812879002	RETAINER-REED (3 required per assembly)
		812879002 - Reed Retainer [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#24	88421471	SCREW (3 required per assembly)
		10-884214 71 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#25	42881A1	SHIFT RAIL ASSY (1 required per assembly)
		42881A 1 - Shift Rail Assembly [ More info ] $32.89 Available to Order: Shipping delay up to 10 days.
#26	42981	TAB WASHER (2 required per assembly)
		14-42981 - Tab Washer [ More info ] $7.39 Available to Order: Shipping delay up to 10 days.
#27	40001134	SCREW (2 required per assembly)
		10-40001134 - Screw [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#28	988851	SLIDE (1 required per assembly)
		98885 1 - Slide [ More info ] $33.53 5 In Stock.
#29	48475	BUSHING (1 required per assembly)
		23-48475 - Bushing [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#30	401386	NUT @5 (1 required per assembly)
		11-40138 6 - Nut - Priced Individually [ More info ] $5.09 9 In Stock.
#31	35459	WASHER (1 required per assembly)
		12-35459 - Washer (.265 X .620 X .06) [ More info ] $1.70 2 In Stock.
#32	401386	NUT @5 (1 required per assembly)
