Parts for 55 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Jet Components

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 55 (3 Cyl.) > 0P017000 - 0P325499 - Belgium > Jet Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

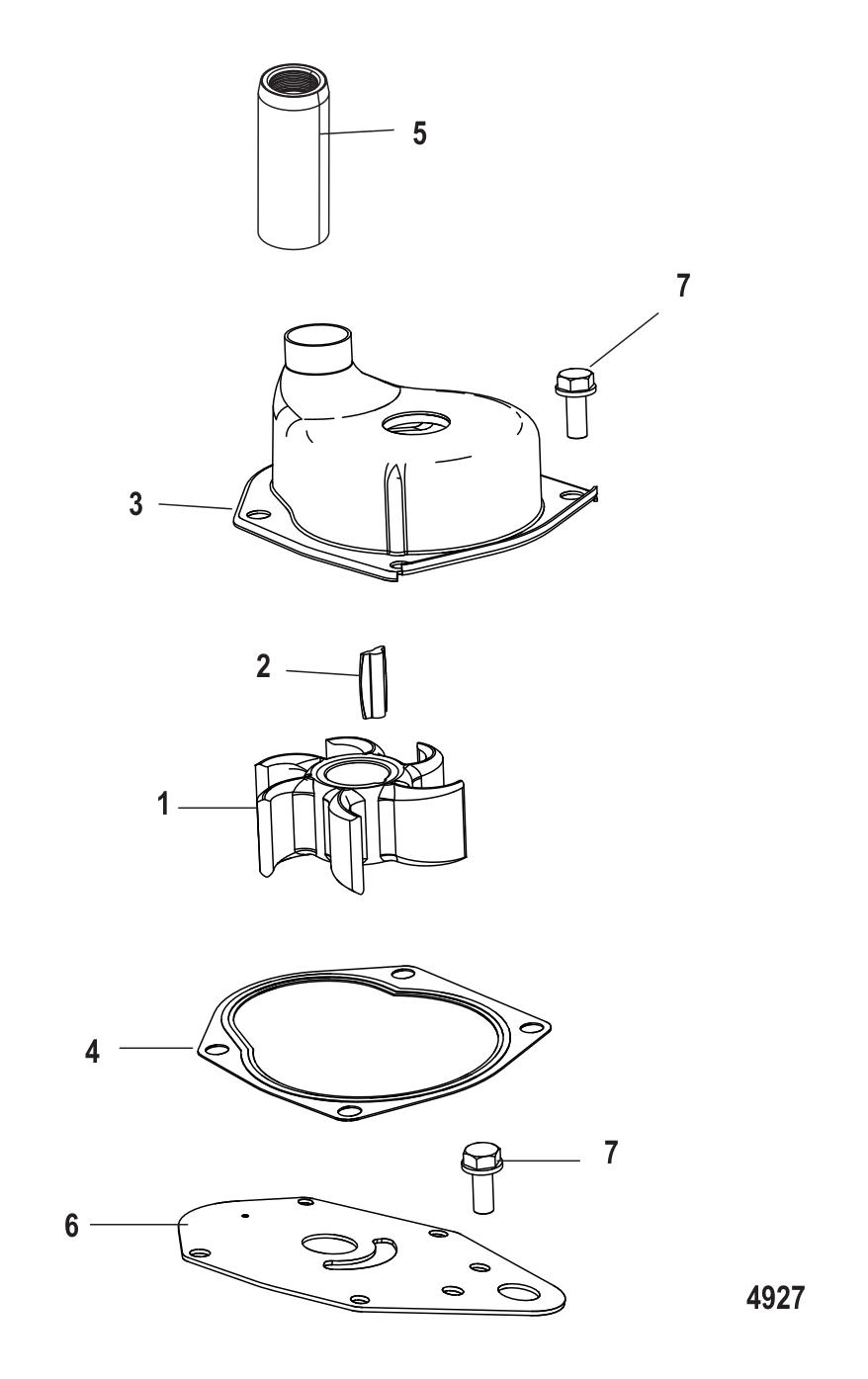

Jet Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	812966A12	PUMP KIT-WATER (1 required per assembly) — Replaces: 812966A11
		46-812966A12 - Water Pump Kit [ More info ] $181.99 1 In Stock.
		46-46514 - Water Pump Kit [ More info ] $134.99 3 In Stock.
#-	814669A2	SEAL KIT-G/H (1 required per assembly)
		26-814669A 2 - Gear Housing Seal Kit [ More info ] $77.05 2 In Stock.
		18-2635 - Seal Kit, 26-814669A2 [ More info ] $66.91 10+ In Stock.
#1	19453T	IMPELLER-W/P (1 required per assembly)
		47-19453T - Water Pump Impeller [ More info ] $55.99 6 In Stock.
		18-8900 - Impeller, 47-19453T [ More info ] $47.99 $44.86 10+ In Stock.
#2	8M0032831	KEY (1 required per assembly) — Replaces: 19699
		28-8M0032831 - Key [ More info ] $4.60 2 In Stock.
#3	812966A12	PUMP KIT-WATER (1 required per assembly) — Replaces: 14334A3
#4	822189	GASKET UPPER WATER PUMP (Upper) (1 required per assembly)
		27-822189 - Upper Water Pump Gasket [ More info ] $6.69 7 In Stock.
		18-0345 - Gasket [ More info ] $7.30 10+ In Stock.
#5	8M0204658	SEAL (1 required per assembly) — Replaces: 43023
		8M0204658 - SEAL [ More info ] $14.89 3 In Stock.
#6	19700A2	FACE PLATE (1 required per assembly)
		19700A 2 - Face Plate Kit [ More info ] $17.70 1 In Stock.
#7	8248324	SCREW @5 (6 required per assembly)
		10-824832 4 - Screw [ More info ] $1.80 5 In Stock.
