Parts for 25 Jet (2 Cyl.) (2-Stroke) (International) 2-Stroke Carbureted Mercury Outboard Motor Electric Starter Optional Parts

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 Jet (2 Cyl.) (2-Stroke) (International) > 0N088578 & Up - Belgium > Electric Starter Optional Parts

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

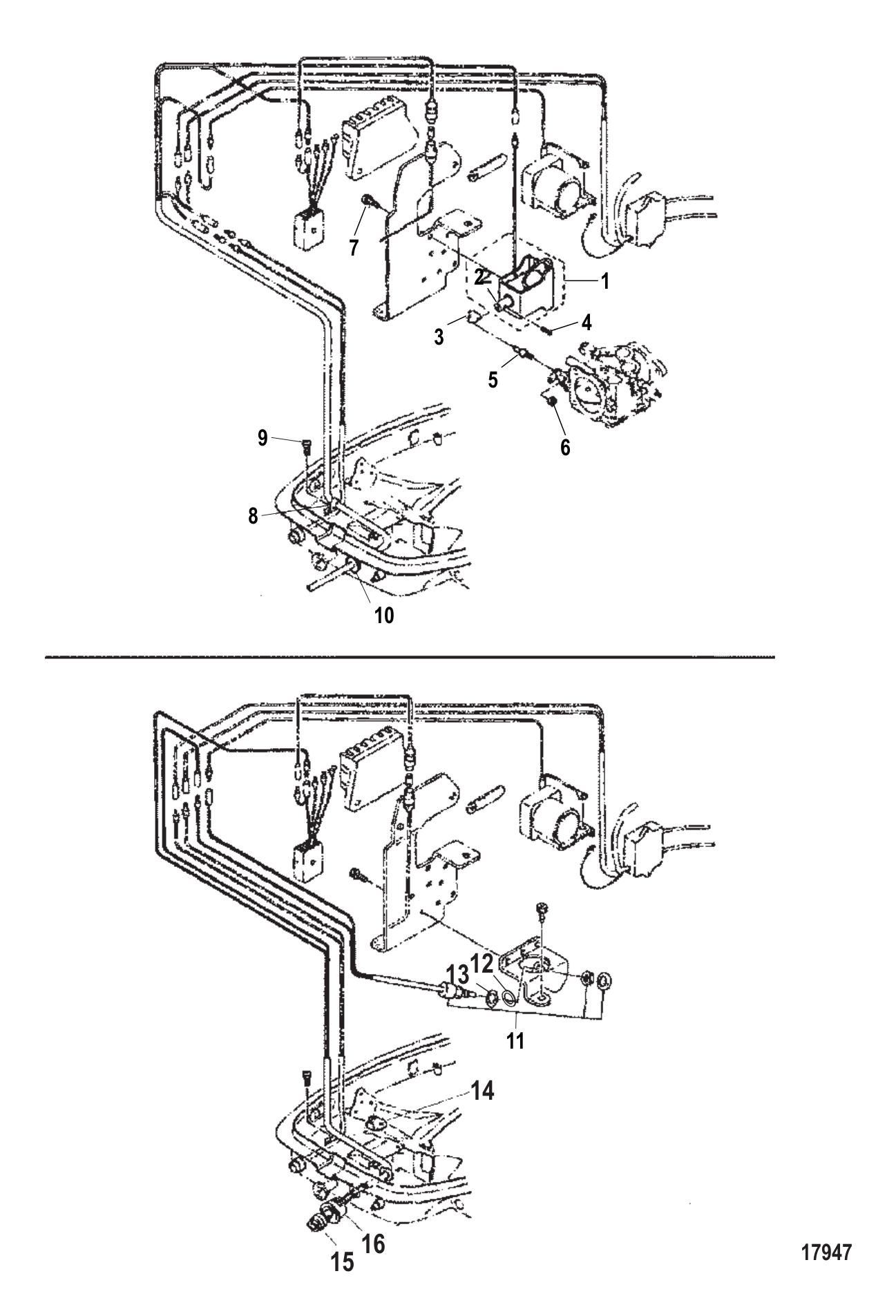

Electric Starter Optional Parts

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	853805T04	STARTER KIT (1 required per assembly) — Replaces: 853805A4
		50-853805T04 - Starter Kit [ More info ] $729.36 Available to Order: Shipping delay up to 10 days.
#1	853829A1	SOLENOID ASSEMBLY CHOKE (ELECTRIC REMOTE) (1 required per assembly)
		853829A 1 - Choke Solenoid [ More info ] $130.99 Available to Order: Shipping delay up to 10 days.
#2	853830	PLUNGER (ELECTRIC REMOTE) (1 required per assembly)
		853830 - Plunger [ More info ] $19.99 Available to Order: Shipping delay up to 10 days.
#3	853831	HOOK (ELECTRIC REMOTE) (1 required per assembly)
		853831 - Retainer [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#4	952189	PIN DOWEL (ELECTRIC REMOTE) (1 required per assembly)
		17-95218 9 - Dowel Pin [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#5	853832001	ROD (ELECTRIC REMOTE) (1 required per assembly) — Replaces: 853832
		853832001 - ROD [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#6	85372210	NUT (ELECTRIC REMOTE) (1 required per assembly)
		11-853722 10 - Nut [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#7	162454	SCREW (ELECTRIC REMOTE) (3 required per assembly)
		0162454 - Part (162454) [ More info ] Unavailable
#8	17169	CLAMP (ELECTRIC REMOTE) (1 required per assembly)
		54-17169 - Clamp [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#9	16827	SCREW (ELECTRIC REMOTE) (1 required per assembly)
		10-16827 - Screw [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#10	162262	GROMMET (ELECTRIC REMOTE) (1 required per assembly)
		0162262 - Part (162262) [ More info ] Unavailable
#11	8M0127937	SWITCH NEUTRAL (ELECTRIC TILLER) (1 required per assembly) — Replaces: 171711, 804054001
		878M0127937 - Neutral Switch [ More info ] $73.99 Available to Order: Shipping delay up to 10 days.
#12	803842	SPACER (1 required per assembly)
		23-803842 - Spacer [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#13	9539211	WASHER (ELECTRIC TILLER) (1 required per assembly)
		12-95392 11 - Washer [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#14	853823	PLATE (ELECTRIC TILLER) (1 required per assembly)
		853823 - Plate [ More info ] $6.59 Available to Order: Shipping delay up to 10 days.
#15	853820A1	MAIN SWITCH (ELECTRIC TILLER) (1 required per assembly)
		87-853820A 1 - Switch [ More info ] $24.29 Available to Order: Shipping delay up to 10 days.
#16	853821	PROTECTOR (ELECTRIC TILLER) (1 required per assembly)
		853821 - Protector [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
