Parts for 25 Jet (2 Cyl.) (2-Stroke) (International) 2-Stroke Carbureted Mercury Outboard Motor Crankshaft, Pistons & Connecting Rod

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 Jet (2 Cyl.) (2-Stroke) (International) > 0N088578 & Up - Belgium > Crankshaft, Pistons & Connecting Rod

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

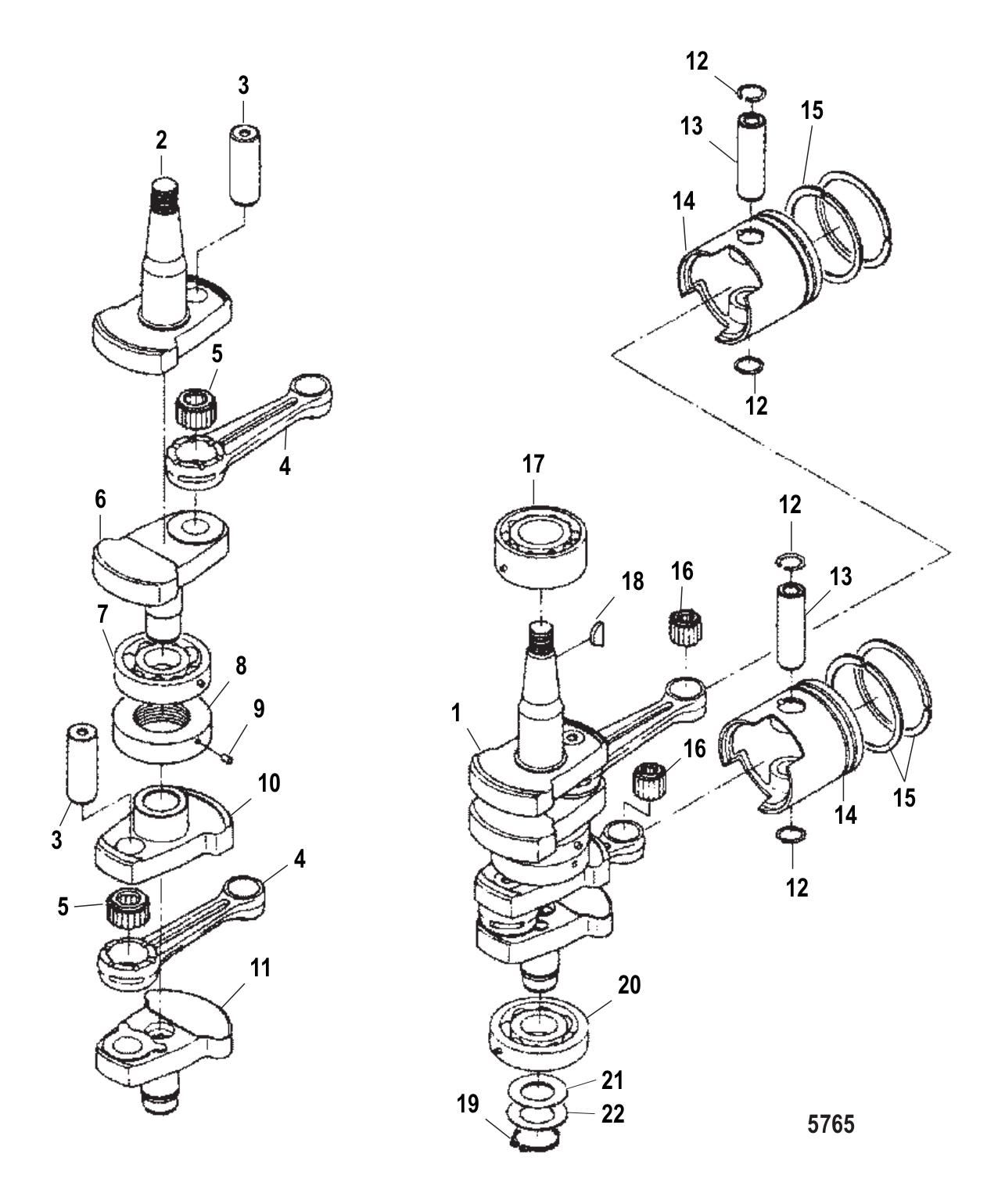

Crankshaft, Pistons & Connecting Rod

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	8M0082174	PISTON ASSEMBLY (Standard), services one piston [0N062931] & Up (2 required per assembly)
		7008M0082174 - Piston [ More info ] $88.99 Available to Order: Shipping delay up to 10 days.
#-	8M0082175	PISTON ASSEMBLY (.5 Oversize), services one piston [0N062931] & Up (AR required per assembly)
		7008M0082175 - Piston [ More info ] $107.99 Available to Order: Shipping delay up to 10 days.
#-	8M0074333	SHORT BLOCK [ON160572] & Below (1 required per assembly) — Replaces: 853787A04, 853787A07
		8M0074333 - Short Block [ More info ] Unavailable
		8M0119221 - 8M0149732 [ More info ] Unavailable
		8M0149732 - PH 25/30/JET 2S [ More info ] Unavailable
		8M0190579 - PH 25/30/JET 2S [ More info ] Unavailable
#-	8M0149732	SHORT BLOCK [ON160573] & Up (1 required per assembly) — Replaces: 8M0074333, 8M0119221
#1	803672A07	CRANKSHAFT KIT (1 required per assembly) — Replaces: 9614A07
		474-803672A07 - CrankShaft Kit [ More info ] $1,034.99 Available to Order: Shipping delay up to 10 days.
#2	813044A01	CRANKSHAFT (1 required per assembly)
		463-813044A01 - CrankShaft Kit [ More info ] $200.49 Available to Order: Shipping delay up to 10 days.
#3	813046T01	PIN-PISTON (2 required per assembly) — Replaces: 8130461
		813046T01 - Pin-Piston [ More info ] $33.49 Available to Order: Shipping delay up to 10 days.
#4	813047T01	CONNECTING ROD (2 required per assembly) — Replaces: 8130471
		629-813047T01 - Connecting Rod [ More info ] $117.99 Available to Order: Shipping delay up to 10 days.
#5	8130482	BEARING NEEDLE (2 required per assembly)
		31-813048 2 - Bearing-Needle [ More info ] $20.99 Available to Order: Shipping delay up to 10 days.
#6	8M0090847	CRANKSHAFT (1 required per assembly) — Replaces: 8130442
		463-8M0090847 - CRANKSHAFT [ More info ] Unavailable
#7	16049T02	BEARING-BALL (1 required per assembly) — Replaces: 160492
		30-16049T02 - Ball Bearing [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
#8	853707A1	SEAL KIT (1 required per assembly)
		26-853707A 1 - Seal Kit [ More info ] $58.49 Available to Order: Shipping delay up to 10 days.
#9	161791	PIN (1 required per assembly)
		[ More info ] Unavailable
#10	8M0090848	CRANKSHAFT (1 required per assembly) — Replaces: 8130452, 813045T02
		4638M0090848 - Crankshaft [ More info ] $106.58 Available to Order: Shipping delay up to 10 days.
#11	813045T01	CRANKSHAFT (1 required per assembly) — Replaces: 8130451
		463-813045T01 - CrankShaft [ More info ] $211.49 Available to Order: Shipping delay up to 10 days.
#12	160571	CLIP (4 required per assembly)
		53-16057 1 - Clip [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#13	803680003	PIN-PISTON (2 required per assembly) — Replaces: 160561
		41-803680003 - Pin-Piston [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#14	879194T01	PISTON STANDARD [0N062931] & Up (2 required per assembly) — Replaces: 96151
		779-879194T01 - Piston Std (box) [ More info ] Unavailable
#14	96161	PISTON (.5mm Oversize) [0N062930] & Below (2 required per assembly)
		96161 - PISTON NLA [ More info ] Unavailable
#14	804886T03	PISTON .5 [0N062931] & Up (2 required per assembly) — Replaces: 898101653
		779-804886T03 - Piston .5 [ More info ] $123.99 Available to Order: Shipping delay up to 10 days.
#15	8M0080351	PISTON RING SET (Standard) Services one piston (2 required per assembly)
		398M0080351 - Piston Ring Set [ More info ] $79.99 Available to Order: Shipping delay up to 10 days.
#15	8M0080350	RING SET-PISTON (.5mm Oversize) Services one piston (2 required per assembly)
		398M0080350 - Piston Ring Set [ More info ] $43.99 Available to Order: Shipping delay up to 10 days.
#16	8130483	BEARING-NEEDLE (2 required per assembly)
		31-813048 3 - Needle Bearing [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#17	8M0119217	BEARING-BALL (1 required per assembly) — Replaces: 160491, 16049T01
		308M0119217 - Ball Bearing [ More info ] $108.99 Available to Order: Shipping delay up to 10 days.
#18	160531	KEY (1 required per assembly)
		28-16053 1 - Key [ More info ] $9.89 Available to Order: Shipping delay up to 10 days.
#19	853714	C CLIP (1 required per assembly)
		53-853714 - C Clip [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#20	16049T02	BEARING-BALL (1 required per assembly) — Replaces: 160492
#21	853716	SHIM (AR required per assembly)
		15-853716 - Shim [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#22	853715	SPACER (1 required per assembly)
		23-853715 - Spacer [ More info ] $2.19 Available to Order: Shipping delay up to 10 days.
		23-8M0233349 - SPACER [ More info ] Unavailable
