Parts for 25 (2 Cyl.) (2-Stroke) (International) 2-Stroke Carbureted Mercury Outboard Motor Driveshaft Housing Extension Kits

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 (2 Cyl.) (2-Stroke) (International) > 0N055505 & Up - Belgium > Driveshaft Housing Extension Kits

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

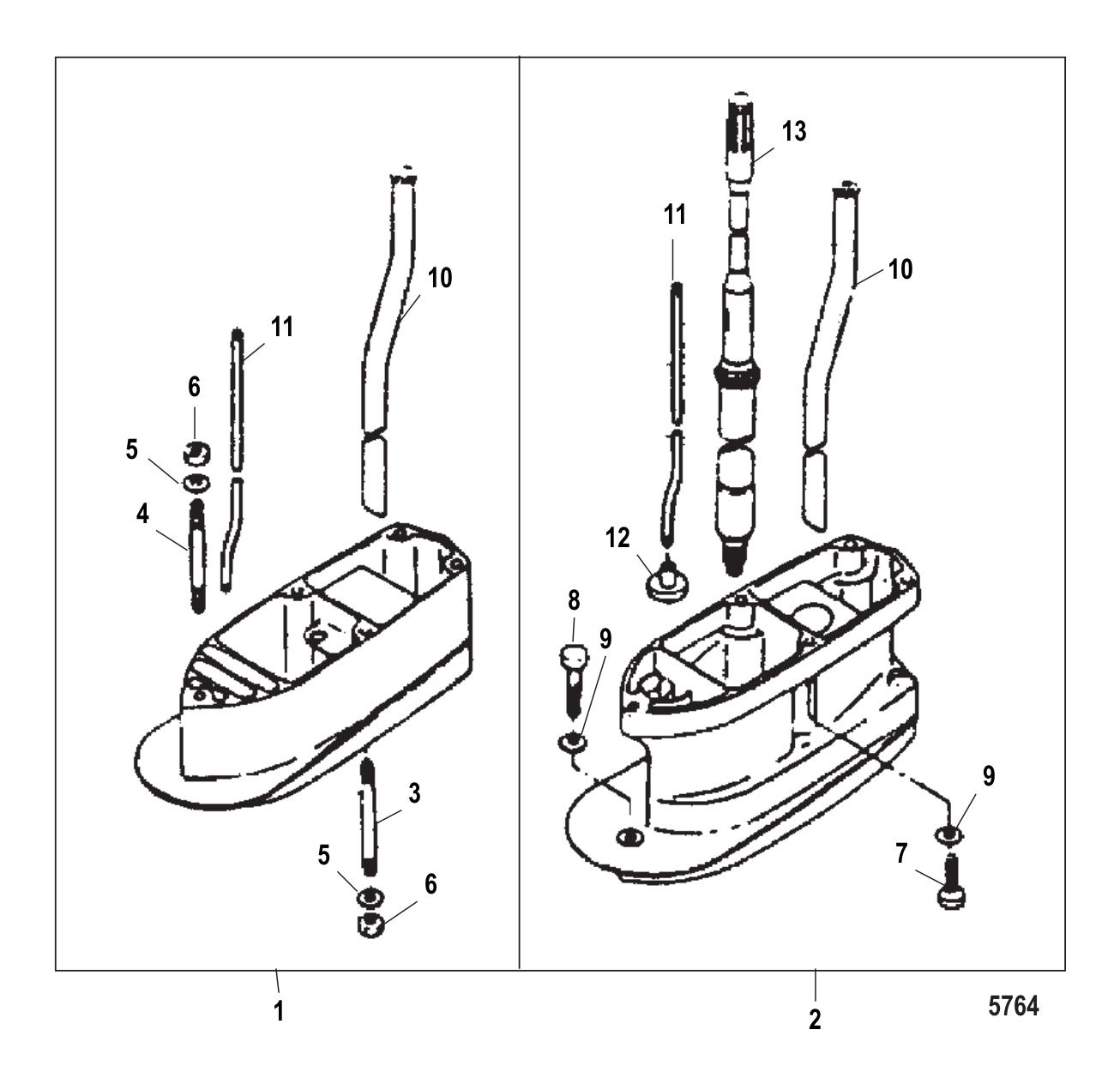

Driveshaft Housing Extension Kits

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	853783T01	HOUSINT-EXTENSION (X-Long-Black - 3 Inches) (1 required per assembly) — Replaces: 853783A1
		853783T01 - Housing-Extension [ More info ] Unavailable
#2	853784T01	HOUSING-EXTENSION (XX-Long-Black - 5 Inches) (1 required per assembly) — Replaces: 853784A1
		853784T01 - Housing-Extension [ More info ] Unavailable
#3	853789	STUD (X-Long) (4 required per assembly)
		16-853789 - Stud [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#4	853789003	STUD (X-Long) (1 required per assembly) — Replaces: 8537891
		16-853789003 - Stud [ More info ] $14.69 Available to Order: Shipping delay up to 10 days.
#5	8M0135942	WASHER (X-Long) (5 required per assembly) — Replaces: 853701
		128M0135942 - Washer [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#6	879194337	NUT (X-Long) (5 required per assembly) — Replaces: 853722023
		11-879194337 - Nut [ More info ] $3.39 $2.72 1 In Stock.
#7	879194306	BOLT (X-Long) (4 required per assembly) — Replaces: 16698006
		10-879194306 - BOLT [ More info ] Unavailable
#8	879194308	BOLT (X-Long) (1 required per assembly) — Replaces: 803726001
		10-879194308 - Bolt [ More info ] $14.89 Available to Order: Shipping delay up to 10 days.
#9	8M0135942	WASHER (X-Long) (5 required per assembly) — Replaces: 853701
#10	161702	TUBE WATER (X-Long) (1 required per assembly)
		[ More info ] Unavailable
#10	161703	TUBE WATER (XX-Long) (1 required per assembly)
		[ More info ] Unavailable
#11	161743	CAM ROD (X-Long) (1 required per assembly)
		16174 3 - Cam ROD [ More info ] $32.17 Available to Order: Shipping delay up to 10 days.
#11	161744	CAM ROD (XX-Long) (1 required per assembly)
		[ More info ] Unavailable
#12	853794	RETAINER (XX-Long) (1 required per assembly)
		853794 - Retainer [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#13	161364	DRIVESHAFT (XX-Long) (1 required per assembly)
		45-16136 4 - Drive Shaft-XXL [ More info ] $155.99 Available to Order: Shipping delay up to 10 days.
