Parts for 25 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Throttle Linkage

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 (2 Cyl.) (International) > 0N018456 - 0N055504 - Belgium > Throttle Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

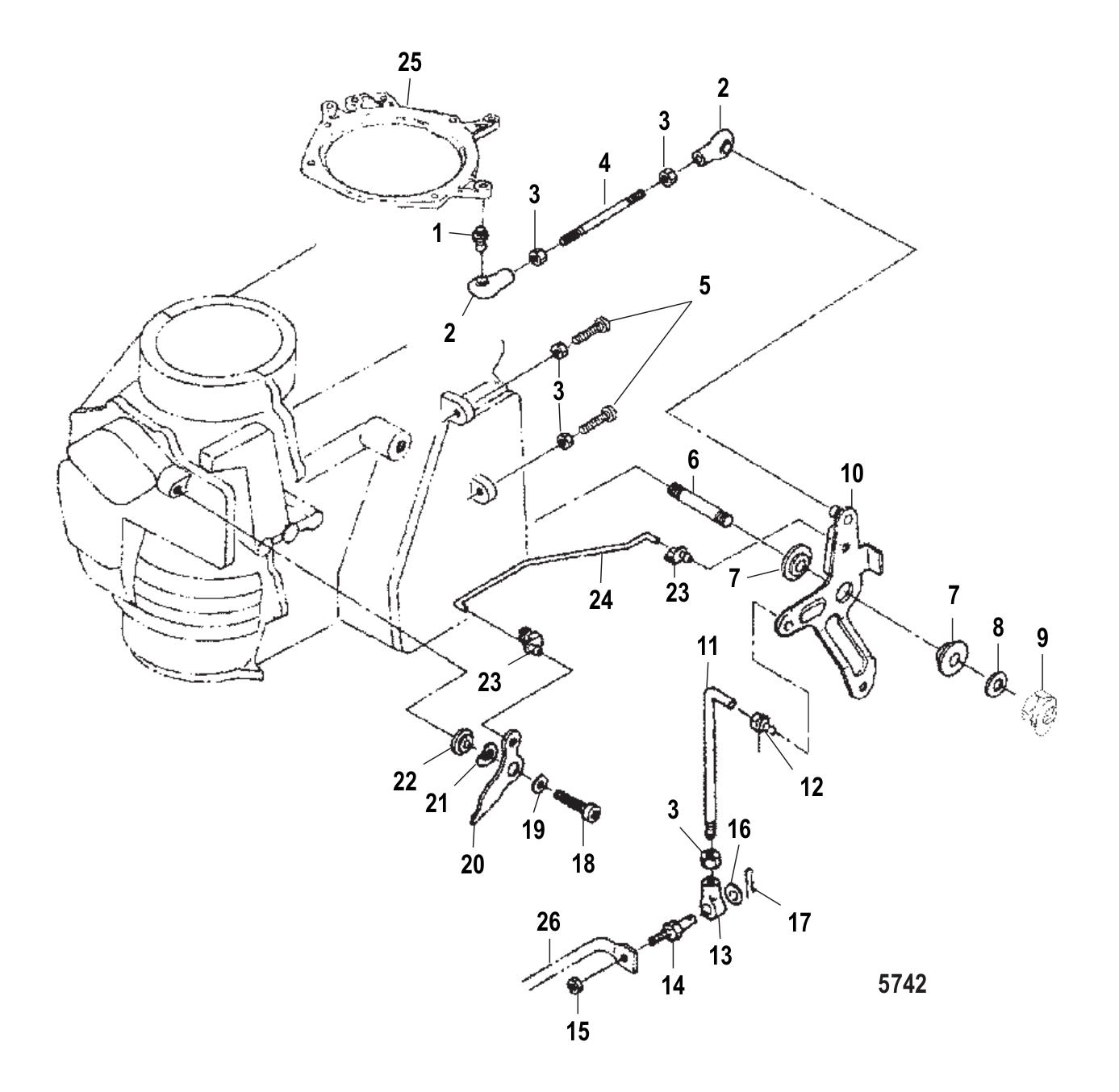

Throttle Linkage

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	853744001	BALL JOINT (1 required per assembly) — Replaces: 853744
		853744001 - Ball Joint [ More info ] $8.49 Available to Order: Shipping delay up to 10 days.
#2	853745	SOCKET (2 required per assembly)
		853745 - Ball Socket [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#3	16081	NUT (5 required per assembly) — Replaces: 8537225
		11-16081 - Nut, Stainless Steel [ More info ] $5.69 1 In Stock.
#4	853746004	LINK ROD (1 required per assembly) — Replaces: 8537462
		853746004 - LINK ROD [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#5	16123	SCREW (2 required per assembly) — Replaces: 853699
		10-16123 - Screw [ More info ] $2.39 Available to Order: Shipping delay up to 10 days.
#6	879194297	STUD (1 required per assembly) — Replaces: 8537181
		16-879194297 - Stud [ More info ] $13.49 Available to Order: Shipping delay up to 10 days.
#7	853743	BUSHING (2 required per assembly)
		23-853743 - Bushing [ More info ] $3.39 Available to Order: Shipping delay up to 10 days.
#8	8M0135942	WASHER (1 required per assembly) — Replaces: 853701
		128M0135942 - Washer [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#9	815088	NUT (1 required per assembly)
		11-815088 - Nut, (M8) [ More info ] Unavailable
		11-95374 - Nut, Nylon, Clamp Bracket Screw [ More info ] $9.59 Available to Order: Shipping delay up to 10 days.
#10	8537422	ADVANCER ARM (1 required per assembly)
		853742 2 - Arm Actuator [ More info ] Unavailable
		8M0103002 - ADVANCER ARM ASSY [ More info ] $34.99 Available to Order: Shipping delay up to 10 days.
#11	853747009	LINK ROD (1 required per assembly) — Replaces: 8537476
		853747009 - Link Rod [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#12	853748	ROD SNAP (1 required per assembly)
		853748 - Rod Snap [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#13	8537451	ROD JOINT (1 required per assembly)
		853745 1 - Rod Joint [ More info ] $3.39 1 In Stock.
#14	853749001	CABLE PIN (1 required per assembly) — Replaces: 853749
		853749001 - Cable Pin [ More info ] $22.09 Available to Order: Shipping delay up to 10 days.
#15	400212	NUT (1 required per assembly) — Replaces: 8537226, 16825
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#16	953925	WASHER (1 required per assembly)
		12-95392 5 - Washer [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#17	8150262	PIN-COTTER (1 required per assembly)
		18-815026 2 - Cotter Pin [ More info ] $4.99 4 In Stock.
#18	162452	SCREW (1 required per assembly)
		[ More info ] Unavailable
#19	953921	WASHER (1 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#20	8537503	THROTTLE CAM (1 required per assembly)
		853750 3 - Throttle Cam [ More info ] $2.49 Available to Order: Shipping delay up to 10 days.
#21	8537232	WAVE WASHER (1 required per assembly)
		13-853723 2 - Wave Washer [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#22	8537431	BUSHING (1 required per assembly)
		23-853743 1 - Bushing [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#23	8M0169412	SNAP ROD (2 required per assembly) — Replaces: 176431
		8M0169412 - Snap Rod [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#24	853747010	LINK ROD (1 required per assembly) — Replaces: 8537471
		853747010 - Link Rod [ More info ] $6.89 Available to Order: Shipping delay up to 10 days.
#25	853710	TIMING PLATE (Shown as Reference #14 on Cylinder Block) (1 required per assembly)
		853710 - Timing Plate [ More info ] $29.69 Available to Order: Shipping delay up to 10 days.
#26	160932	THROTTLE SHAFT (Shown as Reference #16 on Tiller Handle) (1 required per assembly)
		0160932 [ More info ] Unavailable Replaced by 0160955
		0160955 - Part (160955) [ More info ] Unavailable
