Parts for 25 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Remote Control Attaching Kit

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 (2 Cyl.) (International) > 0N018456 - 0N055504 - Belgium > Remote Control Attaching Kit

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

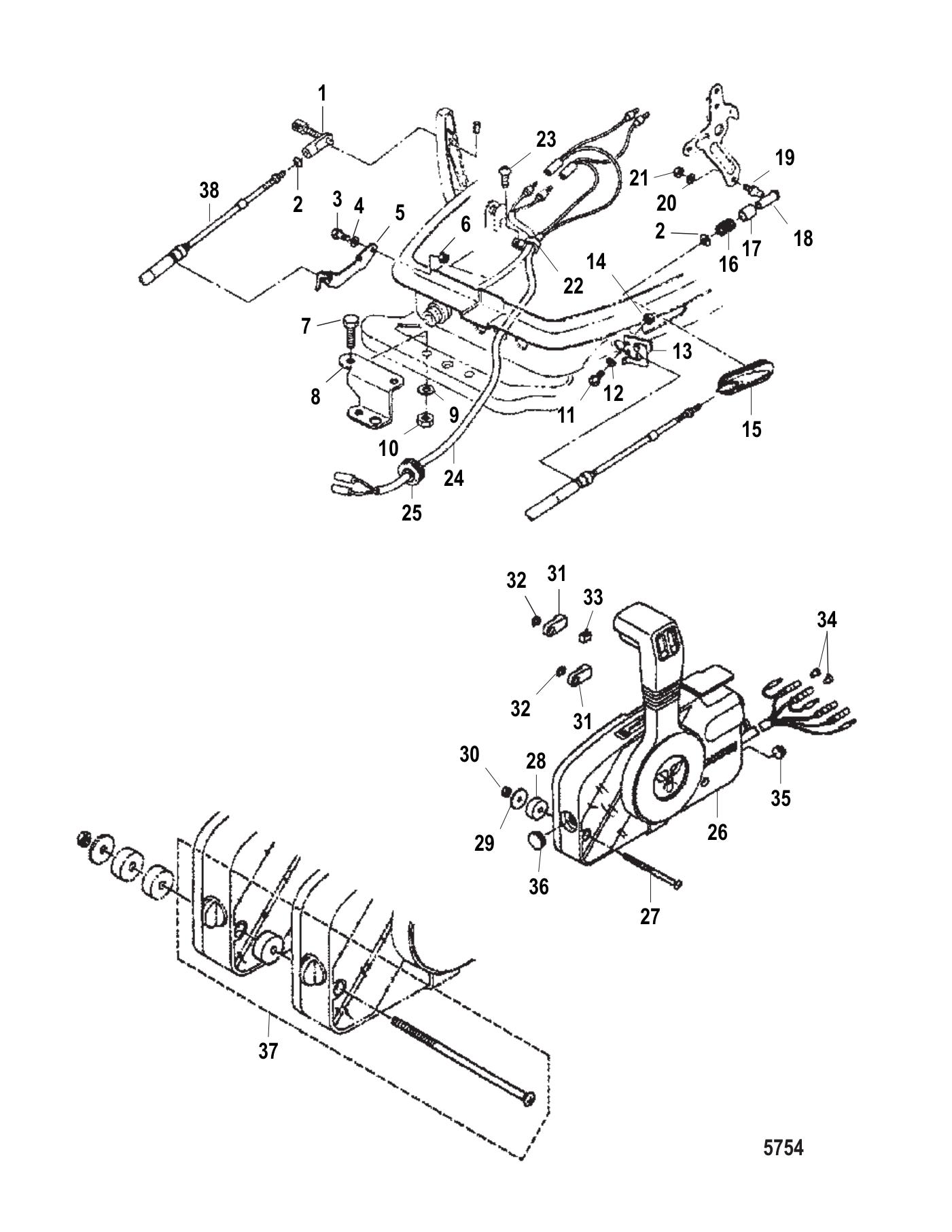

Remote Control Attaching Kit

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	853800A02	ATTACHING KIT (1 required per assembly) — Replaces: 853800A1, 853800T01
		853800A02 - Attaching Kit [ More info ] $373.49 Available to Order: Shipping delay up to 10 days.
#1	853804	CONNECTOR SHIFT KIT (1 required per assembly)
		853804 - Connector Shift Assembly [ More info ] $22.39 Available to Order: Shipping delay up to 10 days.
#2	17029	WASHER (2 required per assembly)
		12-17029 - Washer, Cap Spring [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#3	16705	BOLT (2 required per assembly)
		10-16705 - Bolt [ More info ] $4.09 Available to Order: Shipping delay up to 10 days.
#4	400256	LOCKWASHER (M6) (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#5	8538021	RETAINER SHIFT CABLE (1 required per assembly)
		853802 1 - Retainer [ More info ] $56.49 Available to Order: Shipping delay up to 10 days.
#6	400212	NUT (M6) STAINLESS STEEL (2 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#7	8230428	BOLT (2 required per assembly)
		10-823042 8 - Bolt [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#8	8538022	PLATE STEERING HOOK (1 required per assembly)
		853802 2 - Steering Plate [ More info ] $27.69 Available to Order: Shipping delay up to 10 days.
#9	16192	WASHER (2 required per assembly)
		12-16192 - Washer [ More info ] $3.59 3 In Stock.
#10	400213	NUT (M8) STAINLESS STEEL (2 required per assembly)
		11-40021 3 - Nut - Priced Individually [ More info ] $2.89 1 In Stock.
#11	898103A79	SCREW/WASHER KIT (2 required per assembly) — Replaces: 8150681, 879194010
		10-898103A79 - Screw/Washer Kit [ More info ] $2.99 Available to Order: Shipping delay up to 10 days.
#12	16079	LOCKWASHER (2 required per assembly)
		13-16079 - LockWasher [ More info ] $1.20 Available to Order: Shipping delay up to 10 days.
#13	853802	RETAINER THROTTLE CABLE (1 required per assembly)
		853802 - Throttle Cable Retainer [ More info ] $40.99 Available to Order: Shipping delay up to 10 days.
#14	16081	NUT STAINLESS STEEL (2 required per assembly)
		11-16081 - Nut, Stainless Steel [ More info ] $5.69 1 In Stock.
#15	853803	GROMMET (1 required per assembly)
		25-853803 - Grommet [ More info ] $17.69 Available to Order: Shipping delay up to 10 days.
#16	17028	SPRING (1 required per assembly)
		24-17028 - Spring, Bracket Cap [ More info ] $3.09 Available to Order: Shipping delay up to 10 days.
#17	17027	CAP (1 required per assembly)
		17027 - Bracket Cap [ More info ] $19.29 Available to Order: Shipping delay up to 10 days.
#18	17026	BRACKET (1 required per assembly)
		17026 - Bracket [ More info ] $28.29 Available to Order: Shipping delay up to 10 days.
#19	853801	BALL JOINT (1 required per assembly)
		853801 - Ball Joint [ More info ] $13.39 Available to Order: Shipping delay up to 10 days.
#20	400256	LOCKWASHER (M6) (1 required per assembly)
#21	400212	NUT (M6) STAINLESS STEEL (1 required per assembly)
#22	17169	CLAMP (1 required per assembly)
		54-17169 - Clamp [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#23	16827	SCREW (1 required per assembly)
		10-16827 - Screw [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#24	853799A1	HARNESS (3.9M) (1 required per assembly)
		84-853799A 1 - Harness [ More info ] $85.99 Available to Order: Shipping delay up to 10 days.
#24	853799A2	HARNESS (5.9M) (1 required per assembly)
		84-853799A 2 - Harness [ More info ] $130.99 Available to Order: Shipping delay up to 10 days.
#25	162262	GROMMET (1 required per assembly)
		0162262 - Part (162262) [ More info ] Unavailable
#26	8M0178532	REMOTE CONTROL (Without Quicksilver Decal) (1 required per assembly) — Replaces: 853988A1, 881170A9
		8M0178532 - Remote Control [ More info ] $726.28 Available to Order: Shipping delay up to 10 days.
#27	853989	SCREW (3 required per assembly)
		10-853989 - SCREW [ More info ] Unavailable
#28	853990	SPACER (3 required per assembly)
		23-853990 - SPACER [ More info ] Unavailable
#29	853991	WASHER (3 required per assembly)
		12-853991 - WASHER [ More info ] Unavailable
#30	400212	NUT (M6) STAINLESS STEEL (3 required per assembly)
#31	8539921	TERMINAL EYE (2 required per assembly)
		85-853992 1 - Terminal Eye [ More info ] $13.49 Available to Order: Shipping delay up to 10 days.
#32	160572	E RING (2 required per assembly)
		53-16057 2 - E Ring [ More info ] $5.49 1 In Stock.
#33	853993	GROMMET (1 required per assembly)
		25-853993 - GROMMET [ More info ] Unavailable
#34	853994	PLUG (2 required per assembly)
		19-853994 - Plug, NLA [ More info ] $5.79 $4.64 10+ In Stock.
#35	853995	GROMMET (1 required per assembly)
		25-853995 - GROMMET [ More info ] Unavailable
#36	8539951	GROMMET (1 required per assembly)
		25-8539951 - GROMMET [ More info ] Unavailable
#37	853997A1	MTG. KIT-TWIN-RC (1 required per assembly)
		10-853997A 1 - MOUNTING KIT Twin [ More info ] Unavailable
#38	NSS	NOT SOLD SEPARATE THROTTLE/SHIFT CABLE (See Accessory Guide) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
