Parts for 25 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Manifold / Reed

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 (2 Cyl.) (International) > 0N018456 - 0N055504 - Belgium > Manifold / Reed

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

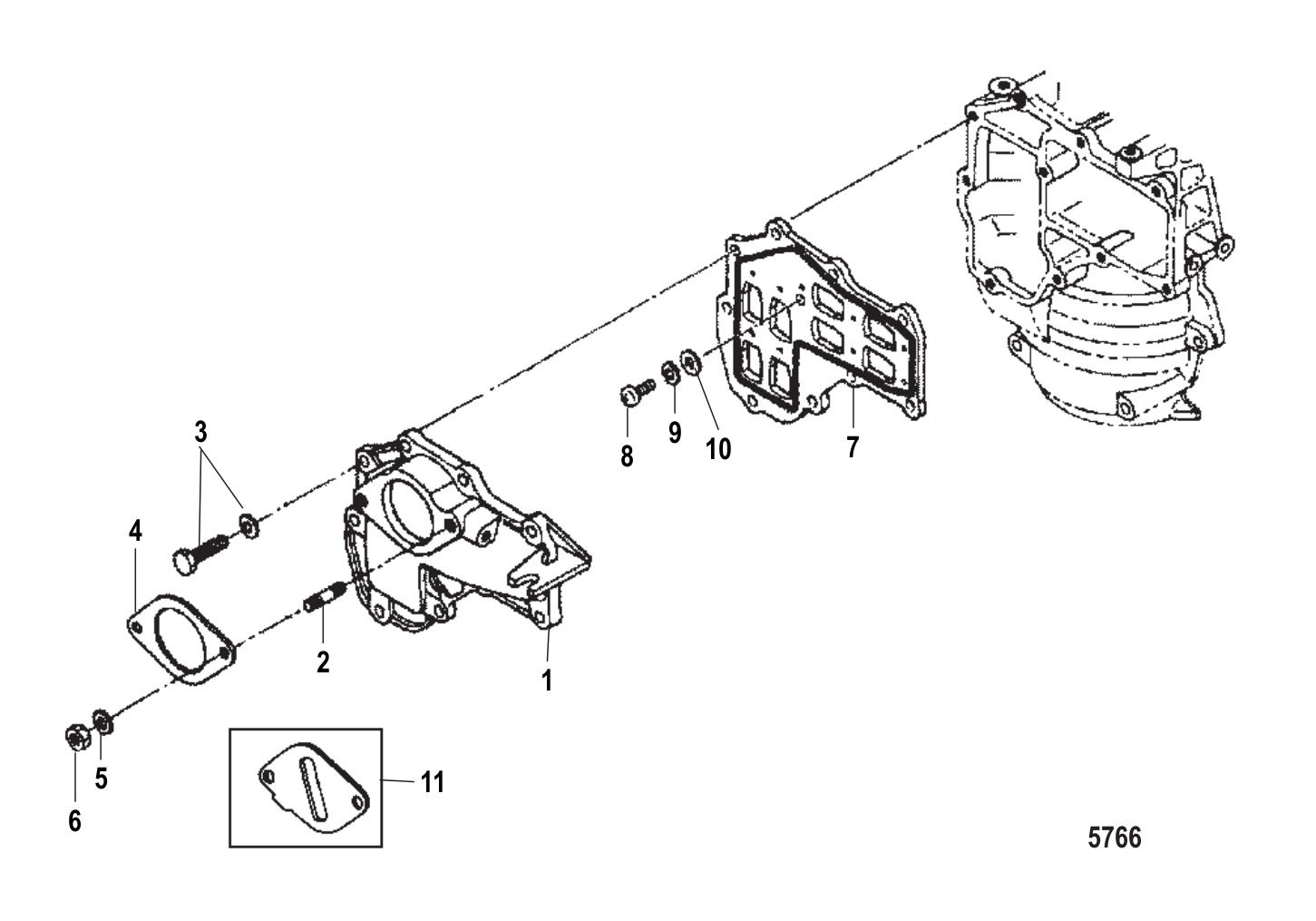

Manifold / Reed

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	853780A1	CARB REPAIR KIT (1 required per assembly)
		853780A 1 - Carburetor Repair Kit [ More info ] $61.99 Available to Order: Shipping delay up to 10 days.
#-	8M0065545	GASKET SET (1 required per assembly) — Replaces: 812939A1, 812939A18
		27-8M0065545 - 27-8M0065545 - GASKET SET [ More info ] Unavailable Replaced by 27-8M0084273
		278M0084273 - Gasket Set [ More info ] Unavailable
		278M0119225 - Gasket Set [ More info ] $211.49 Available to Order: Shipping delay up to 10 days.
#-	853787A07	ORD 8M0074333 [0N046081] & Below (1 required per assembly) — Replaces: 853787A2, 853787A04
		853787A07 - ORDER 8M0074333 [ More info ] Unavailable
#-	8M0074333	SHORT BLOCK [0N046082] & Up (1 required per assembly) — Replaces: 853787A04, 853787A07
		8M0074333 - Short Block [ More info ] Unavailable
		8M0119221 - 8M0149732 [ More info ] Unavailable
		8M0149732 - PH 25/30/JET 2S [ More info ] Unavailable
		8M0190579 - PH 25/30/JET 2S [ More info ] Unavailable
#1	8M0130960	INLET MANIFOLD (1 required per assembly) — Replaces: 853717A4
		8M0130960 - INLET MANIFOLD [ More info ] Unavailable
#2	8M0106728	STUD (2 required per assembly) — Replaces: 853718
		168M0106728 - Stud [ More info ] $16.70 Available to Order: Shipping delay up to 10 days.
#3	168284	BOLT (9 required per assembly)
		10-16828 4 - Bolt [ More info ] $1.60 Available to Order: Shipping delay up to 10 days.
#4	853702007	GASKET (30) (1 required per assembly) — Replaces: 8537021
		27-853702007 - Gasket [ More info ] $19.79 Available to Order: Shipping delay up to 10 days.
#5	400256	LOCKWASHER @5 (2 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#6	400212	NUT (2 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#7	853719T	REED BLOCK (1 required per assembly) — Replaces: 853719
		853719T - Reed Block [ More info ] $86.49 Available to Order: Shipping delay up to 10 days.
#8	8230311	SCREW (1 required per assembly)
		10-823031 1 - Screw [ More info ] $1.00 Available to Order: Shipping delay up to 10 days.
#9	16818	LOCKWASHER (1 required per assembly)
		13-16818 - LockWasher [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#10	809931044	WASHER (1 required per assembly)
		12-809931044 - Washer [ More info ] $1.90 Available to Order: Shipping delay up to 10 days.
#11	885193	RESTRICTOR (25) (1 required per assembly)
		885193 - Restrictor [ More info ] $4.29 Available to Order: Shipping delay up to 10 days.
