Parts for 25 (2 Cyl.) (International) 2-Stroke Carbureted Mercury Outboard Motor Gear Housing Propeller Shaft

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 25 (2 Cyl.) (International) > 0N018456 - 0N055504 - Belgium > Gear Housing Propeller Shaft

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

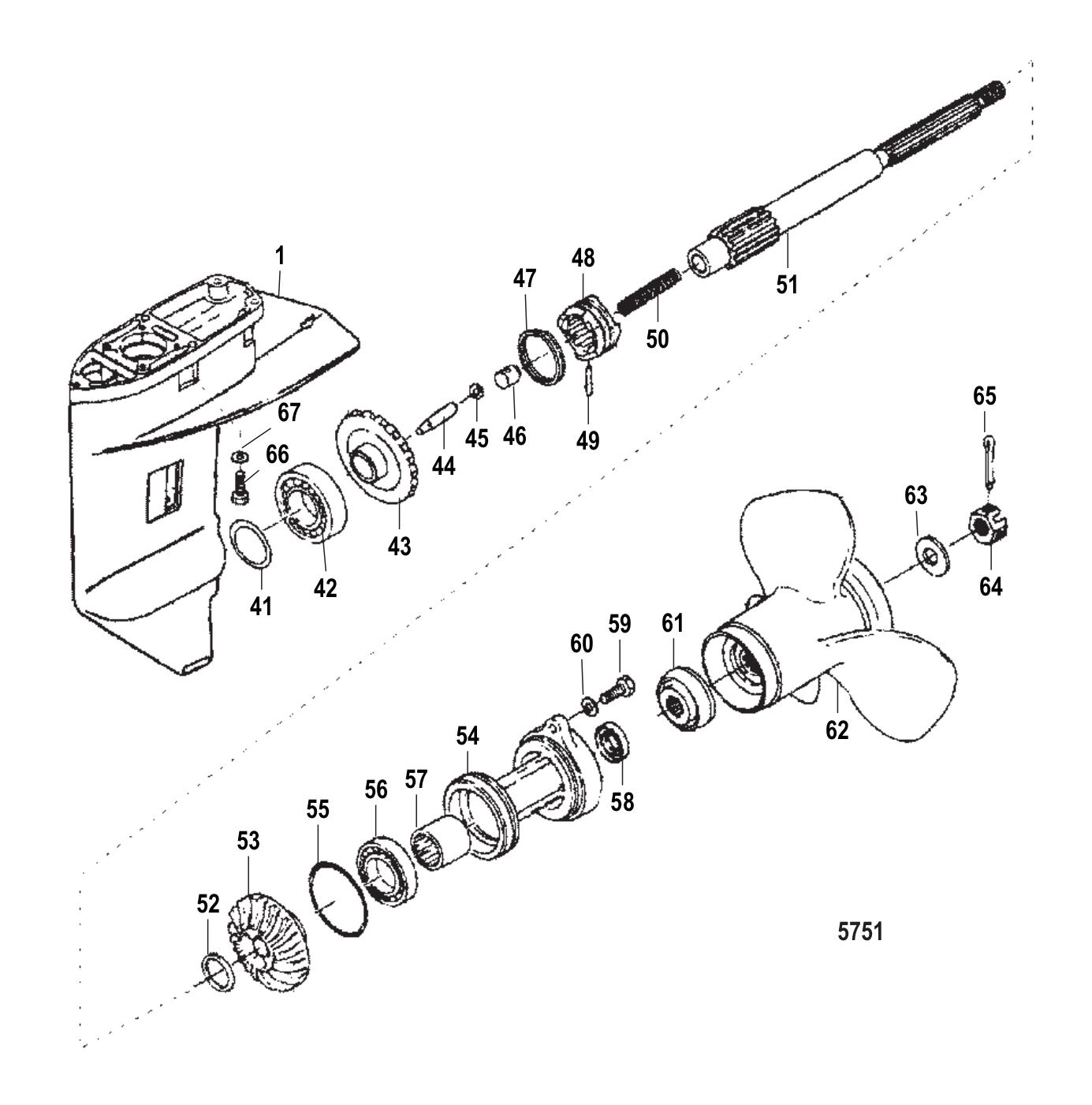

Gear Housing Propeller Shaft

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	825132T37	GEAR HOUSING SHRT (Short-Black) (1 required per assembly) — Replaces: 825132A6, 825132T06
		1668-825132T37 - 1668-825132T37 - GEAR HOUSING SHRT [ More info ] Unavailable Replaced by 1668-8M0057250
		1668-8M0057250 - 1668-8M0057250 - GEAR HOUSING SHRT [ More info ] Unavailable Replaced by 1668-8M0070907
		16688M0070907 - Gearcase 25/30 2S SH [ More info ] Unavailable
#-	825132T28	GC 25-30 2S LG BL (Long-Black) (1 required per assembly) — Replaces: 825132A8, 825132A28
		1668-825132T28 - GC 25-30 2S LG BL [ More info ] Unavailable
		1668-825132T38 - 1668-825132T38 - GC 25-30 2S LG BL [ More info ] Unavailable Replaced by 1668-8M0057251
		1668-8M0057251 - 1668-8M0057251 - GC 25-30 2S LG BL [ More info ] Unavailable Replaced by 1668-8M0070908
		16688M0070908 - Gearcase 25/30 2S LG [ More info ] Unavailable
#-	897001T	HUB-RUBBER (1 required per assembly) — Replaces: 8797821
		897001T - Hub - Rubber [ More info ] $34.09 1 In Stock.
#-	8M0089639	GASKET SET-L/U (1 required per assembly) — Replaces: 95220A1
		27-8M0089639 - Gasket Set - L/U [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#1	825132T29	GEAR HSG.-BAS.BLA (1 required per assembly) — Replaces: 825132A4, 825132T04
		1668-825132T29 - Gear Housing.-BAS.BLA [ More info ] Unavailable
		1668-825132T34 - Gear Housing Basic [ More info ] Unavailable
		16688M0057242 - Gearcase Basic 25/30 4S [ More info ] $740.49 Available to Order: Shipping delay up to 10 days.
#41	161631	SHIM (0.1) (0.1) (AR required per assembly)
		[ More info ] Unavailable
#41	8132761	SHIM (0.15) (0.15) (AR required per assembly)
		15-813276 1 - Shim [ More info ] $8.79 Available to Order: Shipping delay up to 10 days.
#42	16128T01	BEARING ASSEMBLY (1 required per assembly) — Replaces: 161281
		30-16128T01 - Bearing [ More info ] $54.99 Available to Order: Shipping delay up to 10 days.
#43	812944T01	GEAR FORWARD - 23 TEETH (1 required per assembly) — Replaces: 8129441
		43-812944T01 - Forward Gear [ More info ] Unavailable
		43-8M0183179 - FORWARD GEAR [ More info ] Unavailable
#44	161521	FOLLOWER CAM (1 required per assembly)
		0161521 - L/P .25 [ More info ] Unavailable
#45	161322	BALL STEEL (1 required per assembly)
		30-16132 2 - Ball - Steel [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#46	853764003	RETAINER (1 required per assembly) — Replaces: 853764
		853764003 - Retainer [ More info ] $33.11 1 In Stock.
#47	8126453	SPRING (1 required per assembly)
		24-812645 3 - Spring [ More info ] $4.79 Available to Order: Shipping delay up to 10 days.
#48	898103030	CLUTCH (1 required per assembly) — Replaces: 8129461
		52-898103030 - CLUTCH [ More info ] Unavailable
#49	161501	PIN (1 required per assembly)
		17-16150 1 - Pin [ More info ] $6.09 Available to Order: Shipping delay up to 10 days.
#50	176672	SPRING (1 required per assembly)
		24-17667 2 - Spring [ More info ] $4.59 Available to Order: Shipping delay up to 10 days.
#51	19513T01	PROPELLER SHAFT (1 required per assembly) — Replaces: 195131
		44-19513T01 - Propeller Shaft [ More info ] $527.49 Available to Order: Shipping delay up to 10 days.
#52	161401	WASHER (1 required per assembly)
		12-16140 1 - Washer [ More info ] $15.59 Available to Order: Shipping delay up to 10 days.
#53	812945T02	GEAR-REVERSE (1 required per assembly) — Replaces: 8129452
		43-812945T02 - Reverse Gear [ More info ] $285.49 Available to Order: Shipping delay up to 10 days.
#54	8M0070880	CARRIER ASSEMBLY BEARING (1 required per assembly) — Replaces: 825119A1, 825119T01
		8M0070880 - Bearing Carrier [ More info ] $241.49 Available to Order: Shipping delay up to 10 days.
#55	161311	O-RING (1 required per assembly)
		25-16131 1 - O-Ring [ More info ] $11.09 1 In Stock.
#56	16132T01	BEARING BALL (1 required per assembly) — Replaces: 161321
		30-16132T01 - Ball Bearing [ More info ] $44.49 Available to Order: Shipping delay up to 10 days.
#57	813048T05	BEARING NEEDLE (1 required per assembly) — Replaces: 8130485
		31-813048T05 - Bearing - Needle [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#58	161301	SEAL OIL (1 required per assembly)
		26-16130 1 - Oil Seal [ More info ] $22.36 1 In Stock.
#59	4000354	SCREW (M8 X 30) (2 required per assembly)
		10-40003 54 - Screw - Priced Individually [ More info ] $4.79 7 In Stock.
#60	8M0135942	WASHER (2 required per assembly) — Replaces: 853701
		128M0135942 - Washer [ More info ] $5.19 Available to Order: Shipping delay up to 10 days.
#61	161452	THRUST HUB (1 required per assembly)
		16145 2 - Thrust Hub [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
#62	8M0047582	PROPELLER-14 (14 Inch Pitch) (1 required per assembly) — Replaces: 853790, 853790T
		488M0047582 - Propeller-14 [ More info ] $385.49 Available to Order: Shipping delay up to 10 days.
#62	QA2200R	BLKDIA 9.25X12.5R (13 Inch Pitch) (1 required per assembly) — Replaces: 8537901, 853790T01
		QA2200R - Black Diamond Prop 9.25X12.5R [ More info ] $177.56 Available to Order: Shipping delay up to 10 days.
		Solas Amita 3 Blade Aluminum 12P 5211-099-12 [ More info ] $85.51 10+ In Stock.
#62	QA2196R	BLKDIA 9.5X11 RH (11 Inch Pitch) (1 required per assembly) — Replaces: 8537902, 853790T02
		QA2196R - Black Diamond Prop 9.5X11 Rh [ More info ] $177.56 $165.99 In Stock
		Solas Amita 3 Blade Aluminum 11P 5211-099-11 [ More info ] $80.21 Available to Order: Shipping delay up to 10 days.
#62	8M0135335	PROPELLER (10 Inch Pitch) (1 required per assembly) — Replaces: 8537903, 853790T03
		48-8M0135335 - PROPELLER [ More info ] Unavailable
#62	853790T07	PROPELLER (9 Inch Pitch) (1 required per assembly) — Replaces: 8537904, 853790007
		48-853790T07 - 48-853790T07 - PROPELLER [ More info ] Unavailable Replaced by -QA2192R
		QA2192R - Black Diamond Prop 9.75X9.5RH [ More info ] $177.56 $165.99 In Stock
		Solas Amita 3 Blade Aluminum 10P 5211-099-10 [ More info ] $80.21 Available to Order: Shipping delay up to 10 days.
#62	QA2190R	BLKDIA 10X8 RH (8 Inch Pitch) (1 required per assembly) — Replaces: 8537905, 853790T05
		QA2190R - Black Diamond Prop 10X8 Rh [ More info ] $177.56 $165.99 In Stock
		Prop Tohatsu/Honda Stainless Steel 25-30HP 08 5221-100-08 [ More info ] $206.66 3 In Stock.
#63	161402	WASHER (1 required per assembly)
		12-16140 2 - Washer [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#64	161471	PROP NUT (1 required per assembly)
		11-16147 1 - Prop Nut [ More info ] $12.12 Available to Order: Shipping delay up to 10 days.
#65	8150264	COTTER PIN (1 required per assembly)
		18-815026 4 - Cotter Pin [ More info ] $3.19 Available to Order: Shipping delay up to 10 days.
#66	879194307	BOLT (4 required per assembly) — Replaces: 161261, 16695006
		10-879194307 - Bolt [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#67	8M0135942	WASHER (4 required per assembly) — Replaces: 853701
