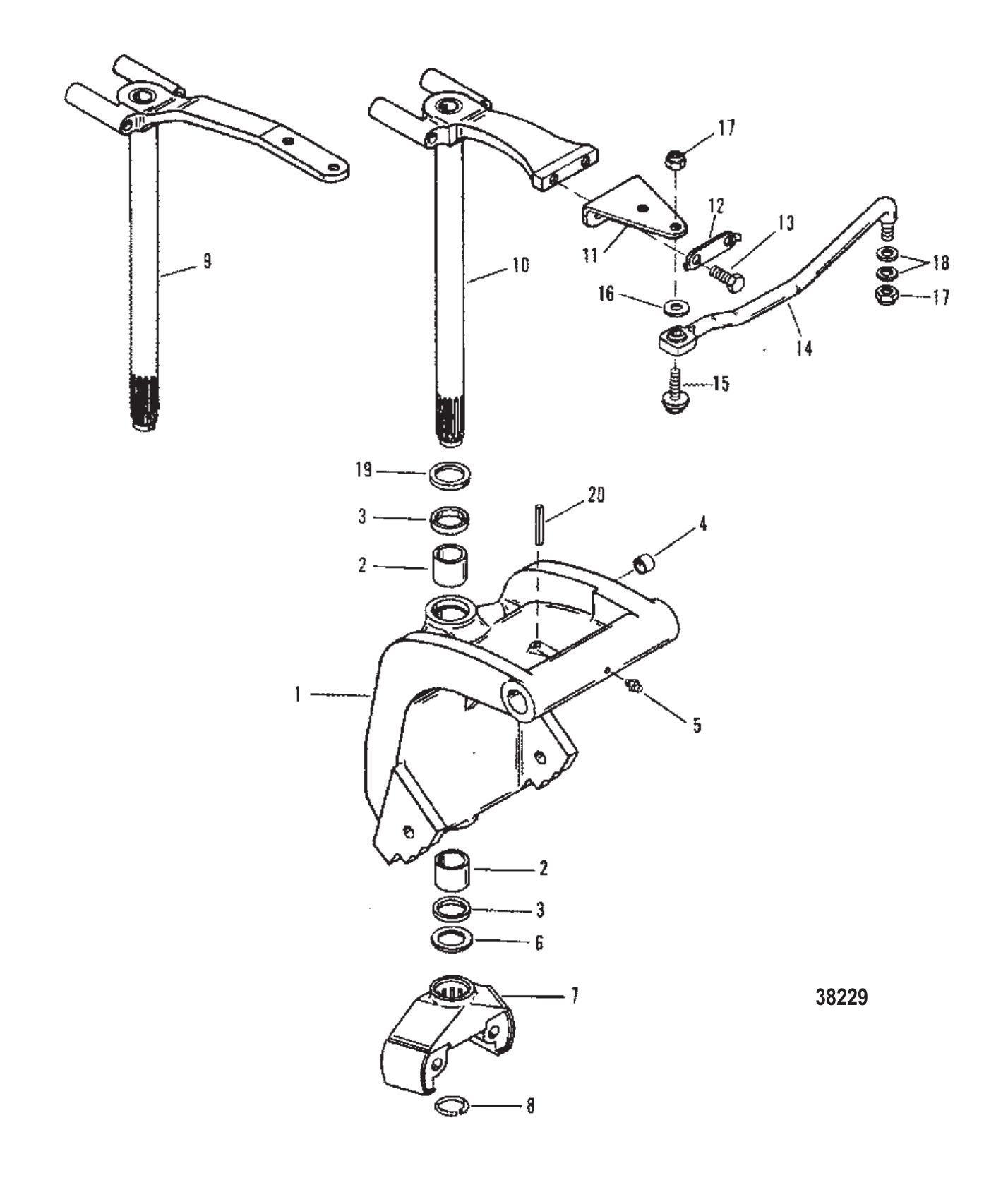

Parts for 45 Jet 2-Stroke Carbureted Mercury Outboard Motor Swivel Bracket (S/N 0D181999 & Below)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 814690A1 | SWIVEL BRACKET (SHORT) (BLACK) (1 required per assembly) |
  |
|
3511-814690A 1 - Swivel Bracket,NLA [ More info ] Unavailable |
| #1 | 814690A2 | SWIVEL BRACKET (SHORT) (GRAY) (1 required per assembly) |
  |
|
3511-814690A 2 - Swivel Bracket, NLA [ More info ] Unavailable |
| #1 | 815556A1 | SWIVEL BRACKET (LONG) (BLACK) (1 required per assembly) |
  |
|
3511-815556A 1 - Swivel Bracket [ More info ] Unavailable |
| #1 | 815556A2 | SWIVEL BRACKET (LONG) (GRAY) (1 required per assembly) |
  |
|
3511-815556A 2 - Swivel Bracket, NLA [ More info ] Unavailable |
| #2 | 821124 | BEARING (2 required per assembly) |
  |
|
23-821124 - Bearing [ More info ]
|
| #3 | 32911 | SEAL OIL (2 required per assembly) |
  |
|
|
| #4 | 19606 | BEARING (2 required per assembly) |
  |
|
23-19606 - Bearing - Trim Pin [ More info ]
|
| #5 | 8M0169589 | FITTING GREASE (3 required per assembly) — Replaces: 74036 |
  |
|
228M0169589 - Fitting Note: Priced Individually [ More info ]
|
| #6 | 52865 | WASHER (1 required per assembly) |
  |
|
12-52865 - Washer, Swivel Pin [ More info ]
|
| #7 | 19654T1 | YOKE BOTTOM (GRAY) (1 required per assembly) — Replaces: 19654T, 19654T6, 19654T7 |
  |
|
19654T 1 - Yoke -B0TTOM- Black [ More info ]
|
| #8 | 77415 | RING-RETAINING (1 required per assembly) |
  |
|
53-77415 - Ring - Retaining [ More info ]
|
| #9 | NLA | NO LONGER AVAILABLE SWIVEL PIN (GRAY-REPLACED BY 2 PIECE REF #10) 1 PIECE (1 required per assembly) |
  |
|
NLA - No Longer Availab [ More info ] Unavailable |
| #10 | 812897A19 | SWIVEL PIN ASSEMBLY (SHORT) (GRAY) (1 required per assembly) — Replaces: 812897A7, 812897A8, 812897A20 |
  |
|
17-812897A19 - Swivel Pin -bl-sh [ More info ]
|
| #10 | 812896A22 | SWIVEL PIN ASSEMBLY (BLACK) (2 PIECE - LONG) (1 required per assembly) — Replaces: 812896A14 |
  |
|
17-812896A22 - Swivel Pin -bl-lg [ More info ]
|
| #10 | 812896A23 | SWIVEL PIN-GR-LG (GRAY) (2 PIECE - LONG) (1 required per assembly) — Replaces: 812896A15 |
  |
|
17-812896A23 - Swivel Pin -gr-lg, NLA [ More info ] Unavailable |
| #11 | 893696 | BRACKET (BLACK) (50/60) (1 required per assembly) — Replaces: 816667T, 816667F3 |
  |
893696 - Bracket [ More info ] Unavailable |
|
  |
|
8M0184092 - Bracket [ More info ]
|
| #11 | 8M0184092 | BRACKET (GRAY) (50/60) (1 required per assembly) — Replaces: 816667F3, 893696 |
| #12 | 8M0009820 | TAB WASHER (50/60) (1 required per assembly) — Replaces: 816669, 816669F1 |
  |
|
14-8M0009820 - Tab Washer [ More info ]
|
| #13 | 4000377 | SCREW @5 (50/60) (2 required per assembly) |
  |
|
10-40003 77 - Screw [ More info ] Unavailable |
| #14 | 19608A14 | ATTACHING KIT ENGINE STEERING (STARBOARD) (50/60) (1 required per assembly) — Replaces: 196081 |
  |
|
19608A14 - Engine Steering Attaching Kit [ More info ]
|
| #14 | 19609A6 | ATTACHING KIT STEERING (PORT) (50/60) (1 required per assembly) — Replaces: 196091 |
  |
|
19609A 6 - Steering Kit -r/G [ More info ]
|
| #15 | 856680 | SCREW (50/60) (1 required per assembly) — Replaces: 90041 |
  |
|
10-856680 - Screw [ More info ]
|
| #16 | 8M0109680 | WASHER (50/60) (1 required per assembly) — Replaces: 71970 |
  |
|
128M0109680 - Washer [ More info ]
|
| #17 | 8M0042636 | NUT-BRASS @3 (50/60) (2 required per assembly) — Replaces: 34863, 826709113 |
  |
11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable |
|
  |
|
118M0204726 - NUT-BRASS Note: Priced Individually [ More info ]
|
| #18 | 34931 | WASHER (50/60) (2 required per assembly) |
  |
|
12-34931 - Washer, (.406 X .734 X .063 - Stainless Steel) [ More info ]
|
| #19 | 52865 | WASHER (1 required per assembly) |
| #20 | 823876 | PIN-KNURL (55) (1 required per assembly) |
  |
|
17-823876 - Pin -knurl [ More info ]
|
