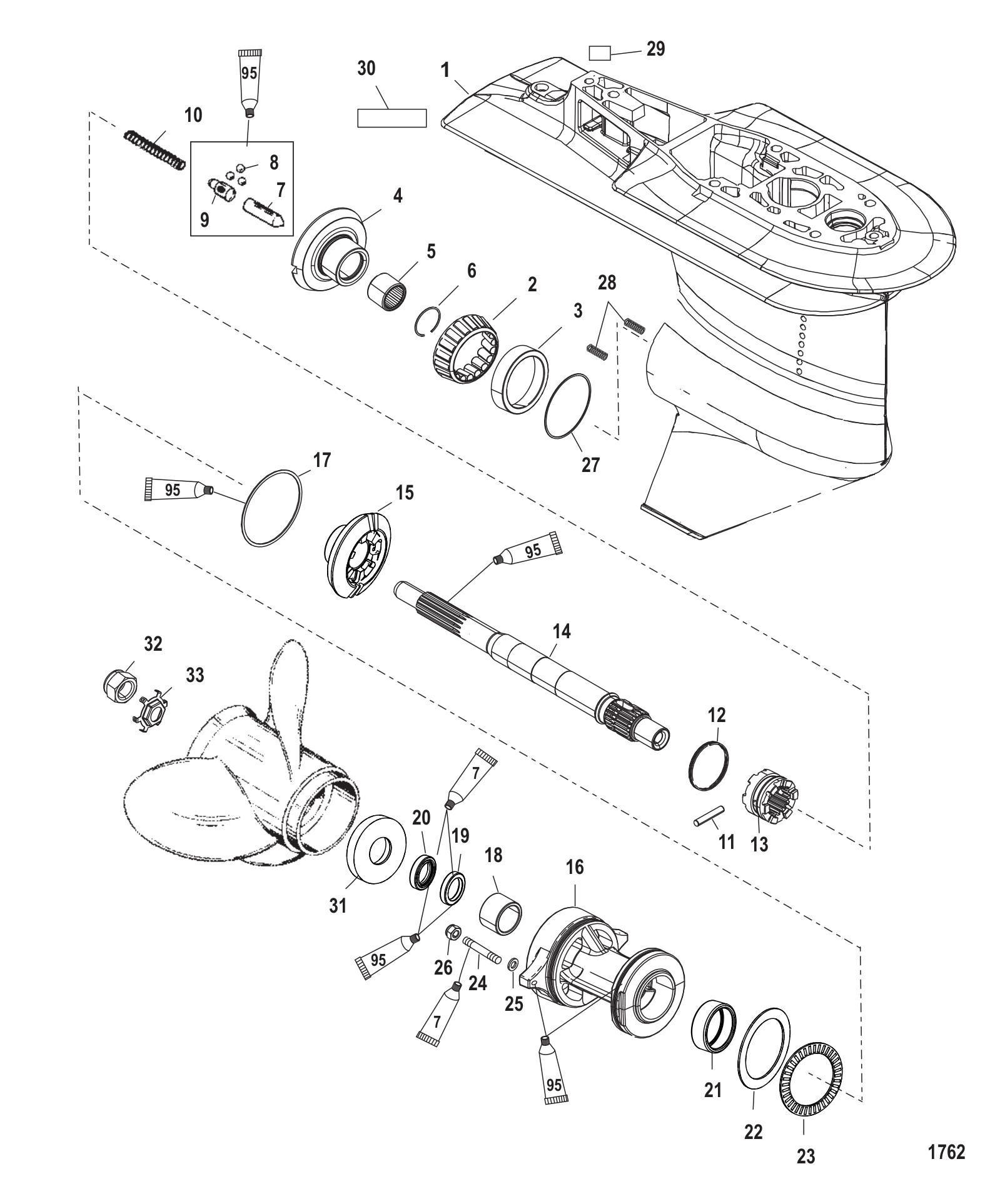

Parts for 45 Jet 2-Stroke Carbureted Mercury Outboard Motor Gear Housing Propshaft 2.31:1 0T622484 / 0P222544 & Below
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 43035A4 | SEAL KIT (1 required per assembly) |
  |
|
26-43035A 4 - Seal Kit [ More info ]
|
  |
|
26-00075 - Seal Kit, 26-43035A4 [ More info ]
|
| #0 | 9011G92 | GEAR HOUSING ASSEMBLY (COMPLETE) (Long)(Bigfoot) (1 required per assembly) — Replaces: 9011G45 |
  |
|
1667-9011G92 - Gear Housing Assembly (complete) [ More info ] Unavailable |
  |
|
90-205-B20M - SE205 Lower Unit Mercury 3 and 4 Cylinder, 2.33 to 1, Big Foot, 50-60HP, 20 Inch [ More info ]
|
| #0 | 9011G94 | GEAR HOUSING ASSEMBLY (COMPLETE) (LL)(Bigfoot) (1 required per assembly) — Replaces: 9011G47 |
  |
|
1667-9011G94 - Gear Housing Assembly [ More info ] Unavailable |
| #1 | 9011G59 | GEAR HOUSING ASSEMBLY BASIC (Black) (1 required per assembly) |
  |
|
1667-9011G59 - Gear Housing Assembly [ More info ]
|
| #2 | 30894A1 | BEARING SET CUP AND CONE (1 required per assembly) |
  |
|
31-30894A 1 - Tapered Roller Bearing [ More info ]
|
  |
|
31-01906 - Bearing, Mercury 30894A1, Honda 91051-ZW1-003 [ More info ]
|
| #3 | NSS | NOT SOLD SEPARATE CUP (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | 859472A3 | GEAR ASSEMBLY FORWARD - 30 TEETH (1 required per assembly) |
  |
|
43-859472A 3 - Forward Gear Kit [ More info ]
|
| #5 | 30895T | BEARING NEEDLE (1 required per assembly) |
  |
|
31-30895T - Bearing - Roller [ More info ]
|
| #6 | 856823 | RING RETAINING (1 required per assembly) |
  |
|
53-856823 - Ring - Retaining [ More info ]
|
| #7 | 850315A1 | FOLLOWER KIT CAM (1 required per assembly) |
  |
|
850315A 1 - Cam Follower Kit [ More info ]
|
| #8 | 44530 | BALL (3 required per assembly) |
  |
|
30-44530 - Ball - (.219) - Priced Individually [ More info ]
|
| #9 | NSS | NOT SOLD SEPARATE SLIDE (1 required per assembly) |
| #10 | 850327 | SPRING (1 required per assembly) |
  |
|
24-850327 - Spring, Cam Follower [ More info ]
|
| #11 | 8M0084681 | PIN CROSS (1 required per assembly) — Replaces: 30632, 8M0020941 |
  |
|
17-8M0084681 - Pin - Priced Individually [ More info ]
|
  |
|
17-8M0100263 - Pin - Priced Individually [ More info ]
|
| #12 | 30893 | SPRING (1 required per assembly) |
  |
|
24-30893 - Spring, Reatiner - Cross Pin [ More info ]
|
| #13 | 850048T | CLUTCH (1 required per assembly) |
  |
|
52-850048T - Clutch [ More info ]
|
| #14 | 8M0140445 | PROPELLER SHAFT (1 required per assembly) — Replaces: 850308 |
  |
|
44-8M0140445 - Propeller Shaft [ More info ]
|
| #15 | 850034T | GEAR REVERSE (30 TEETH) (1 required per assembly) |
  |
|
43-850034T - Reverse Gear [ More info ]
|
| #16 | 8M0168901 | CARRIER ASSY. (1 required per assembly) — Replaces: 12596T2 |
  |
|
8M0168901 - Carrier Bearing [ More info ]
|
| #17 | 861844 | O-RING (1 required per assembly) — Replaces: 97386 |
  |
25-861844 - O-Ring [ More info ] Unavailable |
|
  |
|
18-7961 - O-Ring 25-97386 [ More info ]
|
  |
|
25-8M0214974 - O-Ring [ More info ]
|
| #18 | 30956T | BEARING NEEDLE (1 required per assembly) |
  |
|
31-30956T - Roller Bearing [ More info ]
|
| #19 | 8M0205728 | SEAL (Inner) (1 required per assembly) — Replaces: 70080 |
  |
|
26-8M0205728 - Seal [ More info ]
|
| #20 | 8M0205729 | SEAL (Outer) (1 required per assembly) — Replaces: 70081 |
  |
|
26-8M0205729 - Gear Housing Outer Oil Seal, Outboard [ More info ]
|
| #21 | 12578T | BEARING ROLLER (1 required per assembly) |
  |
|
31-12578T - Roller Bearing [ More info ]
|
  |
|
18-1113 - Bearing 31-12578 [ More info ]
|
| #22 | 12577 | THRUST WASHER (1 required per assembly) |
  |
|
12-12577 - Washer, Thrust [ More info ] Unavailable |
| #23 | 12576 | BEARING THRUST (1 required per assembly) |
  |
|
31-12576 - Thrust Bearing [ More info ]
|
| #24 | 8M0034456 | STUD (M8 X 1.25 X 48) (2 required per assembly) — Replaces: 429172 |
  |
|
16-8M0034456 - Stud [ More info ]
|
| #25 | 855941 | WASHER (.323 X .590 X .112) STAINLESS STEEL (2 required per assembly) |
  |
|
12-855941 - Washer, (.323 X .590 X .112) Stainless Steel [ More info ]
|
| #26 | 401378 | NUT (M8) (2 required per assembly) |
  |
|
11-40137 8 - Nut [ More info ]
|
| #27 | 8M0063266 | SHIM SET (1 required per assembly) — Replaces: 44491A1 |
  |
|
15-8M0063266 - Shim Set [ More info ]
|
| #28 | 8227731 | INSERT THREADED (2 required per assembly) |
  |
|
822773 1 - Insert [ More info ]
|
| #29 | NSS | NOT SOLD SEPARATE DECAL (1 required per assembly) |
| #30 | NSS | NOT SOLD SEPARATE DECAL, PROP OPERATION (1 required per assembly) |
| #31 | 13191Q01 | THRUSTWASHER@2 (1 required per assembly) — Replaces: 13191A1 |
  |
|
13191Q01 - Thrust Washer - Priced Individually [ More info ]
|
  |
|
18-4221 - Washer 13191A1 [ More info ]
|
  |
|
13191K01 - Thrust Washer - Priced Individually [ More info ]
|
| #32 | 52707Q1 | PROP NUT KIT@2 (1 required per assembly) |
  |
|
11-52707Q 1 - Prop Nut Kit - Priced Individually [ More info ]
|
  |
|
18-3701 - Nut Kit, 11-52707A1 [ More info ]
|
  |
|
18-3700 - Prop Nut Only, 11-52707 [ More info ]
|
  |
|
11-52707T 1 - Prop Nut Kit - Priced Individually [ More info ]
|
  |
|
11-00122 - Prop Nut Kit [ More info ]
|
| #33 | 816629Q | TAB WASHER (1 required per assembly) — Replaces: 816629 |
  |
|
14-816629Q - Tab Washer - Priced Individually [ More info ]
|
  |
|
18-3200-9 - Washer, 14-816629, 10PK [ More info ]
|
  |
|
14-816629K - Tab Washer - Priced Individually [ More info ]
|
