Parts for 45 Jet 2-Stroke Carbureted Mercury Outboard Motor Swivel Bracket (S/N 0D182000 & Up)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 45 Jet > 0D000750 - 0G290584 - USA > Swivel Bracket (S/N 0D182000 & Up)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

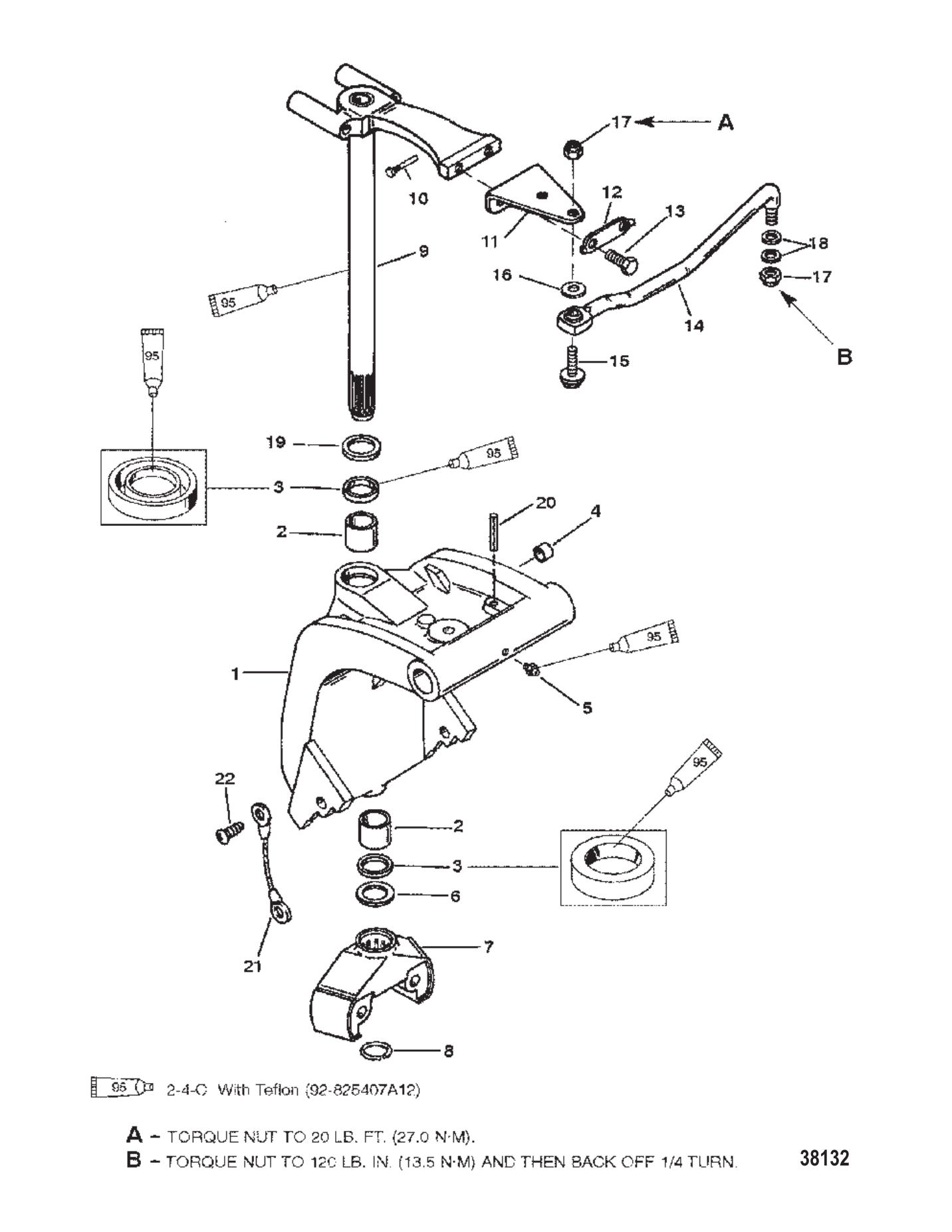

Swivel Bracket (S/N 0D182000 & Up)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	8M0084208	BRKT-SWIVEL-BLACK (SHORT) (GRAY) (1 required per assembly) — Replaces: 822864A1, 822864A2
		34008M0084208 - Swivel Bracket, Black [ More info ] $1,099.49 Available to Order: Shipping delay up to 10 days.
#1	822863A1	SWIVEL BRACKET (LONG) (BLACK) (1 required per assembly)
		3417-822863A 1 - Swivel Bracket - Black, NLA [ More info ] Unavailable
#1	822863A2	SWIVEL BRACKET ASSEMBLY (LONG) (GRAY) (1 required per assembly)
		3417-822863A 2 - Swivel Bracket - Gray [ More info ] Unavailable
#1	822863A3	SWIVEL BRACKET ASSEMBLY (LONG) (TRACKER) (1 required per assembly)
		3417-822863A 3 - Swivel Bracket-TRAC,NLA [ More info ] Unavailable
#2	821124	BEARING (2 required per assembly)
		23-821124 - Bearing [ More info ] $16.69 Available to Order: Shipping delay up to 10 days.
#3	32911	SEAL OIL (2 required per assembly)
		26-32911 - Seal [ More info ] $15.59 1 In Stock.
#4	19606	BEARING (2 required per assembly)
		23-19606 - Bearing - Trim Pin [ More info ] $11.79 Available to Order: Shipping delay up to 10 days.
#5	8M0169589	FITTING GREASE (3 required per assembly) — Replaces: 74036
		228M0169589 - Fitting Note: Priced Individually [ More info ] $4.79 1 In Stock.
#6	25176	WASHER (1 required per assembly)
		12-25176 - Washer (.060), NLA [ More info ] $4.54 10+ In Stock.
#7	19654T1	YOKE BOTTOM (GRAY) (1 required per assembly) — Replaces: 19654T, 19654T6, 19654T7
		19654T 1 - Yoke -B0TTOM- Black [ More info ] $169.56 1 In Stock.
#7	19654F1	YOKE BOTTOM (TRACKER) (1 required per assembly)
		19654F 1 - YOKE-BOTTOM-TRAC,NLA [ More info ] Unavailable
#8	77415	RING-RETAINING (1 required per assembly)
		53-77415 - Ring - Retaining [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#9	812897A19	SWIVEL PIN ASSEMBLY (SHORT) (GRAY) (1 required per assembly) — Replaces: 812897A7, 812897A8, 812897A20
		17-812897A19 - Swivel Pin -bl-sh [ More info ] $457.49 Available to Order: Shipping delay up to 10 days.
#9	812896A22	SWIVEL PIN ASSEMBLY (LONG) (BLACK) (1 required per assembly) — Replaces: 812896A14
		17-812896A22 - Swivel Pin -bl-lg [ More info ] $492.49 Available to Order: Shipping delay up to 10 days.
#9	812896A23	SWIVEL PIN-GR-LG (LONG) (GRAY) (1 required per assembly) — Replaces: 812896A15
		17-812896A23 - Swivel Pin -gr-lg, NLA [ More info ] Unavailable
#9	812896A16	SWIVEL PIN ASSEMBLY (LONG) (TRACKER) (1 required per assembly)
		17-812896A16 - Swivel Pin, Long, Tracker - NLA [ More info ] Unavailable
#10	8219871	PIN CO-PILOT (1 required per assembly)
		17-821987 1 - Pin, NLA [ More info ] $4.00 $3.39 10+ In Stock.
#11	893696	BRACKET (TRACKER) (50/60) (1 required per assembly) — Replaces: 816667T, 816667F3, 816667F2
		893696 - Bracket [ More info ] Unavailable
		8M0184092 - Bracket [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#11	8M0184092	BRACKET (GRAY) (50/60) (1 required per assembly) — Replaces: 816667F3, 893696
#12	8M0009820	TAB WASHER (50/60) (1 required per assembly) — Replaces: 816669, 816669F1
		14-8M0009820 - Tab Washer [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#13	4000377	SCREW @5 (50/60) (2 required per assembly)
		10-40003 77 - Screw [ More info ] Unavailable
#14	19608A14	ATTACHING KIT ENGINE STEERING (STARBOARD) (50/60) (1 required per assembly) — Replaces: 196081
		19608A14 - Engine Steering Attaching Kit [ More info ] $210.97 Available to Order: Shipping delay up to 10 days.
#14	19609A6	ATTACHING KIT STEERING (PORT) (50/60) (1 required per assembly) — Replaces: 196091
		19609A 6 - Steering Kit -r/G [ More info ] $240.59 $230.96 2 In Stock.
#15	856680	SCREW (50/60) (1 required per assembly) — Replaces: 90041
		10-856680 - Screw [ More info ] $31.99 Available to Order: Shipping delay up to 10 days.
#16	8M0109680	WASHER (50/60) (1 required per assembly) — Replaces: 71970
		128M0109680 - Washer [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#17	8M0042636	NUT-BRASS @3 (2 required per assembly) — Replaces: 34863, 826709113
		11-8M0042636 - Nut - Brass , Priced Individually [ More info ] Unavailable
		118M0204726 - NUT-BRASS Note: Priced Individually [ More info ] $1.80 10 In Stock.
#18	37828	WASHER (2 required per assembly)
		12-37828 - Washer, (.390 X .625 X .062) Stainless Steel [ More info ] $0.80 2 In Stock.
#19	52865	WASHER (1 required per assembly)
		12-52865 - Washer, Swivel Pin [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
#20	823876	PIN (HANDLE) (1 required per assembly)
		17-823876 - Pin -knurl [ More info ] $3.99 Available to Order: Shipping delay up to 10 days.
#21	88238A10	CABLE ASSY (1 required per assembly) — Replaces: 88238A2
		88238A10 - Cable Assembly [ More info ] $8.29 2 In Stock.
#22	41508	SCREW (1 required per assembly)
		10-41508 - Screw [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.
