Parts for 45 Jet 2-Stroke Carbureted Mercury Outboard Motor Oil Injection Components

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 45 Jet > 0D000750 - 0G290584 - USA > Oil Injection Components

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

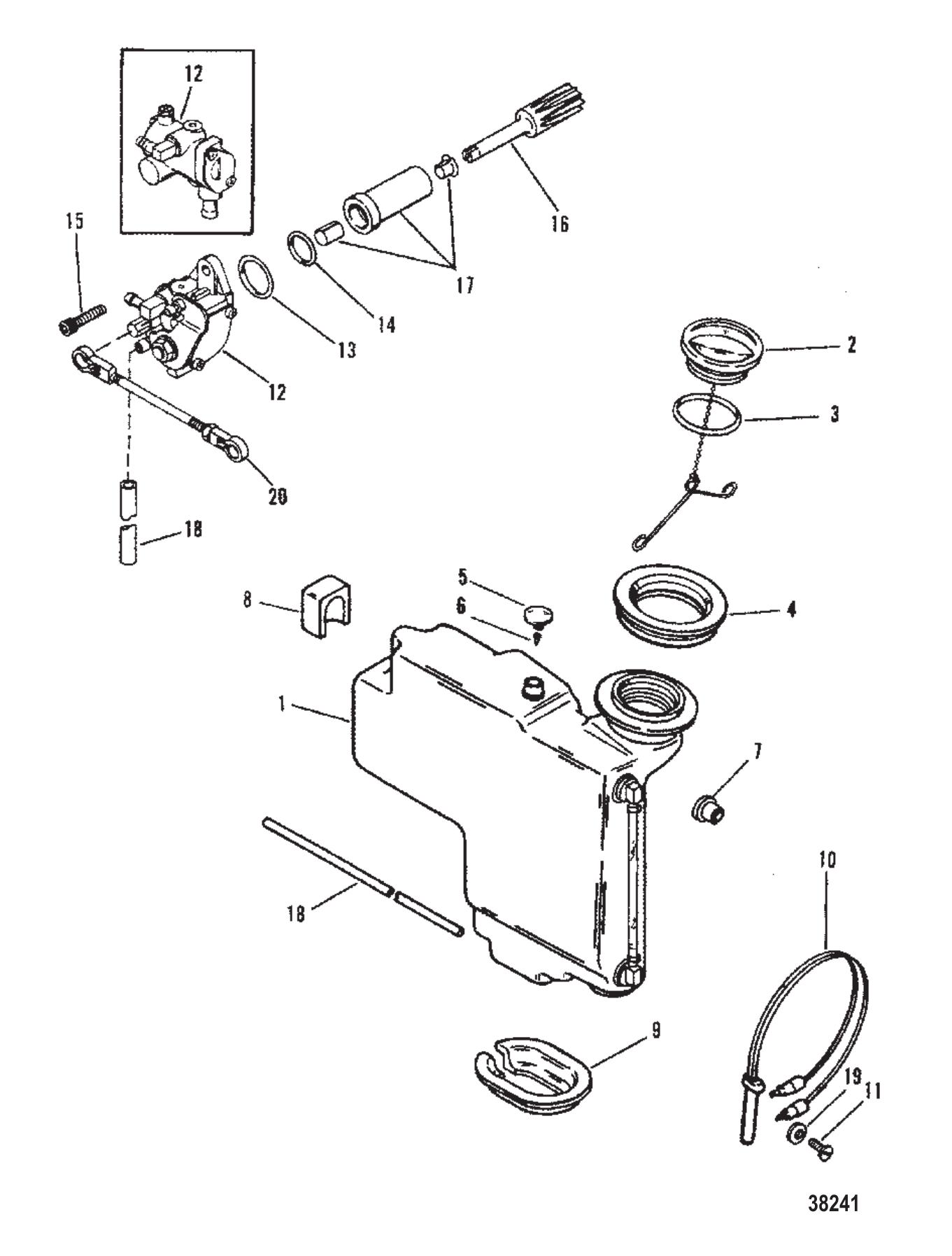

Oil Injection Components

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	812718T1	TANK ASSY-OIL (DESIGN II USE WITHOUT REF. #3) (1 required per assembly) — Replaces: 8127181, 812718A1
		1263-812718T 1 - Oil Tank [ More info ] $294.99 3 In Stock.
#2	19070A2	CAP ASSY (DESIGN I USE WITH REF. #3) (1 required per assembly)
		36-19070A 2 - Cap Assembly [ More info ] $55.99 Available to Order: Shipping delay up to 10 days.
#2	828765A2	CAP ASSEMBLY (DESIGN II USE WITHOUT REF. #3) (1 required per assembly)
		36-828765A 2 - Cap Assembly [ More info ] $22.36 2 In Stock.
#3	90186	O-RING (DESIGN I USE WITH REF. #3) (1 required per assembly)
		25-90186 - O-Ring [ More info ] $13.09 Available to Order: Shipping delay up to 10 days.
#4	8160661	SEAL (DESIGN I USE WITH REF. #3) (1 required per assembly)
		816066 1 - Seal, NLA [ More info ] Unavailable
#4	8M0039080	SEAL-OIL TANK (DESIGN II USE WITHOUT REF. #3) (1 required per assembly) — Replaces: 8160662
		8M0039080 - Oil Tank Seal [ More info ] $29.19 Available to Order: Shipping delay up to 10 days.
#5	19299A1	VENT ASSY (1 required per assembly)
		19299A 1 - Vent Assembly [ More info ] $16.69 7 In Stock.
#6	64871	VALVE (1 required per assembly)
		21-64871 - Check Valve [ More info ] $13.09 7 In Stock.
#7	813644	GROMMET (1 required per assembly)
		25-813644 - Grommet, NLA [ More info ] Unavailable
#8	813649	BOOT (1 required per assembly)
		813649 - BOOT,NLA [ More info ] $12.50 $10.60 1 In Stock.
#9	8M0039085	BOOT (1 required per assembly) — Replaces: 812890
		8M0039085 - Boot [ More info ] $37.99 Available to Order: Shipping delay up to 10 days.
#10	12886A6	SWITCH ASSY (1 required per assembly)
		87-12886A 6 - Switch Assembly [ More info ] $31.79 6 In Stock.
		18-1800 - Oil Reservoir Float Switch, 12886A6 [ More info ] $24.99 $24.81 10+ In Stock.
#11	58376	SCREW (1 required per assembly)
		10-58376 - Screw [ More info ] $1.23 $1.18 9 In Stock.
#12	812690A1	PUMP-OIL INJECT [0D181999] & Below (1 required per assembly)
		812690A 1 - Oil Pump Inject [ More info ] $358.31 1 In Stock.
#12	818902A1	PUMP ASSY-OIL [0D182000] & Up (1 required per assembly)
		818902A 1 - Oil Pump Assembly [ More info ] Unavailable
#13	8M0204667	O RING @2 (1 required per assembly) — Replaces: 62705
		25-8M0204667 - O RING Note: Priced Individually [ More info ] $1.70 10 In Stock.
#14	36390	O-RING (1 required per assembly)
		25-36390 - O-ring (.676 X .070) [ More info ] $1.80 1 In Stock.
#15	40011108	SCREW (2 required per assembly)
		10-40011108 - Screw [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#16	19277	GEAR-DRIVEN (1 required per assembly)
		43-19277 - Driven Gear [ More info ] $56.49 Available to Order: Shipping delay up to 10 days.
#17	19278A2	BEARING ASSY (1 required per assembly)
		23-19278A 2 - Bearing - Driven Gear [ More info ] $25.99 Available to Order: Shipping delay up to 10 days.
#18	82381335	TUBING-15 INCH (2 required per assembly) — Replaces: 82381325, 82381329
		32-823813 35 - Tubing - 15 Inch [ More info ] $10.89 10 In Stock.
#19	72761	WASHER (1 required per assembly)
		12-72761 - Washer, (.203 X .562 X .060) Stainless Steel [ More info ] $1.63 10+ In Stock.
#20	821287	LINK [0D182000] & Up (1 required per assembly)
		821287 - Link, NLA [ More info ] $35.54 $30.11 4 In Stock.
