Parts for 40C (Twin Carb) (w / Auto-blend) 2-Stroke Carbureted Mercury Outboard Motor Fuel Tank Not Original Equipment

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40C (Twin Carb) (w / Auto-blend) > 6e9-309344 - 350000 (Ml) - Belgium > Fuel Tank Not Original Equipment

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

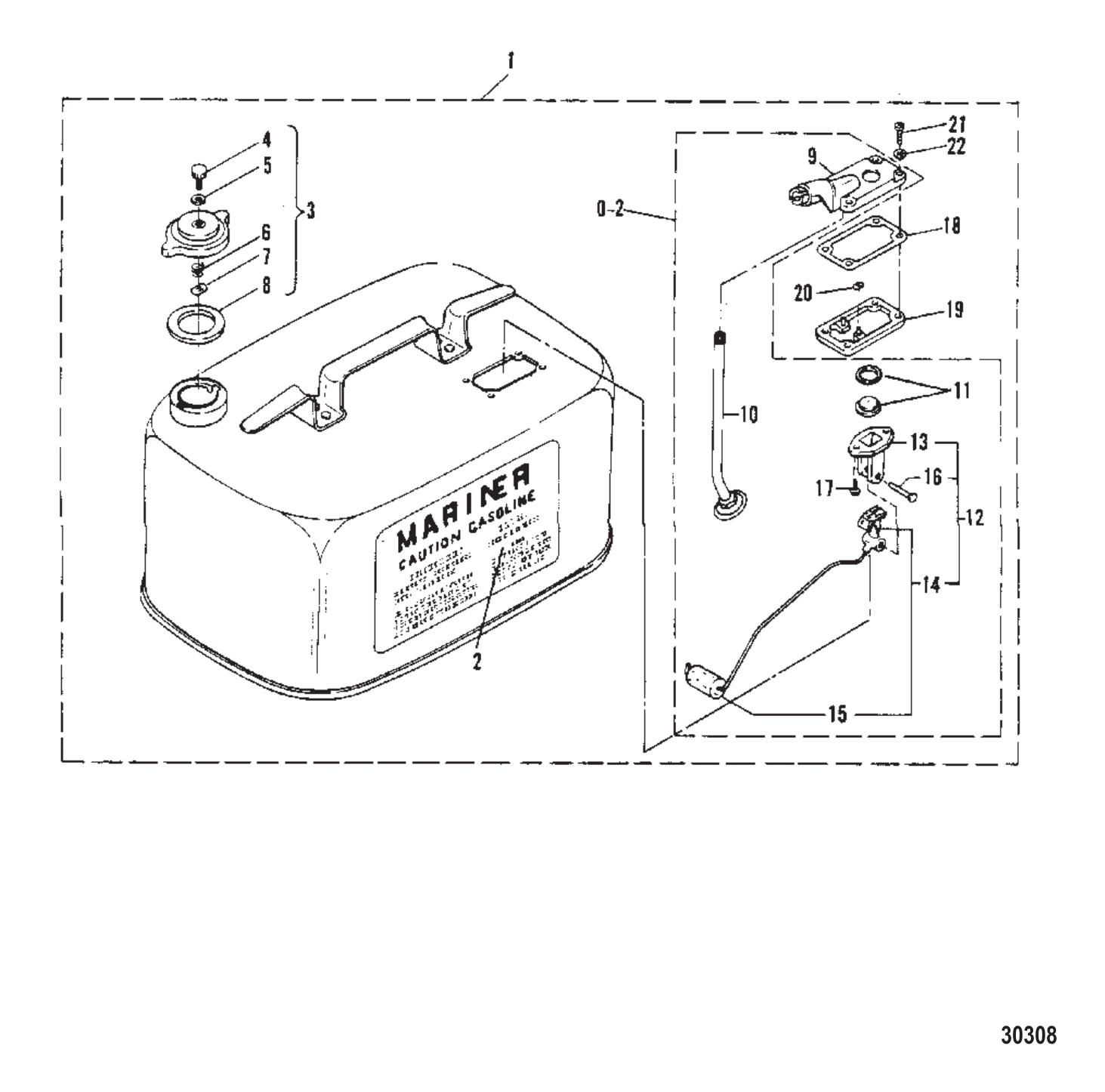

Fuel Tank Not Original Equipment

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	812410A1	TANK ASSEMBLY FUEL COMPLETE (6 GALLON) (1 required per assembly) — Replaces: 1529A26, 9728
		1259-812410A 1 - Fuel Tank-6.6 GA,NLA [ More info ] Unavailable
#2	13921	DECAL FUEL TANK (1 required per assembly) — Replaces: 99734A1
		37-13921 - Decal, NLA [ More info ] Unavailable
#3	18962M	CAP FUEL TANK (1 required per assembly) — Replaces: 41098A1, 14223M
		36-18962M - Cap [ More info ] $21.54 10+ In Stock.
#4	25575	SCREW VENT-FILLER CAP (1 required per assembly)
		10-25575 - Screw, NLA [ More info ] Unavailable
#5	8M0204663	WASHER @5 VENT SCREW (1 required per assembly) — Replaces: 492211, 49221
		12-8M0204663 - Washer, Sold Individually [ More info ] $1.20 10+ In Stock.
#6	22227	SPRING TENSION-VENT SCREW (1 required per assembly)
		24-22227 - Spring, Tenion - Vent Screw,NLA [ More info ] $2.50 $2.13 10+ In Stock.
#7	28587	NUT SPEED-SPRING RETAINER (1 required per assembly)
		11-28587 - Nut, Speed (spring Retainer) [ More info ] $2.20 $1.86 10+ In Stock.
#8	41065	GASKET FILLER CAP TO FUEL TANK (1 required per assembly)
		27-41065 - Filler Cap To Fuel Tank Gasket [ More info ] $7.50 $6.36 10+ In Stock.
#9	17792A1	BODY ASSEMBLY PICKUP FUEL TANK (1 required per assembly) — Replaces: 64841A3
		17792A 1 - Pickup Assembly, NLA [ More info ] Unavailable
#10	75239	TUBE (1 required per assembly)
		32-75239 - Tubing, NLA [ More info ] $24.99 $21.16 10+ In Stock.
#11	98542A1	WINDOW ASSEMBLY FUEL GAUGE (1 required per assembly)
		98542A 1 - Window Assembly, NLA [ More info ] Unavailable
#12	28897A2	GAUGE ASSEMBLY FUEL COMPLETE (1 required per assembly)
		28897A 2 - Fuel Indicator, NLA [ More info ] $16.00 $13.55 9 In Stock.
#13	20430	RETAINER FUEL GAUGE (1 required per assembly)
		20430 - Fuel Gauge Retainer, NLA [ More info ] $7.00 $5.93 10 In Stock.
#14	28897A1	INDICATOR AND FLOAT ASSEMBLY (1 required per assembly)
		28897A 1 - Float Assembly, NLA [ More info ] $20.84 6 In Stock.
#15	99274	FLOAT FUEL GAUGE (1 required per assembly)
		99274 - Fuel Tank Float, NLA [ More info ] $29.34 $24.86 9 In Stock.
#16	20426	RIVET INDICATOR TO RETAINER (1 required per assembly)
		17-20426 - Rivet, NLA [ More info ] $1.83 $1.56 10+ In Stock.
#17	62568	SCREW (#10-16 X .375) RETAINER TO FUEL TANK COVER (2 required per assembly)
		10-62568 - Screw - Priced Individually [ More info ] $1.10 $0.88 10+ In Stock.
#18	28862	GASKET COVER ASSEMBLY TO FRAME (1 required per assembly)
		27-28862 - Cover Asembly To Frame Gasket [ More info ] $7.79 10+ In Stock.
#19	28860	FRAME RETAINING-FUEL TANK COVER (1 required per assembly)
		28860 - Frame, NLA [ More info ] $5.56 $4.71 5 In Stock.
#20	28903	NUT RETAINING FRAME TO FUEL TANK (2 required per assembly)
		11-28903 - Nut - Priced Individually [ More info ] $2.73 $2.31 3 In Stock.
#21	20411	SCREW (.190-24 X .62) FUEL TANK COVER TO FUEL TANK (4 required per assembly)
		10-20411 - Screw, NLA [ More info ] $3.25 10+ In Stock.
#22	29070	WASHER FUEL TANK COVER FASTENING SCREW (4 required per assembly)
		12-29070 - Washer, NLA [ More info ] $2.21 $1.88 1 In Stock.
#0-2	64841A1	CONNECTOR/GAUGE ASSEMBLY COMPLETE (1 required per assembly)
		64841A 1 - Cover Assembly, NLA [ More info ] $90.20 $76.40 1 In Stock.
