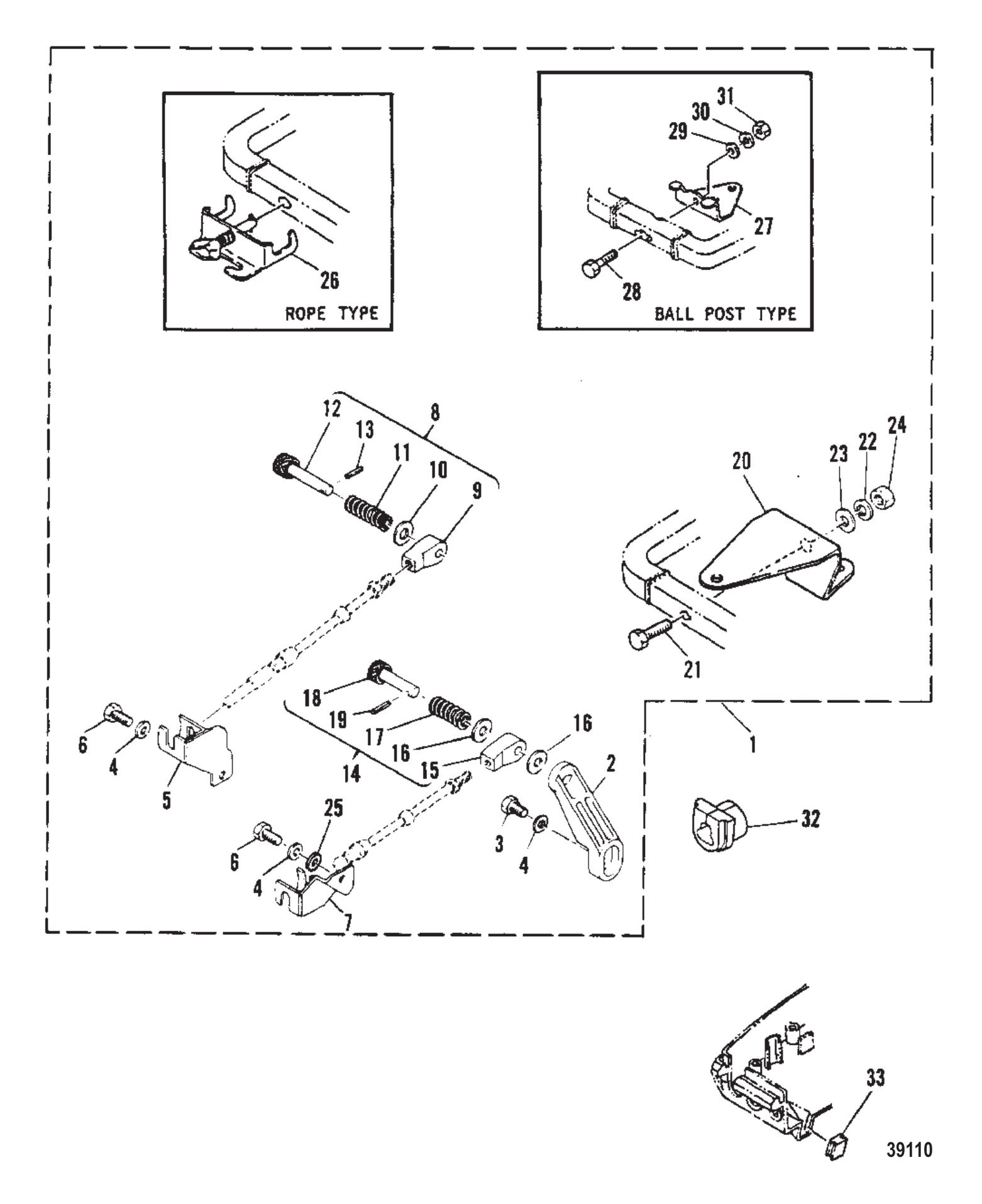

Parts for 40C (Twin Carb) 2-Stroke Carbureted Mercury Outboard Motor Remote Control Attaching Kit
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 43992A1 | R/C ATTACHING KIT (1 required per assembly) |
  |
|
43992A 1 - Remote Control Attaching Kit [ More info ] Unavailable |
| #2 | 83716M | LEVER THROTTLE (1 required per assembly) |
  |
|
83716M - Lever [ More info ] Unavailable |
| #3 | 91772M | BOLT (1 required per assembly) |
  |
|
10-91772M - Bolt [ More info ]
|
| #4 | 82212M | LOCKWASHER (3 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #5 | 83718M | BOLT (1 required per assembly) |
  |
|
83718M - Bracket, NLA [ More info ]
|
| #6 | 826957M | BOLT (2 required per assembly) — Replaces: 91725M |
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #7 | 83932M | BRACKET (1 required per assembly) |
  |
|
83932M - Bracket, NLA [ More info ] Unavailable |
| #8 | 83719M | END CABLE (1 required per assembly) |
  |
|
83719M - Cable End [ More info ]
|
| #9 | 83720M | END CABLE (1 required per assembly) |
  |
|
83720M - Bracket [ More info ]
|
| #10 | 82216M | WASHER (1 required per assembly) |
  |
|
12-82216M - Washer, Lock, NLA [ More info ]
|
| #11 | 83721M | SPRING (1 required per assembly) |
  |
|
24-83721M - Spring, NLA [ More info ] Unavailable |
| #12 | 814500M | HOOK CABLE (1 required per assembly) — Replaces: 83722M |
  |
|
17-814500M - Anchor Pin, NLA [ More info ]
|
| #13 | 82146M | PIN ROLL (1 required per assembly) |
  |
|
17-82146M - Pin -roll, NLA [ More info ] Unavailable |
| #14 | 83933M | END CABLE (1 required per assembly) |
  |
|
83933M - Cable End [ More info ]
|
| #15 | 83934M | END CABLE (1 required per assembly) |
  |
|
83934M - Cable End [ More info ]
|
| #16 | 82216M | WASHER (2 required per assembly) |
| #17 | 83725M | SPRING (1 required per assembly) |
  |
|
24-83725M - Spring, NLA [ More info ] Unavailable |
| #18 | 814499M | HOOK CABLE (1 required per assembly) — Replaces: 83726M |
  |
|
17-814499M - PIN-ANCHOR,NLA [ More info ] Unavailable |
| #19 | 82146M | PIN ROLL (1 required per assembly) |
| #20 | 83698M | HOOK MECHANICAL STEERING (1 required per assembly) |
  |
|
83698M - Bracket, NLA [ More info ]
|
| #21 | 91636M | BOLT (1 required per assembly) — Replaces: 82474M |
  |
|
10-91636M - Screw, NLA [ More info ]
|
| #22 | 82218M | LOCKWASHER (1 required per assembly) |
  |
|
13-82218M - LockWasher - Priced Individually [ More info ]
|
| #23 | 82220M | WASHER (1 required per assembly) |
  |
|
12-82220M - Washer - Priced Individually [ More info ] Unavailable |
| #24 | 81785M | LOCKNUT (1 required per assembly) |
  |
|
11-81785M - Nut, Nylon,NLA [ More info ]
|
| #25 | 82213M | WASHER (1 required per assembly) |
  |
|
12-82213M - Washer - Priced Individually [ More info ]
|
| #26 | 83727M | BRACKET (ROPE TYPE) [M-004991, ML-305579, E-103224, EL-413358] & Up (1 required per assembly) |
  |
|
83727M - Bracket, NLA [ More info ] Unavailable |
| #27 | 11670T | BRACKET STEERING (BALL POST TYPE) [M-004991, ML-305579, E-103224, EL-413358] & Up (1 required per assembly) — Replaces: 11670M |
  |
|
11670T - Bracket [ More info ] Unavailable |
| #28 | 91636M | BOLT [M-004991, ML-305579, E-103224, EL-413358] & Up (1 required per assembly) |
| #29 | 82220M | WASHER [M-004991, ML-305579, E-103224, EL-413358] & Up (1 required per assembly) |
| #30 | 82218M | LOCKWASHER [M-004991, ML-305579, E-103224, EL-413358] & Up (1 required per assembly) |
| #31 | 81785M | LOCKNUT [M-004991, ML-305579, E-103224, EL-413358] & Up (1 required per assembly) |
| #32 | 94476M | GROMMET [M-004990, ML-305578, E-103223, EL-413357] & Below (1 required per assembly) |
  |
|
25-94476M - Grommet, NLA [ More info ] Unavailable |
| #33 | 83728M | GROMMET (1 required per assembly) |
  |
|
25-83728M - Grommet (w/o Manual Steering) NLA [ More info ] Unavailable |
