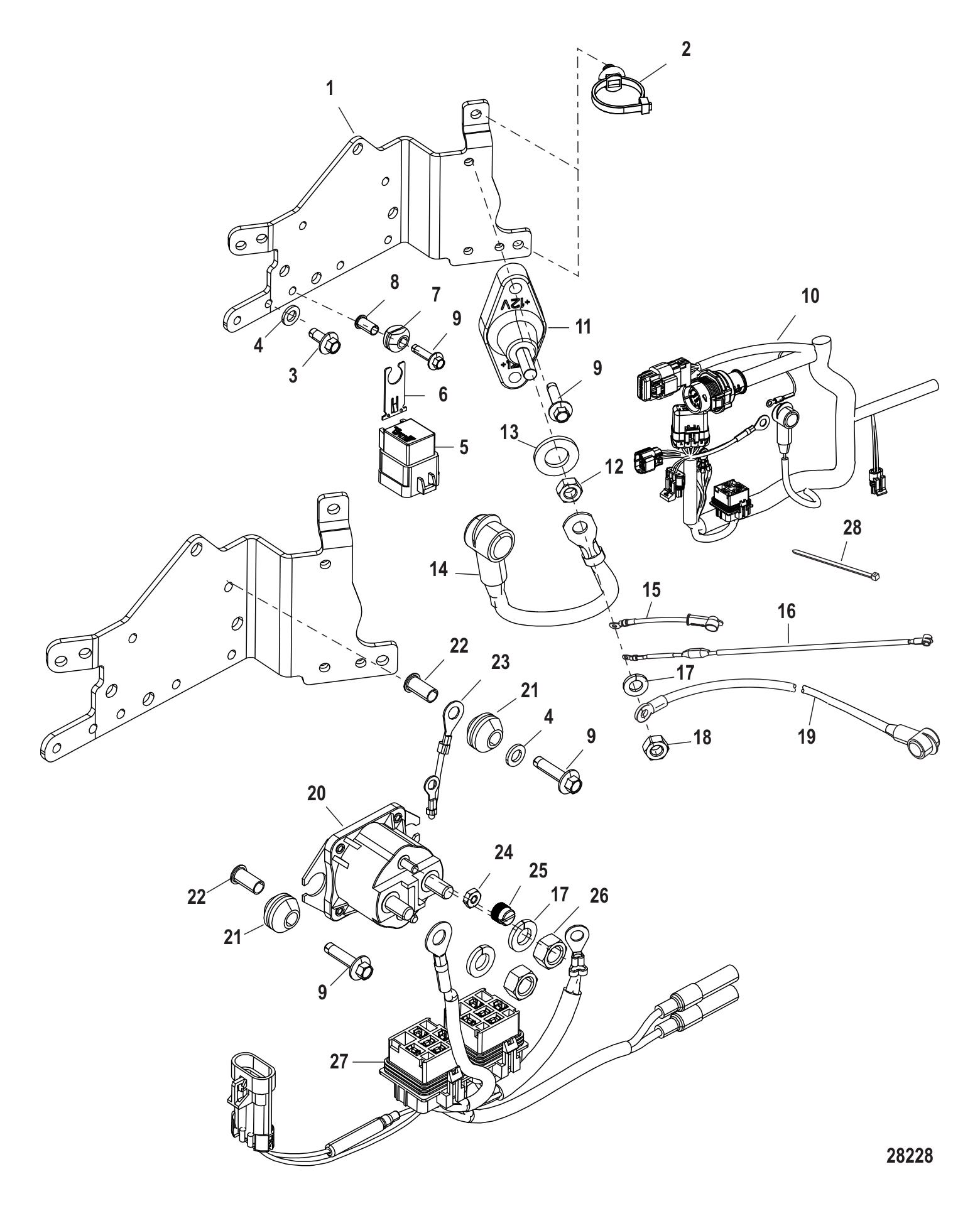

Parts for 110 Jet (2.5L) 2-Stroke Carbureted Mercury Outboard Motor Electrical Plate Assembly Serial Number 1B490866 & Up
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | NSS | NOT SOLD SEPARATE ELECTRICAL PLATE ASSEMBLY-COMPLETE (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #- | 832969T20 | FUSE MINI - YELLOW - 20 AMPERE (2 required per assembly) — Replaces: 83296920 |
  |
|
88-832969T20 - Fuse - Yellow - 20 Amp [ More info ]
|
| #- | 832969T15 | FUSE MINI - BLUE - 15 AMPERE (1 required per assembly) — Replaces: 83296915 |
  |
|
88-832969T15 - Fuse -Blue-15AMP [ More info ]
|
| #- | 8M0207797 | FUSE MINI GRAY 2 AMPERE (1 required per assembly) — Replaces: 8329692 |
  |
|
888M0207797 - FUSE-GRAY-2 AMP [ More info ]
|
| #- | 832969T05 | FUSE MINI - TAN - 5 AMPERE (1 required per assembly) — Replaces: 8329695 |
  |
|
88-832969T05 - Fuse -TAN-5 AMP [ More info ]
|
| #- | 879346A49 | HARNESS REPAIR KIT DIRECT INJECTOR (1 required per assembly) — Replaces: 858781A2 |
  |
|
879346A49 - Harness Repair Kit - Direct Inject [ More info ]
|
| #- | 879346A50 | HARNESS REPAIR KIT FUEL INJECTOR (1 required per assembly) — Replaces: 858780A2 |
  |
|
879346A50 - Fuel Injection Harness Kit [ More info ]
|
| #- | 881262A2 | HARNESS ASSEMBLY ALTERNATOR (1 required per assembly) |
  |
|
84-881262A 2 - Harness Assembly [ More info ]
|
  |
|
18-6500 - Harness Assembly Delco [ More info ]
|
| #- | 879346A41 | HARNESS REPAIR KIT THROTTLE POSITION SENSOR (1 required per assembly) — Replaces: 878073A2 |
  |
|
879346A41 - KT-3 Pin Delphi [ More info ]
|
| #1 | 899071T01 | PLATE (1 required per assembly) |
  |
|
899071T01 - Plate [ More info ]
|
| #2 | 899145 | CLIP TIE STRAP (2 required per assembly) |
  |
|
54-899145 - Clip [ More info ]
|
| #3 | 82129114 | SCREW (M6 X 14) (1 required per assembly) |
  |
|
10-821291 14 - Screw [ More info ]
|
| #4 | 8M0204649 | WASHER @10 (2 required per assembly) — Replaces: 29245 |
  |
|
12-8M0204649 - WASHER Note: Priced Individually [ More info ]
|
| #5 | 882751A1 | RELAY ASSEMBLY (3 required per assembly) |
  |
|
882751A 1 - Relay - 8M0207773 [ More info ] Unavailable |
  |
|
18-5849 - Relay, 882751A1 [ More info ]
|
  |
|
300-01562 - Power Trim Relay, 882751A1 [ More info ]
|
  |
|
|
| #6 | 8M0207771 | BRACKET (3 required per assembly) — Replaces: 828102 |
  |
|
8M0207771 - BRACKET [ More info ] Unavailable |
| #7 | 8M0207785 | GROMMET (3 required per assembly) — Replaces: 818967 |
  |
|
258M0207785 - Grommet [ More info ]
|
| #8 | 818968 | BUSHING (3 required per assembly) |
  |
23-818968 - Bushing [ More info ] Unavailable |
|
  |
|
238M0214955 - Bushing [ More info ]
|
| #9 | 82129125 | SCREW (M6 X 25 MM) (7 required per assembly) |
  |
|
10-821291 25 - Screw [ More info ] Unavailable |
| #10 | 892926T03 | HARNESS ASSEMBLY ENGINE (1 required per assembly) |
  |
|
84-892926T03 - Engine Harness Assembly [ More info ]
|
| #11 | 875302A1 | HOT STUD ASSEMBLY (1 required per assembly) |
  |
|
85-875302A 1 - Hot Stud Assembly [ More info ]
|
| #12 | 400213 | NUT (M8) STAINLESS STEEL (1 required per assembly) |
  |
|
11-40021 3 - Nut - Priced Individually [ More info ]
|
| #13 | 85172 | WASHER (1 required per assembly) |
  |
|
12-85172 - Washer,rubber-upper Mount Screw [ More info ]
|
| #14 | 93388T21 | CABLE ASSEMBLY BLACK (1 required per assembly) |
  |
|
84-93388T21 - Cable Assembly [ More info ]
|
| #15 | 8M0006811 | CABLE ASSEMBLY STARTER (1 required per assembly) |
  |
|
84-8M0006811 - Starter Cable [ More info ]
|
| #16 | 878231A03 | HARNESS ASSEMBLY FUSE - 100 AMPERE (1 required per assembly) |
  |
|
84-878231A03 - Fuse Harness [ More info ]
|
| #17 | 53166 | LOCKWASHER (.312) (3 required per assembly) |
  |
|
13-53166 - LockWasher - Priced Individually [ More info ]
|
| #18 | 400213 | NUT (M8) STAINLESS STEEL (1 required per assembly) |
| #19 | 88439A46 | CABLE ASSEMBLY BATTERY - POSITIVE (1 required per assembly) |
  |
|
84-88439A46 - Battery Cable Pos [ More info ]
|
| #20 | 817109A2 | SOLENOID ASSEMBLY (#10-32 / .3125-18 TERMINALS) (1 required per assembly) |
  |
|
89-817109A 2 - Solenoid Kit [ More info ]
|
  |
|
18-5834 - Solenoid, 89-817109A2 [ More info ]
|
  |
|
SW109 - Solenoid [ More info ]
|
| #21 | 822179 | GROMMET (2 required per assembly) |
  |
|
25-822179 - Grommet [ More info ]
|
| #22 | 818968 | BUSHING (2 required per assembly) |
| #23 | 88807A16 | CABLE ASSEMBLY (4.00 INCHES) BLACK (1 required per assembly) |
  |
|
84-88807A16 - Cable Assembly [ More info ]
|
| #24 | 45076 | NUT (#10-32) BRASS (2 required per assembly) |
  |
|
11-45076 - Nut (#10-32) (brass) [ More info ]
|
| #25 | 813938 | CAP NUT (#10-32) (2 required per assembly) |
  |
|
11-813938 - Capnut [ More info ]
|
| #26 | 8M0204668 | NUT (.312-18) (2 required per assembly) — Replaces: 68292 |
  |
|
11-8M0204668 - NUT @5 [ More info ] Unavailable |
| #27 | 819514T26 | HARNESS ASSEMBLY TRIM (1 required per assembly) |
  |
|
84-819514T26 - Trim Harness [ More info ]
|
| #28 | 816311T | TIE STRAP (8.00 INCHES) (3 required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
