Parts for 40B (- Prop. Exhaust) 2-Stroke Carbureted Mercury Outboard Motor Gearhousing Ass'y

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40B (- Prop. Exhaust) > E-676-b100461 - B102785 > Gearhousing Ass'y

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

Gearhousing Ass'y

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	94533M	GASKET SET (1 required per assembly) — Replaces: 84362M
		27-94533M - Gasket Set [ More info ] Unavailable
#-	84363T	REPAIR KIT (1 required per assembly) — Replaces: 84363M
		84363T - Repair Kit [ More info ] $165.49 $158.48 2 In Stock.
		46-13184 - Water Pump Service Kit, Yamaha 679-W0078-A1-00 [ More info ] $40.99 $31.35 2 In Stock.
#1	9573M	GEAR HOUSING ASSEMBLY (1 required per assembly) — Replaces: 7121M
		1651-9573M - Gear Housing Assembly [ More info ] $199.99 $169.38 6 In Stock.
#2	81924M	PLUG (3 required per assembly)
		22-81924M - Plug - Priced Individually [ More info ] Unavailable
#3	81987	GASKET (3 required per assembly) — Replaces: 81987M
		27-81987 - Drain Plug Gasket [ More info ] $3.79 10+ In Stock.
		18-46981-9 - Drain Fill Washer (50 Pack) [ More info ] $119.99 In Stock
		18-4698 - Drain Fill Washer [ More info ] $2.30 10+ In Stock.
#4	81449M	GUIDE SEAL (1 required per assembly)
		81449M - Guide, NLA [ More info ] $5.99 $5.07 6 In Stock.
#5	83396M	COVER WATER PUMP (1 required per assembly)
		46-83396M - Water Pump Cover [ More info ] Unavailable
#6	83403M	INSERT (1 required per assembly)
		83403M - Insert, NLA [ More info ] $38.79 6 In Stock.
#7	81426M	SEAL (1 required per assembly)
		26-81426M - Seal [ More info ] $18.79 10+ In Stock.
#8	84057M	BOLT (2 required per assembly) — Replaces: 82469M
		10-84057M - Bolt, NLA [ More info ] Unavailable
#9	82217M	WASHER (4 required per assembly)
		12-82217M - Washer, NLA [ More info ] $1.67 $1.42 10 In Stock.
#10	99971M	IMPELLER (1 required per assembly) — Replaces: 83397M
		47-99971M - Impeller [ More info ] $82.49 Available to Order: Shipping delay up to 10 days.
#11	83398	GASKET WATER PUMP (1 required per assembly) — Replaces: 83398M
		27-83398 - Water Pump Housing Gasket [ More info ] $7.39 4 In Stock.
#12	83400M	FACE PLATE (1 required per assembly)
		83400M - Face Plate, NLA [ More info ] $34.48 6 In Stock.
#13	83399	GASKET @2 WATER PUMP (1 required per assembly) — Replaces: 83399M
		27-83399 - Gasket - Priced Individually [ More info ] $7.99 2 In Stock.
#14	8M0070508	WATER PUMP WATER PUMP (1 required per assembly) — Replaces: 83864M
		468M0070508 - Water Pump [ More info ] Unavailable
#15	83865	GASKET WATER PUMP (1 required per assembly) — Replaces: 83865M
		27-83865 - Gasket [ More info ] $9.69 3 In Stock.
#16	82275M	O-RING (1 required per assembly)
		25-82275M - O-ring, Water Pump Base [ More info ] $8.19 Available to Order: Shipping delay up to 10 days.
#17	854017	SEAL OIL (4 required per assembly) — Replaces: 83406M, 82233M
		26-854017 - Oil Seal - Priced Individually [ More info ] $12.29 4 In Stock.
		18-0296 - Seal, 93101-22067-00 [ More info ] $8.99 $8.95 6 In Stock.
#18	83866M	DRIVESHAFT (SHORT SHAFT) (1 required per assembly)
		45-83866M - Drive Shaft, NLA [ More info ] Unavailable
#18	83867M	DRIVESHAFT (LONG SHAFT) (1 required per assembly)
		45-83867M - Drive Shaft, NLA [ More info ] Unavailable
#18	83895M	DRIVESHAFT (SUPER LONG SHAFT) (1 required per assembly)
		45-83895M - Drive Shaft, NLA [ More info ] Unavailable
#19	83444M	KEY WATER PUMP (1 required per assembly)
		28-83444M - Key, NLA [ More info ] $11.55 $9.78 10+ In Stock.
#20	82319T	BEARING TAPERED ROLLER (1 required per assembly) — Replaces: 82319M
		31-82319T - Bearing, NLA [ More info ] $31.11 $26.35 3 In Stock.
#21	81467M	SHIM PINION GEAR ADJUST (0.05 MM) (AR required per assembly)
		15-81467M - Shim, NLA [ More info ] $3.23 10 In Stock.
#21	81468M	SHIM PINION GEAR ADJUST (0.08 MM) (AR required per assembly)
		15-81468M - Shim, NLA [ More info ] $2.00 $1.69 10+ In Stock.
#21	19148002	SHIM @5 PINION GEAR ADJUST (0.12 MM) (AR required per assembly) — Replaces: 81469M
		15-19148002 - Shim - Priced Individually [ More info ] Unavailable
#21	19148004	SHIM @5 PINION GEAR ADJUST (0.30MM) (AR required per assembly) — Replaces: 81470M, 19151M
		15-19148004 - Shim, NLA [ More info ] $3.00 $2.54 4 In Stock.
#21	19153M	SHIM PINION GEAR ADJUST (0.50 MM) (AR required per assembly) — Replaces: 81471M
		15-19153M - Shim, NLA [ More info ] $2.22 $1.88 10+ In Stock.
#22	83868M	SLEEVE DRIVESHAFT (1 required per assembly)
		83868M - Sleeve [ More info ] Unavailable
#23	82316T	BEARING NEEDLE (1 required per assembly) — Replaces: 82316M
		31-82316T - Bearing, NLA [ More info ] Unavailable
#24	81455M	BEARING THRUST (1 required per assembly)
		12-81455M - Thrust Washer, Driveshaft, NLA [ More info ] $10.87 $9.21 10+ In Stock.
#25	83869T	PINION GEAR GEAR (1 required per assembly) — Replaces: 83869M
		43-83869T - Pinion Gear [ More info ] Unavailable
#26	81772M	NUT PINION (1 required per assembly)
		11-81772M - Nut, Pinion,NLA [ More info ] $12.07 $10.23 9 In Stock.
#27	81456M	SHIM FORWARD GEAR ADJUST (0.05 MM) (AR required per assembly)
		15-81456M - Shim, NLA [ More info ] $2.22 $1.88 3 In Stock.
#27	81457M	SHIM FORWARD GEAR ADJUST (0.08 MM) (AR required per assembly)
		15-81457M - Shim, NLA [ More info ] $1.36 $1.16 10+ In Stock.
#27	19148003	SHIM @5 FORWARD GEAR ADJUST (0.12 MM) (AR required per assembly) — Replaces: 81458M, 19155M
		15-19148003 - Shim - Priced Individually [ More info ] Unavailable
#27	19158M	SHIM FORWARD GEAR ADJUST (0.30 MM) (AR required per assembly) — Replaces: 81459M
		15-19158M - Shim, NLA [ More info ] $2.49 $2.11 2 In Stock.
#27	81460M	SHIM FORWARD GEAR ADJUST (0.50 MM) (AR required per assembly)
		15-81460M - Shim, NLA [ More info ] $2.00 $1.69 9 In Stock.
#28	82320T	BEARING TAPERED ROLLER (1 required per assembly) — Replaces: 82320M
		31-82320T - Bearing [ More info ] Unavailable
#29	83877T	GEAR FORWARD (1 required per assembly) — Replaces: 83877M
		43-83877T - Gear [ More info ] Unavailable
#30	94531M	SHAFT PROPELLER (1 required per assembly) — Replaces: 83878M
		44-94531M - Prop Shaft [ More info ] Unavailable
#31	83419M	FOLLOWER CAM (1 required per assembly)
		83419M - Cam Follower [ More info ] Unavailable
#32	81475M	SLIDE SHIFT (1 required per assembly)
		81475M - Shift Slide, NLA [ More info ] $10.41 6 In Stock.
#33	81473T	CLUTCH SLIDING (1 required per assembly) — Replaces: 81473M
		52-81473T - Clutch [ More info ] $275.49 Available to Order: Shipping delay up to 10 days.

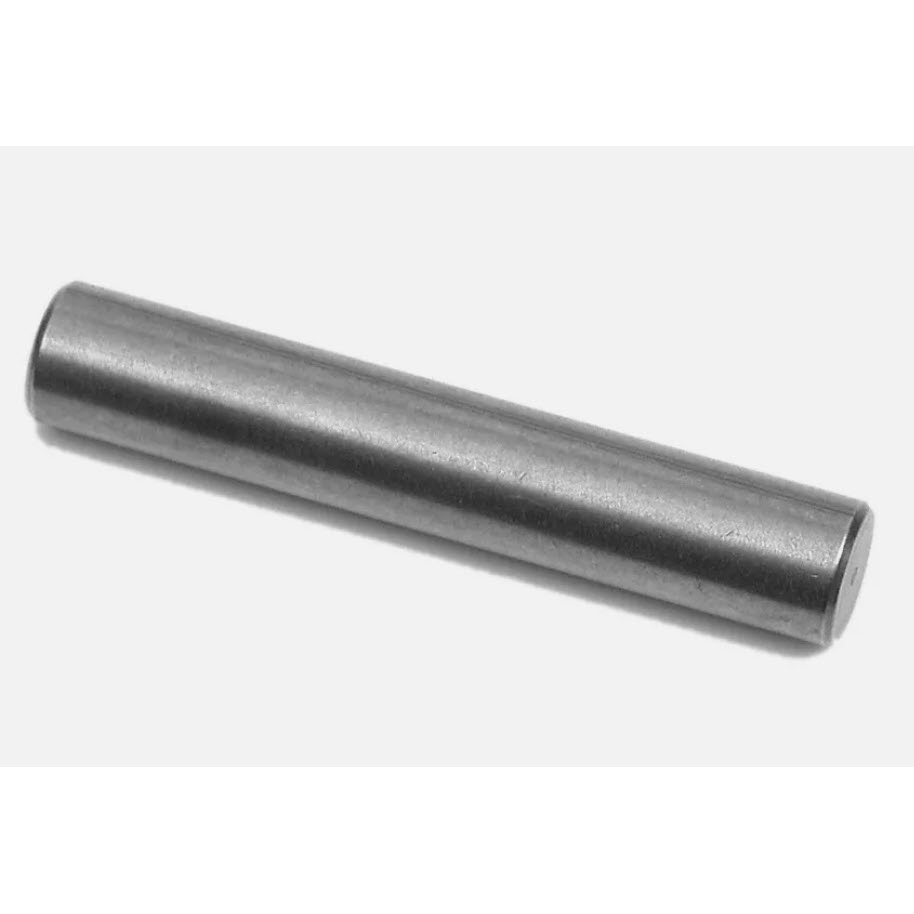

#34	81903M	PIN CROSS (1 required per assembly)
		17-81903M - Pin, Cross, NLA [ More info ] $3.90 10+ In Stock.
#35	81474M	RING CROSS PIN (1 required per assembly)
		81474M - Ring, NLA [ More info ] $1.96 8 In Stock.
#36	83429M	SPRING COMPRESSION (1 required per assembly)
		24-83429M - Spring, Compression,NLA [ More info ] $2.60 2 In Stock.
#37	81837M	WASHER (1 required per assembly)
		12-81837M - Washer, Reverse Gear Thrust, NLA [ More info ] $1.96 10+ In Stock.
#38	83879T	GEAR REVERSE (1 required per assembly) — Replaces: 83879M
		43-83879T - Gear [ More info ] $324.49 Available to Order: Shipping delay up to 10 days.
#39	81462M	SHIM REVERSE GEAR ADJUST (0.05 MM) (AR required per assembly)
		15-81462M - Shim, NLA [ More info ] $2.22 $1.88 7 In Stock.
#39	81463M	SHIM REVERSE GEAR ADJUST (0.08 MM) (AR required per assembly)
		15-81463M - Shim, NLA [ More info ] $2.17 $1.83 1 In Stock.
#39	19163002	SHIM @5 REVERSE GEAR ADJUST (0.12 MM) (AR required per assembly) — Replaces: 81464M
		15-19163002 - Shim - Priced Individually [ More info ] Unavailable
#39	19163001	SHIM @5 REVERSE GEAR ADJUST (0.30 MM) (AR required per assembly) — Replaces: 81465M, 19163M
		15-19163001 - Shim - Priced Individually [ More info ] $3.00 $2.54 1 In Stock.
#39	81461M	WASHER REVERSE GEAR ADJUST (0.50 MM) (AR required per assembly)
		12-81461M - Washer, Thrust, NLA [ More info ] $6.52 $5.53 10+ In Stock.
#40	81461M	WASHER THRUST (1 required per assembly)
#41	8M0121494	HOUSING (1 required per assembly) — Replaces: 83880M, 83880T
		8M0121494 - Housing [ More info ] Unavailable
#42	82296T	BALL BEARING BALL (1 required per assembly) — Replaces: 82296M
		30-82296T - Ball Bearing, NLA [ More info ] $24.99 Available to Order: Shipping delay up to 10 days.
#43	82289M	O-RING (1 required per assembly)
		25-82289M - O-ring, Bearing Housing [ More info ] $12.89 10+ In Stock.
#44	81916M	KEY (1 required per assembly)
		28-81916M - Key, NLA [ More info ] $10.76 10+ In Stock.
#45	82317M	BEARING NEEDLE (1 required per assembly)
		31-82317M - Bearing, NLA [ More info ] $41.99 Available to Order: Shipping delay up to 10 days.
#46	81877M	WASHER CLAW (1 required per assembly)
		14-81877M - Tab Washer, NLA [ More info ] $8.99 $7.61 10+ In Stock.
#47	8M0059031	NUT (1 required per assembly) — Replaces: 81450M
		118M0059031 - Nut [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#48	83881M	SHIFT CAM (SHORT SHAFT) (1 required per assembly)
		83881M - Shift Cam, NLA [ More info ] Unavailable
#48	83882M	SHIFT CAM (LONG SHAFT) (1 required per assembly)
		83882M - SHIFT CAM,NLA [ More info ] Unavailable
#48	83902M	SHIFT CAM (SUPER LONG SHAFT) (1 required per assembly)
		83902M - SHIFT CAM,NLA [ More info ] Unavailable
#49	83883M	BUSHING SHIFT CAM (1 required per assembly)
		83883M - Housing, NLA [ More info ] Unavailable
#50	82423M	BOLT (1 required per assembly) — Replaces: 82451M
		10-82423M - Bolt, NLA [ More info ] $1.36 10+ In Stock.
#51	82214M	WASHER (1 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
#52	82881M	BOOT SHIFT ROD (1 required per assembly)
		82881M - Boot, NLA [ More info ] $16.99 3 In Stock.
#53	81767M	NUT (1 required per assembly)
		11-81767M - Nut, NLA [ More info ] $2.93 8 In Stock.
#54	80652M	CONNECTOR SHIFT ROD (1 required per assembly)
		80652M - Shift Rod Connector Connector [ More info ] $16.79 Available to Order: Shipping delay up to 10 days.
#55	83857M	PLUG (1 required per assembly)
		22-83857M - Plug, NLA [ More info ] Unavailable
#56	85277614	BOLT (2 required per assembly) — Replaces: 82468M
		10-852776 14 - Bolt [ More info ] $10.00 10+ In Stock.
#57	82354M	PIN DOWEL (2 required per assembly)
		17-82354M - Pin -Dowel, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#58	94532M	BOLT (1 required per assembly) — Replaces: 83860M
		10-94532M - Bolt, NLA [ More info ] $2.50 $2.13 7 In Stock.
#59	82218M	LOCKWASHER @5 (1 required per assembly)
		13-82218M - LockWasher - Priced Individually [ More info ] $4.30 10+ In Stock.
#60	83392M	SCREW (1 required per assembly)
		10-83392M - Screw, NLA [ More info ] $8.38 7 In Stock.
#61	95610	GASKET (1 required per assembly) — Replaces: 81986M, 95610M
		27-95610 - Gasket [ More info ] $11.49 3 In Stock.
#62	95416M	BOLT (6 required per assembly) — Replaces: 82465M
		10-95416M - Bolt [ More info ] $10.00 $8.47 1 In Stock.
#63	82215M	LOCKWASHER @5 (6 required per assembly)
		13-82215M - LockWasher - Priced Individually [ More info ] $0.40 10+ In Stock.
#64	81448M	SEAL (1 required per assembly)
		81448M - Seal, NLA [ More info ] $5.00 1 In Stock.
#65	19166M	COVER WATER INLET (1 required per assembly) — Replaces: 81443M, 97091M
		19166M - Water Inlet Cover, NLA [ More info ] $29.99 2 In Stock.
#66	19167M	COVER WATER INLET (1 required per assembly) — Replaces: 81444M, 97092M
		19167M - Cover [ More info ] $29.99 1 In Stock.
#67	83858M	SCREW @5 (1 required per assembly)
		10-83858M - Screw, NLA [ More info ] $1.96 10+ In Stock.
#68	8528165	NUT (1 required per assembly) — Replaces: 81781M
		11-852816 5 - Nut [ More info ] $5.21 10+ In Stock.
#69	83859T	TRIM TAB (1 required per assembly) — Replaces: 83859M
		83859T - Trim Tab, Zinc [ More info ] $63.65 1 In Stock.
#70	83862M	PLATE (1 required per assembly)
		83862M - PLATE,NLA [ More info ] Unavailable
#71	83861M	GASKET (1 required per assembly)
		27-83861M - Gasket,NLA [ More info ] Unavailable
#72	83870M	SCREW (2 required per assembly)
		10-83870M - Screw, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#73	83451M	TUBE WATER (SHORT SHAFT) (1 required per assembly)
		32-83451M - Tubing, NLA [ More info ] Unavailable
#73	83452M	TUBE WATER (LONG SHAFT) (1 required per assembly)
		32-83452M - Tubing, NLA [ More info ] $16.88 $14.29 7 In Stock.
#73	83903M	TUBE WATER WATER (SUPER LONG SHAFT) (1 required per assembly)
		32-83903M - Tubing, NLA [ More info ] Unavailable
#74	81852M	WASHER (1 required per assembly)
		12-81852M - Washer, NLA [ More info ] $12.49 Available to Order: Shipping delay up to 10 days.
#75	81989M	O RING @2 (1 required per assembly)
		25-81989M - O-Ring - Priced Individually [ More info ] $8.99 1 In Stock.
#76	81427M	SEAL (1 required per assembly)
		26-81427M - Seal, NLA [ More info ] Unavailable
#77	73345A1	THRUST WASHER (1 required per assembly) — Replaces: 73345
		73345A 1 - Thrust Washer [ More info ] $18.21 $17.47 10+ In Stock.
#78	859935	PROP NUT PROPELLER (1 required per assembly) — Replaces: 81775M
		859935 - Prop Nut [ More info ] $9.79 Available to Order: Shipping delay up to 10 days.
#79	95295	COTTER PIN COTTER (1 required per assembly) — Replaces: 84428M, 82135M
		18-95295 - Cotter Pin - Priced Individually [ More info ] $7.55 Available to Order: Shipping delay up to 10 days.
		18-95295Q - Cotter Pin - Priced Individually [ More info ] $7.55 Available to Order: Shipping delay up to 10 days.
#80	83884M	WATER PUMP KIT (1 required per assembly)
		46-83884M - Water Pump Kit Chrome, NLA [ More info ] Unavailable
#81	83448M	FACE PLATE (1 required per assembly)
		83448M - Face Plate, NLA [ More info ] Unavailable
#82	83449M	INSERT (1 required per assembly)
		83449M - Inner Plate, NLA [ More info ] $10.00 $8.47 1 In Stock.
#83	83450M	INNER PLATE CARTRIDGE (1 required per assembly)
		83450M - INSERT,NLA [ More info ] Unavailable
#84	8M0121335	PLUG (1 required per assembly) — Replaces: 80218M, 95633M
		22-8M0121335 - PLUG NLA [ More info ] Unavailable
#0-1	7994M	GEAR HOUSING ASSEMBLY (SHORT SHAFT) (1 required per assembly) — Replaces: 7122M
		1651-7994M - GEAR Housing, NLA [ More info ] Unavailable
#0-1	7995M	GEAR HOUSING ASSEMBLY (LONG SHAFT) (1 required per assembly) — Replaces: 7123M
		1651-7995M - GEAR Housing, NLA [ More info ] Unavailable
