Carburetor Assembly

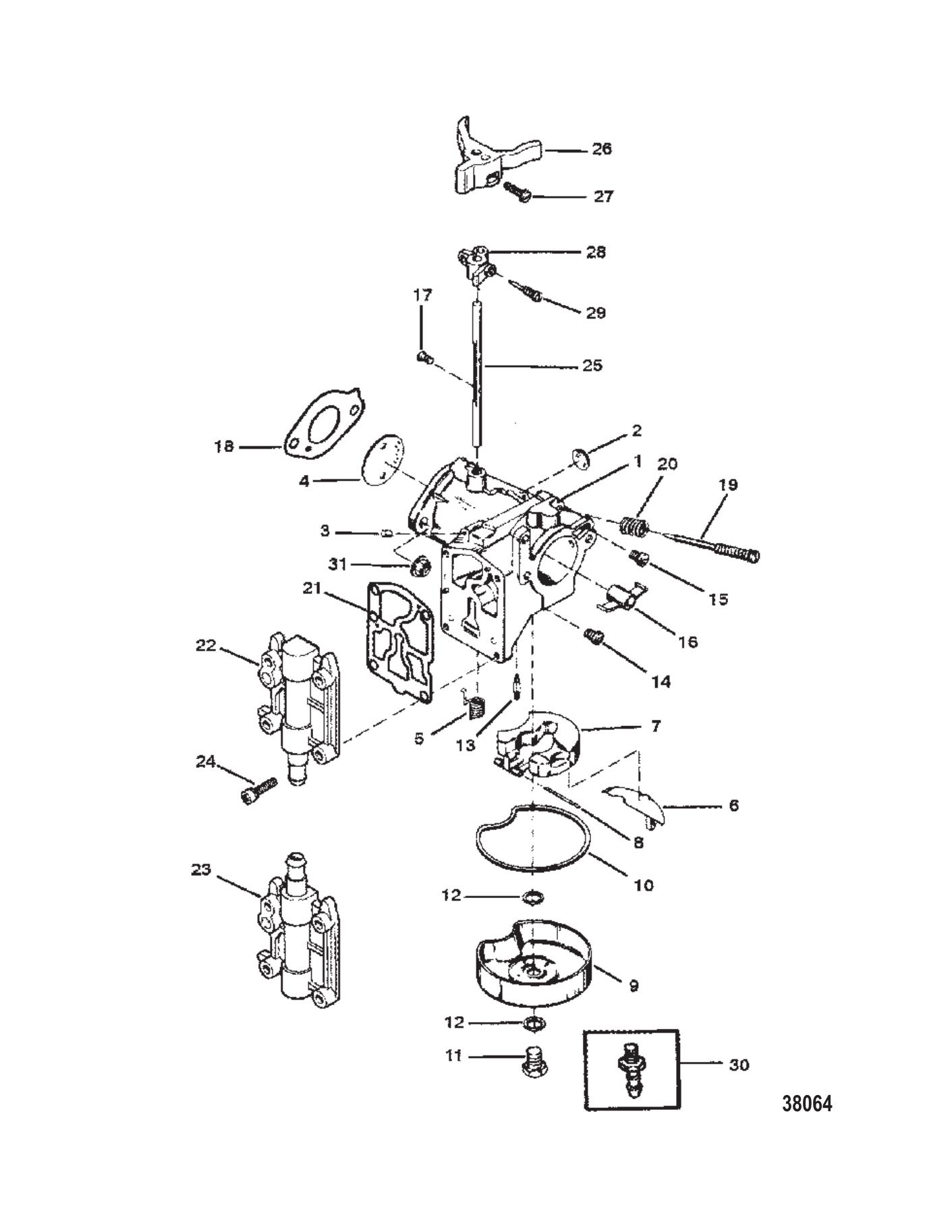

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	422501	PLATE-RESTRICTOR (RESTRICTED 40) (1 required per assembly)
		422501 - PLATE-RESTRICTOR NLA [ More info ] Unavailable
#-	757911	GASKET (RESTRICTED 40) (2 required per assembly)
		27-75791 1 - Gasket [ More info ] $3.69 Available to Order: Shipping delay up to 10 days.
#-	9650	REPAIR KIT (1 required per assembly)
		1395-9650 - Repair Kit [ More info ] Unavailable
#-	9651	GASKET SET (1 required per assembly)
		1395-9651 - Carburetor Gasket Set [ More info ] $11.09 10+ In Stock.
#-	85491A90	GASKET SET (1 required per assembly)
		27-85491A90 - Engine Gasket Set [ More info ] $103.49 Available to Order: Shipping delay up to 10 days.
#-	814278T93	PH 40 (1 required per assembly) — Replaces: 814278A93
		814278T93 - Powerhead 40 [ More info ] Unavailable
#1	830281A3	CARBURETOR (UPPER) (WMA-13) (1 required per assembly) — Replaces: 6517A55
		3330-830281A 3 - Carburetor [ More info ] Unavailable
#1	830281A4	CARBURETOR (LOWER) (WMA-13) (1 required per assembly) — Replaces: 6517A56
		3330-830281A 4 - Carburetor [ More info ] Unavailable
#2	NSS	NOT SOLD SEPARATE WELCH PLUG-BODY CHANNEL (LARGE) (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#3	NSS	NOT SOLD SEPARATE PLUG-BODY CHANNEL (6 required per assembly)
#4	9649	SHUTTER THROTTLE (2 required per assembly)
		1395-9649 - Throttle Valve, NLA [ More info ] $2.17 $1.83 10+ In Stock.
#5	NSS	NOT SOLD SEPARATE SPRING-RETURN-THROTTLE SHAFT (2 required per assembly)
#6	814483	BAFFLE FUEL BOWL (2 required per assembly)
		814483 - Baffle , NLA [ More info ] Unavailable
#7	9293	FLOAT (WMA-7B) (2 required per assembly)
		1395-9293 - Float Assembly [ More info ] $27.23 10 In Stock.
		18-7209 - Float 1395-9293 [ More info ] $20.92 10 In Stock.
#7	823620	FLOAT (WMA-9/10/13) (2 required per assembly)
		1395-823620 - Float Assembly [ More info ] Unavailable
#8	NSS	NOT SOLD SEPARATE PIN-FLOAT RETAINING (2 required per assembly)
#9	5127	BOWL FUEL (WMA-7B) (2 required per assembly)
		1399-5127 - Fuel Bowl, NLA [ More info ] Unavailable
#9	823619	BOWL FUEL (WMA-9/10/13) (2 required per assembly)
		1395-823619 - FUEL BOWL,NLA [ More info ] Unavailable
#10	NSS	NOT SOLD SEPARATE GASKET-FUEL BOWL (2 required per assembly)
#11	9652	SCREW (LOWER CARBURETOR) (WMA-7B) (2 required per assembly)
		1395-9652 - SCREW,NLA [ More info ] Unavailable
#11	823622	JET ASSEMBLY (LOWER-WMA-9/10/13) (1 required per assembly)
		1395-823622 - Jet Assembly [ More info ] Unavailable
#12	NSS	NOT SOLD SEPARATE GASKET-FUEL BOWL SCREW (4 required per assembly)
#13	879194011	VALVE INLET (2 required per assembly) — Replaces: 9595
		1395-879194011 - Inlet Valve [ More info ] $16.99 6 In Stock.
#14	1457	JET (.057) (WMA-7B) (2 required per assembly)
		1399-1457 - Jet -.057, NLA [ More info ] $23.08 1 In Stock.
#15	7335	JET (.098) (2 required per assembly)
		1395-7335 - Jet -.098 [ More info ] $3.79 6 In Stock.
#16	64677	VENTURI (2 required per assembly)
		64677 - Venturi [ More info ] $10.19 8 In Stock.
#17	NSS	NOT SOLD SEPARATE SCREW-THROTTLE SHUTTER TO THROTTLE SHAFT (4 required per assembly)
#18	757911	GASKET (2 required per assembly)
#19	NSS	NOT SOLD SEPARATE SCREW-IDLE MIXTURE (2 required per assembly)
#20	NSS	NOT SOLD SEPARATE SPRING-IDLE MIXTURE SCREW (2 required per assembly)
#21	NSS	NOT SOLD SEPARATE GASKET-FUEL PUMP (WMA-7B/9/10) (2 required per assembly)
#22	814482	COVER PLATE (UPPER CARBURETOR) (1 required per assembly)
		814482 - Cover, NLA [ More info ] Unavailable
#23	9654	COVER (LOWER CARBURETOR) (1 required per assembly)
		1395-9654 - Cover, NLA [ More info ] Unavailable
#24	808612	SCREW AND WASHER (#8-32 X .750) (8 required per assembly) — Replaces: 5132
		1395-808612 - Screw & Washer [ More info ] $2.69 10+ In Stock.
#25	9020	SHAFT THROTTLE (UPPER CARBURETOR) (1 required per assembly)
		1395-9020 - Shaft, NLA [ More info ] Unavailable
#25	9656	SHAFT THROTTLE (LOWER CARBURETOR) (1 required per assembly)
		1395-9656 - Shaft-Throttle, NLA [ More info ] Unavailable
#26	92880	LEVER (UPPER CARBURETOR) (1 required per assembly)
		92880 - Throttle Lever [ More info ] Unavailable
#27	6027	SCREW (UPPER CARBURETOR) (2 required per assembly) — Replaces: 20847
		1395-6027 - Screw [ More info ] Unavailable
#28	8146791	LEVER THROTTLE (LOWER CARBURETOR) (WMA13) (1 required per assembly)
		814679 1 - Throttle Lever [ More info ] $9.58 10 In Stock.
#29	6027	SCREW (LOWER CARB) (1 required per assembly)
#30	8148651	FITTING FUEL BOWL (UPPER CARB) (WMA-7-1) (1 required per assembly)
		22-814865 1 - Fitting, NLA [ More info ] Unavailable
#30	810769	FITTING FUEL BOWL (UPPER CARB) (WMA-7-1B) (1 required per assembly)
		22-810769 - Fitting, NLA [ More info ] Unavailable
#30	823621	JET ASSEMBLY (UPPER-WMA-9/10/13) (1 required per assembly)
		1395-823621 - JET ASSY,NLA [ More info ] Unavailable
#31	64809	NUT @10 (4 required per assembly)
		11-64809 - Nut (5/16 In.) [ More info ] Unavailable
