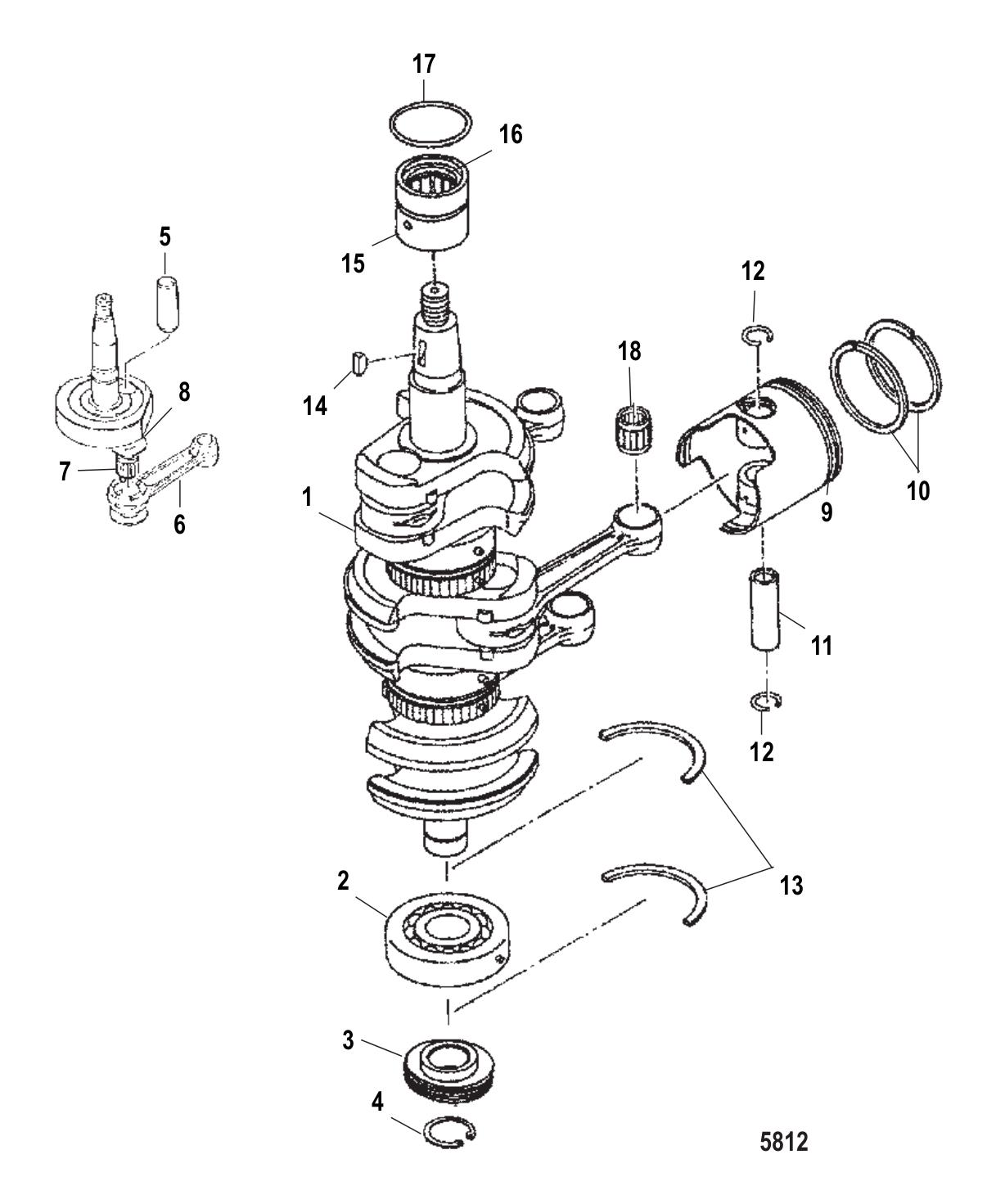

Parts for 40 Lightning XR (International) 2-Stroke Carbureted Mercury Outboard Motor Crankshaft, Piston & Connecting Rods
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 851886T07 | POWERHED (Lightning) (1 required per assembly) — Replaces: 851886A98, 851886T98 |
  |
|
851886T07 - 851886T07 - POWERHED [ More info ] Unavailable Replaced by -8M0046561 |
  |
8M0046561 - Powerhead [ More info ] Unavailable |
|
  |
8M0146290 - SHORT BLOCK [ More info ] Unavailable |
|
  |
|
61-8M0242296 - SHORT BLOCK [ More info ] Unavailable |
| #- | 802806A02 | POWERHEAD (Lightning XR/50) (1 required per assembly) — Replaces: 802806A99, 802806A01 |
  |
|
802806A02 - 802806A02 - POWERHEAD [ More info ] Unavailable Replaced by -8M0062094 |
  |
|
8M0062094 - 8M0062094 - POWERHEAD [ More info ] Unavailable Replaced by 61-8M0069647 |
  |
|
61-8M0069647 - 61-8M0069647 - POWERHEAD [ More info ] Unavailable Replaced by -8M0069514 |
  |
8M0069514 - 8M0147022 [ More info ] Unavailable |
|
  |
|
8M0147022 - SHORT BLOCK [ More info ] Unavailable |
| #- | 812937A03 | GASKET [0N016161] & Below (1 required per assembly) — Replaces: 812937A98, 812937A02 |
  |
|
27-812937A03 - 27-812937A03 - GASKET [ More info ] Unavailable Replaced by 27-8M0047034 |
  |
|
27-8M0047034 - 27-8M0047034 - GASKET SET [ More info ] Unavailable Replaced by 27-8M0062092 |
  |
|
27-8M0062092 - 27-8M0062092 - GASKET SET [ More info ] Unavailable Replaced by 27-8M0081614 |
  |
|
278M0081614 - Gasket Set [ More info ]
|
| #- | 8M0047034 | GASKET SET [0N016162] & Up (1 required per assembly) — Replaces: 812937A02, 812937A03 |
| #1 | 8M0046560 | CRANKSHAFT ASSY (1 required per assembly) — Replaces: 9614A2, 9614T02 |
  |
|
4008M0046560 - CrankShaft Assembly [ More info ]
|
| #2 | 16049T02 | BEARING-BALL (1 required per assembly) — Replaces: 160492 |
  |
|
30-16049T02 - Ball Bearing [ More info ]
|
| #3 | 855552 | GEAR DRIVE (1 required per assembly) |
  |
|
43-855552 - Drive Gear [ More info ]
|
| #4 | 853714 | C CLIP (1 required per assembly) |
  |
|
53-853714 - C Clip [ More info ]
|
| #5 | 880810 | PIN PISTON (2 required per assembly) |
  |
|
41-880810 - Crank Pin [ More info ]
|
| #6 | 880855 | CONNECTING ROD (2 required per assembly) |
  |
|
629-880855 - Connecting Rod [ More info ]
|
| #7 | 880856 | BEARING NEEDLE (2 required per assembly) |
  |
|
31-880856 - Bearing-Needle [ More info ]
|
| #8 | 880857 | WASHER (4 required per assembly) |
  |
|
12-880857 - Washer [ More info ]
|
| #9 | 9615T02 | PISTON-STD (Standard) (3 required per assembly) — Replaces: 96152 |
  |
|
779-9615T02 - Piston - Std [ More info ]
|
| #9 | 879194 | PISTON O/S (.5 Oversize) (AR required per assembly) |
  |
|
779-879194 - Piston O/S [ More info ]
|
| #10 | 16054A5 | ORDER 8M0080349 (Standard) (3 required per assembly) |
  |
|
39-16054A 5 - ORDER 8M0080349 [ More info ] Unavailable |
| #10 | 8M0080348 | RING SET-PISTON (.5 Oversize) (AR required per assembly) — Replaces: 16055A5 |
  |
|
398M0080348 - Piston Ring Set [ More info ]
|
| #11 | 803680003 | PIN-PISTON (3 required per assembly) — Replaces: 160561 |
  |
|
41-803680003 - Pin-Piston [ More info ]
|
| #12 | 160571 | CLIP (6 required per assembly) |
  |
|
53-16057 1 - Clip [ More info ]
|
| #13 | 853712 | THRUST RING (2 required per assembly) |
  |
|
853712 - Thrust Ring [ More info ]
|
| #14 | 160531 | KEY (1 required per assembly) |
  |
|
28-16053 1 - Key [ More info ]
|
| #15 | 855553 | BEARING MAIN (UPPER) (1 required per assembly) |
  |
|
31-855553 - Bearing-Main [ More info ]
|
| #16 | 803879 | SEAL OIL (1 required per assembly) |
  |
|
26-803879 - Oil Seal [ More info ]
|
| #17 | 855554004 | O RING (1 required per assembly) — Replaces: 855554 |
  |
|
25-855554004 - O-Ring [ More info ]
|
| #18 | 8130483 | BEARING-NEEDLE (3 required per assembly) |
  |
|
31-813048 3 - Needle Bearing [ More info ]
|
