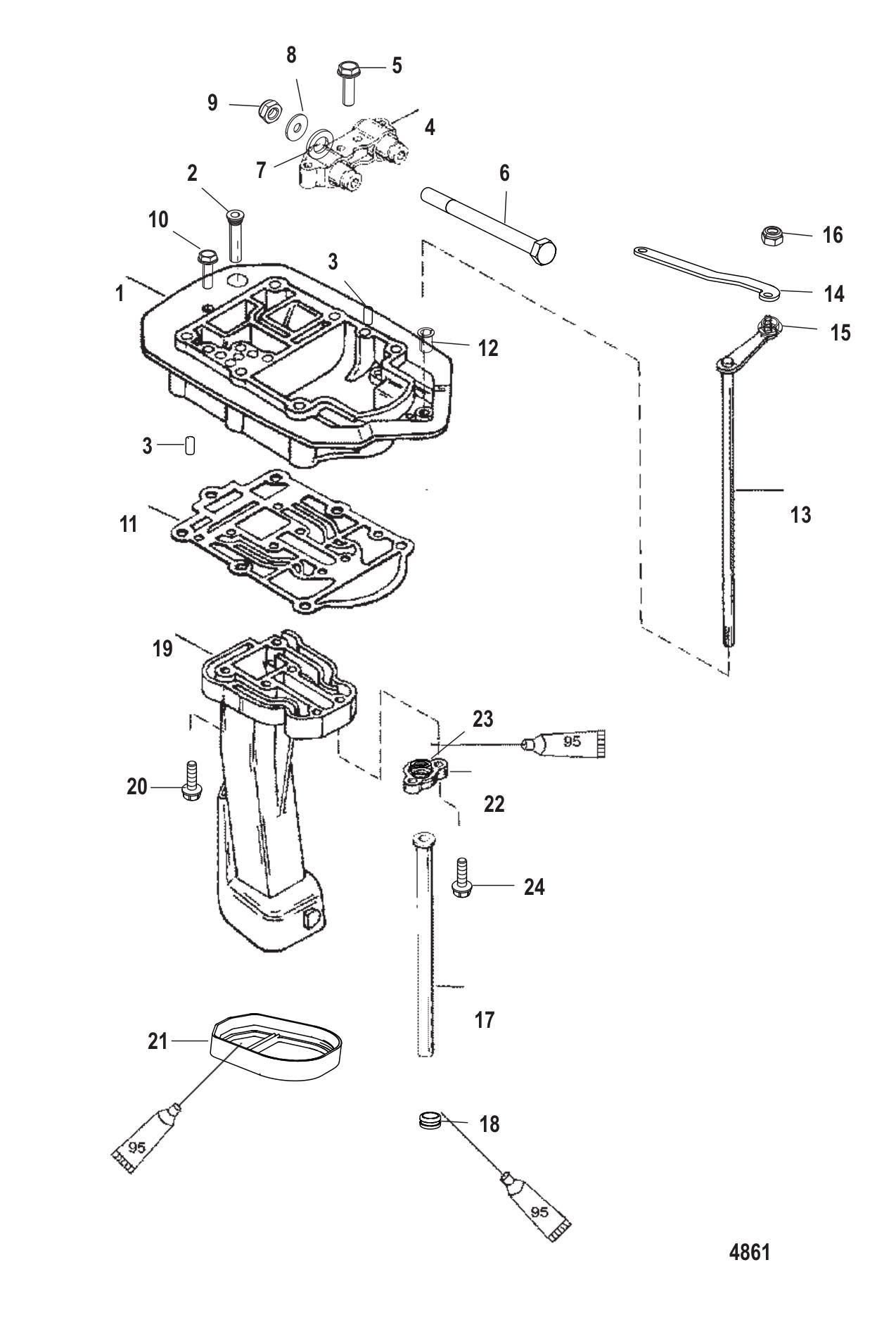

Parts for 40 Jet 2-Stroke Carbureted Mercury Outboard Motor Exhaust Plate
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 812867A97 | GASKET SET (1 required per assembly) |
  |
|
27-812867A97 - Engine Overhaul Gasket Set [ More info ]
|
| #1 | 19653T3 | PLATE-EXHAUST (1 required per assembly) |
  |
|
19653T 3 - Exhaust Plate [ More info ]
|
| #2 | 817519A1 | CHECK VALVE ASSEMBLY DRAIN (1 required per assembly) |
  |
|
21-817519A 1 - Drain Valve Assembly [ More info ]
|
| #3 | 23784 | PIN DOWEL (4 required per assembly) |
  |
|
17-23784 - Pin, Dowel [ More info ]
|
| #4 | 8M4501491 | MOUNT UPPER ASM (1 required per assembly) — Replaces: 881899, 8M0021336 |
  |
|
14008M4501491 - Upper Mount Assembly [ More info ]
|
| #5 | 40011153 | SCREW (4 required per assembly) |
  |
|
10-40011153 - Screw [ More info ]
|
| #6 | 898835001 | SCREW (2 required per assembly) — Replaces: 42973 |
  |
|
10-898835001 - Screw [ More info ]
|
| #7 | 32834 | WASHER @5 (2 required per assembly) — Replaces: 934161 |
  |
|
12-32834 - Washer, (.9375 X 1.750 X .172) [ More info ]
|
| #8 | 8M0204648 | WASHER @5 (2 required per assembly) — Replaces: 28421 |
  |
|
12-8M0204648 - ENGINE MOUNTING WASHER Note: Must be ordered in multiples of 5 O/B [ More info ]
|
| #9 | 896963 | NUT @6 (2 required per assembly) — Replaces: 859129 |
  |
|
11-896963 - Nut, (M12) [ More info ]
|
| #10 | 40011158 | SCREW (1 required per assembly) |
  |
|
10-40011158 - Screw [ More info ]
|
| #11 | 8M0000820 | GASKET (Not used on Jet Models) (1 required per assembly) — Replaces: 812866 |
  |
|
27-8M0000820 - Gasket [ More info ]
|
| #12 | 48237 | BUSHING (Not used on Jet Models) (1 required per assembly) |
  |
|
23-48237 - Bushing [ More info ]
|
| #13 | 815639A10 | LEVER ASSY-SHIFT (Upper)(Long)(Not used on Jet Models) (1 required per assembly) |
  |
|
815639A10 - Shift Lever Assembly [ More info ]
|
| #13 | 812891A7 | LEVER-SHIFT SHAFT (Upper)(Long)(Electric)(Not used on Jet Models) (1 required per assembly) |
  |
|
812891A 7 - Shift Shaft Lever [ More info ]
|
| #13 | 815639A9 | LEVER ASSY-SHIFT (Upper)(Long/LL)(Manual)(Not used on Jet Models) (1 required per assembly) |
  |
|
815639A 9 - Shift Lever Assembly [ More info ]
|
| #14 | 812872A2 | LINK KIT-SHIFT (Not used on Jet Models) (1 required per assembly) |
  |
|
812872A 2 - Shift Link Kit [ More info ]
|
| #15 | 48475 | BUSHING (Not used on Jet Models) (1 required per assembly) |
  |
|
23-48475 - Bushing [ More info ]
|
| #16 | 401386 | NUT @5 (Not used on Jet Models) (1 required per assembly) |
  |
|
11-40138 6 - Nut - Priced Individually [ More info ]
|
| #17 | 8M0042795 | TUBE-WATER-SHORT (Short) (1 required per assembly) — Replaces: 8812002 |
  |
|
32-8M0042795 - Water Tube-Short [ More info ]
|
| #17 | 8M0042794 | TUBE-WATER-LG (Long) (1 required per assembly) — Replaces: 8812001 |
  |
|
32-8M0042794 - Water Tube -lg [ More info ]
|
| #18 | 93221002 | GROMMET-WATER TUB (1 required per assembly) — Replaces: 93221 |
  |
|
25-93221002 - Water Tube Grommet [ More info ]
|
| #19 | 8M0045214 | TUBE-EXHAUST (1 required per assembly) — Replaces: 196551 |
  |
|
8M0045214 - Exhaust Tube [ More info ]
|
| #20 | 40011153 | SCREW (4 required per assembly) |
| #21 | 812886001 | SEAL (1 required per assembly) — Replaces: 812886 |
  |
|
812886001 - Seal [ More info ]
|
| #22 | 99019 | CLAMP (1 required per assembly) |
  |
|
99019 - Water Tube Clamp [ More info ]
|
| #23 | 42941001 | SEAL (Upper) (1 required per assembly) — Replaces: 42941 |
  |
|
42941001 - Water Tube Seal [ More info ]
|
| #24 | 40011155 | SCREW (2 required per assembly) |
  |
|
10-40011155 - Screw [ More info ]
|
