Parts for 40 (Twin Carb) (w / Oil Injection) 2-Stroke Carbureted Mercury Outboard Motor Recoil Starter

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40 (Twin Carb) (w / Oil Injection) > 6e9-350001 & Up > Recoil Starter

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

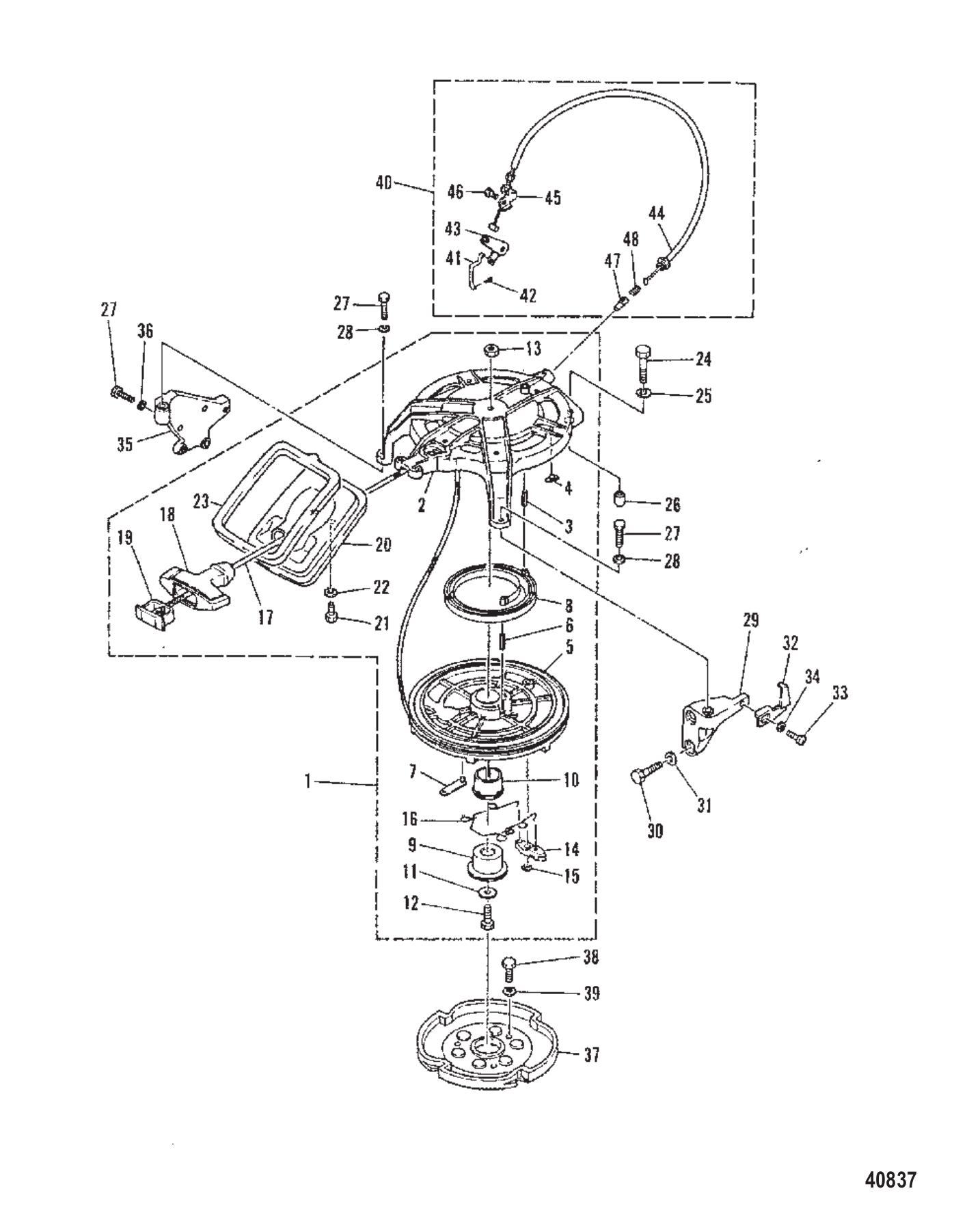

Recoil Starter

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	814528M	STARTER ASSY (1 required per assembly)
		2169-814528M - Starter Assembly, NLA [ More info ] $145.00 $122.82 1 In Stock.
#2	811912M	HOUSING [M-018006/ML-358041/E-151006/EL-453891] & Up (1 required per assembly) — Replaces: 7102M
		2169-811912M - Starter Housing [ More info ] Unavailable
#3	82157M	PIN (1 required per assembly)
		17-82157M - Pin -roll, NLA [ More info ] $3.30 $2.80 10+ In Stock.
#4	83585M	PLUG (6 required per assembly)
		23-83585M - Bushing, NLA [ More info ] $2.00 4 In Stock.
#5	83587M	SHEAVE STARTER (1 required per assembly)
		50-83587M - Starter Sheave, NLA [ More info ] Unavailable
#6	82157M	PIN (1 required per assembly)
#7	84893M	CLIP (1 required per assembly)
		54-84893M - Clip, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#8	83588M	SPRING (1 required per assembly)
		24-83588M - Spring, Starter [ More info ] $47.99 Available to Order: Shipping delay up to 10 days.
#9	83590M	SHAFT (1 required per assembly)
		23-83590M - Spacer, NLA [ More info ] $8.15 $6.90 6 In Stock.
#10	83589M	BUSHING (1 required per assembly)
		23-83589M - Bushing, NLA [ More info ] $15.40 2 In Stock.
#11	81801M	WASHER (1 required per assembly)
		12-81801M - Washer, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#12	84342M	BOLT (1 required per assembly)
		10-84342M - Bolt, NLA [ More info ] $4.13 $3.50 10 In Stock.
#13	82382M	NUT (1 required per assembly)
		11-82382M - Nut - Priced Individually [ More info ] $3.90 $3.12 10+ In Stock.
#14	84894M	PAWL (1 required per assembly)
		84894M - Starter Pawl [ More info ] $19.59 Available to Order: Shipping delay up to 10 days.
#15	84895M	RING SNAP (1 required per assembly)
		53-84895M - Snap Ring [ More info ] $3.99 5 In Stock.
#16	83591M	SPRING (1 required per assembly)
		24-83591M - Spring, NLA [ More info ] $21.99 Available to Order: Shipping delay up to 10 days.
#17	12066Q10	ROPE-STARTR @2 (1 required per assembly) — Replaces: 12066A9, 12066Q9
		50-12066Q10 - Starter Rope - Priced Individually [ More info ] $13.59 6 In Stock.
		18-4915 - Pull Rope, 50-12066Q9 [ More info ] $4.79 $4.53 4 In Stock.
		50-12066K10 - Starter Rope - Priced Individually [ More info ] $14.99 3 In Stock.
#18	814491M	HANDLE (1 required per assembly)
		814491M - Handle [ More info ] Unavailable
#19	814492M	COVER (1 required per assembly)
		814492M - Cover, NLA [ More info ] Unavailable
#20	814531M	GUIDE (1 required per assembly)
		814531M - Guide, NLA [ More info ] Unavailable
#21	826957M	BOLT (2 required per assembly) — Replaces: 84247M, 91725M
		10-826957M - Bolt, NLA [ More info ] $5.19 10+ In Stock.
#22	82212M	LOCKWASHER (2 required per assembly)
		13-82212M - LockWasher - Priced Individually [ More info ] $1.10 10+ In Stock.
#23	814532M	SEAL (1 required per assembly)
		26-814532M - Seal, NLA [ More info ] $6.67 $5.65 8 In Stock.
#24	97749M	BOLT (1 required per assembly)
		10-97749M - Bolt, NLA [ More info ] $3.33 $2.82 10+ In Stock.
#25	82215M	LOCKWASHER @5 (1 required per assembly)
		13-82215M - LockWasher - Priced Individually [ More info ] $0.40 10+ In Stock.
#26	14229M	PIN-DOWEL (1 required per assembly)
		17-14229M - Pin -Dowel, NLA [ More info ] $1.50 $1.28 2 In Stock.
#27	82405M	SCREW @2 (5 required per assembly)
		10-82405M - Screw, NLA [ More info ] $10.86 $9.19 10+ In Stock.
#28	82212M	LOCKWASHER @5 (2 required per assembly)
#29	814533M	BRACKET (1 required per assembly)
		814533M - Bracket, NLA [ More info ] Unavailable
#30	82441M	BOLT @2 (2 required per assembly)
		10-82441M - Bolt, NLA [ More info ] $5.63 $4.77 10+ In Stock.
#31	82217M	WASHER @5 (2 required per assembly)
		12-82217M - Washer, NLA [ More info ] $1.67 $1.42 10 In Stock.
#32	814534M	ARM (1 required per assembly)
		814534M - ARM,NLA [ More info ] Unavailable
#33	83523M	SCREW @2 (1 required per assembly)
		10-83523M - Screw, NLA [ More info ] $3.33 $2.82 7 In Stock.
#34	82211M	WASHER @5 (1 required per assembly)
		12-82211M - Washer - Priced Individually [ More info ] $1.70 $0.96 10+ In Stock.
#35	814535M	BRACKET (1 required per assembly)
		814535M - Bracket, NLA [ More info ] Unavailable
#36	82214M	WASHER @5 (3 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
#37	814536M	PULLEY (1 required per assembly)
		814536M - Pulley, NLA [ More info ] Unavailable
#38	82438M	BOLT @2 (3 required per assembly)
		10-82438M - Bolt, NLA [ More info ] $1.88 $1.59 10+ In Stock.
#39	82217M	WASHER @5 (3 required per assembly)
#40	93105M	LOCKOUT ASSY (1 required per assembly)
		93105M - LOCKOUT ASS,NLA [ More info ] Unavailable
#41	83595M	ROD (1 required per assembly)
		83595M - Rod [ More info ] $3.00 $2.54 4 In Stock.
#42	82125M	PIN-COTTER @2 (1 required per assembly)
		18-82125M - Cotter Pin, NLA [ More info ] $3.76 $3.19 10+ In Stock.
#43	83596M	PLATE (1 required per assembly)
		83596M - Plate [ More info ] $9.76 10+ In Stock.
#44	83597M	CABLE (1 required per assembly)
		83597M - Cable, NLA [ More info ] $18.88 $15.99 3 In Stock.
#45	93106M	BRACKET (1 required per assembly)
		93106M - Bracket, NLA [ More info ] Unavailable
#46	91772M	BOLT (1 required per assembly) — Replaces: 813477M
		10-91772M - Bolt [ More info ] $5.42 $4.59 10+ In Stock.
#47	81106M	PLUNGER (1 required per assembly)
		81106M - Plunger, NLA [ More info ] $23.42 10+ In Stock.
#48	82079M	SPRING (1 required per assembly)
		24-82079M - Spring, Starter Lockout,NLA [ More info ] $4.17 $3.53 10 In Stock.
