Parts for 40 (Twin Carb) (w / Oil Injection) 2-Stroke Carbureted Mercury Outboard Motor Remote Control Attaching Kit

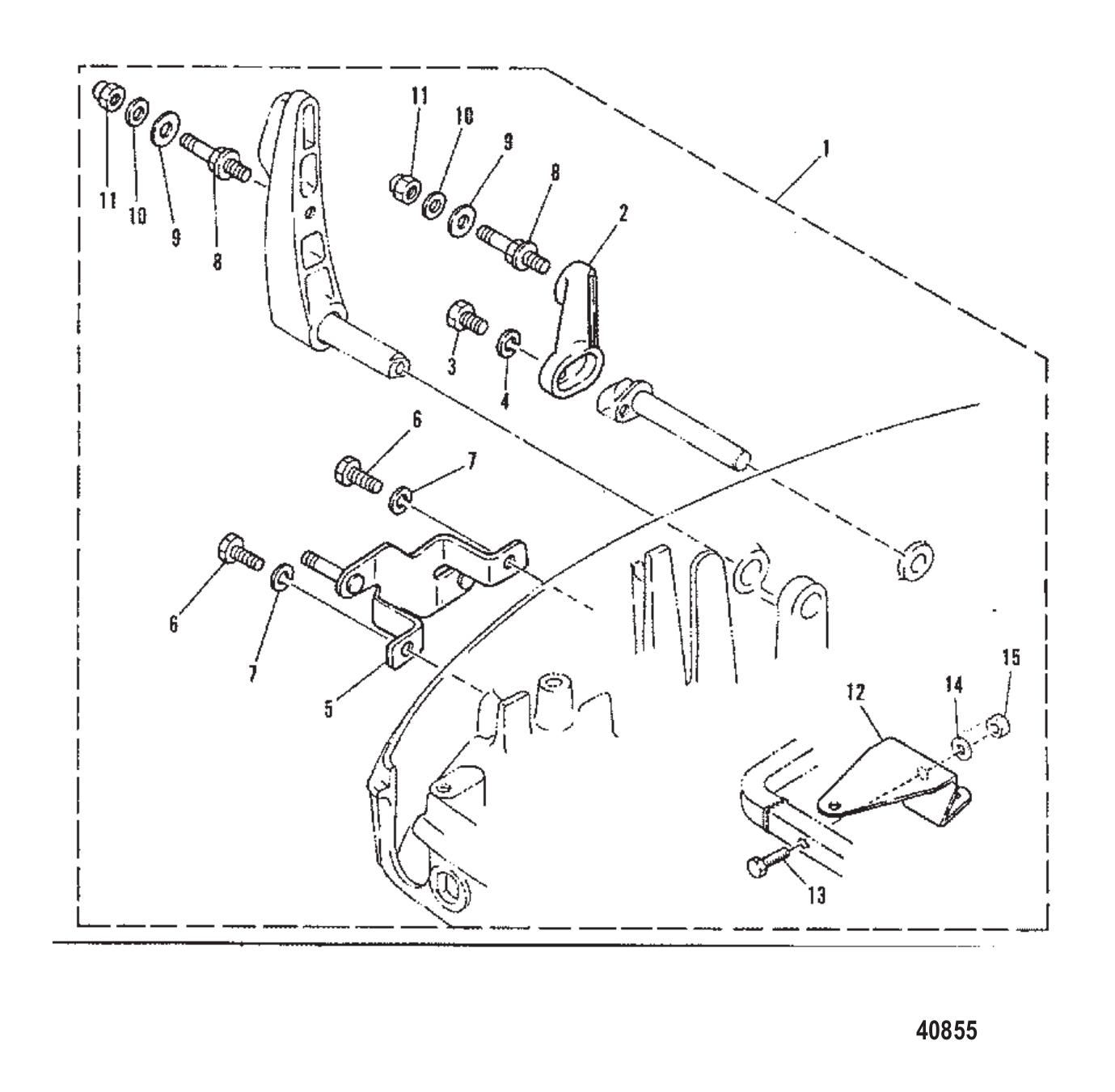

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 814484A1 | R/C ATTACHING KIT (1 required per assembly) |
  |
|
814484A 1 - Remote Control Attaching Kit [ More info ]
|
| #2 | 814974M | LEVER THROTTLE (1 required per assembly) |
  |
|
814974M - Throttle Lever, NLA [ More info ] Unavailable |
| #3 | 826957M | BOLT (1 required per assembly) — Replaces: 84247M, 91725M |
  |
|
10-826957M - Bolt, NLA [ More info ]
|
| #4 | 82212M | LOCKWASHER (1 required per assembly) |
  |
|
13-82212M - LockWasher - Priced Individually [ More info ]
|
| #5 | 814975M | BRACKET (1 required per assembly) |
  |
|
814975M - Bracket, NLA [ More info ] Unavailable |
| #6 | 826957M | BOLT (2 required per assembly) — Replaces: 84247M, 91725M |
| #7 | 82212M | LOCKWASHER (2 required per assembly) |
| #8 | 814976M | HOOK (2 required per assembly) |
  |
|
814976M - Stud, NLA [ More info ]
|
| #9 | 814977M | WASHER (4 required per assembly) |
  |
|
12-814977M - Washer, NLA [ More info ]
|
| #10 | 814978M | WASHER (4 required per assembly) |
  |
|
12-814978M - Washer, NLA [ More info ]
|
| #11 | 814979M | NUT (4 required per assembly) |
  |
|
11-814979M - Nut, NLA [ More info ]
|
| #12 | 83698M | HOOK (1 required per assembly) |
  |
|
83698M - Bracket, NLA [ More info ]
|
| #13 | 91636M | BOLT (1 required per assembly) |
  |
|
10-91636M - Screw, NLA [ More info ]
|
| #14 | 82220M | WASHER (1 required per assembly) |
  |
|
12-82220M - Washer - Priced Individually [ More info ] Unavailable |
| #15 | 82395M | NUT (1 required per assembly) |
  |
|
11-82395M - Nut - Priced Individually [ More info ]
|
