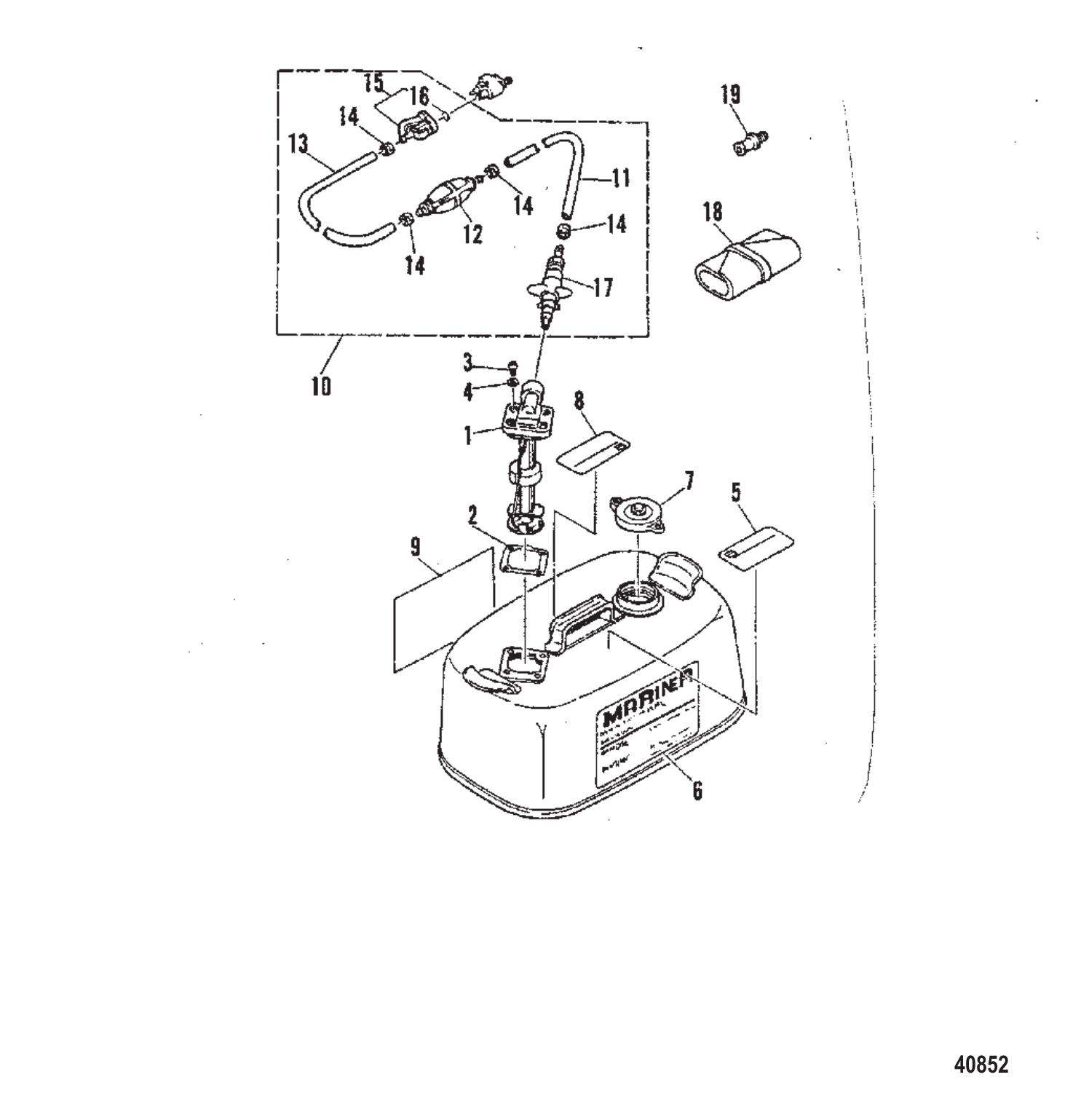

Parts for 40 (Twin Carb) (w / Oil Injection) 2-Stroke Carbureted Mercury Outboard Motor Fuel Tank & Line (Original Equipment)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #1 | 95499M | FUEL METER (1 required per assembly) |
  |
|
95499M - Fuel Meter, NLA [ More info ] Unavailable |
| #2 | 95500M | GASKET (1 required per assembly) |
  |
|
27-95500M - Fuel Meter Gasket [ More info ]
|
| #3 | 95502M | SCREW (4 required per assembly) |
  |
|
10-95502M - Screw, NLA [ More info ]
|
| #4 | 95501M | WASHER (4 required per assembly) |
  |
|
12-95501M - Washer, NLA [ More info ]
|
| #5 | 95489M | DECAL TOP (MANUAL) (1 required per assembly) |
  |
|
37-95489M - DECAL,NLA [ More info ] Unavailable |
| #6 | 14617M | DECAL SIDE (1 required per assembly) |
  |
|
37-14617M - DECAL NLA [ More info ] Unavailable |
| #7 | 18962M | CAP (1 required per assembly) |
  |
|
|
| #8 | 95503M | DECAL TOP (MANUAL) (1 required per assembly) |
  |
|
37-95503M - DECAL,NLA [ More info ] Unavailable |
| #9 | 95504M | DECAL SIDE (1 required per assembly) |
  |
|
37-95504M - Decal, NLA [ More info ] Unavailable |
| #10 | 858623Q12 | HOSE ASY-FUEL-12 (1 required per assembly) — Replaces: 822379A12, 858623A12 |
  |
32-858623Q12 - Fuel Hose - 12 FT [ More info ] Unavailable |
|
  |
|
32-877683Q12 - Ord 32-858108Q12, NLA [ More info ] Unavailable |
| #11 | 16571M | HOSE (1 required per assembly) |
  |
|
32-16571M - Hose, Connector Houding To Bulb, 5/16 inch ID [ More info ]
|
| #12 | 13330Q5 | BULB ASSEMBLY PRIMER (1 required per assembly) — Replaces: 17149M, 13330A3 |
  |
13330Q 5 - Primer Bulb , Priced Individually [ More info ] Unavailable |
|
  |
13330Q06 - PRIMER BULB Note: Priced Individually [ More info ] Unavailable |
|
  |
|
13330Q07 - 8M0052973 [ More info ] Unavailable |
  |
|
18-8005EP-1 - Primer Bulb -3/8 Inch [ More info ]
|
  |
|
32-03880 - Fuel Primer Bulb, EPA 3/8 inch [ More info ]
|
| #13 | 16571M | HOSE (1 required per assembly) |
| #14 | 16574M | CLAMP (4 required per assembly) — Replaces: 18855M |
  |
|
54-16574M - Clamp [ More info ]
|
| #15 | 13563A3 | FITTING ASSEMBLY FUEL LINE (1 required per assembly) — Replaces: 16609M, 14850 |
  |
22-13563A 3 - Fuel Line Fitting [ More info ] Unavailable |
|
  |
|
22-13563Q 3 - Fuel Fitting - Priced Individually [ More info ]
|
  |
|
22-13563T 3 - Fuel Connector Fitting, Engine End, Priced Individually [ More info ]
|
| #16 | 82789M | O-RING (1 required per assembly) |
  |
|
25-82789M - O-ring,NLA [ More info ]
|
| #17 | 30185Q3 | QUICK DISCONNECT ASSEMBLY TANK END - BAYONET STYLE (1 required per assembly) — Replaces: 30185A3 |
  |
|
30185Q 3 - Fuel Connector, 5/16 Inch Barb - Priced Individually [ More info ]
|
  |
|
18-8084 - Fitting, 3/8 inch barb, 30185Q3, T3 [ More info ]
|
  |
|
18-8070 - Fitting, 5/16 inch Barb, 30185A3 [ More info ]
|
  |
|
30187 - Bayonet Body Stem - Priced Individually [ More info ]
|
  |
|
30185T 3 - Fuel Fitting, 5/16 Inch Barb - Priced Individually [ More info ]
|
| #18 | 8M0168899 | TOOL KIT (1 required per assembly) — Replaces: 81669M, 803581 |
  |
|
918M0168899 - TOOL KIT [ More info ]
|
| #19 | 8M0121335 | PLUG (1 required per assembly) — Replaces: 95633M |
  |
|
22-8M0121335 - PLUG NLA [ More info ] Unavailable |
