Parts for 40 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Tiller Handle

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40 (3 Cyl.) > 9973100 - 0P016999 - Belgium > Tiller Handle

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

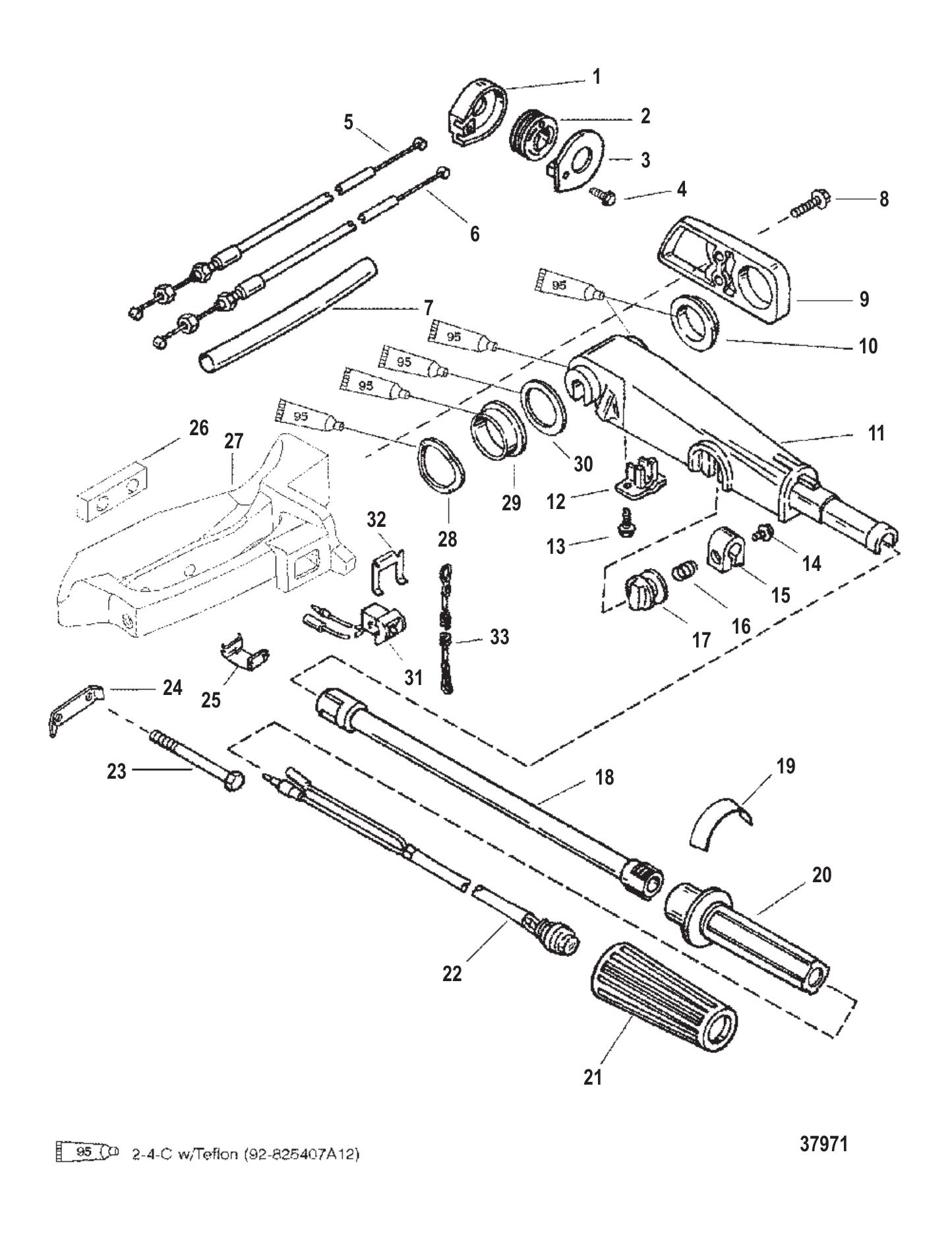

Tiller Handle

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	822148A7	COVER KIT (1 required per assembly)
		822148A 7 - Cover Kit [ More info ] $111.49 Available to Order: Shipping delay up to 10 days.
#2	822150	PULLEY (1 required per assembly)
		822150 - Pulley [ More info ] $35.49 Available to Order: Shipping delay up to 10 days.
#3	NSS	NOT SOLD SEPARATE CASE (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	878608	SCREW (#10-16 X .500) (1 required per assembly) — Replaces: 812832
		10-878608 - Screw [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#5	4324212	CABLE ASSEMBLY THROTTLE (28.50 INCHES) (1 required per assembly)
		43242 12 - Throttle Cable [ More info ] $39.99 Available to Order: Shipping delay up to 10 days.
#6	4324213	CABLE ASSEMBLY THROTTLE (30.00 INCHES) (1 required per assembly)
		43242 13 - Throttle Cable [ More info ] Unavailable
#7	960099	SLEEVE (12.00 INCHES) (1 required per assembly)
		85-96009 9 - Sleeve -12 Inch [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#8	82526225	SCREW (2 required per assembly)
		10-825262 25 - Screw [ More info ] $5.09 10+ In Stock.
#9	8M0072298	SIDE COVER-CSTG (BLACK) (1 required per assembly) — Replaces: 822407F1
		8M0072298 - Cover [ More info ] $41.49 Available to Order: Shipping delay up to 10 days.
#9	822407F2	COVER-SIDE-GRAY (GRAY) (1 required per assembly)
		822407F 2 - Cover [ More info ] $7.00 $5.93 6 In Stock.
#10	821477	BUSHING (1 required per assembly)
		23-821477 - Bushing [ More info ] $19.89 6 In Stock.
#11	828813T1	HANDLE-TILLER HANDLE (GRAY) (1 required per assembly) — Replaces: 828813F1, 828813F2, 828813T2
		828813T 1 - Handle - Tiller Han A [ More info ] $413.99 Available to Order: Shipping delay up to 10 days.
#12	822441	RETAINER (1 required per assembly)
		822441 - Retainer [ More info ] $3.59 5 In Stock.
#13	40011107	SCREW @5 (1 required per assembly)
		10-40011107 - SCREW [ More info ] $1.80 2 In Stock.
#14	8M0204707	SCREW @5 (1 required per assembly) — Replaces: 4000330
		108M0204707 - SCREW Note: Priced Individually [ More info ] $3.99 4 In Stock.
#15	892995	LOCK-THROTTLE (1 required per assembly) — Replaces: 821971
		892995 - Throttle Lock [ More info ] $7.79 1 In Stock.
#16	96203	SPRING (1 required per assembly)
		24-96203 - Spring, Pilot Control Screw [ More info ] $4.19 9 In Stock.
#17	821972T	KNOB-THROTTLE (1 required per assembly) — Replaces: 821972
		821972T - Throttle Knob [ More info ] $18.59 Available to Order: Shipping delay up to 10 days.
#18	8M0138696	TILLER TUBE (1 required per assembly) — Replaces: 821463A2
		8M0138696 - Tiller Tube [ More info ] $107.49 Available to Order: Shipping delay up to 10 days.
#19	8242004	DECAL-TILLER HLD (TURTLE/RABBIT) (1 required per assembly) — Replaces: 8242001
		37-824200 4 - Decal - Tiller Hld [ More info ] $13.79 1 In Stock.
#20	821465	HANDLE-THROTTLE (1 required per assembly)
		821465 - Throttle Handle [ More info ] $26.49 $17.81 5 In Stock.
#21	99589003	GRIP (1 required per assembly) — Replaces: 99589
		99589003 - Grip [ More info ] Unavailable
		8M0221732 - Outer Grip [ More info ] $22.49 Available to Order: Shipping delay up to 10 days.
#22	8M0104614	SWITCH ASSY (1 required per assembly) — Replaces: 823609A13, 823609A14
		878M0104614 - Switch [ More info ] $72.99 Available to Order: Shipping delay up to 10 days.
#23	824848110	SCREW (2 required per assembly)
		10-824848110 - Screw [ More info ] $6.99 Available to Order: Shipping delay up to 10 days.
#24	8M0009820	TAB WASHER (1 required per assembly) — Replaces: 816669F1
		14-8M0009820 - Tab Washer [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#25	823687	CLIP-CABLE RETAIN (1 required per assembly)
		823687 - Clip- Cable Retain [ More info ] $6.09 $4.88 10+ In Stock.
#26	828569	SPACER (1 required per assembly)
		23-828569 - Spacer [ More info ] $43.99 Available to Order: Shipping delay up to 10 days.
#27	821455A4	BRACKET-TILLER-BL (GRAY) (1 required per assembly) — Replaces: 821455A5
		821455A 4 - Bracket - Tiller, Black [ More info ] $309.99 Available to Order: Shipping delay up to 10 days.
#28	826792	WASHER-WAVE (1 required per assembly)
		13-826792 - Wave Washer [ More info ] $8.79 3 In Stock.
#29	821477	BUSHING (1 required per assembly)
#30	827314	WASHER @5 (1 required per assembly)
		12-827314 - Washer - Priced Individually [ More info ] $6.79 1 In Stock.
#31	11083A31	SWITCH ASSY-STOP (1 required per assembly) — Replaces: 11083A15
		87-11083A31 - Stop Switch Assembly [ More info ] Unavailable
#32	8M0032846	RETAINER (1 required per assembly) — Replaces: 120441
		8M0032846 - Brass Retainer [ More info ] $4.61 Available to Order: Shipping delay up to 10 days.
#33	15920Q54	ORDER 8M0092850 (1 required per assembly) — Replaces: 15920A54
		15920Q54 - Stop Switch Lanyard- Priced Individually [ More info ] Unavailable
