Parts for 40 (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Fuel Pump (Electric)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40 (3 Cyl.) > 0T980000 - 1B209735 - USA > Fuel Pump (Electric)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

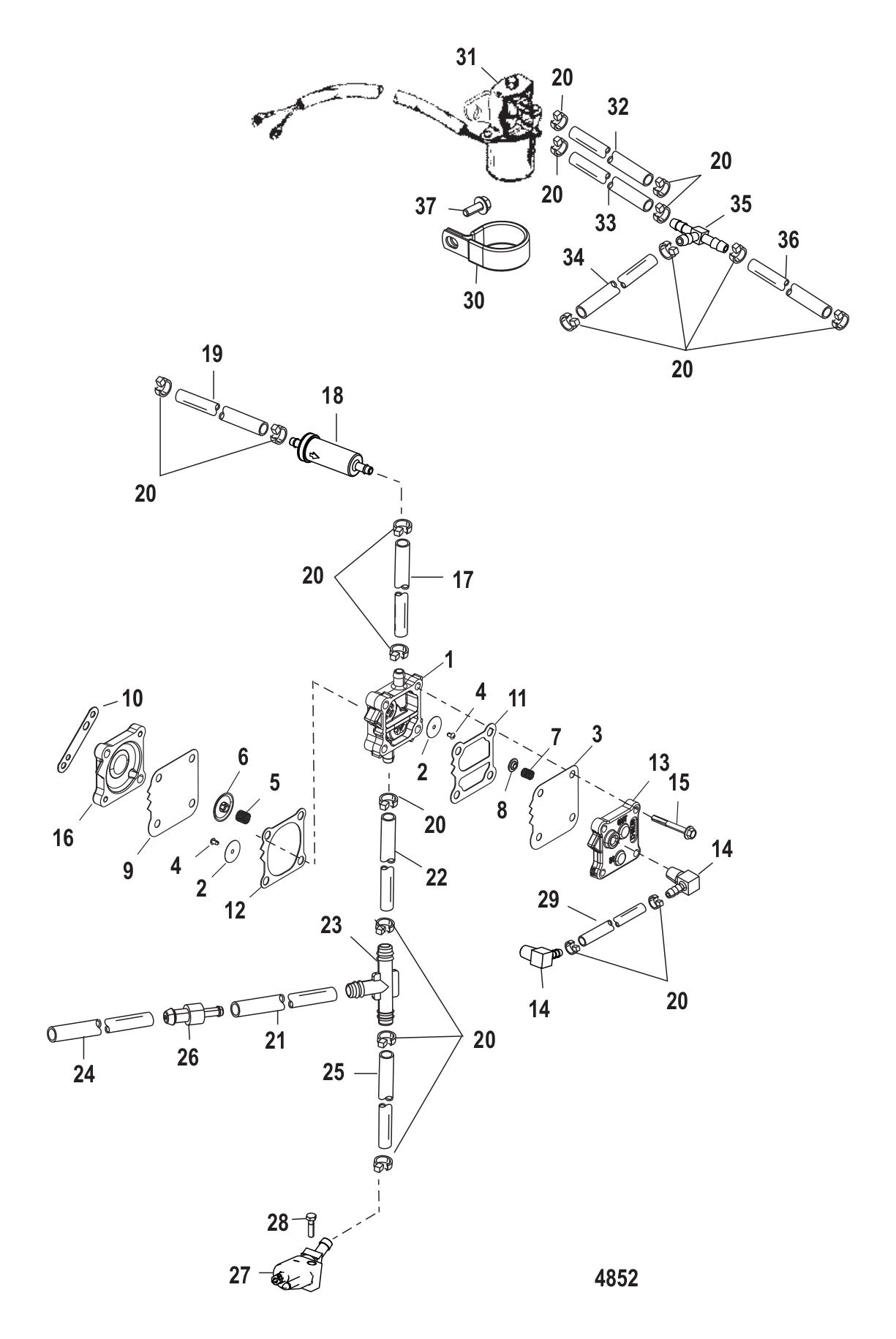

Fuel Pump (Electric)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	14360A78	PUMP KIT-FUEL (1 required per assembly)
		14360A78 - Fuel Pump Kit [ More info ] $308.49 4 In Stock.
#-	852067T98	PH 40/50 3 CYL (1 required per assembly)
		852067T98 - Powerhead 40/50 3 Cyl [ More info ] Unavailable
#-	828553A97	GASKET SET (1 required per assembly)
		27-828553A97 - Engine Gasket Set [ More info ] $93.94 1 In Stock.
#1	NSS	NOT SOLD SEPARATE DIAPHRAGM KIT (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#2	857005A1	DIAPHRAGM KIT (2 required per assembly)
		21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ] $33.99 10+ In Stock.
		18-7817 - Fuel Pump Kit [ More info ] $25.49 $23.60 10+ In Stock.
		1399-39020 - Fuel Pump REPAIR KIT [ More info ] $21.29 $20.29 7 In Stock.
#3	NSS	NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly)
#4	NSS	NOT SOLD SEPARATE RETAINER (2 required per assembly)
#5	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#6	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#7	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#9	NSS	NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly)
#10	8M0204705	GASKET @2 (1 required per assembly) — Replaces: 987691
		27-8M0204705 - Gasket Note: Priced Individually [ More info ] $3.89 3 In Stock.
#11	NSS	NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly)
#12	NSS	NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly)
#13	987752	PLATE (1 required per assembly)
		0987752 [ More info ] Unavailable Replaced by 3854336
		3854336 - TUBE ASSEMBLY [ More info ] Unavailable
#14	433351	CONNECTOR 90 DEGREE - WITH VIBRASEAL (TO CRANKCASE) (2 required per assembly) — Replaces: 43335
		0433351 - Silencer Assembly, Air (433351) [ More info ] Unavailable
#15	82104540	SCREW (M5 X 40) (2 required per assembly)
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#15	82130050	SCREW (M6 X 50) (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#16	144303	BASE (1 required per assembly)
		14430 3 - Base [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#17	831949	HOSE (1 required per assembly)
		32-831949 - Hose [ More info ] $7.49 3 In Stock.
#18	816296Q2	FILTER-FUEL @3 (1 required per assembly)
		35-816296Q 2 - Fuel Filter - Priced Individually [ More info ] $10.39 8 In Stock.
		18-7830 - Inline Filter 5/16 [ More info ] $8.62 10+ In Stock.
		35-816296K 2 - Fuel Filter - Priced Individually [ More info ] $11.39 10+ In Stock.
#19	830761	LINE FUEL (TO TOP CARBURETOR) (1 required per assembly)
		32-830761 - Fuel Line [ More info ] $5.99 2 In Stock.
#20	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#21	8M0108349	HOSE (70 INCHES BULK) (CUT TO 1.25 INCH LENGTH) (50) (1 required per assembly) — Replaces: 830757130, 8M0047448
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#22	8M0108349	HOSE (70 INCHES BULK) (CUT TO 1.25 INCH LENGTH) (50) (1 required per assembly) — Replaces: 830757130, 8M0047448
#23	818992	CONNECTOR (40) (1 required per assembly)
		22-818992 - Connector [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#23	818993	CONNECTOR (50) (1 required per assembly)
		22-818993 - Connector [ More info ] $4.19 Available to Order: Shipping delay up to 10 days.
#24	82381335	TUBING (15.00 INCHES BULK) (CUT TO 1.50 INCH LENGTH) (50) (To Oil Pump Outlet) (1 required per assembly)
		32-823813 35 - Tubing - 15 Inch [ More info ] $10.89 10 In Stock.
#25	8M0108349	HOSE (70 INCHES BULK) (CUT TO 22.00 INCH LENGTH) (1 required per assembly) — Replaces: 830757130, 8M0047448
#26	8189941	VALVE-CHECK (1 required per assembly)
		22-818994 1 - Check Valve [ More info ] $37.49 3 In Stock.
		18-8957 - Check Valve [ More info ] $16.29 In Stock
#27	816856T01	CONNECTOR-FUEL (1 required per assembly) — Replaces: 816856A1
		22-816856T01 - Fuel Connector [ More info ] $39.43 1 In Stock.
#28	4000332	SCREW (1 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#29	9912878	HOSE (.187) (26.00 INCHES BULK) (CUT TO 4.50 INCH LENGTH) (1 required per assembly)
		32-99128 78 - Tubing - 26.00 Inch [ More info ] $33.63 3 In Stock.
#30	633003	CLAMP (1 required per assembly)
		54-63300 3 - Clamp [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#31	819503A5	SOLENOID KIT (1 required per assembly)
		89-819503A 5 - Solenoid Kit [ More info ] $201.99 Available to Order: Shipping delay up to 10 days.
#32	9912688	TUBING (36.00 INCHES BULK) (CUT TO 8.00 INCH LENGTH) (To Tee Fitting off of Electric Carburetor) (1 required per assembly)
		32-99126 88 - Tubing - 36 Inch [ More info ] $30.80 1 In Stock.
#33	9912688	TUBING (36.00 INCHES BULK) (CUT TO 4.00 INCH LENGTH) (1 required per assembly)
#34	892024122	TUBING (240.00 INCHES BULK) (CUT TO 14.00 INCH LENGTH) (To Oil Pump Fitting) (1 required per assembly)
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 1 In Stock.
#35	59169003	FITTING @2 (1 required per assembly)
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 2 In Stock.
#36	9912688	TUBING (36.00 INCHES BULK) (CUT TO 2.00 INCH LENGTH) (To Intake Manifold Fitting) (1 required per assembly)
#37	4006731	SCREW (1 required per assembly)
		10-40067 31 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
