Parts for 40 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Fuel Pump (Manual)
Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 14360A78 | PUMP KIT-FUEL (1 required per assembly) |
  |
|
14360A78 - Fuel Pump Kit [ More info ]
|
| #- | 822420A94 | GASKET SET ENGINE OVERHAUL (1 required per assembly) |
  |
|
27-822420A94 - Engine Overhaul Gasket Set [ More info ]
|
| #- | 808569T02 | PH 30-2S 2CYL 30 HP (1 required per assembly) |
  |
|
808569T02 - Powerhead 30-2S 2CYL [ More info ] Unavailable |
| #- | 8M0063311 | PH 40-2S 2CYL 40 HP (1 required per assembly) |
  |
|
618M0063311 - Powerhead 40-2S 2CYL [ More info ] Unavailable |
| #1 | NSS | NOT SOLD SEPARATE FUEL PUMP (1 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #2 | 857005A1 | DIAPHRAGM KIT (2 required per assembly) |
  |
|
21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ]
|
  |
|
18-7817 - Fuel Pump Kit [ More info ]
|
  |
|
1399-39020 - Fuel Pump REPAIR KIT [ More info ]
|
| #3 | NSS | NOT SOLD SEPARATE DIAPHRAGM (2 required per assembly) |
| #4 | NSS | NOT SOLD SEPARATE RETAINER (2 required per assembly) |
| #5 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #6 | NSS | NOT SOLD SEPARATE CAP (1 required per assembly) |
| #7 | NSS | NOT SOLD SEPARATE SPRING (1 required per assembly) |
| #8 | NSS | NOT SOLD SEPARATE CAP (1 required per assembly) |
| #9 | NSS | NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly) |
| #10 | 8M0204705 | GASKET @2 (1 required per assembly) — Replaces: 987691 |
  |
|

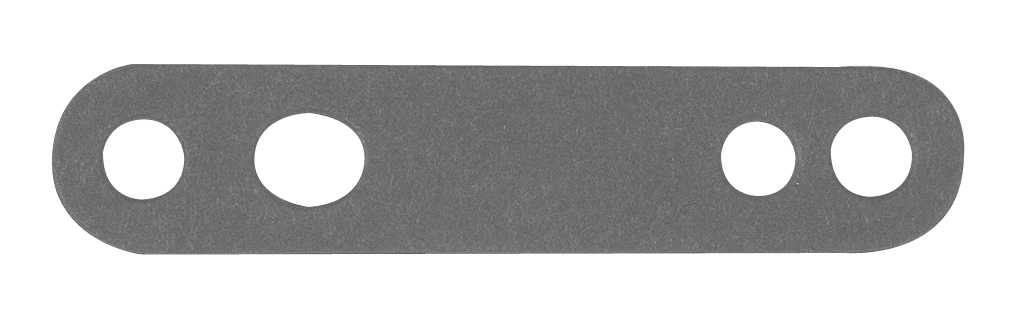

27-8M0204705 - Gasket Note: Priced Individually [ More info ]
|
| #11 | NSS | NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly) |
| #12 | NSS | NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly) |
| #13 | 144303 | BASE (1 required per assembly) |
  |
|
|
| #14 | 987752 | PLATE (1 required per assembly) |
  |
|
0987752 [ More info ] Unavailable Replaced by 3854336 |
  |
|
3854336 - TUBE ASSEMBLY [ More info ] Unavailable |
| #15 | 82104540 | SCREW (M5 X 40) PUMP (2 required per assembly) |
  |
|
10-821045 40 - Screw [ More info ]
|
| #16 | 82130050 | SCREW (M6 X 50) PUMP TO CRANKCASE (2 required per assembly) |
  |
|
10-821300 50 - Screw [ More info ]
|
| #17 | 433351 | CONNECTOR (1 required per assembly) |
  |
|
0433351 - Silencer Assembly, Air (433351) [ More info ] Unavailable |
| #18 | 858763 | PRIMER (1 required per assembly) |
  |
|
858763 - Primer Bulb [ More info ]
|
| #19 | 892024122 | TUBING (240.00 INCHES BULK) (CUT TO 9.50 INCH LENGTH) (2 required per assembly) |
  |
|
32-892024122 - Tubing - 20 Feet [ More info ]
|
| #20 | 82538115 | SLEEVE (1 required per assembly) |
  |
|
23-825381 15 - Sleeve [ More info ]
|
| #21 | 892038 | HOSE MOLDED (1 required per assembly) |
  |
|
32-892038 - Molded Hose [ More info ]
|
| #22 | 816311T | TIE STRAP @100 (AR required per assembly) |
  |
|
54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ]
|
| #23 | 9912878 | HOSE (.187) (26.00 INCHES BULK) (CUT TO 3.25 INCH LENGTH) (1 required per assembly) |
  |
|
32-99128 78 - Tubing - 26.00 Inch [ More info ]
|
| #24 | 8507051 | SLEEVE-3 INCH (1 required per assembly) |
  |
|
85070 51 - Sleeve -3 Inch [ More info ] Unavailable |
| #25 | 892040 | HOSE MOLDED (1 required per assembly) |
  |
|
32-892040 - Molded Hose [ More info ]
|
| #26 | 889527T02 | FILTER ASSY-FUEL [0P366572] & Up (1 required per assembly) |
  |
|
35-889527T02 - Fuel Filter Assembly [ More info ]
|
| #27 | 896375Q01 | FILTER KIT (Quicksilver Brand) (1 required per assembly) |
  |
|
35-896375Q01 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
35-896375K01 - Fuel Filter - Priced Individually [ More info ]
|
| #27 | 896375K01 | FILTER KIT (Mercury Brand) (1 required per assembly) |
| #28 | 98277001 | SEAL (1 required per assembly) |
  |
|
25-98277001 - Fuel Filter Seal [ More info ]
|
| #29 | 8M0063726 | KIT, FILTER-FUEL (1 required per assembly) — Replaces: 891642T03 |
  |
|
35-8M0063726 - Fuel Filter Kit [ More info ]
|
| #30 | 87946Q04 | FILTER KIT FUEL (Quicksilver Brand) (1 required per assembly) |
  |
|
35-87946Q04 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
18-7802 - Filter, 35-87946A3, Q3, Q0 [ More info ]
|
  |
|
35-87946K04 - Fuel Filter - Priced Individually [ More info ]
|
  |
|
35-35417 - Fuel Filter [ More info ]
|
| #30 | 87946K04 | FILTER KIT FUEL (Mercury Brand) (1 required per assembly) |
| #31 | 897536 | SEAL (1 required per assembly) |
  |
|
25-897536 - Filter Seal - Priced Individually [ More info ]
|
  |
|
18-7113-9 - O-Ring 25-897536 10 Pack [ More info ]
|
| #32 | 889625002 | BRACKET (Use with 35-889527T02 Fuel Filter) (1 required per assembly) |
  |
|
889625002 - Bracket [ More info ]
|
| #33 | 822387 | BRACKET-FUEL FILT (Use with 35-891642T03 Fuel Filter) (1 required per assembly) |
  |
|
822387 - Fuel Filter Bracket [ More info ] Unavailable |
| #34 | 401366 | NUT @5 (1 required per assembly) |
  |
|
11-40136 6 - Nut - Priced Individually [ More info ]
|
| #35 | 892236 | HOSE MOLDED (Use with 35-889527T02 Fuel Filter) (1 required per assembly) |
  |
|
32-892236 - Molded Hose [ More info ]
|
| #35 | 892037 | HOSE MOLDED (Use with 35-891642T03 Fuel Filter) (1 required per assembly) |
  |
|
32-892037 - Molded Hose [ More info ]
|
| #36 | 816856T01 | CONNECTOR-FUEL (1 required per assembly) — Replaces: 816856A1 |
  |
|
22-816856T01 - Fuel Connector [ More info ]
|
| #37 | 4000332 | SCREW (1 required per assembly) |
  |
|
10-40003 32 - Screw [ More info ]
|
