Parts for 40 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Fuel Pump (Electric) (Design I)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 40 (2 Cyl.) > 0P017000 - 0P325499 - Belgium > Fuel Pump (Electric) (Design I)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

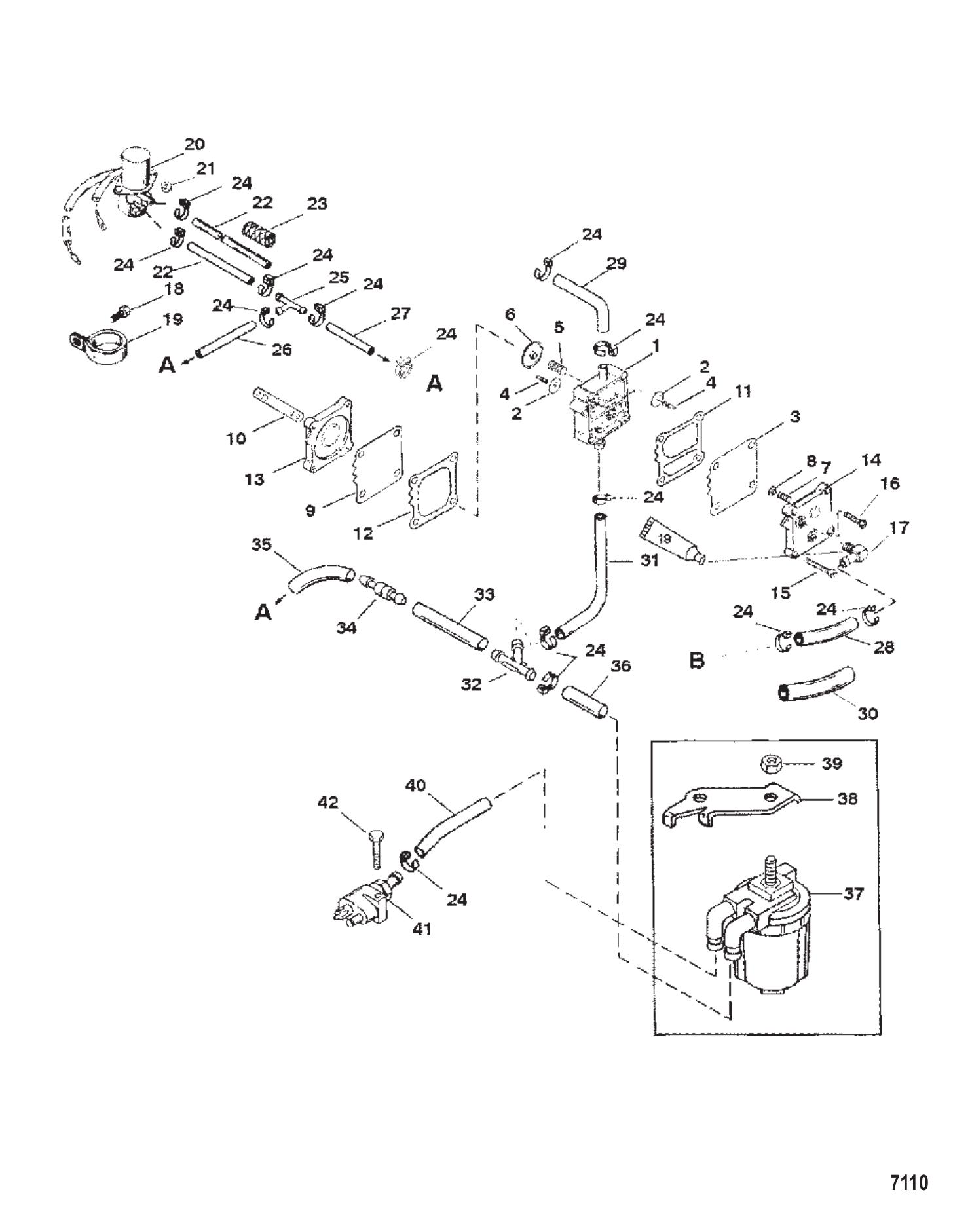

Fuel Pump (Electric) (Design I)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	14360A78	PUMP KIT-FUEL (1 required per assembly) — Replaces: 14360A71
		14360A78 - Fuel Pump Kit [ More info ] $308.49 4 In Stock.
#-	822420A94	GASKET SET (1 required per assembly)
		27-822420A94 - Engine Overhaul Gasket Set [ More info ] $74.49 Available to Order: Shipping delay up to 10 days.
#-	808569T02	PH 30-2S 2CYL 30 HP (1 required per assembly)
		808569T02 - Powerhead 30-2S 2CYL [ More info ] Unavailable
#-	8M0063311	PH 40-2S 2CYL 40 HP (1 required per assembly)
		618M0063311 - Powerhead 40-2S 2CYL [ More info ] Unavailable
#1	NSS	NOT SOLD SEPARATE FUEL PUMP (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#2	857005A1	DIAPHRAGM KIT (2 required per assembly)
		21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ] $33.99 10+ In Stock.
		18-7817 - Fuel Pump Kit [ More info ] $25.49 $23.60 10+ In Stock.
		1399-39020 - Fuel Pump REPAIR KIT [ More info ] $21.29 $20.29 7 In Stock.
#3	NSS	NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly)
#4	NSS	NOT SOLD SEPARATE RETAINER (2 required per assembly)
#5	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#6	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#7	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#9	NSS	NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly)
#10	8M0204705	GASKET @2 (1 required per assembly) — Replaces: 987691
		27-8M0204705 - Gasket Note: Priced Individually [ More info ] $3.89 3 In Stock.
#11	NSS	NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly)
#12	NSS	NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly)
#13	144303	BASE (1 required per assembly)
		14430 3 - Base [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#14	987752	PLATE (1 required per assembly)
		0987752 [ More info ] Unavailable Replaced by 3854336
		3854336 - TUBE ASSEMBLY [ More info ] Unavailable
#15	82104540	SCREW (M5 X 40) (2 required per assembly)
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#16	82130050	SCREW (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#17	433351	CONNECTOR (1 required per assembly) — Replaces: 43335
		0433351 - Silencer Assembly, Air (433351) [ More info ] Unavailable
#18	4006731	SCREW (1 required per assembly)
		10-40067 31 - Screw [ More info ] $2.89 Available to Order: Shipping delay up to 10 days.
#19	633003	CLAMP (1 required per assembly)
		54-63300 3 - Clamp [ More info ] $4.99 Available to Order: Shipping delay up to 10 days.
#20	819503A5	SOLENOID KIT (1 required per assembly)
		89-819503A 5 - Solenoid Kit [ More info ] $201.99 Available to Order: Shipping delay up to 10 days.
#21	F694504	GROMMET (1 required per assembly)
		25-F694504 - Grommet [ More info ] $6.69 Available to Order: Shipping delay up to 10 days.
#22	9912688	TUBING (36.00 INCHES BULK) (CUT TO 11.50 INCH LENGTH) (2 required per assembly)
		32-99126 88 - Tubing - 36 Inch [ More info ] $30.80 1 In Stock.
#23	82538115	SLEEVE (.500 X 5.00) (.50 X 5 INCH) (1 required per assembly)
		23-825381 15 - Sleeve [ More info ] $1.70 Available to Order: Shipping delay up to 10 days.
#24	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#25	59169003	FITTING @2 (1 required per assembly) — Replaces: 591692
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 2 In Stock.
#26	892024122	TUBING (240.00 INCHES BULK) (CUT TO 4 INCH LENGTH) (1 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 1 In Stock.
#27	9912688	TUBING (36.00 INCHES BULK) (CUT TO 3.25 INCH LENGTH) (1 required per assembly)
#28	830764	HOSE (1 required per assembly)
		32-830764 - Hose [ More info ] $34.49 Available to Order: Shipping delay up to 10 days.
#29	9912878	HOSE (.187) (26.00 INCHES BULK) (CUT TO 3.25 INCH LENGTH) (1 required per assembly)
		32-99128 78 - Tubing - 26.00 Inch [ More info ] $33.63 3 In Stock.
#30	8507051	SLEEVE-3 INCH (1 required per assembly)
		85070 51 - Sleeve -3 Inch [ More info ] Unavailable
#31	8M0108349	HOSE (70 INCHES BULK) (CUT TO 9.00 INCH LENGTH) (1 required per assembly) — Replaces: 830757130, 8M0047448
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#32	818992	CONNECTOR (1 required per assembly)
		22-818992 - Connector [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#33	8M0108349	HOSE (70 INCHES BULK) (CUT TO 4.00 INCH LENGTH) (1 required per assembly) — Replaces: 830757130, 8M0047448
#34	8189941	VALVE-CHECK (1 required per assembly)
		22-818994 1 - Check Valve [ More info ] $37.49 3 In Stock.
		18-8957 - Check Valve [ More info ] $16.29 In Stock
#35	82381335	TUBING (15.00 INCHES BULK) (CUT TO 1.50 INCH LENGTH) (1 required per assembly)
		32-823813 35 - Tubing - 15 Inch [ More info ] $10.89 9 In Stock.
#36	8M0108349	HOSE (70 INCHES BULK) (CUT TO 1.50 INCH LENGTH) (1 required per assembly) — Replaces: 830757130, 8M0047448
#37	8M0063726	KIT, FILTER-FUEL (1 required per assembly) — Replaces: 87946T14, 891642T03
		35-8M0063726 - Fuel Filter Kit [ More info ] $26.89 Available to Order: Shipping delay up to 10 days.
#38	822387	BRACKET-FUEL FILT (1 required per assembly)
		822387 - Fuel Filter Bracket [ More info ] Unavailable
#39	401366	NUT @5 (1 required per assembly)
		11-40136 6 - Nut - Priced Individually [ More info ] $3.59 2 In Stock.
#40	8M0108349	HOSE (70 INCHES BULK) (CUT TO 14.25 INCH LENGTH) (1 required per assembly) — Replaces: 830757130, 8M0047448
#41	816856T01	CONNECTOR-FUEL (1 required per assembly) — Replaces: 816856A1
		22-816856T01 - Fuel Connector [ More info ] $39.43 1 In Stock.
#42	4000332	SCREW (1 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
