Parts for 4 / 5 2-Stroke Carbureted Mercury Outboard Motor Fuel Tank (Serial Group #1)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 4 / 5 > 9589154 - 0P016999 - Belgium > Fuel Tank (Serial Group #1)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

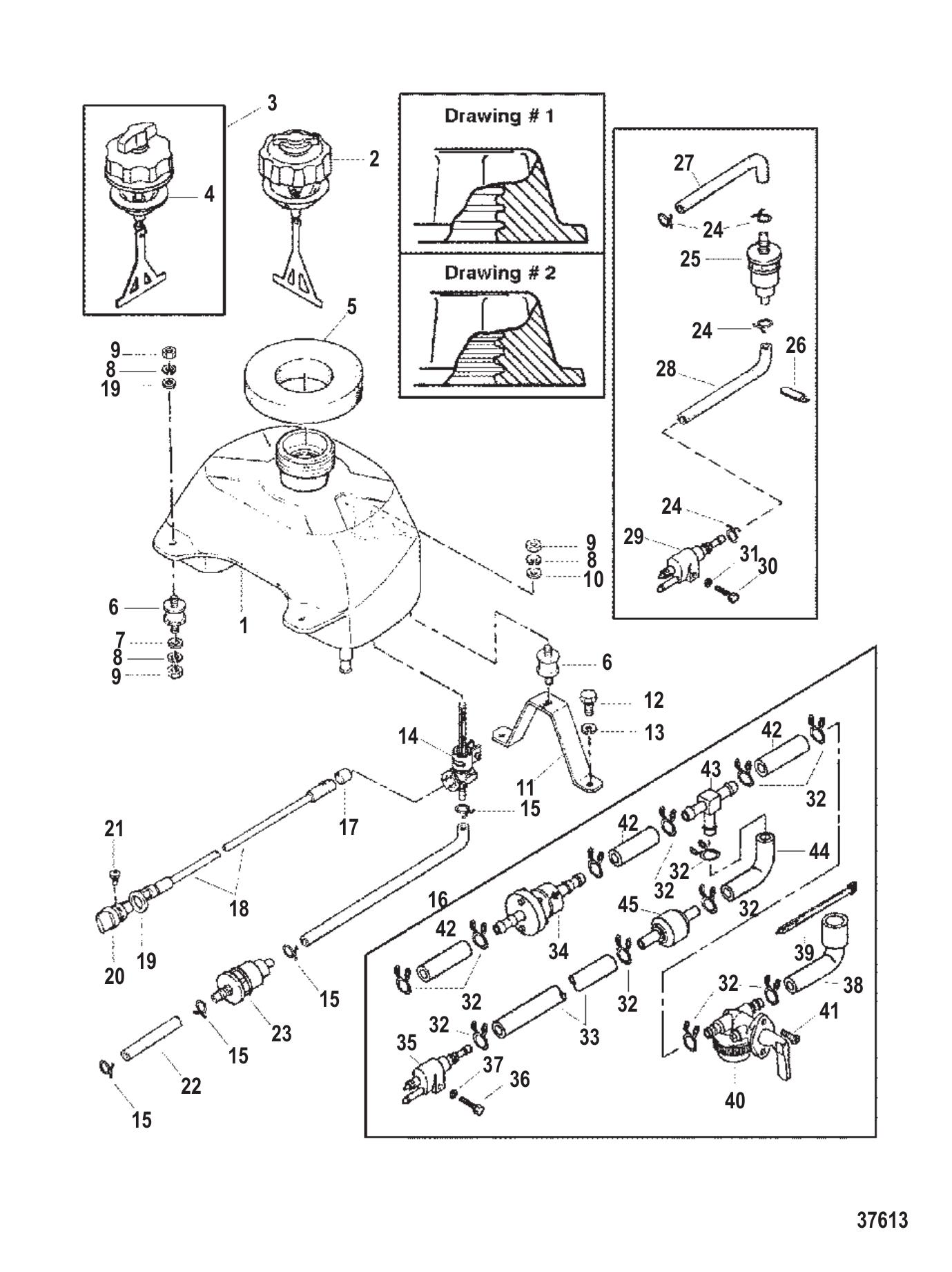

Fuel Tank (Serial Group #1)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	815596A2	FUEL KIT-DUAL 5 H.P. BLACK (1 required per assembly)
		815596A 2 - Remote Fuel Tank Adapter Kit [ More info ] Unavailable
#1	824964A03	REF SOB 13-18 (1 required per assembly) — Replaces: 824964A2
		1258-824964A03 - Fuel Tank [ More info ] Unavailable
		8M0059125 - Cowl - Fuel Kit for Mercury [ More info ] $363.49 Available to Order: Shipping delay up to 10 days.
#2	824962A2	CAP (1 required per assembly)
		36-824962A 2 - Cap Assembly [ More info ] Unavailable
		368M0060029 - Fuel Cap Assembly [ More info ] $45.91 1 In Stock.
#3	8129523	REF POB 94-06 (REFER TO DRAWING #2) (1 required per assembly)
		36-812952 3 - Fuel Cap, NLA [ More info ] Unavailable
#3	812952	CAP (REFER TO DRAWING #1) (1 required per assembly)
		36-812952 - Cap, NLA 06 [ More info ] Unavailable
#4	8M0065762	GASKET (USE WHERE APPLICABLE) (1 required per assembly) — Replaces: 815087
		278M0065762 - Gasket [ More info ] Unavailable
#5	162352	SEAL (1 required per assembly) — Replaces: 16235, 162351
		0162352 - Part (162352) [ More info ] Unavailable
#6	16236	MOUNT (3 required per assembly)
		16236 - Fuel Tank Mount [ More info ] $23.89 Available to Order: Shipping delay up to 10 days.
#7	953921	WASHER (2 required per assembly)
		12-95392 1 - Washer [ More info ] $5.59 Available to Order: Shipping delay up to 10 days.
#8	400256	LOCKWASHER @5 (5 required per assembly)
		13-40025 6 - LockWasher - Priced Individually [ More info ] $1.80 $1.01 10+ In Stock.
#9	400212	NUT (5 required per assembly)
		11-40021 2 - Nut [ More info ] $2.89 2 In Stock.
#10	898101937	WASHER @2 (1 required per assembly) — Replaces: 16238
		12-898101937 - Washer - Priced Individually [ More info ] $7.59 1 In Stock.
#11	8M0046049	BRACKET (1 required per assembly) — Replaces: 16239
		8M0046049 - Bracket [ More info ] $30.09 Available to Order: Shipping delay up to 10 days.
#12	16832	BOLT (2 required per assembly)
		10-16832 - Bolt [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#13	400256	LOCKWASHER @5 (2 required per assembly)
#14	16240	FUEL COCK ASSY 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly)
		22-16240 - Fuel Cock [ More info ] $54.49 Available to Order: Shipping delay up to 10 days.
#15	95395	CLIP 4 H.P. 22-815045A1 REPLACEMENT KIT (4 required per assembly)
		54-95395 - Clip [ More info ] $3.09 1 In Stock.
#16	16246	HOSE 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly)
		32-16246 - Hose, Fuel [ More info ] $10.87 $9.21 10+ In Stock.
#17	16242001	HOSE 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly) — Replaces: 16242
		32-16242001 - Hose [ More info ] $10.29 Available to Order: Shipping delay up to 10 days.
#18	16241	ROD-TH 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly)
		16241 - Fuel Cock Rod, NLA [ More info ] $10.87 $9.21 10+ In Stock.
#19	16244	RUBBER-TH 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly)
		16244 - Fuel Cock Rod, Rubber [ More info ] $9.39 1 In Stock.
#20	16243	KNOB-TH 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly)
		16243 - Fuel Cock Rod Knob, NLA [ More info ] $17.69 1 In Stock.
#21	16245	SCREW 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly)
		10-16245 - Screw [ More info ] $1.50 Available to Order: Shipping delay up to 10 days.
#22	16247	HOSE 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly)
		32-16247 - Fuel Hose, (117 mm) [ More info ] Unavailable
#23	8M0157133	FILTER-FUEL 4 H.P. 22-815045A1 REPLACEMENT KIT (1 required per assembly) — Replaces: 16248
		35-8M0157133 - In-Line Fuel Filter, Mercury Mariner 2 cycle and 4 stroke [ More info ] $21.39 3 In Stock.
		35-35406 - Inline Fuel Filter, Mercury Mercruiser 35-8M0157133 [ More info ] $13.49 $12.51 4 In Stock.
#24	95395	CLIP 5 H.P. GRAY (4 required per assembly)
#25	8M0157133	FILTER-FUEL 5 H.P. GRAY (1 required per assembly) — Replaces: 16248
#26	8M0130961	CLAMP 5 H.P. GRAY (2 required per assembly) — Replaces: 95306
		548M0130961 - Clamp [ More info ] $5.29 Available to Order: Shipping delay up to 10 days.
#27	17669	HOSE 5 H.P. GRAY (1 required per assembly)
		32-17669 - Hose 5.25 Inch [ More info ] Unavailable
#28	17668	HOSE 5 H.P. GRAY (1 required per assembly)
		32-17668 - Hose - 7 Inch [ More info ] Unavailable
#29	8M0182334	CONNECTOR FUEL 5 H.P. GRAY (1 required per assembly) — Replaces: 15781A5, 8M0148583
		22-8M0182334 - Fuel Connector [ More info ] $31.83 3 In Stock.
#30	4000333	SCREW @5 5 H.P. GRAY (1 required per assembly)
		10-40003 33 - Screw - Priced Individually [ More info ] $4.09 10+ In Stock.
#31	16826	WASHER 5 H.P. GRAY (1 required per assembly)
		12-16826 - Washer, Stainless Steel [ More info ] $3.29 Available to Order: Shipping delay up to 10 days.
#32	95395	CLIP 5 H.P. BLACK (11 required per assembly)
#33	879194470	HOSE 5 H.P. BLACK (1 required per assembly) — Replaces: 815041, 851848032
		32879194470 [ More info ] Unavailable
		328M0057113 - Hose [ More info ] $27.79 Available to Order: Shipping delay up to 10 days.
#34	8M0157133	FILTER-FUEL 5 H.P. BLACK (1 required per assembly) — Replaces: 16248
#35	8M0182334	CONNECTOR FUEL 5 H.P. BLACK (1 required per assembly) — Replaces: 15781A5, 8M0148583
#36	4000333	SCREW @5 5 H.P. BLACK (1 required per assembly)
#37	16826	WASHER 5 H.P. BLACK (1 required per assembly)
#38	815043	CONNECTOR 5 H.P. BLACK (1 required per assembly)
		22-815043 - Connector [ More info ] $17.39 3 In Stock.
#39	56762	TIE STRAP @5 5 H.P. BLACK (1 required per assembly) — Replaces: 815044
		56762 - Tie Strap - Priced Individually [ More info ] $0.50 3 In Stock.
#40	815045	COCK-FUEL 5 H.P. BLACK (1 required per assembly)
		22-815045 - Fuel Cock [ More info ] $64.49 Available to Order: Shipping delay up to 10 days.
#41	815046	SCREW 5 H.P. BLACK (2 required per assembly)
		10-815046 - Screw [ More info ] $0.80 Available to Order: Shipping delay up to 10 days.
#42	879194470	HOSE 5 H.P. BLACK (3 required per assembly) — Replaces: 815047, 953949
#43	73318	FITTING 5 H.P. BLACK (1 required per assembly)
		22-73318 - Fitting [ More info ] $5.39 Available to Order: Shipping delay up to 10 days.
#44	8M0168427	HOSE 5 H.P. BLACK (1 required per assembly) — Replaces: 815049
		32-8M0168427 - Hose [ More info ] $9.29 Available to Order: Shipping delay up to 10 days.
#45	815048	CONNECTOR 5 H.P. BLACK (1 required per assembly)
		22-815048 - Connector [ More info ] $38.99 Available to Order: Shipping delay up to 10 days.
