Parts for 4.5 (1 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Carburetor Choke Linkage

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 4.5 (1 Cyl.) > 7147238 & Up - Canada > Carburetor Choke Linkage

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

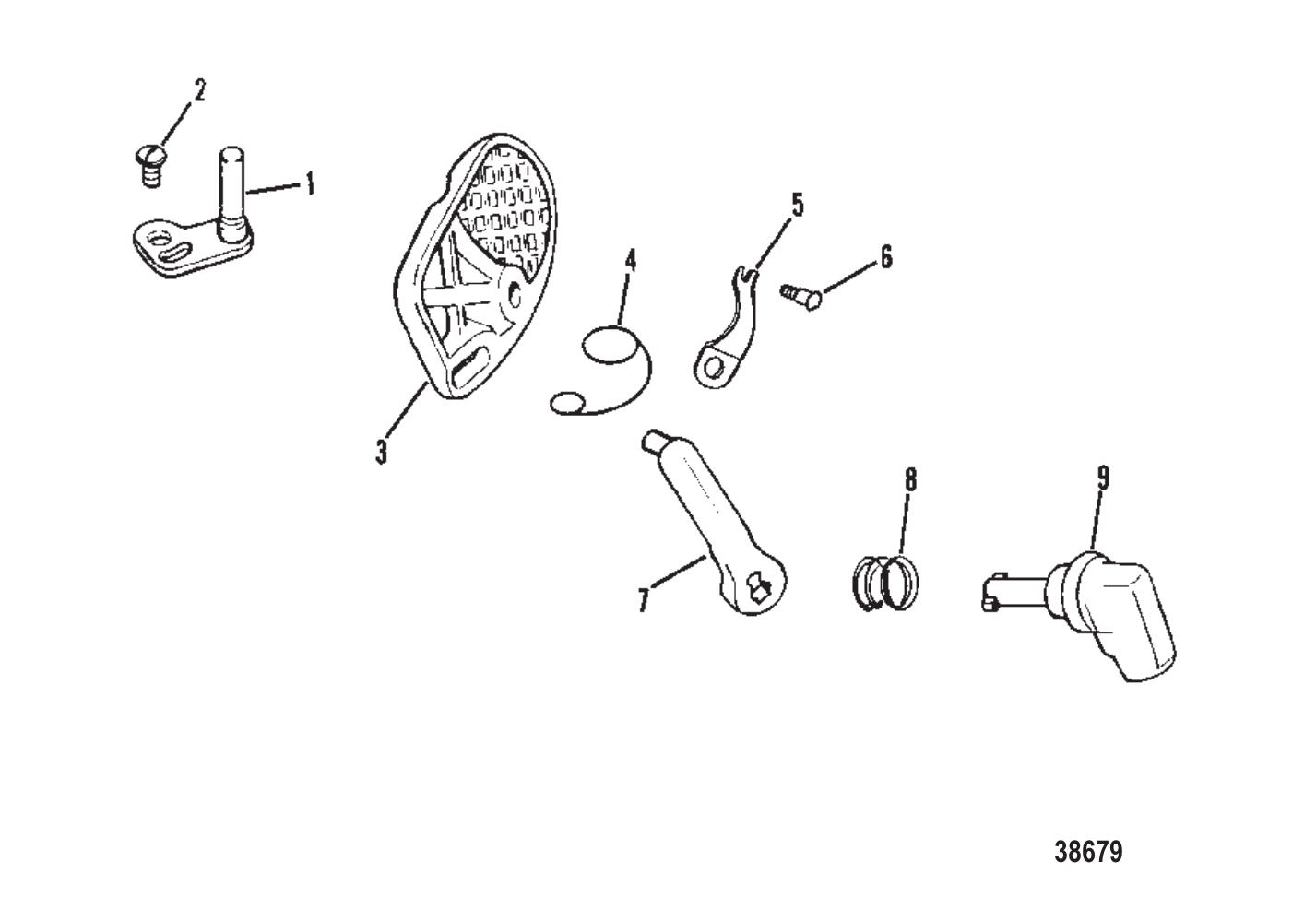

Carburetor Choke Linkage

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#1	59000	LEVER (1 required per assembly)
		59000 - Throttle Lever [ More info ] Unavailable
#2	20597	SCREW @5 (1 required per assembly)
		10-20597 - Screw - Priced Individually [ More info ] $0.20 $0.11 10+ In Stock.
#3	79092	SHUTTER AND SCREEN CHOKE - CARBURETOR (1 required per assembly)
		79092 - Choke Shutter [ More info ] $16.15 10+ In Stock.
#4	53193	SPRING CHOKE SHUTTER TO LEVER (1 required per assembly)
		24-53193 - Spring, Choke Shutter To Lever,NLA [ More info ] $15.62 10+ In Stock.
#5	55299A1	SPRING ASSEMBLY CARBURETOR (1 required per assembly)
		24-55299A 1 - Spring Assembly, Choke Shutter,NLA [ More info ] Unavailable
#6	55298	SCREW (#10-32 X .580) SPRING TO CARBURETOR (1 required per assembly)
		10-55298 - Screw, NLA [ More info ] $13.32 $11.29 10+ In Stock.
#7	53187	LEVER (1 required per assembly)
		53187 - Choke Lever, NLA [ More info ] Unavailable
#8	53190	SPRING TENSION - CHOKE KNOB (1 required per assembly)
		24-53190 - Spring, Tension - Choke Lever Shaft,NLA [ More info ] $18.20 10+ In Stock.
#9	53189	SHAFT (1 required per assembly)
		53189 - Shaft [ More info ] Unavailable
