Carburetor Assembly (Tillotson)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	1717	GASKET SET ( required per assembly)
		1399-1717 - Carburetor Gasket Set [ More info ] $13.39 7 In Stock.
		18-7006-1 - Carburetor Gasket Set, 1399-1717 and 1399-2015 [ More info ] $8.99 $8.73 10+ In Stock.
#-	92621	REPAIR KIT-CARB ( required per assembly) — Replaces: 3741
		1395-9262 1 - Carburetor Repair Kit - See Notes On Detail Page [ More info ] $105.64 4 In Stock.
#1	8740A1	CARBURETOR COMPLETE (1 required per assembly) — Replaces: 3711
		1341-8740A 1 - Carburetor [ More info ] Unavailable
#2	8673	FLOAT ASSEMBLY (1 required per assembly) — Replaces: 8983
		1395-8673 - Float [ More info ] $17.49 10+ In Stock.
		18-7208 - Float 1395-8983, 1359-8673 [ More info ] $15.89 10+ In Stock.
#3	NSS	NOT SOLD SEPARATE PIN-FLOAT LEVER PINION (2 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#4	NSS	NOT SOLD SEPARATE FLOAT LEVER-LOWER (1 required per assembly)
#5	NSS	NOT SOLD SEPARATE FLOAT LEVER-UPPER (1 required per assembly)
#6	92581	VALVE SEAT KIT SEAT AND GASKET (1 required per assembly) — Replaces: 9258
		1395-9258 1 - Valve Seat Kit [ More info ] $17.99 10+ In Stock.
		18-7057 - Needle And Seat 1395-9258 [ More info ] $11.90 3 In Stock.
#7	NSS	NOT SOLD SEPARATE GASKET-INLET SEAT (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE GASKET-FLOAT BOWL COVER (1 required per assembly)
#9	1133	COVER FLOAT BOWL (1 required per assembly)
		1399-1133 - Float Bowl Cover [ More info ] $183.50 $55.92 10+ In Stock.
#10	52195	SCREW FLOAT BOWL (SHORT) (1 required per assembly)
		10-52195 - Screw - Priced Individually, NLA [ More info ] Unavailable
#11	52196	SCREW FLOAT BOWL COVER (LONG) (1 required per assembly)
		10-52196 - Screw - Priced Individually, NLA [ More info ] $2.11 10+ In Stock.
#12	26995	LOCKWASHER (#8) STAINLESS STEEL FLOAT BOWL COVER SCREW (2 required per assembly)
		13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable
#13	NSS	NOT SOLD SEPARATE GASKET-STRAINER COVER (LARGE) (1 required per assembly)
#14	3938	SCREEN FILTER (1 required per assembly)
		1399-3938 - Screen, NLA [ More info ] Unavailable
		18-7832 - Filter, 1399-3938 [ More info ] $11.29 $10.23 Available to Order: Shipping delay up to 10 days.
#15	NSS	NOT SOLD SEPARATE GASKET, STRAINER COVER (SMALL) (1 required per assembly)
#16	1135	COVER STRAINER (90 DEGREES) (1 required per assembly)
		1399-1135 - Cover [ More info ] $23.44 10+ In Stock.
#17	NSS	NOT SOLD SEPARATE GASKET, STRAINER COVER SCREW (1 required per assembly)
#18	25822	SCREW STRAINER COVER (1 required per assembly)
		10-25822 - Screw, NLA [ More info ] $2.59 10+ In Stock.
#19	6027	SCREW THROTTLE STOP LEVER (1 required per assembly) — Replaces: 20847
		1395-6027 - Screw [ More info ] Unavailable
#20	8146791	LEVER THROTTLE THROTTLE STOP (1 required per assembly) — Replaces: 97
		814679 1 - Throttle Lever [ More info ] $9.58 10 In Stock.
#21	1716	SHAFT (1 required per assembly)
		1399-1716 - Throttle Shaft,NLA [ More info ] Unavailable
#22	NSS	NOT SOLD SEPARATE IDLE TUBE ( required per assembly)
#23	NSS	NOT SOLD SEPARATE GASKET, IDLE TUBE (1 required per assembly)
#24	NSS	NOT SOLD SEPARATE SCREW-THROTTLE SHUTTER (1 required per assembly)
#25	3739	SHUTTER (1 required per assembly)
		1399-3739 - THROTTLE SHUTTER,NLA [ More info ] Unavailable
#26	NSS	NOT SOLD SEPARATE WELCH PLUG, BODY CHANNEL (1 required per assembly)
#27	NSS	NOT SOLD SEPARATE SPRING, THROTTLE SHAFT RETURN (1 required per assembly)
#28	28845	SCREW PLUG-BODY CHANNEL (1 required per assembly)
		10-28845 - SCREW,NLA [ More info ] Unavailable
#29	NSS	NOT SOLD SEPARATE MAIN NOZZLE (1 required per assembly)
#30	23178	SCREW PLUG-MAIN NOZZLE (1 required per assembly)
		10-23178 - Screw, NLA [ More info ] Unavailable
#31	3252	JET (.032) MAIN FUEL (OPT required per assembly)
		1399-3252 - Jet -.032 [ More info ] $8.61 10+ In Stock.
#31	3251	JET (.034) MAIN FUEL (OPT required per assembly)
		1399-3251 - Jet .034, NLA [ More info ] $19.55 $16.56 10+ In Stock.
#31	3026	JET (.036) MAIN FUEL-STANDARD (1 required per assembly)
		1399-3026 - Jet -.036 [ More info ] $3.79 Available to Order: Shipping delay up to 10 days.

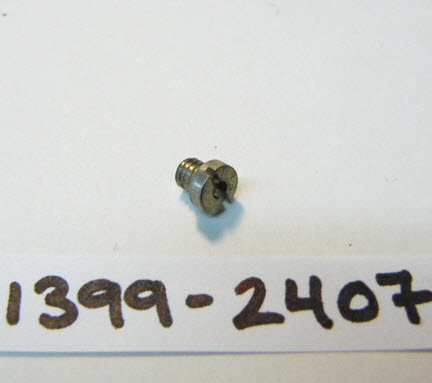

#31	2407	JET MAIN FUEL (.039) (OPT required per assembly)
		1399-2407 - Jet -.039, NLA [ More info ] Unavailable
#31	1896	JET MAIN FUEL (.041) (OPT required per assembly)
		1399-1896 - Jet 041, NLA [ More info ] $23.19 10+ In Stock.
#32	NSS	NOT SOLD SEPARATE GASKET-MAIN FUEL JET (1 required per assembly)
#33	NSS	NOT SOLD SEPARATE GASKET, JET CHANNEL PLUG SCREW (1 required per assembly)
#34	28405	SCREW PLUG-MAIN FUEL JET CHANNEL (1 required per assembly)
		10-28405 - Screw, NLA [ More info ] $4.99 $4.22 10+ In Stock.
#35	3740	SCREW IDLE ADJUSTMENT (1 required per assembly)
		1399-3740 - IDLE SCREW,NLA [ More info ] Unavailable
#36	NSS	NOT SOLD SEPARATE SPRING, IDLE ADJUSTMENT SCREW (1 required per assembly)
#37	63309	GASKET CARBURETOR TO REED BLOCK (1 required per assembly)
		27-63309 - Carburetor Flange Gasket [ More info ] $1.99 2 In Stock.
		18-2572-9 - Gasket 27-63309 2-Pack [ More info ] $3.59 Available to Order: Shipping delay up to 10 days.
#38	20583	WASHER CARBURETOR MOUNTING STUD (1 required per assembly)
		12-20583 - Washer - Priced Individually [ More info ] $1.50 10+ In Stock.
#39	24652	NUT (.250-28) CARBURETOR MOUNTING STUD (2 required per assembly)
		11-24652 - Nut (1/4-28) [ More info ] $1.60 10+ In Stock.
