Cylinder Block & Crankcase Assembly

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	78139A80	GASKET SET ( required per assembly)
		27-78139A80 - Engine Overhaul Gasket Set [ More info ] Unavailable
#-	87096A79	POWERHEAD MARINE (1 required per assembly)
		87096A79 - Powerhead MARINE,NLA [ More info ] Unavailable
#1	8694A3	CYLINDER BLOCK (1 required per assembly)
		843-8694A 3 - Cylinder Block, NLA [ More info ] Unavailable
#2	66021	STUD (8 required per assembly)
		16-66021 - Stud, NLA [ More info ] $3.51 10+ In Stock.
#3	8M0084726	PIN DOWEL CRANKCASE TO CYLINDER BLOCK (2 required per assembly) — Replaces: 85500
		178M0084726 - Pin - Dowel [ More info ] $5.09 Available to Order: Shipping delay up to 10 days.
#4	89275	FITTING BLEED DRAIN (1 required per assembly)
		22-89275 - Fitting, NLA [ More info ] $3.33 $2.82 10+ In Stock.
#5	9912688	TUBING (36.00 INCHES BULK) BLEED DRAIN (1 required per assembly)
		32-99126 88 - Tubing - 36 Inch [ More info ] $30.80 2 In Stock.
#6	68424	CLAMP BLEED HOSE ATTACHING (2 required per assembly)
		54-68424 - Clamp [ More info ] $7.81 10+ In Stock.
#7	887801	FITTING ELBOW 90 DEGREE (.0625-27) BLEED DRAIN (1 required per assembly) — Replaces: 88780
		22-88780 1 - Elbow [ More info ] $18.29 Available to Order: Shipping delay up to 10 days.
#8	73280	SCREW CRANKCASE TO CYLINDER BLOCK (1-1/2&QUOT;) (2 required per assembly)
		10-73280 - Screw, NLA [ More info ] $1.39 $1.17 10+ In Stock.
#9	76621	SCREW CRANKCASE TO CYLINDER BLOCK (1&QUOT;) (8 required per assembly)
		10-76621 - Screw, NLA [ More info ] $1.59 $1.34 10+ In Stock.
#10	70726	REED BLOCK (1 required per assembly)
		70726 - Reed Block,NLA [ More info ] Unavailable
#11	35836	REED INLET VALVE (2 required per assembly)
		34-35836 - Reed - Priced Individually [ More info ] $11.29 Available to Order: Shipping delay up to 10 days.
#12	22215	RETAINER REED (2 required per assembly)
		34-22215 - Reed Stop, NLA [ More info ] $7.00 $5.93 10+ In Stock.
#13	28430	SCREW (4 required per assembly)
		10-28430 - Screw [ More info ] $1.10 Available to Order: Shipping delay up to 10 days.
#14	357391	GASKET REED BLOCK TO CRANKCASE (1 required per assembly) — Replaces: 35739
		0357391 - CAP,MOTOR-Upper (357391) [ More info ] $71.99 Available to Order: Shipping delay up to 10 days.
#15	72961	BEARING BALL CRANKCASE (LOWER) (1 required per assembly)
		30-72961 - Ball Bearing [ More info ] $16.99 In Stock
		31-02112 - Ball Bearing 30-72961 [ More info ] $19.99 $15.29 4 In Stock.
#16	56397	SEAL OIL CRANKCASE (LOWER) (1 required per assembly)
		26-56397 - Seal, NLA [ More info ] $28.98 $24.55 10+ In Stock.
#17	31412A1	SHIM SET (AR required per assembly)
		15-31412A 1 - Shim Set, NLA [ More info ] $15.05 5 In Stock.
#18	6352A1	HOUSING ASSEMBLY BEARING UPPER (1 required per assembly)
		1132-6352A 1 - Housing,NLA [ More info ] Unavailable
#19	72961	BEARING BALL UPPER BEARING HOUSING (1 required per assembly)
#20	31410	BEARING ROLLER UPPER BEARING HOUSING (1 required per assembly)
		31-31410 - Roller Bearing - Upper Bearing Housing [ More info ] $28.01 10+ In Stock.
#21	66301	SEAL OIL UPPER BEARING HOUSING (1 required per assembly)
		26-66301 - Seal - Priced Individually [ More info ] $20.49 Available to Order: Shipping delay up to 10 days.
#22	20863	O-RING UPPER BEARING HOUSING (1 required per assembly)
		25-20863 - O-ring, Upper Bearing Housing [ More info ] $4.59 4 In Stock.
		18-7152 - O-Ring 25-20863 [ More info ] $3.88 $3.48 5 In Stock.
#23	34598	CLAMP HOLD DOWN (2 required per assembly)
		54-34598 - Clip, NLA [ More info ] $6.00 $5.08 10+ In Stock.
#24	36205	SCREW (#10-24 X .563) (4 required per assembly)
		10-36205 - Screw, NLA [ More info ] Unavailable
#25	34731	SPRING HOLD DOWN RING CLAMP (4 required per assembly)
		24-34731 - Spring, NLA [ More info ] $1.50 $1.28 10+ In Stock.
#26	39002	SCREW (1/2&QUOT;) (4 required per assembly)
		10-39002 - Screw, NLA [ More info ] Unavailable
#27	35658	COVER TRANSFER COVER (1 required per assembly)
		35658 - Cover, NLA [ More info ] Unavailable

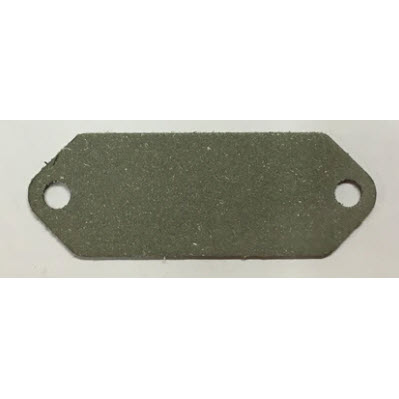

#28	35657	GASKET TRANSFER PORT COVER (1 required per assembly)
		27-35657 - Transfer Port Cover Gasket [ More info ] $6.51 $5.51 8 In Stock.
#29	20720	SCREW (2 required per assembly)
		10-20720 - Screw, NLA [ More info ] $1.39 $1.17 10+ In Stock.
#30	7070A1	COVER ASSEMBLY CYLINDER BLOCK (1 required per assembly)
		1016-7070A 1 - Cylinder Block Cover, NLA [ More info ] Unavailable
#31	66019	MOUNT RUBBER - COVER TO TOP COWL (2 required per assembly)
		66019 - Mount, NLA [ More info ] $8.00 $6.78 6 In Stock.
#32	20202	LOCKWASHER RUBBER MOUNT (2 required per assembly)
		13-20202 - LockWasher, NLA [ More info ] $1.79 10+ In Stock.
#33	22053	NUT (.312-24) RUBBER MOUNT TO COVER (2 required per assembly)
		11-22053 - Nut (5/16x24) [ More info ] $0.20 10+ In Stock.
#34	416151	GASKET COVER TO CYLINDER BLOCK (1 required per assembly)
		27-41615 1 - Gasket [ More info ] $8.29 2 In Stock.
#35	76630	SCREW @5 (4 required per assembly)
		10-76630 - Screw - Priced Individually [ More info ] $1.24 1 In Stock.
		108M0214943 - SCREW, Priced Individually [ More info ] $1.80 Available to Order: Shipping delay up to 10 days.
#36	416141	GASKET CYLINDER BLOCK TO BAFFLE PLATE (1 required per assembly)
		27-41614 1 - Gasket - Priced Individually [ More info ] $9.69 7 In Stock.
#37	46234	PLATE BAFFLE - EXHAUST MANIFOLD (1 required per assembly)
		46234 - Baffle Plate [ More info ] $27.99 $23.70 6 In Stock.
#38	416141	GASKET @2 (1 required per assembly)
#39	46171	COVER EXHAUST MANIFOLD (1 required per assembly)
		46171 - Exhaust Manifold Cover [ More info ] $15.09 1 In Stock.
#40	49668	SCREW @5 (6 required per assembly)
		10-49668 - Screw - Priced Individually [ More info ] $1.10 $0.88 5 In Stock.
