Parts for 35 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Carburetor Assembly

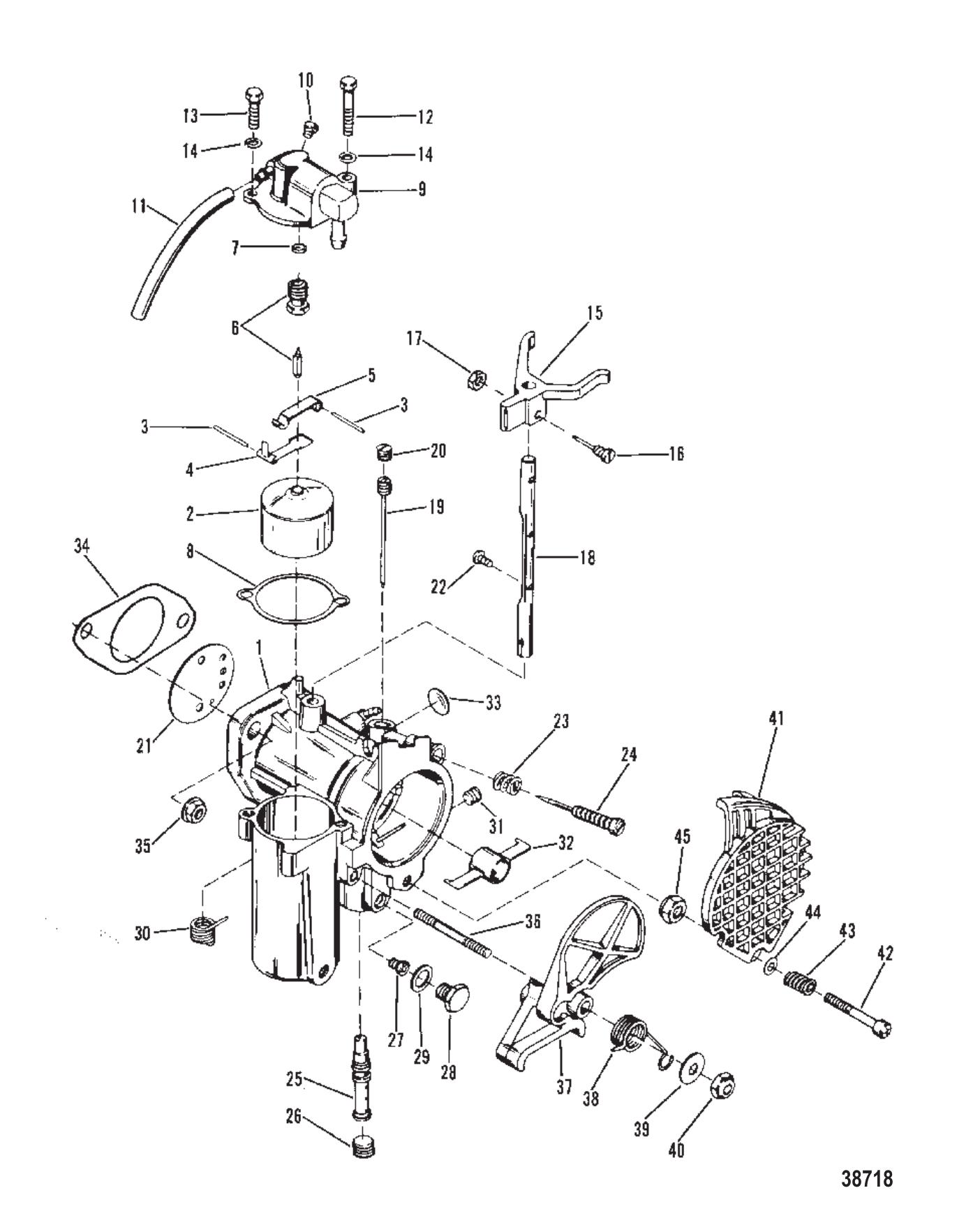

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
| #- | 879194024 | GASKET KIT (1 required per assembly) — Replaces: 4808 |
  |
|
1395-879194024 - Gasket Kit [ More info ]
|
  |
|
18-7006-1 - Carburetor Gasket Set, 1399-1717 and 1399-2015 [ More info ]
|
  |
|
1300-00135 - Carburetor Gasket Kit [ More info ]
|
| #- | 51091 | REPAIR KIT-CARB (1 required per assembly) — Replaces: 9018 |
  |
|
1395-5109 1 - Carburetor Repair Kit [ More info ]
|
  |
|
18-97352 - Carb Kit, Mercury 1395-51091 [ More info ]
|
  |
|
1300-36001 - Carburetor Repair Kit, MERCURY 1395-51091 [ More info ]
|
| #1 | 7226A19 | CARBURETOR (1 required per assembly) |
  |
|
1368-7226A19 - Carburetor [ More info ] Unavailable |
| #2 | 8673 | FLOAT ASSEMBLY (1 required per assembly) — Replaces: 8983 |
  |
|
1395-8673 - Float [ More info ]
|
  |
|
18-7208 - Float 1395-8983, 1359-8673 [ More info ]
|
| #3 | NSS | NOT SOLD SEPARATE FLOAT PIN (2 required per assembly) |
  |
|
NSS - NOT SOLD SEPARATE [ More info ] Unavailable |
| #4 | NSS | NOT SOLD SEPARATE FLOAT LEVER (LOWER) (1 required per assembly) |
| #5 | NSS | NOT SOLD SEPARATE FLOAT LEVER (UPPER) (1 required per assembly) |
| #6 | 83181 | VALVE SEAT KIT (1 required per assembly) — Replaces: 8318 |
  |
|
1395-8318 1 - Valve Seat Kit [ More info ]
|
  |
|
18-7061 - Needle And Seat 1395-8318 [ More info ]
|
| #7 | NSS | NOT SOLD SEPARATE GASKET-INLET NEEDLE (1 required per assembly) |
| #8 | NSS | NOT SOLD SEPARATE GASKET-FLOAT BOWL COVER (1 required per assembly) |
| #9 | 9016 | COVER FLOAT BOWL (1 required per assembly) |
  |
|
1395-9016 - Cover, NLA [ More info ] Unavailable |
| #10 | 5733 | JET MAIN (.092) (1 required per assembly) |
  |
|
1395-5733 - Jet -.092 [ More info ]
|
| #11 | 892024122 | TUBING (240.00 INCHES BULK) ECONOMIZER (1 required per assembly) — Replaces: 5734 |
  |
|
32-892024122 - Tubing - 20 Feet [ More info ]
|
| #12 | 52195 | SCREW FLOAT BOWL COVER (1 required per assembly) |
  |
|
10-52195 - Screw - Priced Individually, NLA [ More info ] Unavailable |
| #13 | 4804 | SCREW FLOAT BOWL COVER (1 required per assembly) |
  |
|
1395-4804 - Screw, NLA [ More info ]
|
| #14 | 26995 | LOCKWASHER (#8) STAINLESS STEEL FLOAT BOWL COVER SCREW (2 required per assembly) |
  |
|
13-26995 - Lock Washer - Priced Individually [ More info ] Unavailable |
| #15 | 92880 | LEVER THROTTLE (1 required per assembly) |
  |
|
92880 - Throttle Lever [ More info ] Unavailable |
| #16 | 60293 | SCREW (#5-40 X .500) THROTTLE LEVER (1 required per assembly) |
  |
|
10-60293 - Screw, NLA [ More info ]
|
| #17 | 92500 | PUSH NUT THROTTLE LEVER SCREW (1 required per assembly) |
  |
|
11-92500 - Push Nut, NLA [ More info ]
|
| #18 | 8641 | SHAFT THROTTLE (1 required per assembly) |
  |
|
1395-8641 - Throttle Shaft,NLA [ More info ] Unavailable |
| #19 | NSS | NOT SOLD SEPARATE IDLE TUBE (1 required per assembly) |
| #20 | 4540 | SCREW BODY (IDLE TUBE) (1 required per assembly) |
  |
|
1395-4540 - Plug Screw, NLA [ More info ] Unavailable |
| #21 | 9017 | SHUTTER THROTTLE (1 required per assembly) |
  |
|
1395-9017 - Shutter, NLA [ More info ] Unavailable |
| #22 | NSS | NOT SOLD SEPARATE SCREW, THROTTLE SHUTTER (2 required per assembly) |
| #23 | NSS | NOT SOLD SEPARATE SPRING-IDLE ADJUSTMENT SCREW (1 required per assembly) |
| #24 | NSS | NOT SOLD SEPARATE SCREW-IDLE ADJUSTMENT (1 required per assembly) |
| #25 | NSS | NOT SOLD SEPARATE MAIN NOZZLE (1 required per assembly) |
| #26 | 4542 | SCREW PLUG - MAIN NOZZLE (1 required per assembly) |
  |
|
1395-4542 - Plug Screw , NLA [ More info ] Unavailable |
| #27 | 3794 | JET (.074) MAIN FUEL (OPT required per assembly) |
  |
|
1399-3794 - Jet -.074 [ More info ]
|
| #27 | 6207 | JET (.072) MAIN FUEL (1 required per assembly) |
  |
|
1395-6207 - Jet -.072 [ More info ]
|
| #27 | 6030 | JET (.070) MAIN FUEL (OPT required per assembly) |
  |
|
1395-6030 - Jet -.070 [ More info ]
|
| #28 | 4541 | SCREW PLUG - MAIN FUEL JET CHANNEL (1 required per assembly) |
  |
|
1395-4541 - Plug Screw - Priced Individually [ More info ]
|
| #29 | NSS | NOT SOLD SEPARATE GASKET-JET CHANNEL PLUG SCREW (1 required per assembly) |
| #30 | NSS | NOT SOLD SEPARATE SPRING-THROTTLE SHAFT RETURN (1 required per assembly) |
| #31 | 4543 | SCREW BODY CHANNEL (1 required per assembly) |
  |
|
1395-4543 - Screw, NLA [ More info ] Unavailable |
| #32 | 52106A1 | VENTURI PLASTIC (1 required per assembly) |
  |
|
52106A 1 - Venturi Assembly [ More info ]
|
| #33 | NSS | NOT SOLD SEPARATE PLUG-BODY CHANNEL (1 required per assembly) |
| #34 | 481641 | GASKET CARBURETOR FLANGE (1 required per assembly) — Replaces: 48164 |
  |
|
27-48164 1 - Gasket - Priced Individually [ More info ]
|
| #35 | 64809 | NUT CARBURETOR MOUNTING STUD (2 required per assembly) |
  |
|
11-64809 - Nut (5/16 In.) [ More info ] Unavailable |
| #36 | 69016 | STUD CHOKE SHUTTER PIVOT (CARBURETOR) (1 required per assembly) |
  |
|
16-69016 - Stud, NLA [ More info ] Unavailable |
| #37 | 55179 | SHUTTER CHOKE CARBURETOR (1 required per assembly) |
  |
|
55179 - Carburetor Choke Shutter [ More info ]
|
| #38 | 55163 | SPRING TENSION - CHOKE SHUTTER (1 required per assembly) |
  |
|
24-55163 - Spring, Tension - Choke Shutter,NLA [ More info ]
|
| #39 | 47960 | WASHER CHOKE SHUTTER CARBURETOR STUD (1 required per assembly) |
  |
|
12-47960 - Washer, NLA [ More info ] Unavailable |
| #40 | 20110 | NUT (#10-32) CHOKE SHUTTER TO CARBURETOR STUD (1 required per assembly) |
  |
|
11-20110 - Nut (M10X32) [ More info ]
|
| #41 | 57819 | SCREEN CARBURETOR (1 required per assembly) |
  |
|
35-57819 - Screen, NLA [ More info ] Unavailable |
| #42 | 58185 | SCREW (#10-32 X 1.00) SCREEN TO CARBUETOR (1 required per assembly) |
  |
|
10-58185 - Screw, NLA [ More info ] Unavailable |
| #43 | 57818 | SPRING TENSION - SCREEN SCREW (1 required per assembly) |
  |
|
24-57818 - Spring [ More info ] Unavailable |
| #44 | 30164 | WASHER (.192 X .375 X .0312) STAINLESS STEEL SCREEN SCREW (1 required per assembly) — Replaces: 46101 |
  |
|
12-30164 - Washer, (.192 X .375 X .0312) [ More info ]
|
| #45 | 20110 | NUT (#10-32) SCREEN SCREW (1 required per assembly) |
