Parts for 30A 2-Stroke Carbureted Mercury Outboard Motor Fuel Pump

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 30A > 689-105325 - 689-530100 (Ml) - Canada > Fuel Pump

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

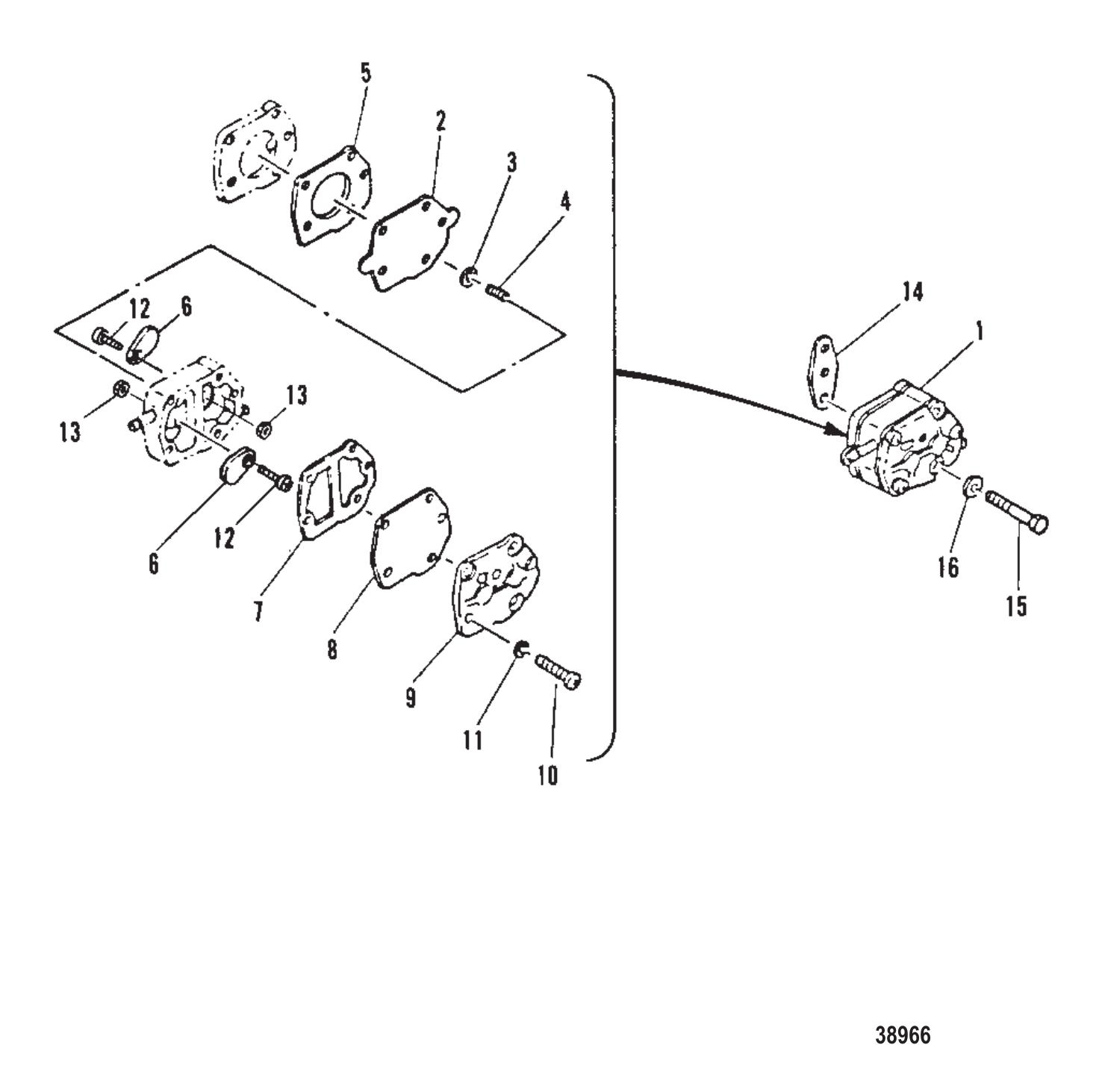

Fuel Pump

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	96658M	GASKET SET (1 required per assembly)
		27-96658M - Gasket Set [ More info ] Unavailable
#1	43113T	FUEL PUMP (1 required per assembly) — Replaces: 43113M
		43113T - Fuel Pump [ More info ] $149.49 Available to Order: Shipping delay up to 10 days.
#2	80606M	DIAPHRAGM (1 required per assembly)
		80606M - Fuel Pump Diaphragm [ More info ] $38.49 Available to Order: Shipping delay up to 10 days.
		18-7839 - Fuel Pump Diaphragm, 80606M, & Yamaha [ More info ] $20.14 In Stock
#3	80611M	PLATE SPRING (1 required per assembly)
		80611M - Plate [ More info ] $1.62 10+ In Stock.
#4	80610M	SPRING @5 (1 required per assembly)
		24-80610M - Spring, Fuel Pump Diahragm,NLA [ More info ] $6.51 $5.51 10+ In Stock.
#5	80613	GASKET BODY TO BASE (1 required per assembly) — Replaces: 80613M
		27-80613 - Body To Base Gasket [ More info ] $7.09 $5.68 6 In Stock.
#6	41888M	VALVE-CHECK (2 required per assembly)
		21-41888M - Check Valve [ More info ] $20.99 Available to Order: Shipping delay up to 10 days.
#7	80614	GASKET COVER TO BODY [M-030662, ML-329959, E-108559, EL-418520] & Up (1 required per assembly) — Replaces: 80614M
		27-80614 - Body To Cover Gasket [ More info ] $18.77 5 In Stock.
#7	43095M	GASKET COVER TO BODY [M-030661, ML-329958, E-108558, EL-418519] & Below (1 required per assembly)
		27-43095M - Cover To Body Gasket [ More info ] $10.41 10+ In Stock.
#8	84141M	DIAPHRAGM (1 required per assembly)
		84141M - Fuel Pump Diaphragm [ More info ] $12.79 Available to Order: Shipping delay up to 10 days.
		18-7840 - Fuel Pump Diaphragm, 84141M [ More info ] $11.49 $8.76 2 In Stock.
#9	80607M	COVER (1 required per assembly) — Replaces: 43096M
		80607M - Cover [ More info ] Unavailable
#10	82522M	SCREW (3 required per assembly)
		10-82522M - Screw, NLA [ More info ] Unavailable
#11	82186M	LOCKWASHER @5 (3 required per assembly) — Replaces: 82208M
		13-82186M - LockWasher, NLA [ More info ] $1.36 $1.16 10+ In Stock.
#12	41889M	SCREW (2 required per assembly)
		10-41889M - Screw, NLA [ More info ] Unavailable
#13	82537M	NUT @5 (2 required per assembly)
		11-82537M - Nut, NLA [ More info ] $1.63 $1.39 10+ In Stock.
#14	80757	GASKET FUEL PUMP (1 required per assembly) — Replaces: 80757M
		27-80757 - Fuel Pump Mounting Gasket [ More info ] $3.59 $2.02 10+ In Stock.
#15	827043M	BOLT (2 required per assembly) — Replaces: 82428M
		10-827043M - Bolt, NLA [ More info ] $6.45 3 In Stock.
#16	82214M	WASHER @5 (2 required per assembly)
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
