Parts for 30A 2-Stroke Carbureted Mercury Outboard Motor Crankcase & Cylinder Head

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 30A > 689-000366 - 022058 - Belgium > Crankcase & Cylinder Head

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

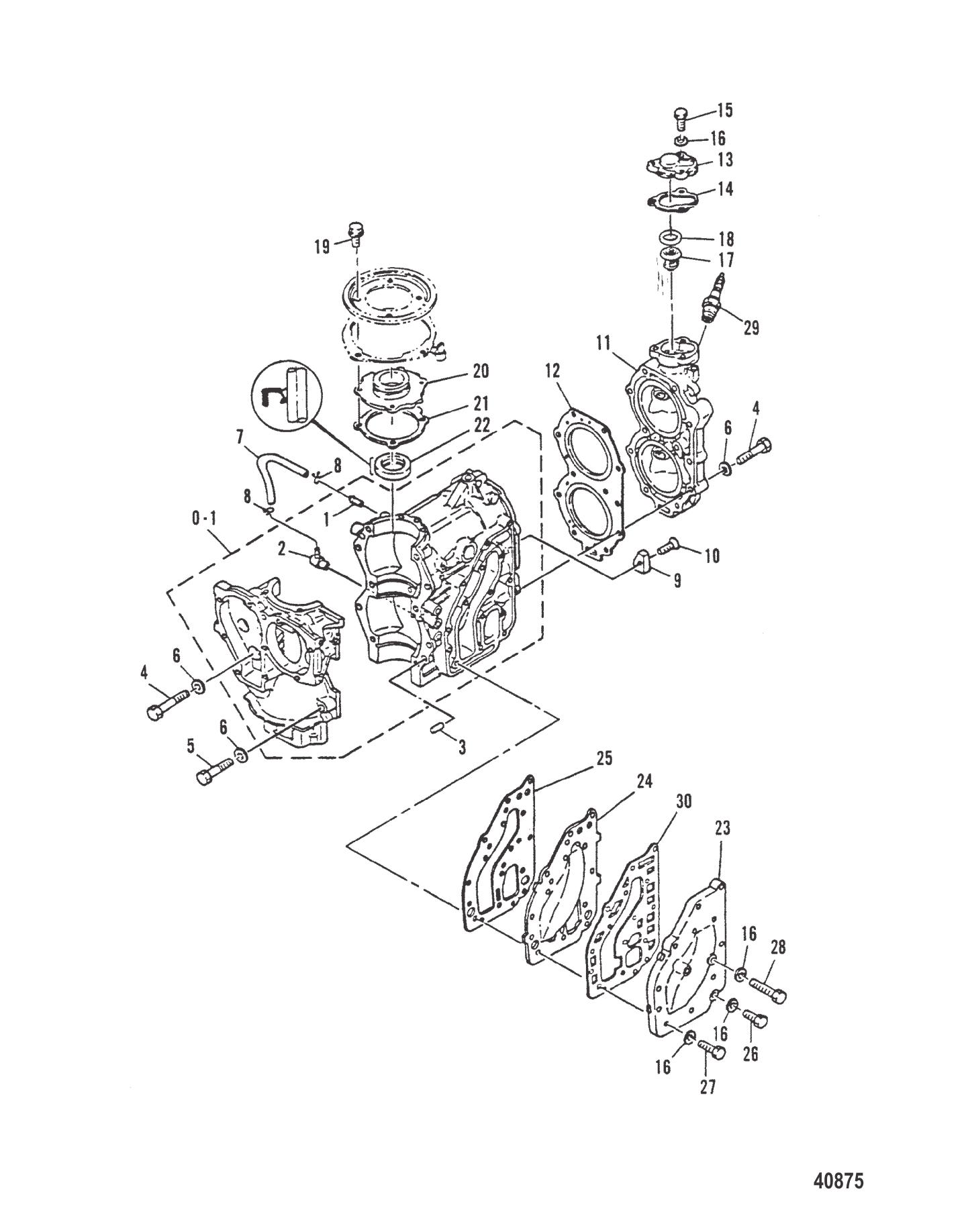

Crankcase & Cylinder Head

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	95678M	POWERHEAD ASSEMBLY COMPLETE (SEE NOTE) [M-007186/ML-308701/E-101516/EL-404001] & Up (1 required per assembly) — Replaces: 97655M
		95678M - Powerhead Marine, NLA [ More info ] Unavailable
#-	84743M	POWERHEAD ASSEMBLY COMPLETE (SEE NOTE) [M-007185/ML-308700/E-101515/EL-404000] & Below (1 required per assembly)
		84743M - Powerhead,NLA [ More info ] Unavailable
#-	96658M	GASKET SET POWERHEAD [M-010646/ML-311476/E-102356/EL-405456] & Up (1 required per assembly)
		27-96658M - Gasket Set [ More info ] Unavailable
#-	84744M	GASKET SET POWERHEAD [M-010645/ML-311475/E-102355/EL-405455] & Below (1 required per assembly)
		27-84744M - Powerhead Gasket Set [ More info ] $65.21 $55.24 2 In Stock.
#1	80122M	FITTING DRAIN (1 required per assembly)
		22-80122M - Fitting - Priced Individually, NLA [ More info ] $1.50 $1.28 6 In Stock.
#2	80727M	CHECK VALVE ASSEMBLY (1 required per assembly)
		21-80727M - Check Valve, NLA [ More info ] $25.54 $21.64 10+ In Stock.
#3	82364M	PIN-DOWEL @2 (2 required per assembly)
		17-82364M - Pin -Dowel - Priced Individually [ More info ] $4.40 10+ In Stock.
#4	41885M	BOLT [M-010646/ML-311476/E-102356/EL-405456] & Up (13 required per assembly)
		10-41885M - Bolt, NLA [ More info ] $6.67 $5.65 10+ In Stock.
#4	82406M	BOLT @2 [M-010645/ML-311475/E-102355/EL-405455] & Below (13 required per assembly)
		10-82406M - BOLT,NLA [ More info ] Unavailable
#5	8M0101617	BOLT [M-010646/ML-311476/E-102356/EL-405456] & Up (8 required per assembly) — Replaces: 41884M
		108M0101617 - Bolt [ More info ] Unavailable
#5	82408M	BOLT @2 [M-010645/ML-311475/E-102355/EL-405455] & Below (8 required per assembly)
		10-82408M - Bolt, NLA [ More info ] Unavailable
#6	80564M	WASHER @5 [M-010645/ML-311475/E-102355/EL-405455] & Below (21 required per assembly)
		12-80564M - Washer, Cylinder Head Bolt, NLA [ More info ] $1.50 $1.28 4 In Stock.
#7	811045M	HOSE (1 required per assembly) — Replaces: 84731M
		32-811045M - Hose, NLA [ More info ] Unavailable
#8	82046M	CLAMP HOSE (2 required per assembly)
		54-82046M - Clip, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#9	84732M	ANODE (1 required per assembly)
		9784732M - Anode, Zinc [ More info ] $8.46 $7.16 2 In Stock.
#10	95209M	SCREW [M-018820/ML-318386/E-104275/EL-409415] & Below (1 required per assembly) — Replaces: 82167M
		10-95209M - Screw, NLA [ More info ] $1.67 $1.42 10+ In Stock.
#11	7194M	CYLINDER HEAD (1 required per assembly)
		968-7194M - Cylinder Head [ More info ] Unavailable
#12	19138	GASKET CYLINDER HEAD (1 required per assembly) — Replaces: 84733M, 19138M
		27-19138 - Gasket [ More info ] $55.49 $47.66 5 In Stock.
		18-3804 - Head Gasket 27-19138M [ More info ] $44.19 $29.99 In Stock
#13	81030M	COVER THERMOSTAT (1 required per assembly)
		81030M - Cover, NLA [ More info ] Unavailable
#14	81031	GASKET COVER (1 required per assembly) — Replaces: 81031M
		27-81031 - Cover Gasket [ More info ] $6.89 $5.52 10+ In Stock.
#15	84058M	BOLT (3 required per assembly) — Replaces: 83539M
		10-84058M - Bolt [ More info ] $7.79 1 In Stock.
#16	82214M	WASHER LOCK (18 required per assembly) — Replaces: 82199M
		12-82214M - Washer - Priced Individually [ More info ] $5.28 10+ In Stock.
#17	99080M	THERMOSTAT (1 required per assembly)
		99080M - Thermostat [ More info ] $115.99 $111.20 2 In Stock.
#18	81835M	WASHER @2 (1 required per assembly)
		12-81835M - Washer, Thermostat Spacer [ More info ] $8.79 10+ In Stock.
#19	84735M	BOLT (4 required per assembly)
		10-84735M - Bolt, NLA [ More info ] $1.25 $1.06 10+ In Stock.
#20	84736M	HOUSING UPPER OIL SEAL (1 required per assembly)
		84736M - Housing, NLA [ More info ] Unavailable
#21	84737M	GASKET OIL SEAL HOUSING (1 required per assembly)
		27-84737M - Oil Seal Housing Gasket [ More info ] $3.22 10+ In Stock.
#22	811021M	SEAL UPPER [M-007186/ML-308701/E-101516/EL-404001] & Up (1 required per assembly) — Replaces: 96655M
		26-811021M - Seal, NLA [ More info ] $8.21 4 In Stock.
#22	84738M	SEAL OIL UPPER [M-007185/ML-308700/E-101515/EL-404000] & Below (1 required per assembly)
		26-84738M - Seal, NLA [ More info ] $6.00 $5.08 7 In Stock.
#23	95680M	EXHAUST COVER (1 required per assembly) — Replaces: 84739M
		95680M - Exhaust Cover, NLA [ More info ] $28.00 $23.72 5 In Stock.
#24	95681M	INNER COVER (1 required per assembly) — Replaces: 84740M
		95681M - Inner Cover, NLA [ More info ] $25.99 $22.01 6 In Stock.
#25	84741M	GASKET EXHAUST COVER (1 required per assembly)
		27-84741M - Exhaust Cover Gasket [ More info ] $21.54 10+ In Stock.
#26	82405M	SCREW @2 (1 required per assembly) — Replaces: 82453M
		10-82405M - Screw, NLA [ More info ] $10.86 $9.19 10+ In Stock.
#27	83285M	SCREW @5 (12 required per assembly) — Replaces: 92523M, 84237M
		10-83285M - Screw - Priced Individually [ More info ] $5.19 10+ In Stock.
#28	84931M	BOLT (2 required per assembly) — Replaces: 84853M
		10-84931M - Bolt, NLA [ More info ] $6.45 10+ In Stock.
#29	8M0114739	S PLUG B7HS @4 (NGK B-7HS) (2 required per assembly) — Replaces: 82371M
		33-8M0114739 - Spark Plug B7HS-82 - Priced Individually [ More info ] $6.59 Available to Order: Shipping delay up to 10 days.
#30	96656M	GASKET (1 required per assembly)
		27-96656M - Exhaust Cover Gasket [ More info ] $21.54 10+ In Stock.
#0-1	9371M	CYLINDER BLOCK (1 required per assembly) — Replaces: 7193M
		870-9371M - Cylinder Block, NLA [ More info ] Unavailable
