Parts for 30 Jet (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Fuel Pump (Manual)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 30 Jet (3 Cyl.) > 9973100 - 0P016999 - Belgium > Fuel Pump (Manual)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

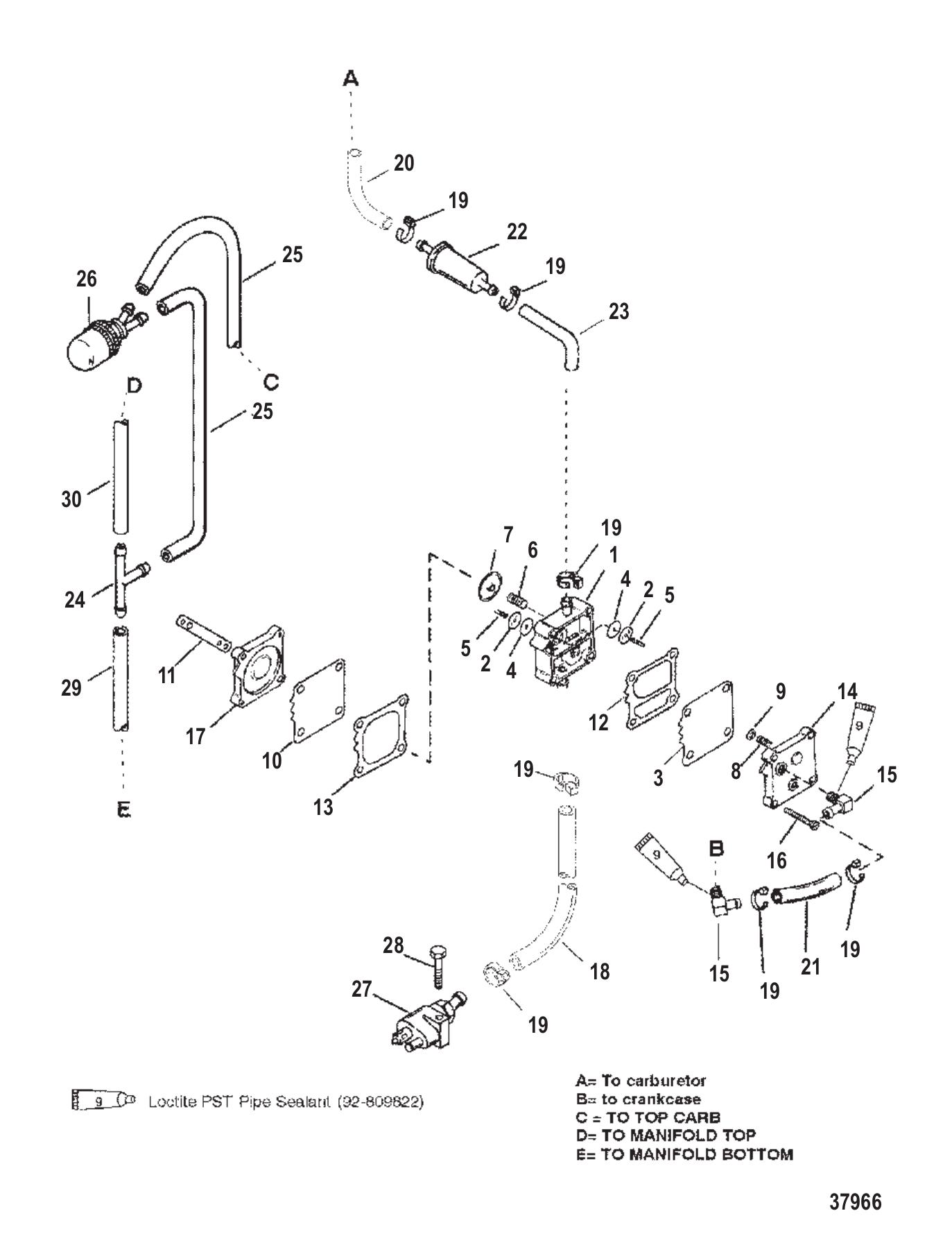

Fuel Pump (Manual)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	14360A78	PUMP KIT-FUEL (1 required per assembly) — Replaces: 14360A43, 14360A71
		14360A78 - Fuel Pump Kit [ More info ] $308.49 5 In Stock.
#-	852067T98	PH 40/50 3 CYL (1 required per assembly) — Replaces: 852067A98
		852067T98 - Powerhead 40/50 3 Cyl [ More info ] Unavailable
#-	828553A97	GASKET SET (1 required per assembly)
		27-828553A97 - Engine Gasket Set [ More info ] $91.99 Available to Order: Shipping delay up to 10 days.
#1	NSS	NOT SOLD SEPARATE FUEL PUMP (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#2	857005A1	DIAPHRAGM KIT (2 required per assembly) — Replaces: 42990A10
		21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ] $33.99 10 In Stock.
		18-7817 - Fuel Pump Kit [ More info ] $25.49 $23.60 10+ In Stock.
		1399-39020 - Fuel Pump REPAIR KIT [ More info ] $21.29 $20.29 7 In Stock.
#3	NSS	NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly)
#4	NSS	NOT SOLD SEPARATE CHECK VALVE-RUBBER (2 required per assembly)
#5	NSS	NOT SOLD SEPARATE RETAINER (2 required per assembly)
#6	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#7	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE SPRING (1 required per assembly)
#9	NSS	NOT SOLD SEPARATE CAP (1 required per assembly)
#10	NSS	NOT SOLD SEPARATE DIAPHRAGM (1 required per assembly)
#11	8M0204705	GASKET @2 (1 required per assembly) — Replaces: 987691
		27-8M0204705 - Gasket Note: Priced Individually [ More info ] $3.89 1 In Stock.
#12	NSS	NOT SOLD SEPARATE GASKET-BOOST (1 required per assembly)
#13	NSS	NOT SOLD SEPARATE GASKET-PULSE (1 required per assembly)
#14	987752	PLATE (1 required per assembly)
		0987752 [ More info ] Unavailable Replaced by 3854336
		3854336 - TUBE ASSEMBLY [ More info ] Unavailable
#15	433351	CONNECTOR 90 DEGREE - WITH VIBRASEAL (2 required per assembly) — Replaces: 43335
		0433351 - Silencer Assembly, Air (433351) [ More info ] Unavailable
#16	82104540	SCREW (M5 X 40) (2 required per assembly)
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#16	82130050	SCREW (M6 X 50) (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#17	144303	BASE (1 required per assembly)
		14430 3 - Base [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#18	8M0047448	TUBING (.312) (70 INCHES BULK) (22 IN.) (1 required per assembly) — Replaces: 83075780, 830757130
		32-8M0047448 - Tubing-70 Inch [ More info ] Unavailable
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#19	816311T	TIE STRAP @100 (AR required per assembly) — Replaces: 816311
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#20	830761	HOSE (1 required per assembly)
		32-830761 - Fuel Line [ More info ] $5.99 3 In Stock.
#21	9912878	HOSE (.187) (26.00 INCHES BULK) (4-1/4 IN.) (1 required per assembly)
		32-99128 78 - Tubing - 26.00 Inch [ More info ] $33.63 3 In Stock.
#22	816296Q2	FILTER-FUEL @3 (1 required per assembly) — Replaces: 8162961, 816296Q1
		35-816296Q 2 - Fuel Filter - Priced Individually [ More info ] $10.39 10+ In Stock.
		18-7830 - Inline Filter 5/16 [ More info ] $8.62 10+ In Stock.
		35-816296K 2 - Fuel Filter - Priced Individually [ More info ] $11.39 10+ In Stock.
#23	831949	HOSE (1 required per assembly)
		32-831949 - Hose [ More info ] $7.49 4 In Stock.
#24	59169003	FITTING @2 (1 required per assembly) — Replaces: 59169, 591692
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 Available to Order: Shipping delay up to 10 days.
#25	892024122	TUBING (240.00 INCHES BULK) (9-1/2 IN.) (2 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 In Stock
#26	858763	PRIMER (1 required per assembly) — Replaces: 8168773
		858763 - Primer Bulb [ More info ] $99.99 Available to Order: Shipping delay up to 10 days.
#27	816856T01	CONNECTOR-FUEL (1 required per assembly) — Replaces: 816856A1
		22-816856T01 - Fuel Connector [ More info ] $39.43 1 In Stock.
#28	4000332	SCREW (1 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#29	892024122	TUBING (240.00 INCHES BULK) (5-1/2 IN.) (1 required per assembly) — Replaces: 99130122
#30	892024122	TUBING (240.00 INCHES BULK) (1-1/2 IN.) (1 required per assembly) — Replaces: 99130122
