Parts for 30 Jet (3 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Fuel Pump (Manual)

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 30 Jet (3 Cyl.) > 0G760300 - 0T408999 - USA > Fuel Pump (Manual)

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

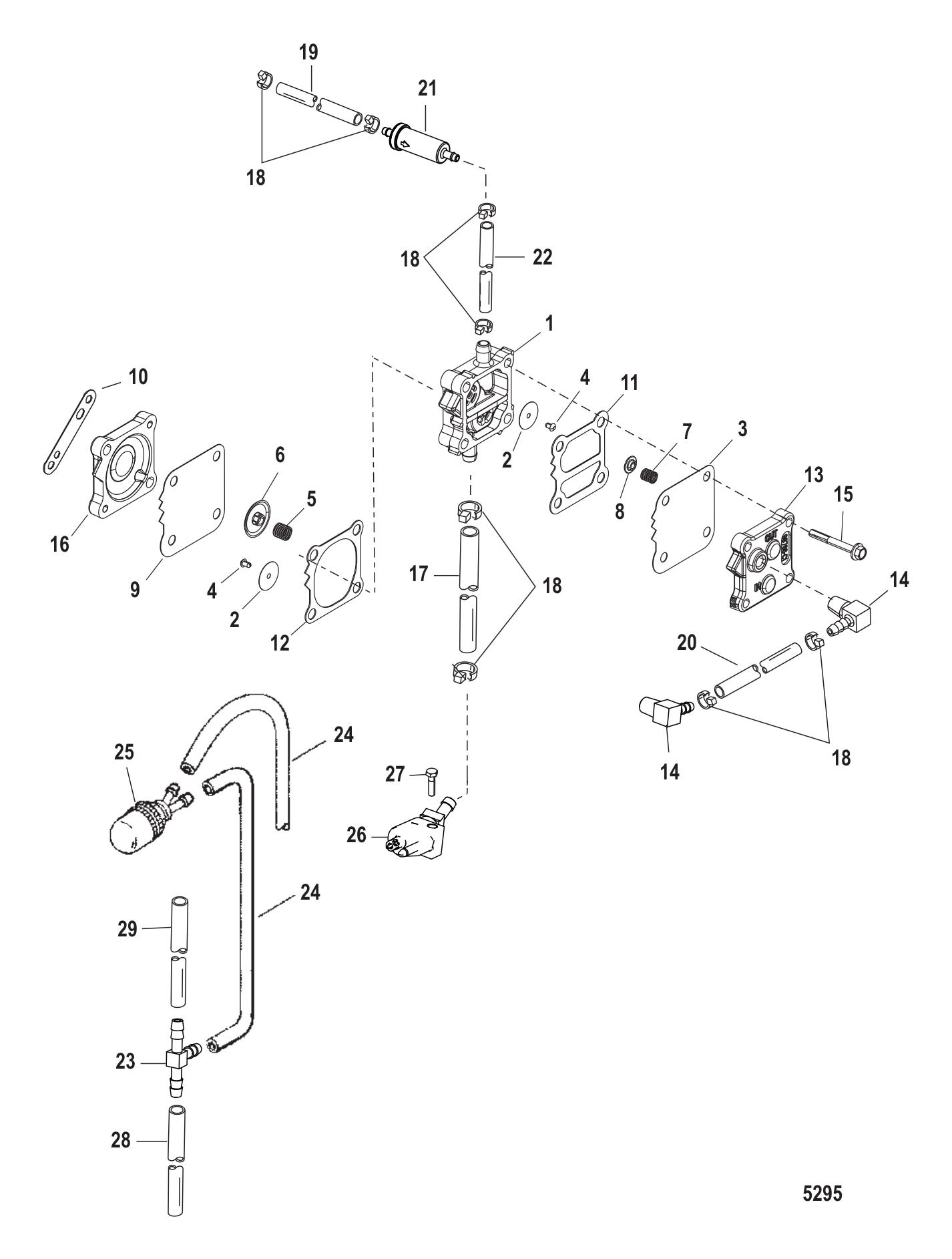

Fuel Pump (Manual)

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	14360A78	PUMP KIT-FUEL (1 required per assembly) — Replaces: 14360A71
		14360A78 - Fuel Pump Kit [ More info ] $308.49 4 In Stock.
#-	852067T98	PH 40/50 3 CYL (1 required per assembly)
		852067T98 - Powerhead 40/50 3 Cyl [ More info ] Unavailable
#-	828553A97	GASKET SET (1 required per assembly)
		27-828553A97 - Engine Gasket Set [ More info ] $93.94 1 In Stock.
#1	NSS	NOT SOLD SEPARATE (Fuel Pump) (1 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#2	857005A1	DIAPHRAGM KIT (2 required per assembly)
		21-857005A 1 - Fuel Pump Diaphragm Kit [ More info ] $33.99 10+ In Stock.
		18-7817 - Fuel Pump Kit [ More info ] $25.49 $23.60 10+ In Stock.
		1399-39020 - Fuel Pump REPAIR KIT [ More info ] $21.29 $20.29 7 In Stock.
#3	NSS	NOT SOLD SEPARATE (Diaphragm Kit) (1 required per assembly)
#4	NSS	NOT SOLD SEPARATE (Retainer) (2 required per assembly)
#5	NSS	NOT SOLD SEPARATE (Spring) (1 required per assembly)
#6	NSS	NOT SOLD SEPARATE (Cap) (1 required per assembly)
#7	NSS	NOT SOLD SEPARATE (Diaphragm) (1 required per assembly)
#8	NSS	NOT SOLD SEPARATE (Cap) (1 required per assembly)
#9	NSS	NOT SOLD SEPARATE (Diaphragm) (1 required per assembly)
#10	8M0204705	GASKET @2 (1 required per assembly) — Replaces: 987691
		27-8M0204705 - Gasket Note: Priced Individually [ More info ] $3.89 3 In Stock.
#11	NSS	NOT SOLD SEPARATE (Gasket-Boost) (1 required per assembly)
#12	NSS	NOT SOLD SEPARATE (Gasket-Pulse) (1 required per assembly)
#13	987752	PLATE (1 required per assembly)
		0987752 [ More info ] Unavailable Replaced by 3854336
		3854336 - TUBE ASSEMBLY [ More info ] Unavailable
#14	433351	CONNECTOR 90 DEGREE - WITH VIBRASEAL (2 required per assembly) — Replaces: 43335
		0433351 - Silencer Assembly, Air (433351) [ More info ] Unavailable
#15	82104540	SCREW (M5 X 40) (2 required per assembly)
		10-821045 40 - Screw [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#15	82130050	SCREW (M6 X 50) (2 required per assembly)
		10-821300 50 - Screw [ More info ] $4.49 $2.53 10+ In Stock.
#16	144303	BASE (1 required per assembly)
		14430 3 - Base [ More info ] $17.09 Available to Order: Shipping delay up to 10 days.
#17	8M0108349	HOSE (70 INCHES BULK) (22 INCH) (1 required per assembly) — Replaces: 830757130, 8M0047448
		32-8M0108349 - Hose-70 Inch [ More info ] $66.31 1 In Stock.
#18	816311T	TIE STRAP @100 (AR required per assembly)
		54-816311T - Tie Strap, 8 Inches, Priced Individually [ More info ] $0.60 10+ In Stock.
#19	830761	HOSE (1 required per assembly)
		32-830761 - Fuel Line [ More info ] $5.99 2 In Stock.
#20	9912878	HOSE (.187) (26.00 INCHES BULK) (CUT TO 4.25 INCH LENGTH) (1 required per assembly)
		32-99128 78 - Tubing - 26.00 Inch [ More info ] $33.63 3 In Stock.
#21	816296Q2	FILTER-FUEL @3 (1 required per assembly)
		35-816296Q 2 - Fuel Filter - Priced Individually [ More info ] $10.39 8 In Stock.
		18-7830 - Inline Filter 5/16 [ More info ] $8.62 10+ In Stock.
		35-816296K 2 - Fuel Filter - Priced Individually [ More info ] $11.39 10+ In Stock.
#22	831949	HOSE (1 required per assembly)
		32-831949 - Hose [ More info ] $7.49 3 In Stock.
#23	59169003	FITTING @2 (1 required per assembly) — Replaces: 591692
		22-59169003 - Fitting - Priced Individually [ More info ] $5.99 2 In Stock.
#24	892024122	TUBING (240.00 INCHES BULK) (CUT TO 9.50 INCH LENGTH) (2 required per assembly) — Replaces: 99130122
		32-892024122 - Tubing - 20 Feet [ More info ] $49.32 1 In Stock.
#25	858763	PRIMER (1 required per assembly)
		858763 - Primer Bulb [ More info ] $99.99 Available to Order: Shipping delay up to 10 days.
#26	816856T01	CONNECTOR-FUEL (1 required per assembly) — Replaces: 816856A1
		22-816856T01 - Fuel Connector [ More info ] $39.43 1 In Stock.
#27	4000332	SCREW (1 required per assembly)
		10-40003 32 - Screw [ More info ] $2.29 Available to Order: Shipping delay up to 10 days.
#28	892024122	TUBING (240.00 INCHES BULK) (CUT TO 5.50 INCH LENGTH)5-1/2 INCH) (1 required per assembly) — Replaces: 99130122
#29	892024122	TUBING (240.00 INCHES BULK) (CUT TO 1.50 INCH LENGTH)1-1/2 INCH) (1 required per assembly) — Replaces: 99130122
