Parts for 30 (2 Cyl.) 2-Stroke Carbureted Mercury Outboard Motor Crankshaft / Piston / Flywheel

Revise Search: Outboard > 2-Stroke Carbureted Mercury Outboard > 30 (2 Cyl.) > 0G760300 - 0T979999 - USA > Crankshaft / Piston / Flywheel

NEED PARTS OR KITS?
View diagram and parts list below. Tap to zoom. Scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

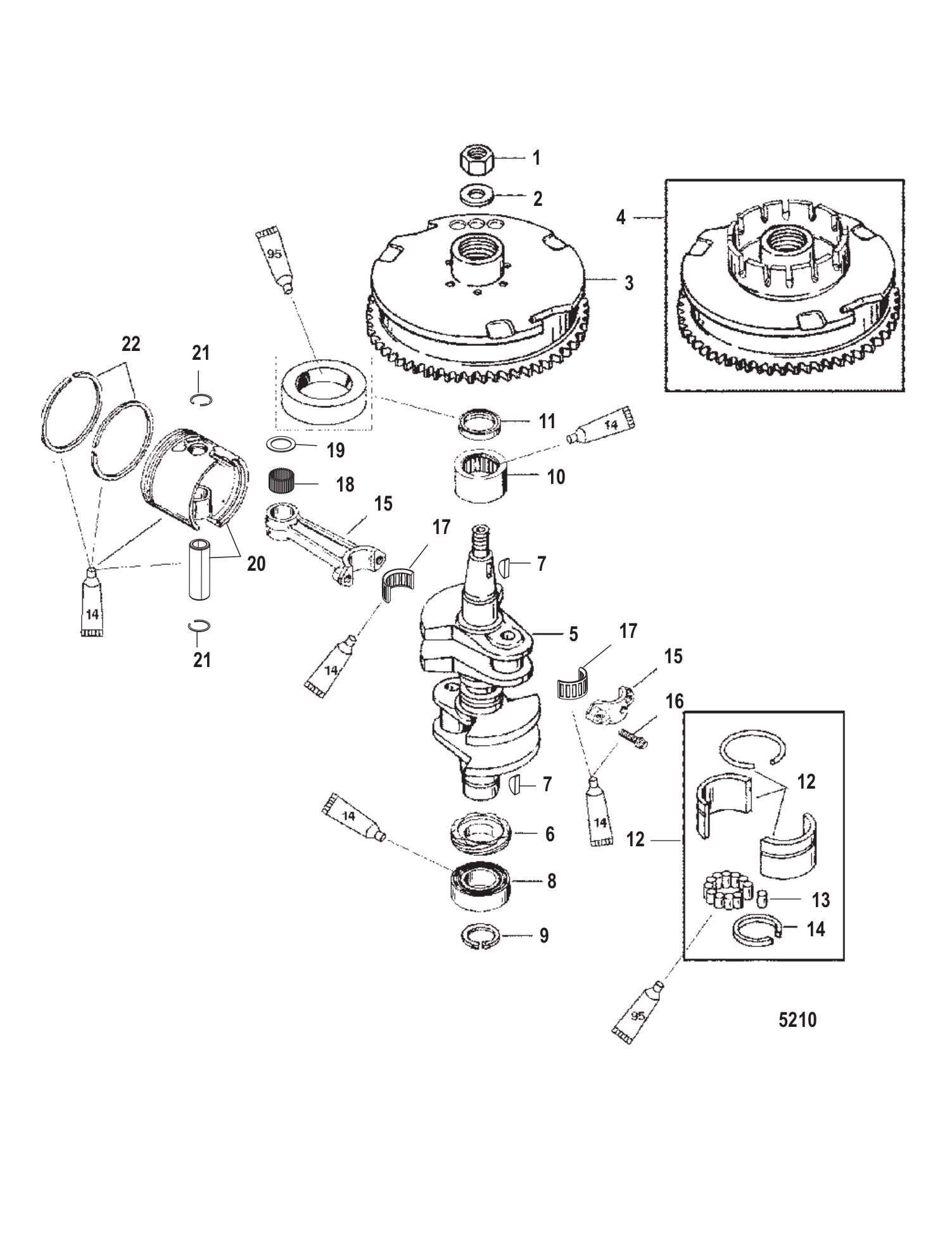

Crankshaft / Piston / Flywheel

Reference numbers in this diagram can be found in a light blue row below — scroll down to order.
Each product listed is an OEM or aftermarket equivalent part. [ Example ]

#-	808569T02	PH 30-2S 2CYL 30 HP (1 required per assembly)
		808569T02 - Powerhead 30-2S 2CYL [ More info ] Unavailable
#-	8M0063311	PH 40-2S 2CYL 40 HP (1 required per assembly)
		618M0063311 - Powerhead 40-2S 2CYL [ More info ] Unavailable
#1	42979	NUT (1 required per assembly)
		11-42979 - Nut (M16 X 1.5) [ More info ] $4.49 Available to Order: Shipping delay up to 10 days.
#2	33001	WASHER @2 (1 required per assembly) — Replaces: 68229
		12-33001 - Washer, Flywheel Nut [ More info ] $11.59 Available to Order: Shipping delay up to 10 days.
#3	859233T22	FLYWHEEL (Electric) (1 required per assembly) — Replaces: 859233T2, 859233T12
		261-859233T22 - Flywheel [ More info ] Unavailable
		261-859233T23 - Flywheel [ More info ] $614.49 Available to Order: Shipping delay up to 10 days.
#4	859233T14	FLYWHEEL (Manual) (1 required per assembly) — Replaces: 9008A76, 859233T4
		261-859233T14 - Flywheel [ More info ] Unavailable
		261-859233T20 - Flywheel [ More info ] Unavailable
		261-859233T24 - Flywheel [ More info ] $371.49 Available to Order: Shipping delay up to 10 days.
#5	821369T01	CRANKSHAFT ASSY (1 required per assembly) — Replaces: 821369A1
		493-821369T01 - CrankShaft Assembly [ More info ] Unavailable
#6	43019A2	GEAR ASSEMBLY DRIVER (1 required per assembly)
		43-43019A 2 - Driver Gear Kit [ More info ] $72.99 Available to Order: Shipping delay up to 10 days.
#7	91800	KEY WOODRUFF (2 required per assembly)
		28-91800 - Key - Priced Individually [ More info ] $3.05 4 In Stock.
#8	63742T	BEARING BALL (1 required per assembly)
		30-63742T - Ball Bearing [ More info ] $33.49 Available to Order: Shipping delay up to 10 days.
		18-1154 - Bearing, 30-63742, 377139 [ More info ] $30.57 In Stock
		31-01988 - Lower Crank Bearing, Mercury 30-63742T, OMC 377139 [ More info ] $28.99 $22.18 2 In Stock.
#9	812877	RING RETAINING (1 required per assembly)
		53-812877 - Ring - Retaining [ More info ] $2.79 Available to Order: Shipping delay up to 10 days.
#10	818889A1	BEARING KIT (1 required per assembly)
		31-818889A 1 - Roller Bearing [ More info ] $74.99 Available to Order: Shipping delay up to 10 days.
#11	8173971	SEAL OIL (1 required per assembly)
		26-817397 1 - Seal [ More info ] $10.39 Available to Order: Shipping delay up to 10 days.
#12	827955A2	BEARING ASSEMBLY CENTER MAIN (1 required per assembly)
		827955A 2 - Main Bearing Kit [ More info ] $126.49 Available to Order: Shipping delay up to 10 days.
#13	NSS	NOT SOLD SEPARATE ROLLER (14 required per assembly)
		NSS - NOT SOLD SEPARATE [ More info ] Unavailable
#14	NSS	NOT SOLD SEPARATE RING-SEAL (1 required per assembly)
#15	9612A6	CONN ROD ASSY (With Plastic Bearings) (2 required per assembly) — Replaces: 9612A7
		640-9612A 6 - Connecting Rod Assembly [ More info ] $479.99 Available to Order: Shipping delay up to 10 days.
#16	91012	SCREW (.250-28 SPECIAL) (4 required per assembly)
		10-91012 - Screw - Special - Priced Individually [ More info ] $7.89 Available to Order: Shipping delay up to 10 days.
#17	8M0045428	BEARING KIT (Plastic) (4 required per assembly) — Replaces: 17514A1, 17514A2
		31-8M0045428 - 31-8M0045428 - BEARING KIT [ More info ] Unavailable Replaced by -8M0234886
		8M0234886 CAGE BEARING [ More info ] $70.49 $70.25 Available to Order: Shipping delay up to 10 days.
#18	47270	BEARING (58 required per assembly)
		29-47270 - Needle Bearing [ More info ] $0.40 10+ In Stock.
		18-4036-9 - Bearing, 29-47270, 200PK [ More info ] $52.63 Available to Order: Shipping delay up to 10 days.
		29-8M0214934 - BRG-NEEDLE @200 [ More info ] Unavailable
#19	8M0012298	THRUST WASHER (4 required per assembly) — Replaces: 812876
		12-8M0012298 - Thrust Washer [ More info ] $5.29 6 In Stock.
#20	850026T3	PISTON KIT-STD (Standard) (2 required per assembly)
		705-850026T 3 - Piston Kit - Std [ More info ] $202.49 Available to Order: Shipping delay up to 10 days.
#20	850026T2	PISTON ASSY-.015 (.015 Oversize) (AR required per assembly)
		705-850026T 2 - Piston Assembly -.015 [ More info ] $229.11 1 In Stock.
#21	857196	LOCK RING (4 required per assembly)
		53-857196 - Lock Ring - Priced Individually [ More info ] $3.39 $2.72 10+ In Stock.
#22	821695A4	RING SET PISTON (Standard) (1 required per assembly)
		39-821695A 4 - Rings - Standard [ More info ] $148.65 1 In Stock.
#22	821695A1	RING SET PISTON (.015 Oversize) (1 required per assembly)
		39-821695A 1 - Rings - .015 [ More info ] $165.99 Available to Order: Shipping delay up to 10 days.
